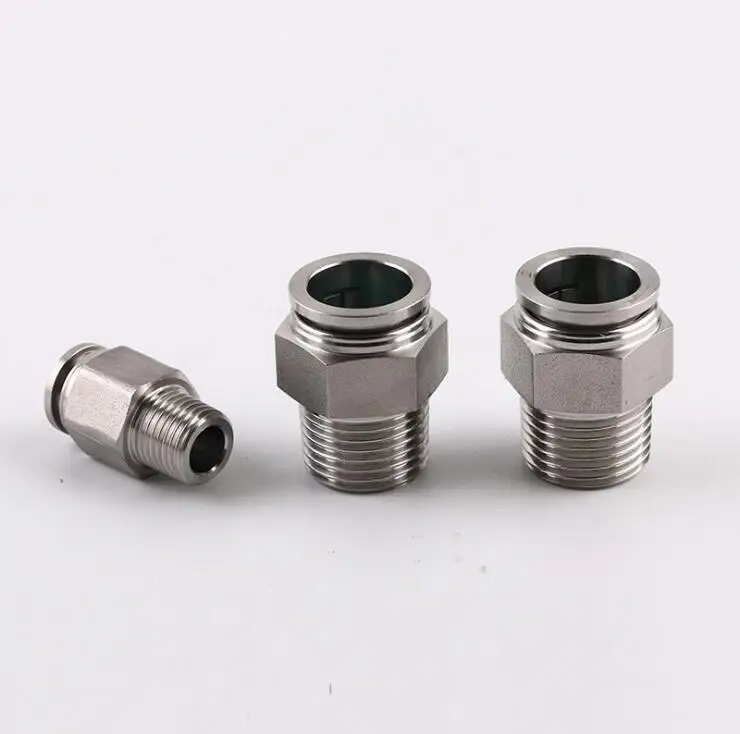

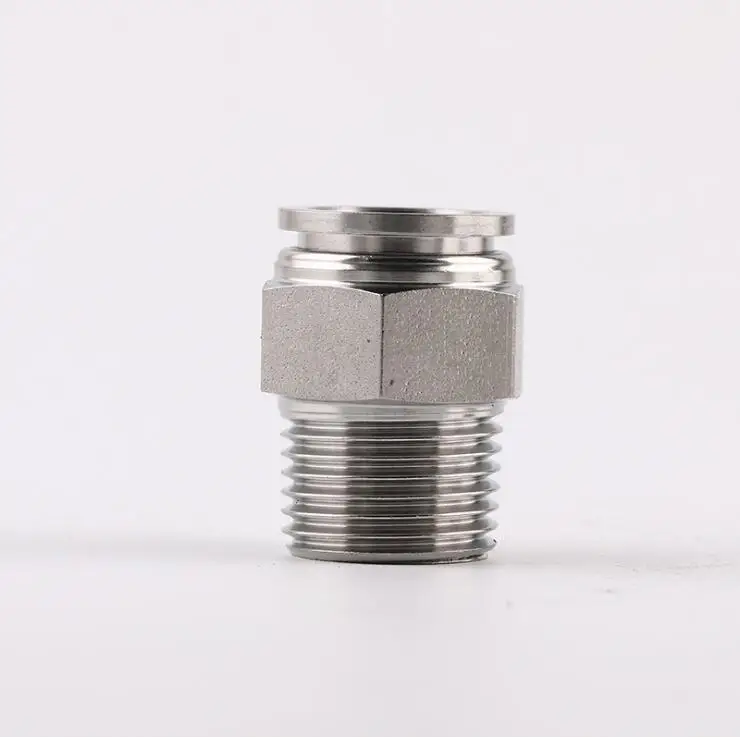

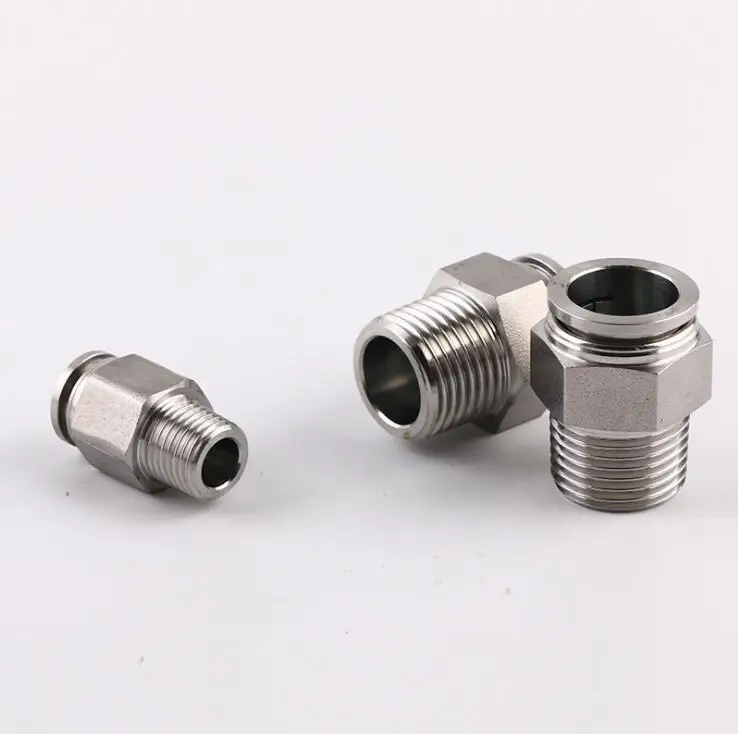

OD 4 6 8 10 12mm Internal Thread 1/8 1/4 3/8 1/2 BSP Thread MPCS Pneumatic Push Connect Straight male stainless steel fitting

Product Overview

Description

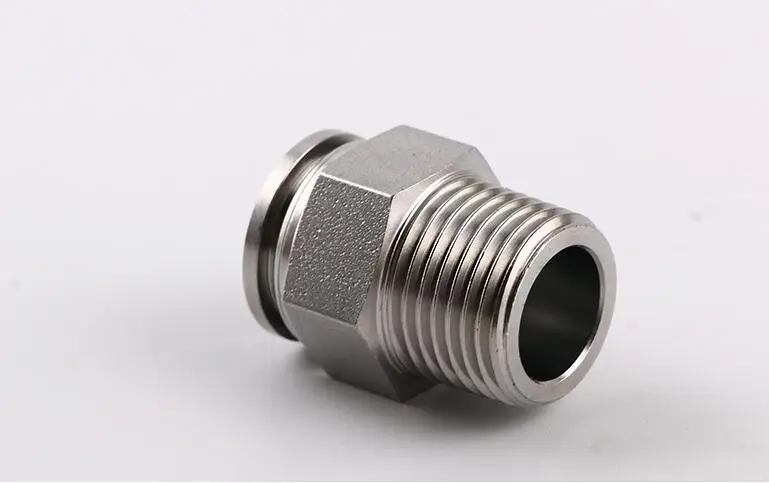

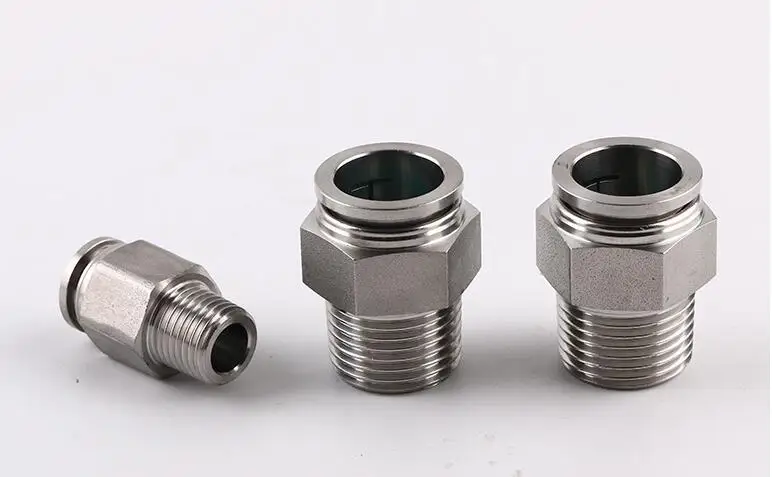

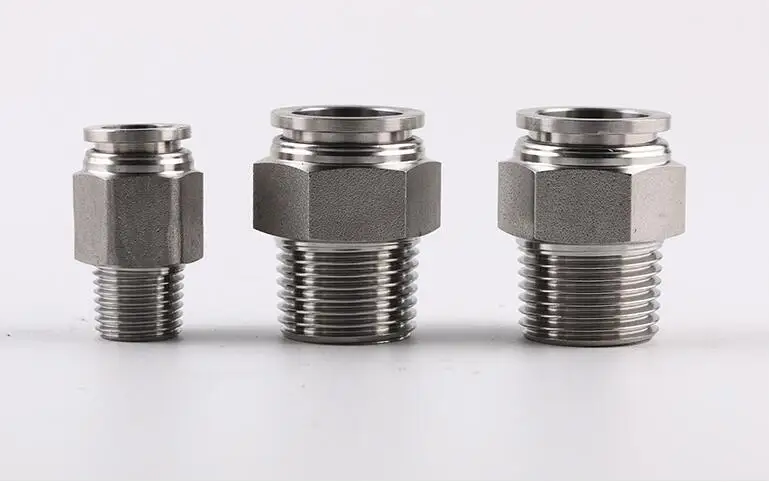

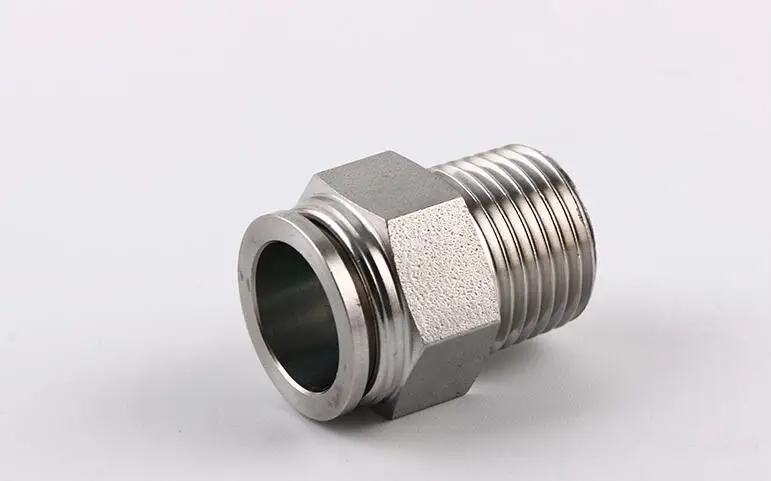

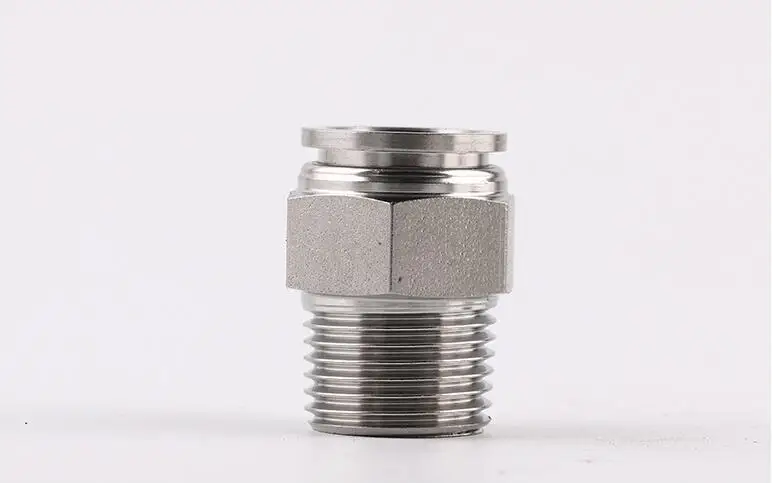

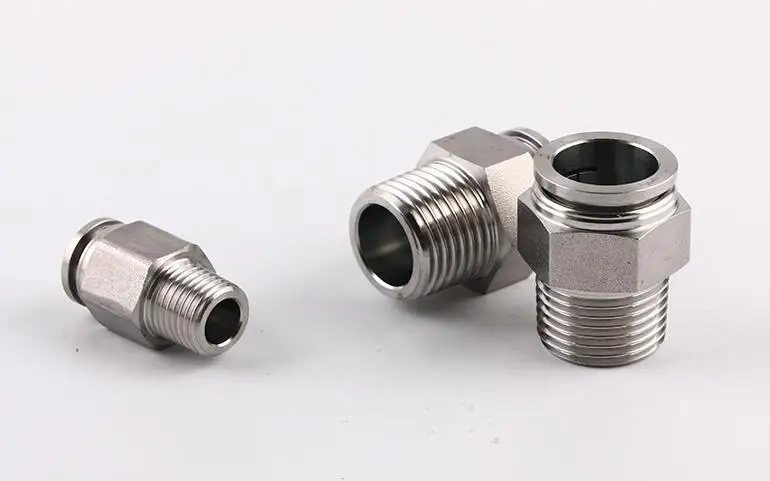

Stainless Steel Push Connect Straight male Connector

Pneumatic Mental Push-in Fittings



Push-In fittings with different shape, only one hand can be very convenient to insert the tube and pull out without any tools. The fitting with safety sealing, and it's thermostable. In addition, these pipe fittings meets repeated insertion and pull-out requirement. When it gets older along with the timed, MP series can easily be replaced.



Reliability - Rapid manual connecting and disassembling. Full flow
Compatibility - Works with the use of nylon, PU, Teflon tube

Adaptability - Hot and cold water systems, steam, machine tool, lathe Such as application if corrosive                               environment SP series



Tube OD:
04, 05, 06, 08, 10, 12, 14 mm
1/8, 1/4, 3/8, 1/2 Inch

Connections:
M5, G1/8, G1/4, G3/8, G1/2
R1/8, R1/4, R3/8, R1/2
N1/8, N1/4, N3/8, N1/2

Applicable to: Compressed Air, Fluid
Working pressure: 15 Bar
Temperature range: -20° C to +80° C (200° C )

Material:
Body: Brass Nickel-Plated
Gripper: Brass Nickel-Plated
O-ring: NBR or FKM/FPM
G = BSPP Conform ISO 228
R = BSPT Conform ISO 7
N = NPT Conform SAE AS 71051: 1999



Tube(Metric)-Thread(R)			Tube(Metric)-Thread(G)			Tube(Inch)-Thread(NPT)
Part #	øD(mm)	T(BSPT)	Part #	øD(mm)	T(BSPP)	Part #	øD(inch)	T(NPT)
MPCS4-M5	4	M5	MPCS04-G01	4	G1/8	MPCS1/8-U10	1/8	U10
MPCS4-01	4	R1/8	MPCS04-G02	4	G1/4	MPCS1/8-N01	1/8	N1/8
MPCS4-02	4	R1/4	MPCS06-G01	6	G1/8	MPCS1/8-N02	1/8	N1/4
MPCS6-M5	6	M5	MPCS06-G02	6	G1/4	MPCS5/32-U10	5/32	U10
MPCS6-01	6	R1/8	MPCS08-G01	8	G1/8	MPCS5/32-N01	5/32	N1/8
MPCS6-02	6	R1/4	MPCS08-G02	8	G1/4	MPCS5/32-N02	5/32	N1/4
MPCS8-01	8	R1/8	MPCS08-G03	8	G3/8	MPCS1/4-U10	1/4	U10
MPCS8-02	8	R1/4	MPCS08-G04	8	G1/2	MPCS1/4-N01	1/4	N1/8
MPCS8-03	8	R3/8	MPCS10-G01	10	G1/8	MPCS1/4-N02	1/4	N1/4
MPCS8-04	8	R1/2	MPCS10-G02	10	G1/4	MPCS1/4-N03	1/4	N3/8
MPCS10-01	10	R1/8	MPCS10-G03	10	G3/8	MPCS5/16-N01	5/16	N1/8
MPCS10-02	10	R1/4	MPCS10-G04	10	G1/2	MPCS5/16-N02	5/16	N1/4
MPCS10-03	10	R3/8	MPCS12-G02	12	G1/4	MPCS5/16-N03	5/16	N3/8
MPCS10-04	10	R1/2	MPCS12-G03	12	G3/8	MPCS3/8-N02	3/8	N1/4
MPCS12-02	12	R1/4	MPCS12-G04	12	G1/2	MPCS3/8-N03	3/8	N3/8
MPCS12-03	12	R3/8				MPCS3/8-N04	3/8	N1/2
MPCS12-04	12	R1/2				MPCS1/2-N02	1/2	N1/4
						MPCS1/2-N03	1/2	N3/8
						MPCS1/2-N04	1/2	N1/2
