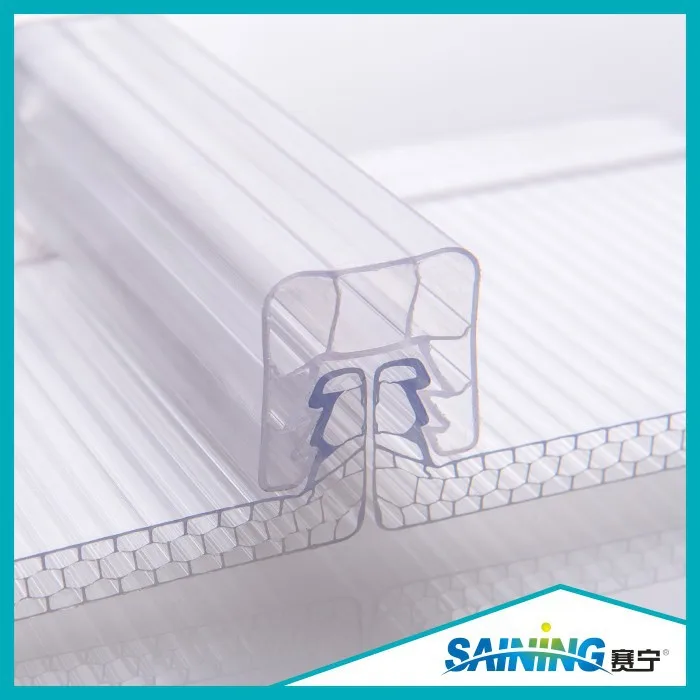

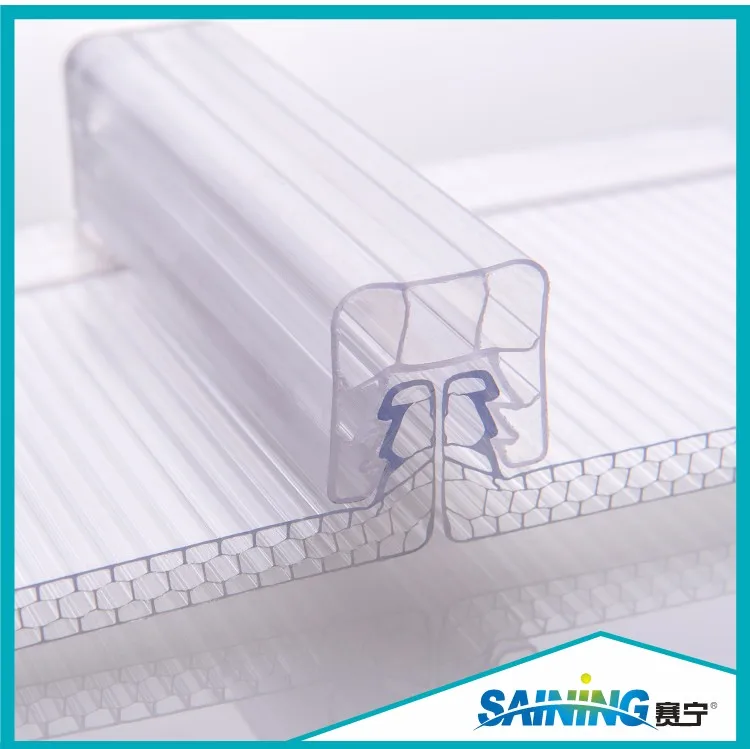

Fire proof polycarbonate sheet in 100% virgin lexan/makrolon resin,multi wall hollow lexan polycarbonate sheet
- Category: >>>
- Supplier: Hangzhou Saining Polycarbonate Sheet Co. Ltd.
Share on (60167513936):
Product Overview
Description
Product Description
Product description
Specifications
UV stablized twin-wall polycarbonate sheet
1.thickness available :4mm-12mm
2.Lexan/Bayer virgin material
3.UV and 5 to 10 years warranty
4.Surface treatment:Anti-drop coating
Welcome to>> Hangzhou Saining Polycarbonate Sheet Co.,Ltd.
Comprehensive presentation
Product description
Polycarbonate twin-wall sheet Product Standard & Technical Parameters
Product Standard
Conventional Color : transparent, , green, blue, Lake-blue, opal, bronze(brown), red , etc.
| Thickness(mm) | Weight(kg/m2) | Minimunbending radius(mm) | Minimun span | Transparency(%) | Sound insulation(db) |
| 4 | 0.80 | 700 | 1500 | 83 | 14 |
| 6 | 1.3 | 1050 | 2000 | 82 | 17 |
| 8 | 1.5 | 1400 | 2700 | 81 | 18 |
| 10 | 1.7 | 1750 | 3300 | 79 | 19 |
| 12 | 1.9 | 2100 | 3600 | 76 | 20 |
Technical Parameters
| Impact strengh | Transparency | Specifc grevity | Coefficient of thermal expansion | Service temperayure | Heat conductivity |
| 2.1j/m-2.3j/m | 40%-80% | 1.2g/cm³ | 0.065mm/m°C | -40°C—120°C | 3.0-3.9w/m²°C |
| Tensile strengh | Flexural strengh | Modulus of elasticity | Effect of sound insulation | Tensile stress at break | Elongation at break |
| ≥60N/mm | 100N/mm² | 2400Mpa | 10mm two laminates reduced 10db | ≥65Mpa | >100% |
Application
Main Products
Our Advantages
1.Good light transmission
2.Light weight and impact resistance
3.Sound insulation and Flame retardant
4.Excellent energy saving effect
5.Weather resistance(anti-fog/drop)
6.10 years of quality assurance
Company Information
Product Line
Packaging & Shipping
FAQ
1. Are you manufacturer or Trade Company?
We are professional factory, founded in 1996.OEM is acceptable
2. What's the order process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Customization--- We offers ultimate customization and personalized solutions.
d. Sample ---Standard sample of our factory.
e. Payment terms--- T/T 30% in advanced, balanced before shipment.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
3. What terms of payment you use?
T/T, PayPal, Western Union
4. Do you have any instant chat tool?
E-mail: hzsn(at)hzsn.com.cn
