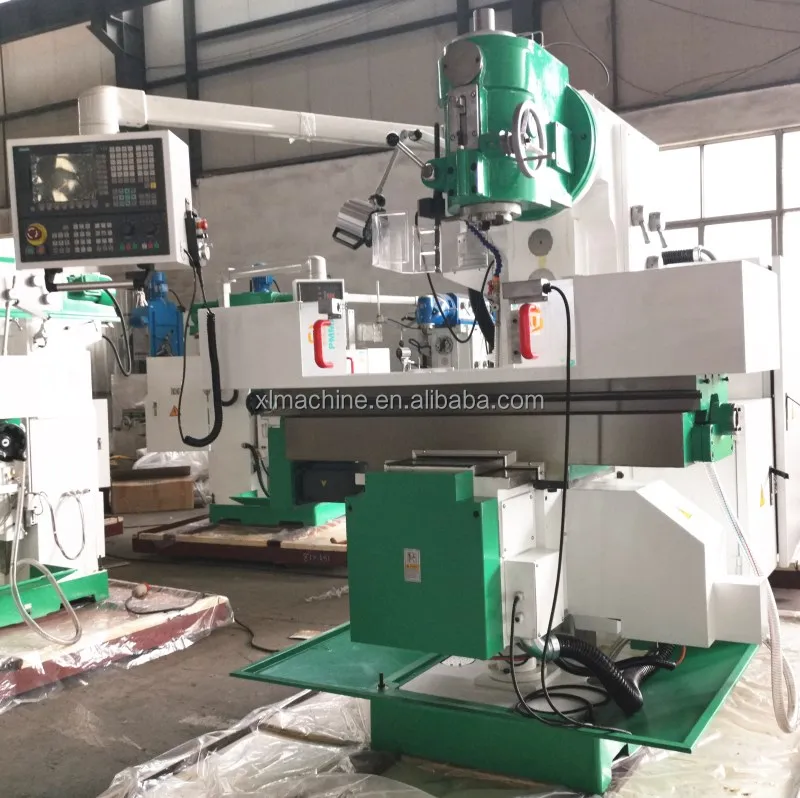

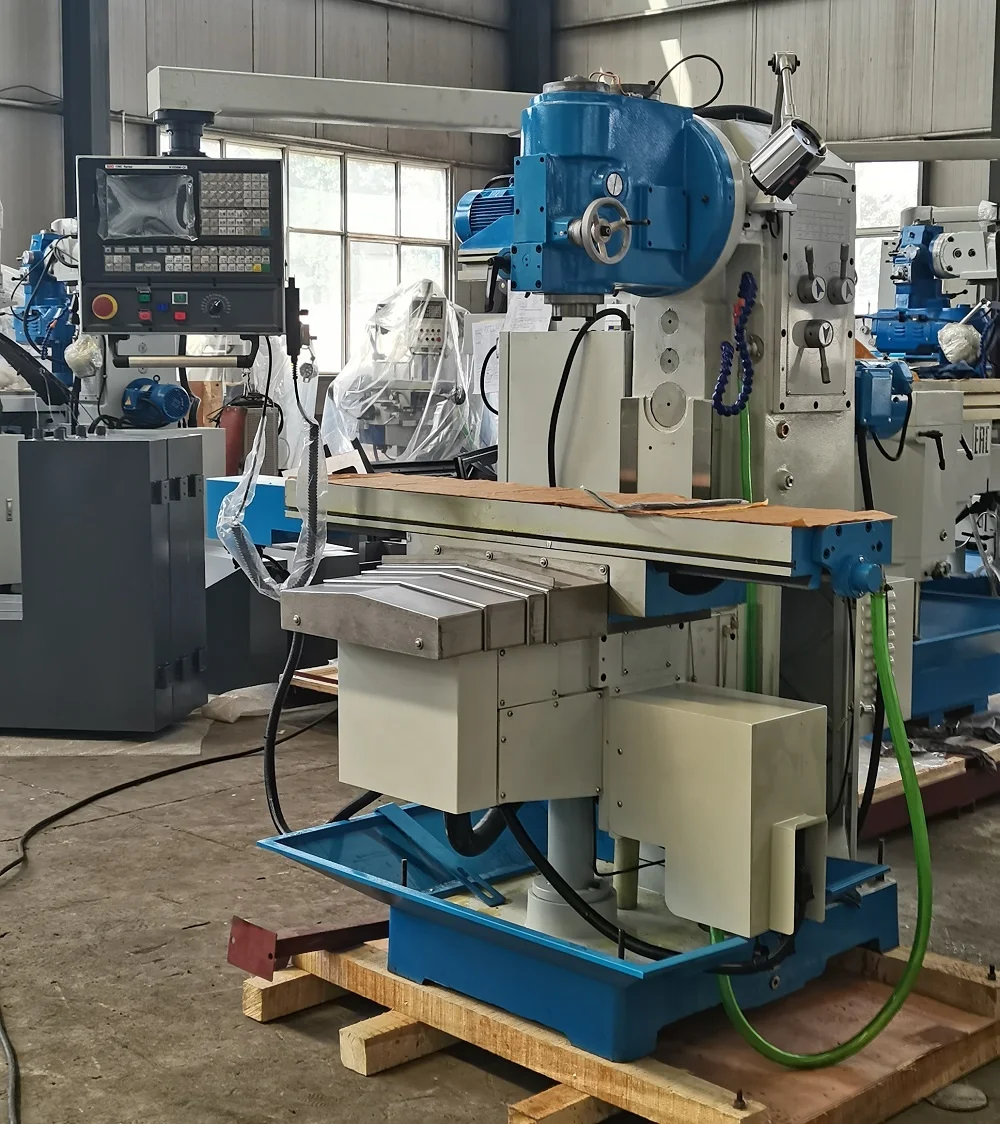

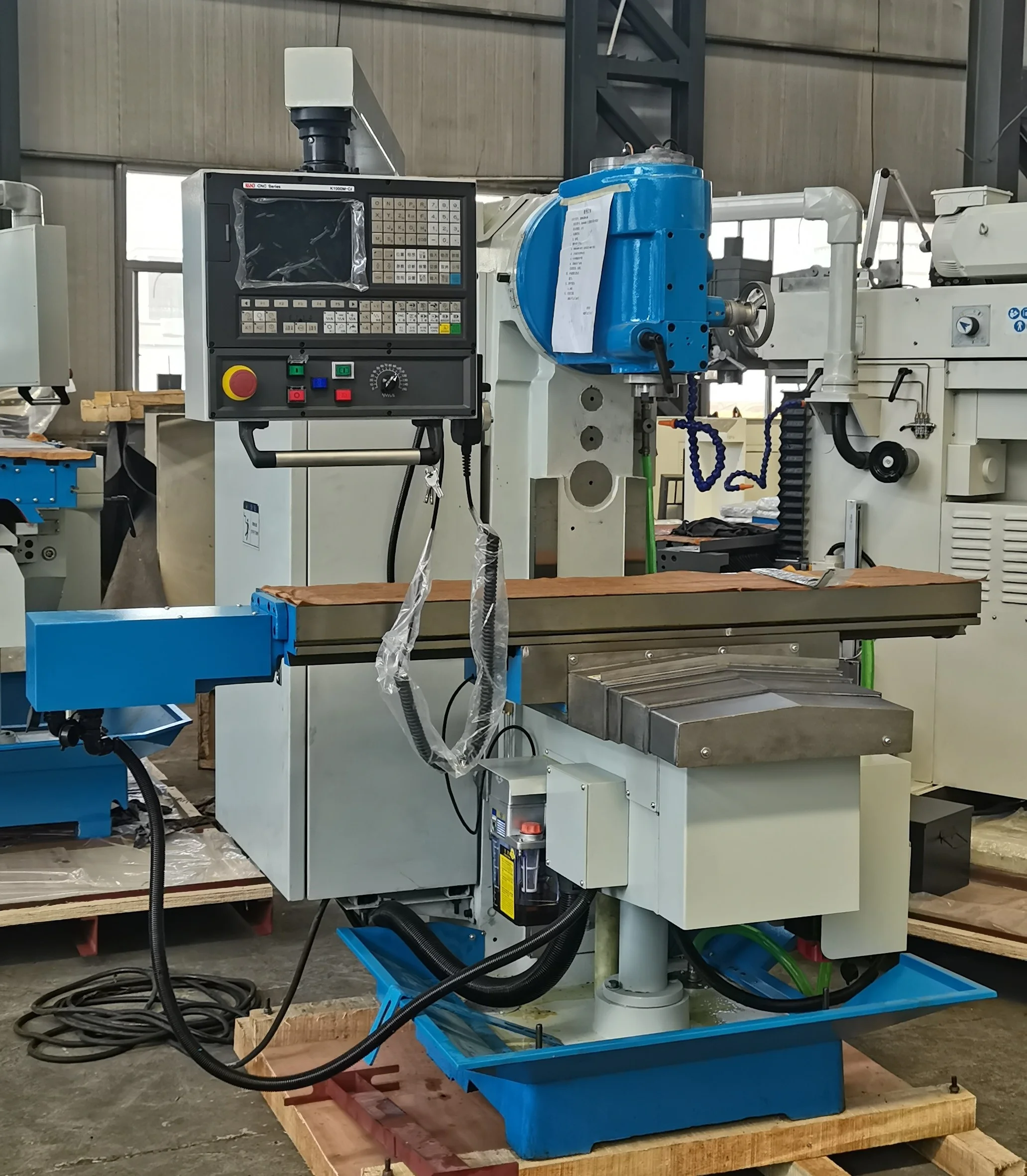

XLK5030 Mini Mill CNC Machine cnc mini milling machines
XLK5036C vertical cnc milling machine(big model) XLK5030 vertical cnc milling machine (small model)
Brief Introduction
1). vertical type milling machine, with CNC controller
2). ±30° rotary head stock
3). gear driven spindle with 12 steps speed, good rigidity
2). ±30° rotary head stock
3). gear driven spindle with 12 steps speed, good rigidity

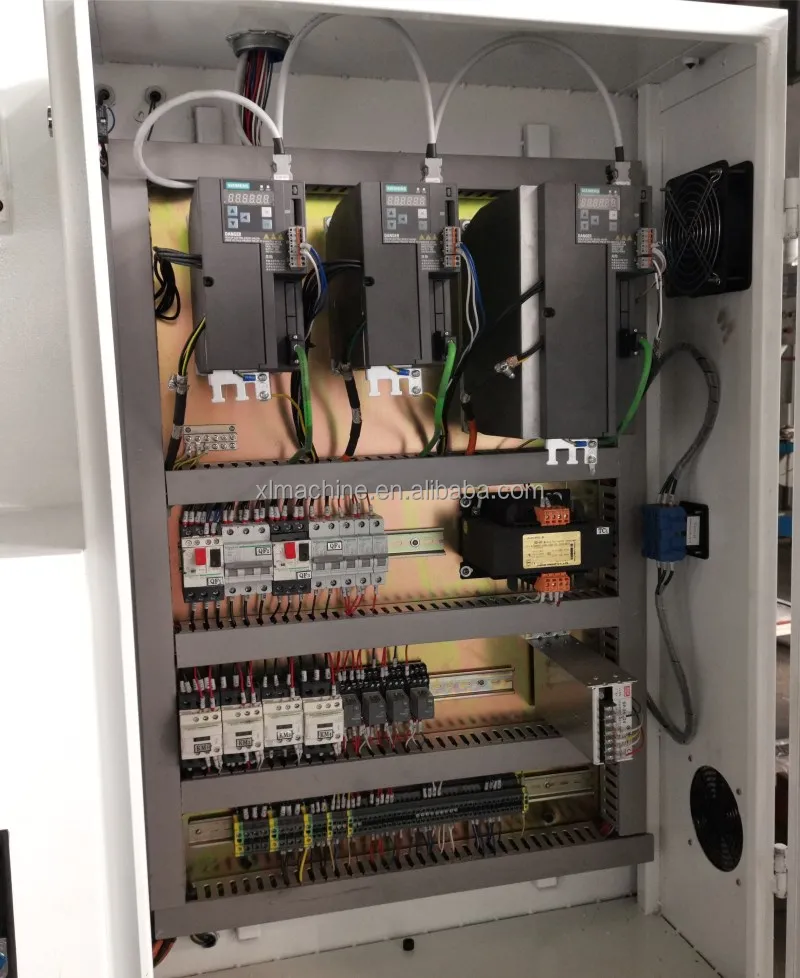

4). Siemens CNC system is standard, other system is available as per client's request
Specificaitons of This Series
ITEM | UNIT | XLK5030 | XLK5036C | XLK5036CL | ||
table size | mm | 1370*300 | 1325*360 | 1600*360 | ||
T-slots (N/W/D) | 3/14/80 | 3/18/70 | ||||
table travel (X/Y/Z) | mm | 820/300/400 | 1100/320/450 | 1300/320/450 | ||
table rapid speed (X/Y/Z) | mm/min | 4000/4000/3000 | ||||
spindle taper | ISO40 | ISO50 | ||||
spindle speed | rpm | 35-1500 | 50-1475 | |||
spindle speed steps | 12 steps | |||||
spindle stroke | mm | 70 | ||||
swivel angle of milling head | ±30° | |||||
distance from spindle nose to table surface | mm | 35-435 | 30-480 | |||
distance from spindle axis to vertical column | mm | 285 | 378 | |||
main motor power | kw | 3 | 5.5 | |||
torque of servo motor (X/Y/Z) | N.m | 10/10/15 | 10/10/18 | |||
overall size | mm | 1850*1680*1880 | 2245*2100*2150 | 2520*2100*2150 | ||
N.W. | kg | 1850 | 2850 | 2900 | ||
Our Company
Shandong XILI Machine Tool Co., Ltd. is located in Tengzhou City, Shandong Province.
We have nearly 30 years manufacturing history & more than 200 employees.

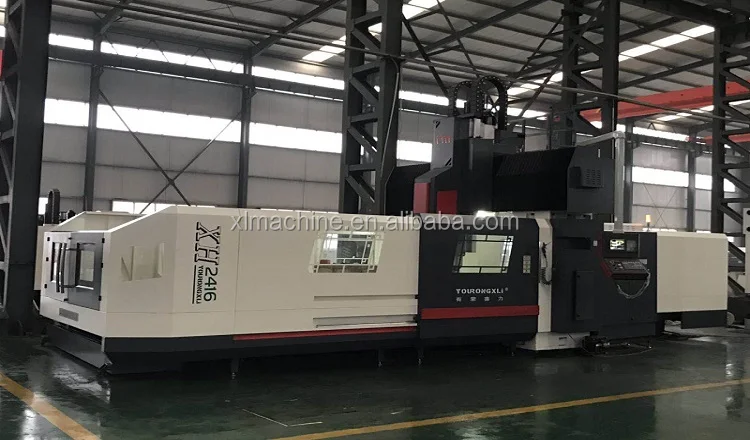

Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
Company is with CE, ISO certificates.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
Every year, we attend several exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
