2 WE67K Steel Plate Hydraulic tandem Bending Machine,Press brake in tandem

Product Overview

Description

2-WC67Y Steel Plate Hydraulic tandem Bending Machine| 2-WC67Y Steel Plate Hydraulic tandem Bending Machine| 2-WC67Y Steel Plate Hydraulic tandem Bending Machine



Feature:

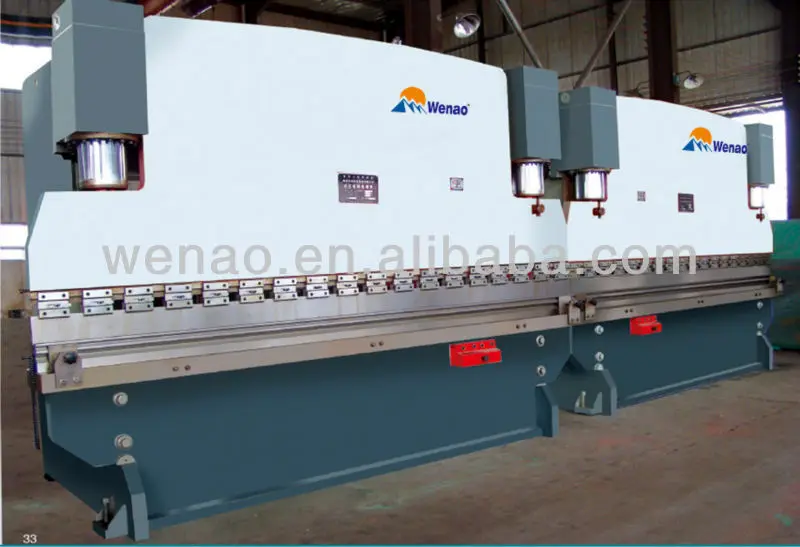

1.Two WE67Y series machines to be chosen, equipped with tandem synchronous devices.



2.Tandem press bake is able to process very long workpiece with high accuracy.



3.The two machines can be used alone to enhance production efficiency.



4.Upper worktable equipped with automatic hydraulic deformation compensation device or mechanical compensation device.



5.DelemDA52, DA56, DA65W, DA69 or Switzerland Cybelec DNC84, DNC1200 CNC Press Brake system can be used.



2-WE67K Hydraulic CNC Press Brake:

Specification:

Model	2-200/6000	2-250/6000	2-300/6000	2-300/7000	2-400/7000	2-500/7000	2-600/7000	2-800/7000	2-1000/7000	2-1200/7000
Nominal pressure(mm)	2×2000	2×2500	2×3000	2×3000	2×4000	2×5000	2×6000	2×7000	2×10000	2×12000
Table length (mm)	2×6000	2×6000	2×6000	2×7000	2×7000	2×7000	2×7000	2×7000	2×7000	2×7000
Throat depth(mm)	400	600	650	650	800	800	1000	1100	1100	1100
Slider stroke(mm)	200	200	250	250	320	320	320	320	320	320
Max opening height (mm)	560	640	670	670	840	840	1000	1100	1100	1100
Main motor power(Kw)	2×18.5	2×18.5	2×22	2×22	2×37	2×37	2×37	2×55	2×55	2×55
L×W×H External dimensions(mm)	2×6000 2050 2190	2×6080 2450 4260	2×6080 2450 4380	2×7300 2525 4380	2×7300 2675 5040	2×7300 2675 5440	2×7300 2930 6280	2×7300 3100 7500	2×7300 3100 7500	2×7300 3100 7600
Machine weight(kg)	2×20000	2×25000	2×30000	2×35000	2×45000	2×60000	2×70000	2×80000	2×100000	2×120000



Main features:

Steel welded structure, vibrating treatment to remove the inter stress, with high strength and good rigidity

1.Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision

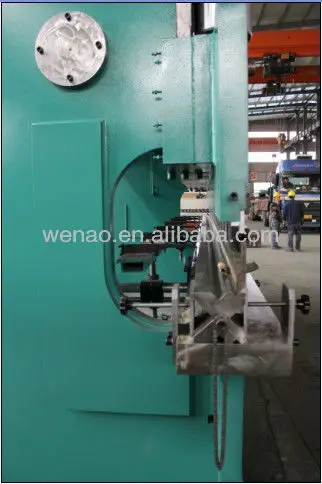

2. Motorized-adjusting device of back gauge and ram stroke, fine adjusting by hand wheel, numerical display

3.Travel limit protection, full machine guarding with safety interlocker

4.Two cylinders controlling beams vertical moving

5.Mechanical torsion synchronization

6.Integration hydraulic system

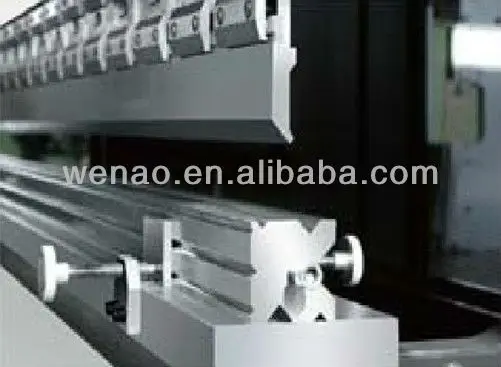

7.Standard punches and dies

8.Hanging arm control panel

9.Foot pedal with emergency stop



Performance:

1. Use two or more than two WC67E series machines;

2. Providing duplek linked or multiplex synchronous device;

3. The linked braked can produce unususlly long workpieces;

4. Especially suitable for city building, expressway lamp poles, automobile beams and so on;

4 The linked brake can be used alone, in order to raise production efficiency;

5. We can desigh and produce for special order.



Main components:

Integrated hydraulic system-OMEGA-USA

SIEMENS main electric parts-GERMAN

Axial plunger pump-SHANGHAI

HENGLI main motor

Japan VALQUA seals-JAPAN

380V/50HZ/3PH
