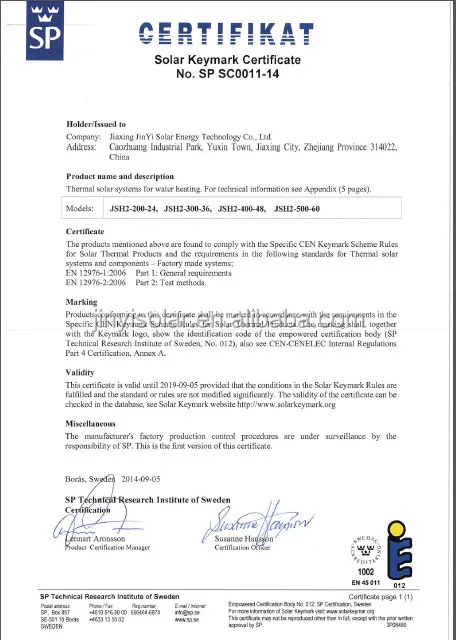

EN12976 Certificated Split Pressured Water Solar Heater System Kit

Product Overview

Description







                1. We have 14 year history/experience in manufacture solar water heater products, include solar collectors, Cylinders;



                2. We are a directly manufacturer, have our own factory, we manufacture: Pressure stainless steel cylinder, heat pipe/U-type solar collector, split pressure/heat pipe pressure/nonpressure solar water heater.etc;



                3. We are near Shanghai city for 25minutes by train, it’s convenience for you to visit us, welcome!



                4. Our factory is 12000 square meter big, our showroom is 100 square meter big;



                5. We 100% test each cylinder with 10Bar/1.0MPa pressure to avoid leakage problem;



                6. We produce each order strictly with the Auto CAD drawing paper.



                7. Our production capacity is 3000 units/month;

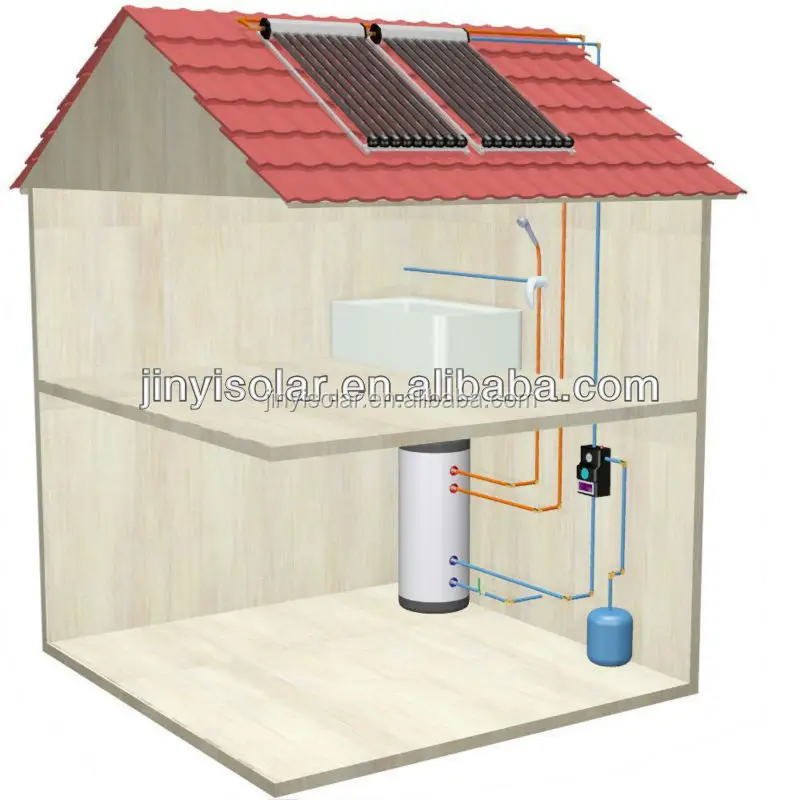

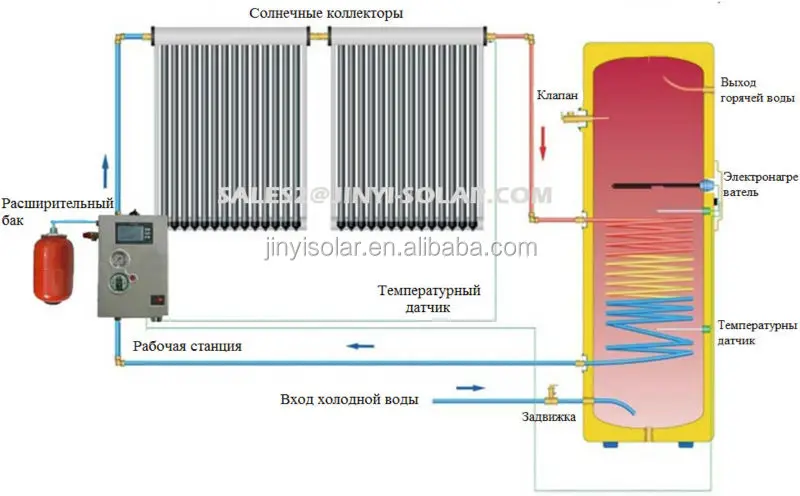

            JinYi Split Pressured Water Solar Heater System  is an active system. It uses a solar workstation the fluid between heat pipe solar collector and pressurized water tank. Tank and solar collector are separate, solar collector could be installed on the roof or somewhere sunshine could shine on, while tank, solar workstation could be installed anywhere of the building. The piping between the main components is twin way pre-insulated solar hose. one coil system is suit for climates where there is risk of freezing. it is the simplest and the most typically and the least expensive active system. The system operates at standard line pressure. The system integrates easily with existing systems.

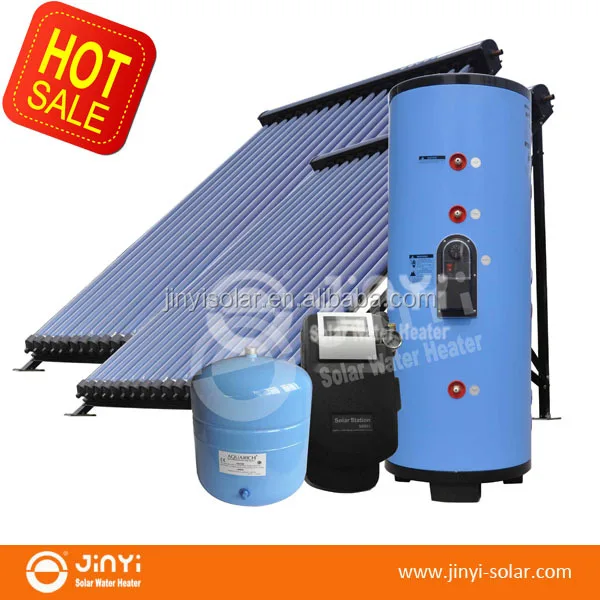

200Liters  Split Pressured Water Solar Heater System Kit
Model	JSH2-200-24
Components
Solar Water Tank	1 x 200L pressurized tank with 2 SS coils(including T/P valve, Magnesium rod, Electric Heater)

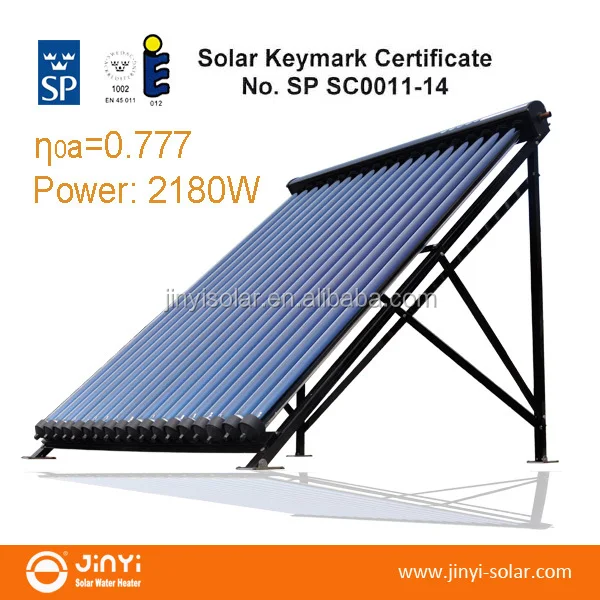

Solar Collector	1 x 24tubes heat pipe vacuum tube solar collector(Flat roof or Sloped roof installation)
Work Station	1 x SR881 Pump station(including  Wilo RS15/6, SR868C9 controller, safety valve, manometer)
Expansion Vessel	1 x 18L Expansion Vessel with wall mountings
Connection kits	1 x  Brass Connectors (including Adaptor,Coupling, Straight fitting, Manifold tee etc)
Auto air vent valve	1 x Auto air vent valve with shut-off valve
Solar Hose	1 x 15m or 20m twin pipe insulated flexible stainless steel pipe (optional)



   PART 1: Heat pipe solar collector



Model		JHC-5818-24
Numbers of Tubes		24
Length		1960mm
Width		1925mm
Absorber area(m2)		1.934
Inlet/outlet Connection		22mm
Working/Testing Pressure		6bar/12bar
Stagnation Temperature		221°C

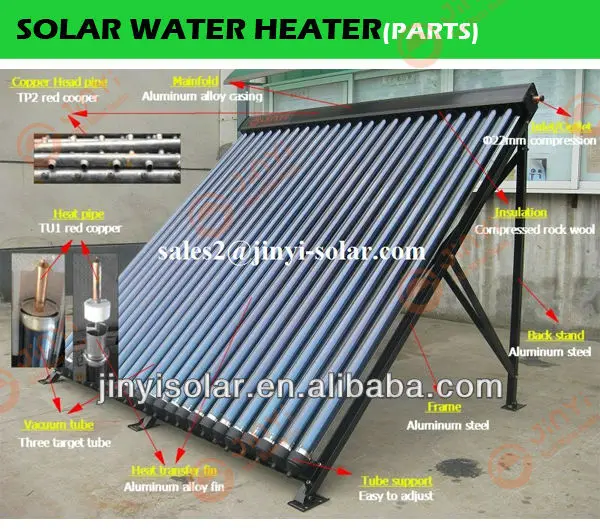

Vacuum tube Material		High borosilicate glass 3.3, 58*1800mm,ALN/SS-ALN/CU (Three target  tube)
Heat pipe Material		TU1 copper
Heat pipe Diameter		Condenser 14mm
Insulation Layer		Rock wool
Frame		Aluminium alloy,thickness:1.8mm



PART2: Solar Water Tank:



Model		JPT2-200
Capacity		200L
Inner tank	Material	SUS304 stainless steel
	Thicknes(mm)	1.5
	Diameter(mm)	440
Outer tank	Material	Colored steel
	Thickness(mm)	0.5
	Diameter(mm)	540
Insulation Layer	Material	One-off molding polyurethan foam
	Thcikness(mm)	50
	Density	42kgs/m3

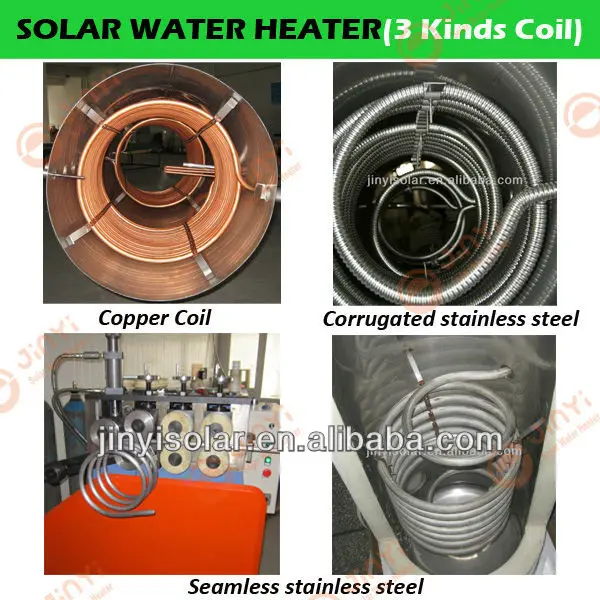

Heat Exchanger	Material	Copper or Stainless steel
	Diameter	22mm
	Length	10m
	No.	2pcs
