Gravity Separation Equipment Falcon Type Concentrators For Gold

Product Overview

Description

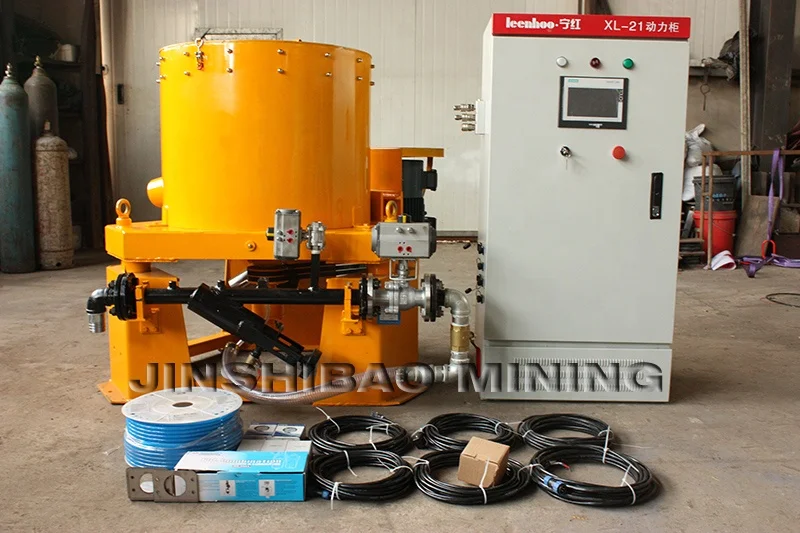

Gravity Separation Equipment Falcon Type Concentrators For Gold



1.Specification of Falcon concentrators



Model	STLB20	STLB30	STLB60	STLB80	STLB100
Fluidization Water (t/h)	1-2	4-6	10-15	20-30	17-25
Feeding Capacity(t/h)	1-2	2-3	10-20	30-40	50-80
Pressure Water(Mpa)	0.05-0.1	0.1-0.2	0.1-0.2	0.1-0.2	0.1-0.3
Feedinig Size(mm)	0-4	0-4	0-5	0-6	0-6
Feeding Density(%)	10-50	10-50	10-50	10-50	10-50
Motor Power (kw)	0.75	1.5	4	11	18.5
Concentrate Weight(kg)	2-3	10-20	25-40	45-60	70-80
Weight(kg)	160	600	1400	2200	3700
Dimensions(mm)	940*700*1000	1200*1250*1250	1850*1550*1600	2000*1800*1900	2300*2000*2300





2.Description of Falcon concentrators

Centrifugal concentrator is usually used for roughing separation during the gold separation flowchart to recover most of the useful minerals and get rid of most of the barren rocks.

Centrifugal concentrator is a new type of gravity concentration equipment for concentrating gold and other high density minerals.

The centrifugal machine gets many competitive advantages compared with other concentration machines which create high returns for the investors.



3.Application of Falcon concentrators

STLB centrifugal concentrator is a kind of centrifugal concentration equipment. It can be used in alluvial / river / placer gold mining, hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.

The cleaning up cycle is 1~4 hours. And the upgrade ratio is up to 1,000 times.

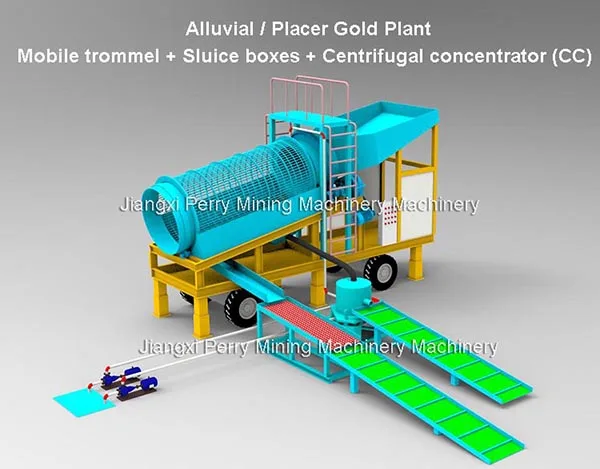

4.General flowchart of Falcon concentrators



Centrifugal concentrator is after gold washing machine for further beneficiation.

After that, concentrates will go to shaking table, and tailings into sluice box.





5.Features of Falcon concentrators

• High recovery rate: For placer gold mine over 98%, rock gold mine reach 98% .


• High efficiency: STLB60 with a capacity of 10-20t/h,  STLB100 with 50-80t/h.


• Easy to install: Only need a small leveled place to be installed.


• Easy to adjust: Only water pressure & feeding size affect the recovery result.


• Easy to operate: After setting, just need discharge the concentrates every 2-4 hours.


• No pollution: Only consumes the water and electricity, no chemical agent involved.


• Reliable:The bearing is greased to keep it running well.

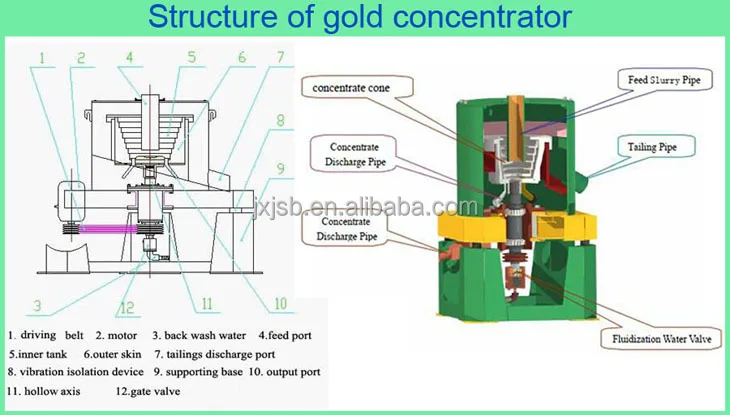

6.Structure and working principle of Falcon concentrators

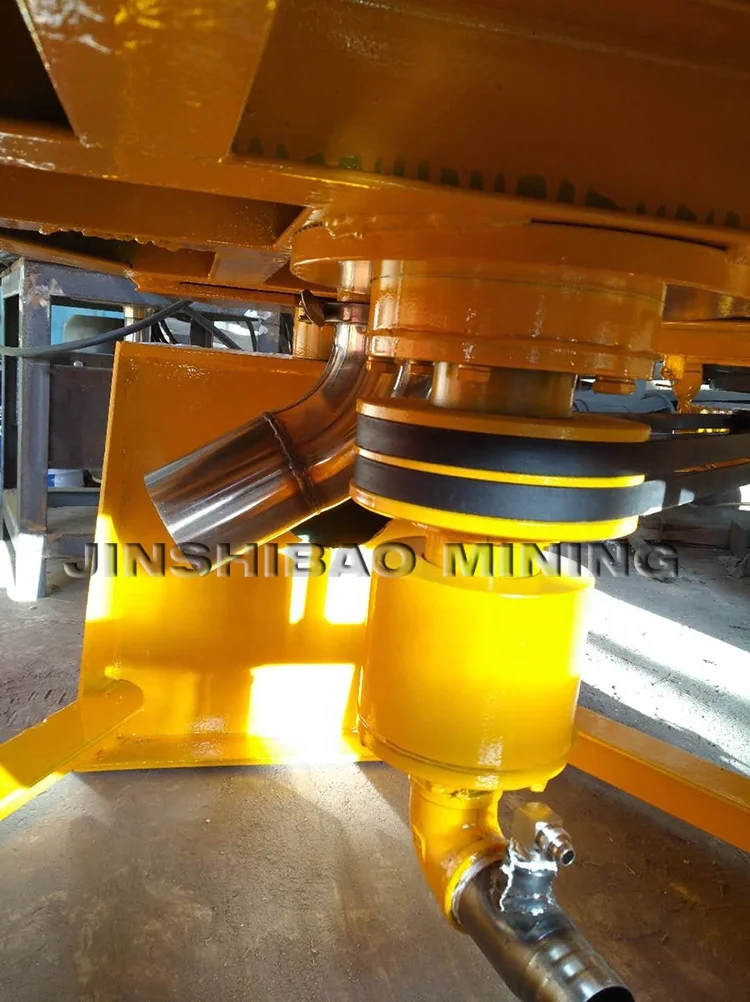

Principle: Motors to drive hollow shaft by the belt transmission, the high speed rotating set within the slot.

The mine materials is fed  into the inner sleeve slot insulation by feed pipe, ore material with sorting process intensification under the action of centrifugal force.

1) Concentrate stay in the slot;

2) Tailing discharge out by tailing pipe;

Via a shift operation, downtime will concentrate to expel from concentrate, and then into the next cycle.

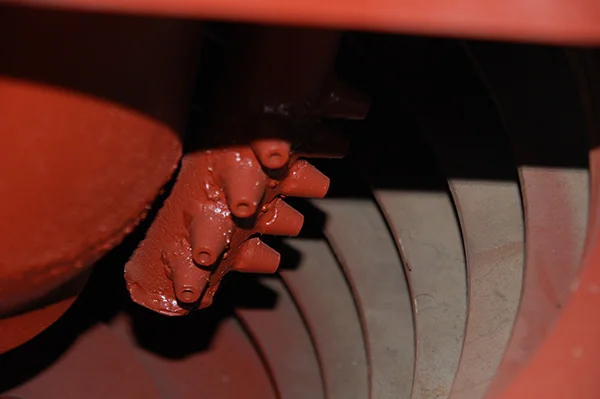

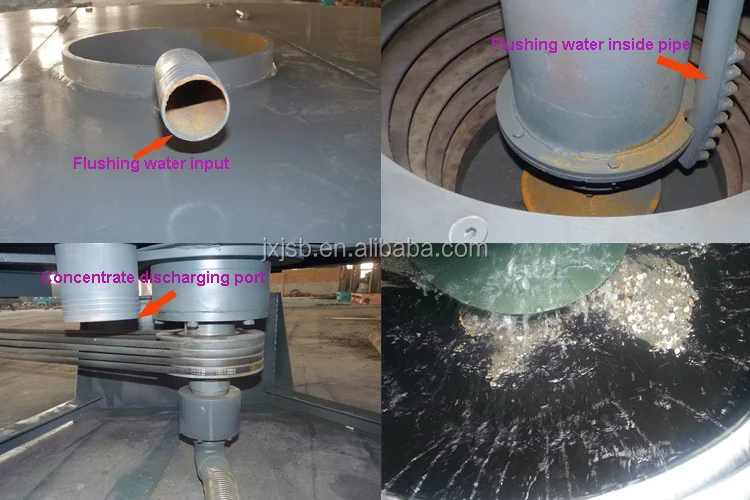

7. Advanced auto discharging type

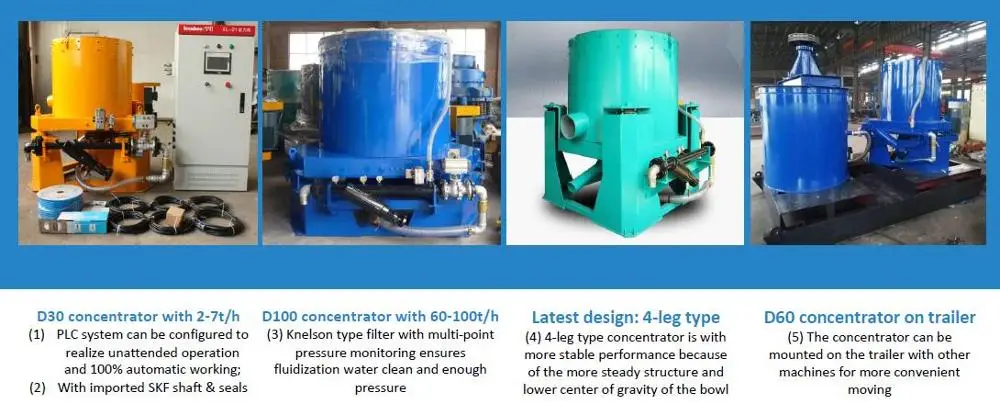

8.Models of Falcon concentrators

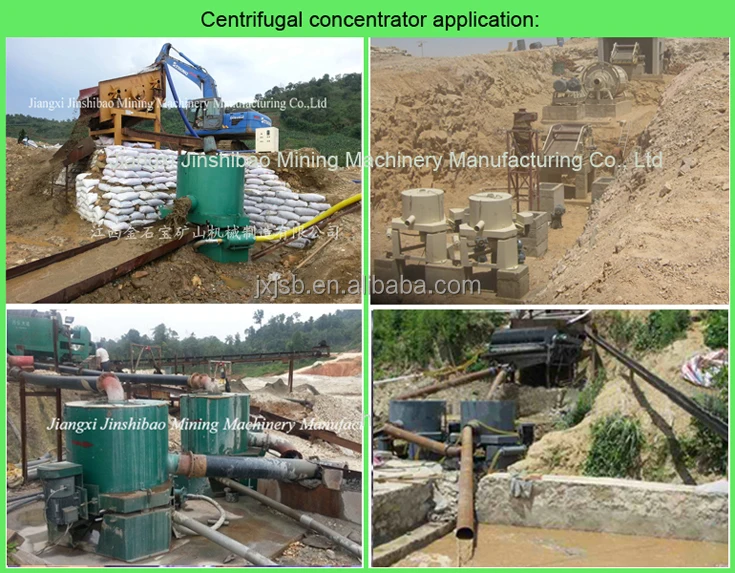

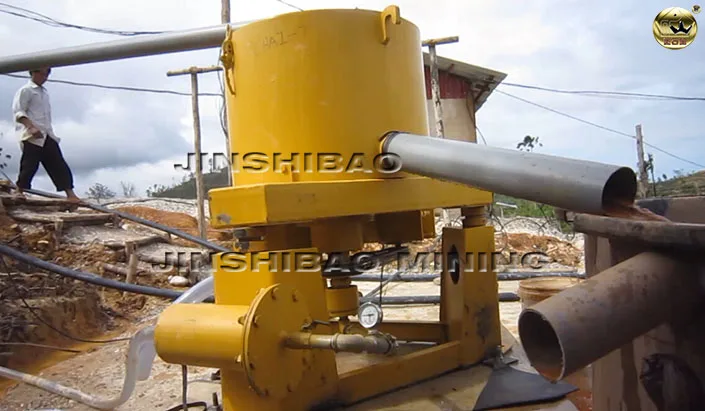

9.Successful cases of Falcon concentrators

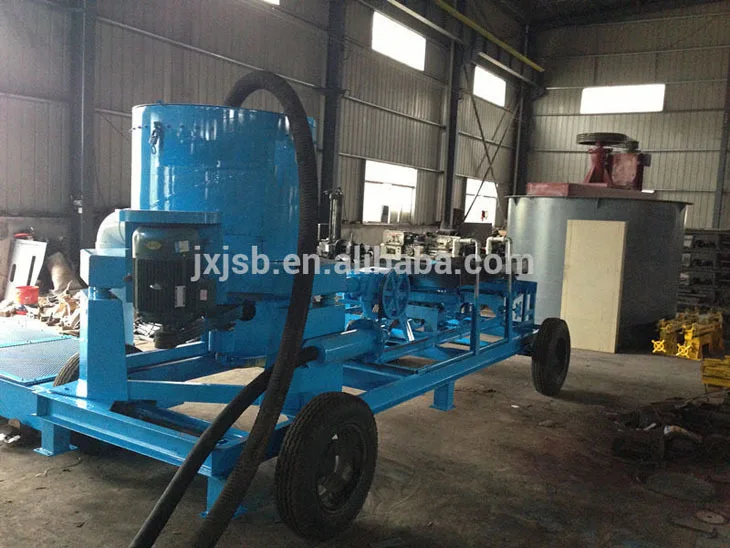

10.Mobile type of Falcon concentrators

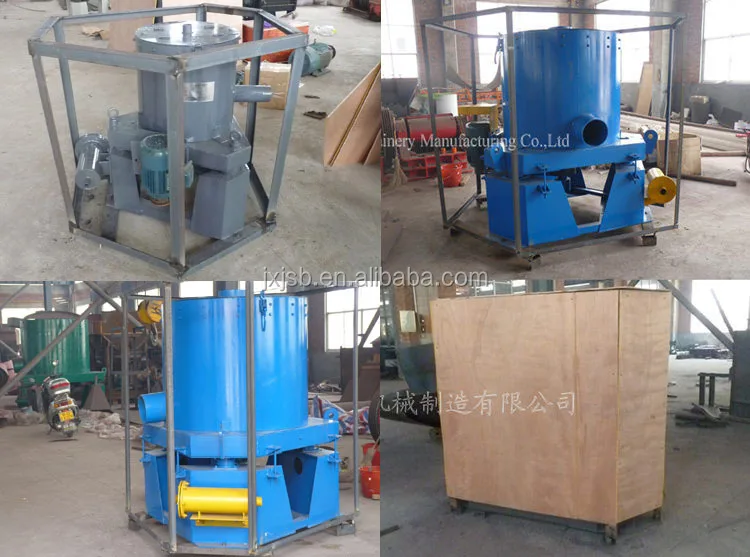

11.Packing and shipping of Falcon concentrators







12.Trade terms of Falcon concentrators



Payment details	Usually paid by T/T or L/C
	By T/T 30% deposit and balance before shipment.
	We will send the goods picture to you once commodity ready.
Packing details	By LCL or FCL(20'/40'GP) container.
	LCL with steel support seaworthy packing
	Export software scientifical loading work
Shipment details	Sea and air shipment available
	MSK / MSC/ APL/ EMC/ WANHAI /KLINE
	We will send the shipping notice to you once goods loading.
