XL6330 Horizontal and Vertical Bridgeport Mill
- Category: >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (60168260333):
Product Overview
Description

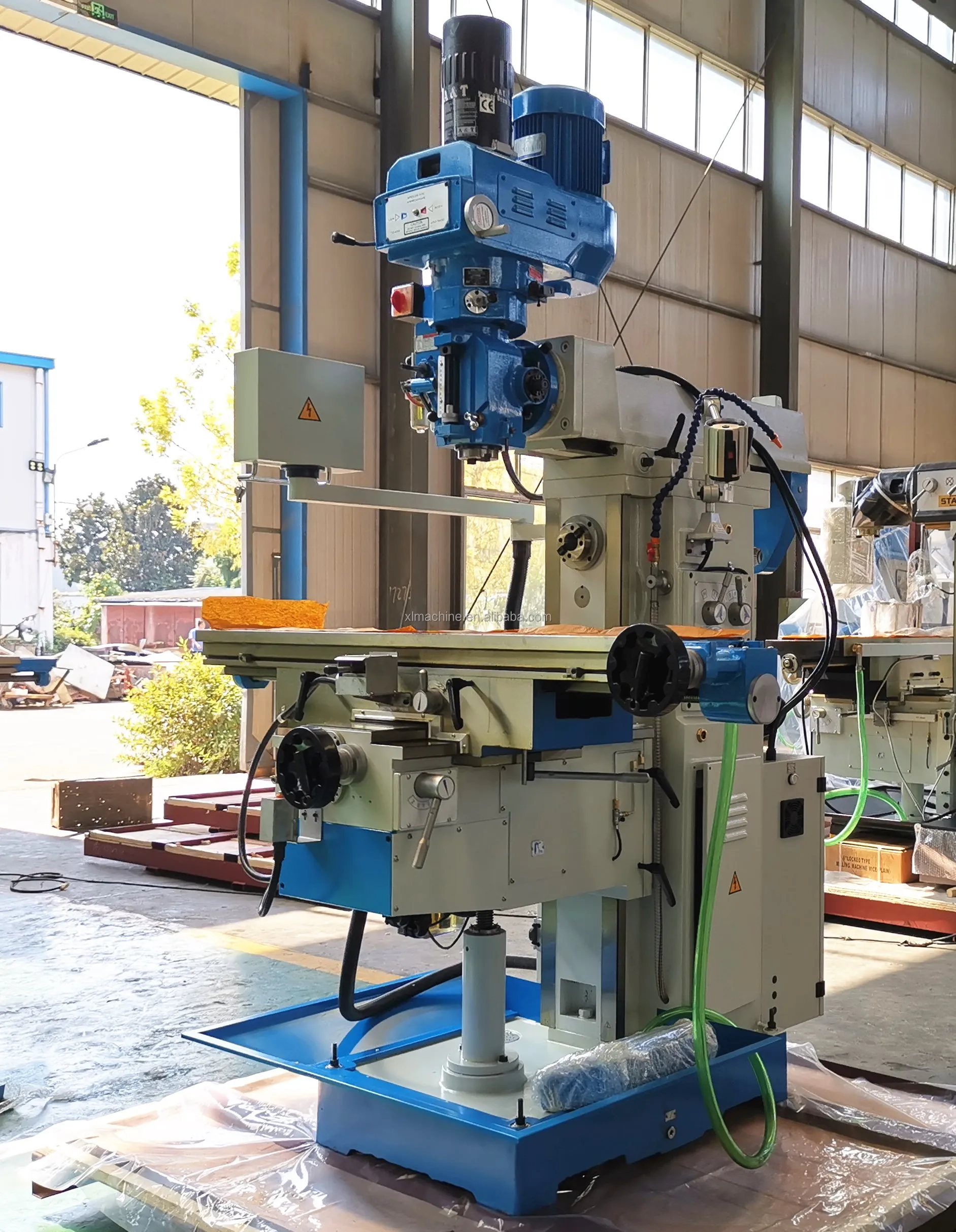

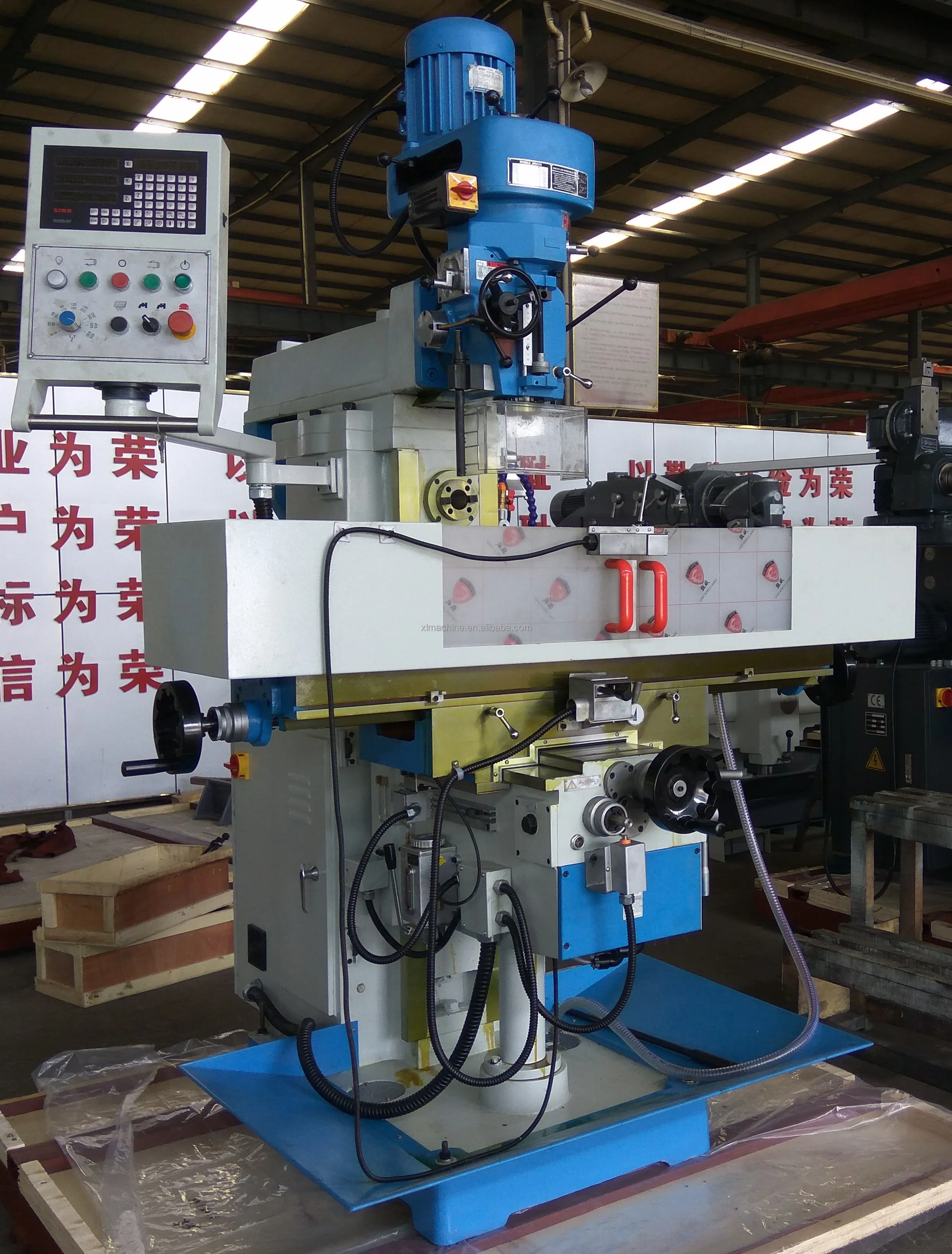

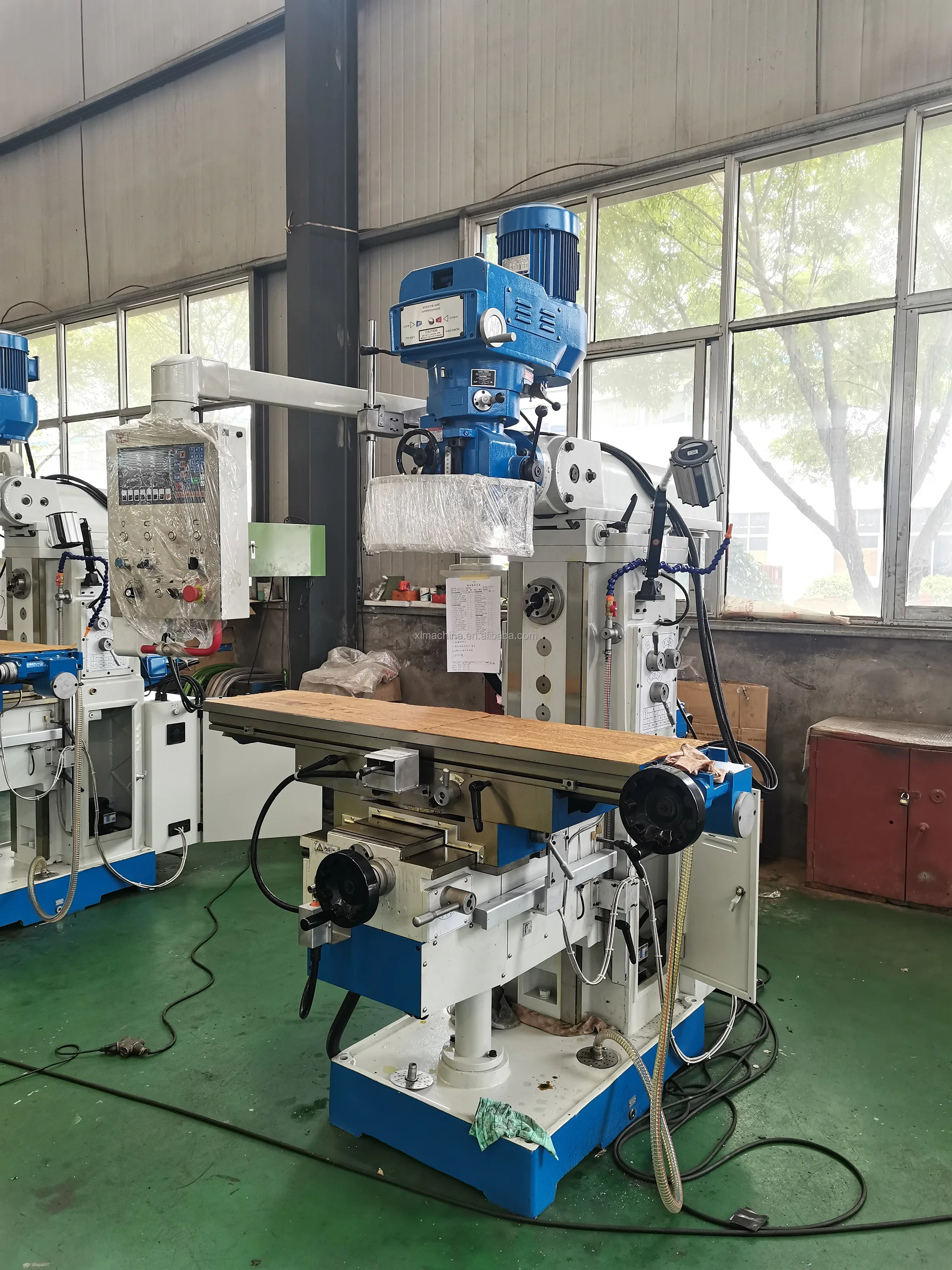

XL6330 Horizontal and Vertical Bridgeport Mill
XL6330 /XQ6332 with 5HP step turret head XL6330/XQ6332 with 5HP variable speed turret head
Brief Introduction
1). Taiwan brand, high speed turret head, standard is 16 speeds 5HP head
(3HP head, 7.5HP head, stepless-speed head, variable-frequency head are available on customers' request)
2). extra horizontal spindle, widens processing range

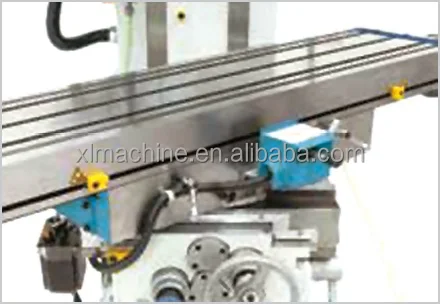

3). work-table driven by servo motor, for power feed & rapid movement
3). work-table driven by servo motor, for power feed & rapid movement
4). ±45° rotary work-table, further widens processing range
Specificaitons of This Series
ITEM | UNIT | XQ6332 | XQ6332A | XQ6332B | XQ6332C | |||
table size | mm | 1270*320 | 1370*320 | 1270*320 | 1370*320 | |||
table travel (X/Y/Z) | mm | 720/300/400 | 820/300/400 | 900*380*400 | 1000/380/400 | |||
table feed speed (X/Y/Z) | mm/min | 30-830/30-830/23-625 | ||||||
table rapid speed (X/Y/Z) | mm/min | 1335/1335/1000 | ||||||
T-slots (No./width/pitch) | 3/14/80 | |||||||
spindle taper | ISO40 (V) ISO40(H) | |||||||
spindle speed | rpm | vertical: 65-4660 (16 steps) horizontal: 35-1500 (12 steps) | ||||||
distance from horizontal spindle axis to table | mm | 35-435 | ||||||
distance from horizontal spindle center to ram | mm | 200 | ||||||
ram travel | mm | 450 | ||||||
main motor power (V & H) | kw | vertical: 5HP horizontal: 3kw | ||||||
X/Y/Z servo motor torque | N.m | 10 | ||||||
overall size | mm | 1720*1680*2350 | 1820*1680*2350 | 1720*1680*2350 | 1820*1680*2350 | |||
N.W. | kg | 1700 | 1750 | 1750 | 1800 | |||
Our Company
Shandong XILI Machine Tool Co., Ltd. is located in Tengzhou City, Shandong Province.
We have nearly 30 years manufacturing history & more than 200 employees.
Products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to inquire !
We have nearly 30 years manufacturing history & more than 200 employees.
Products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to inquire !
Company is with CE, ISO certificates.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
Every year, we attend several exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
