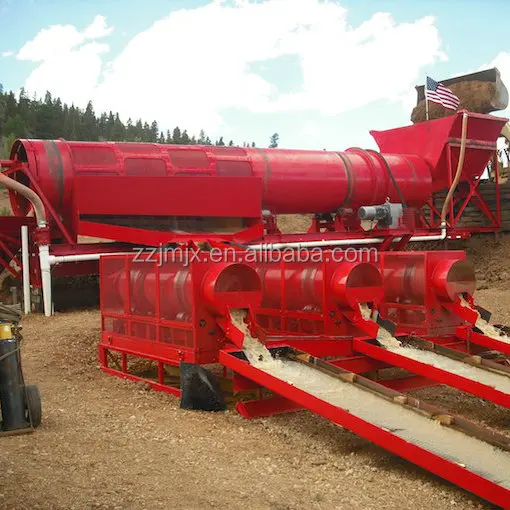

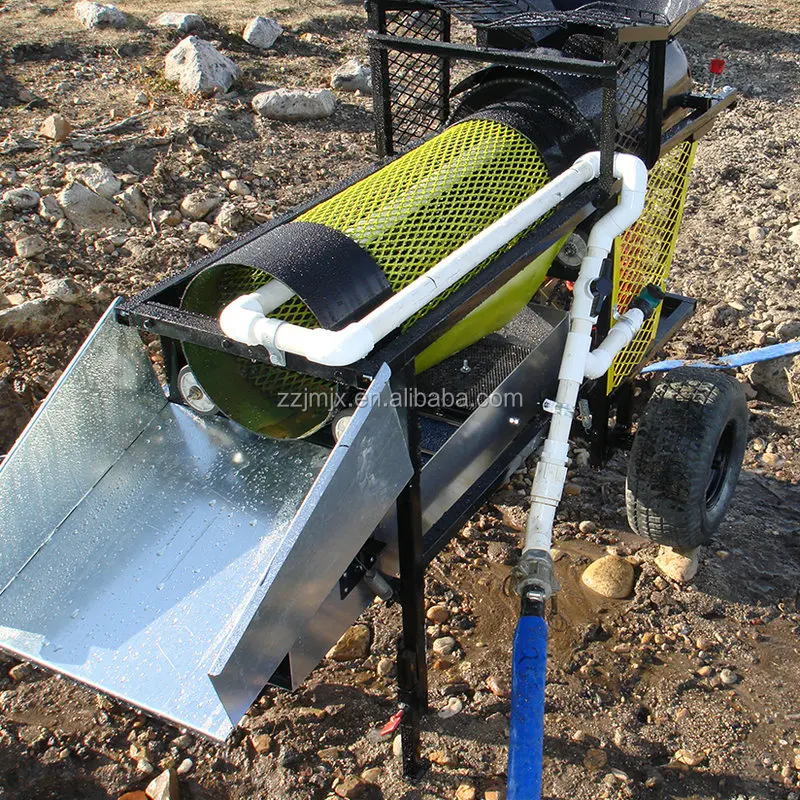

Mini Portable Gold Trommel Washing Plant For Ghana trommel for gold

Share on (60168338819):


Price:$5,000.00

Quantity:


Product Overview

Description


 Mini Portable Gold Trommel Washing Plant For Ghana


Product Description


Small Gold washing plant working process:


-Input of raw materials through heavy equipment


Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the


strong water pressure of the shower equipped in the HOPPER.





-Selection and cleaning of raw materials


Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and, by


watering of the shower inside, run into the gold dust separate panel.





-Collecting of gold dust separated


Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be


staying in the gathering mat to be collected.

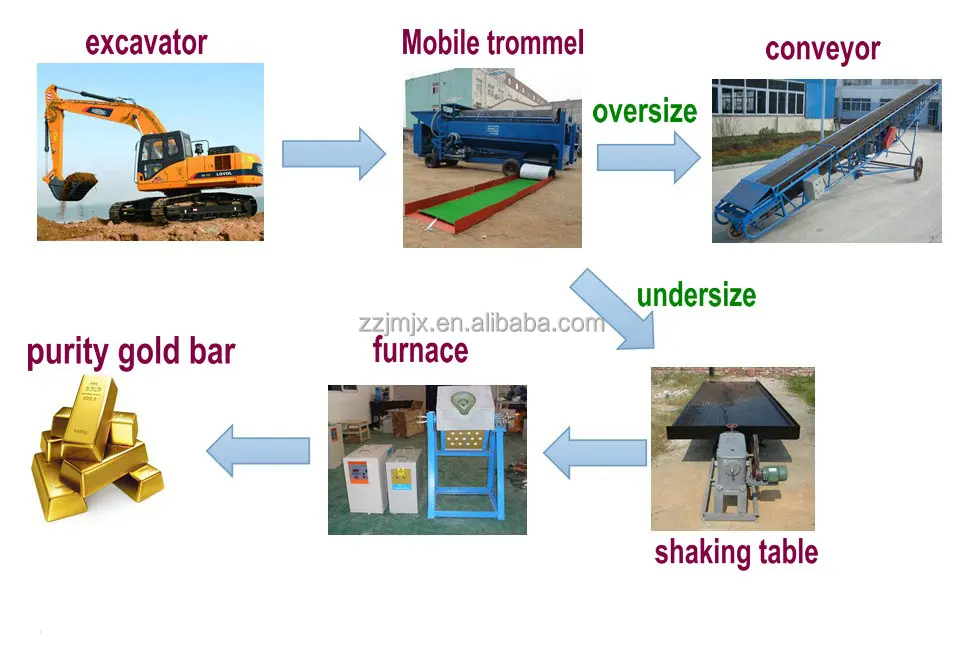

gold processing diagram for reference

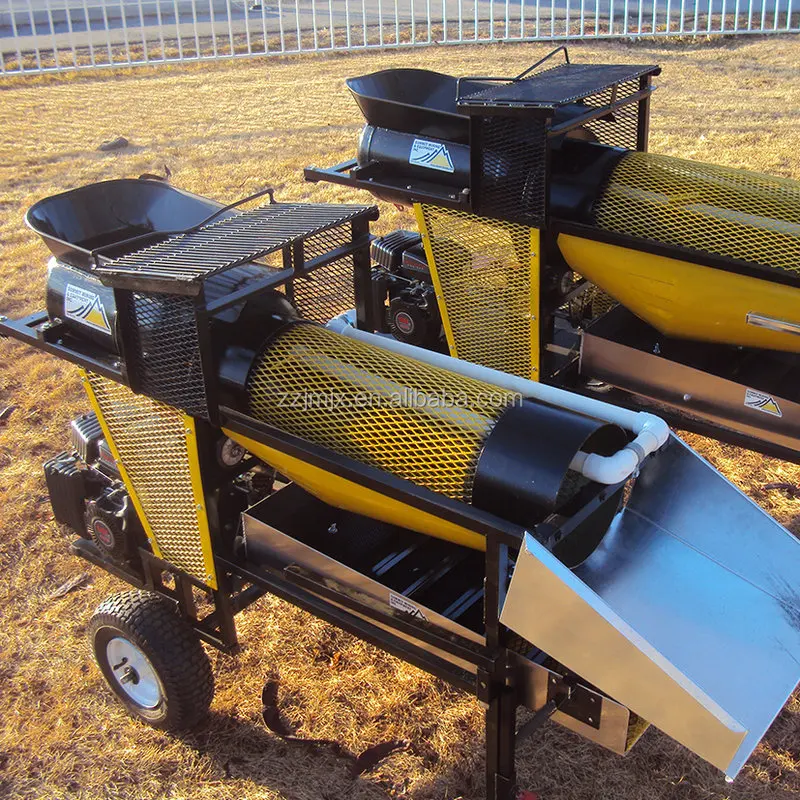

Mobile Gold Trommel Refining Machine display

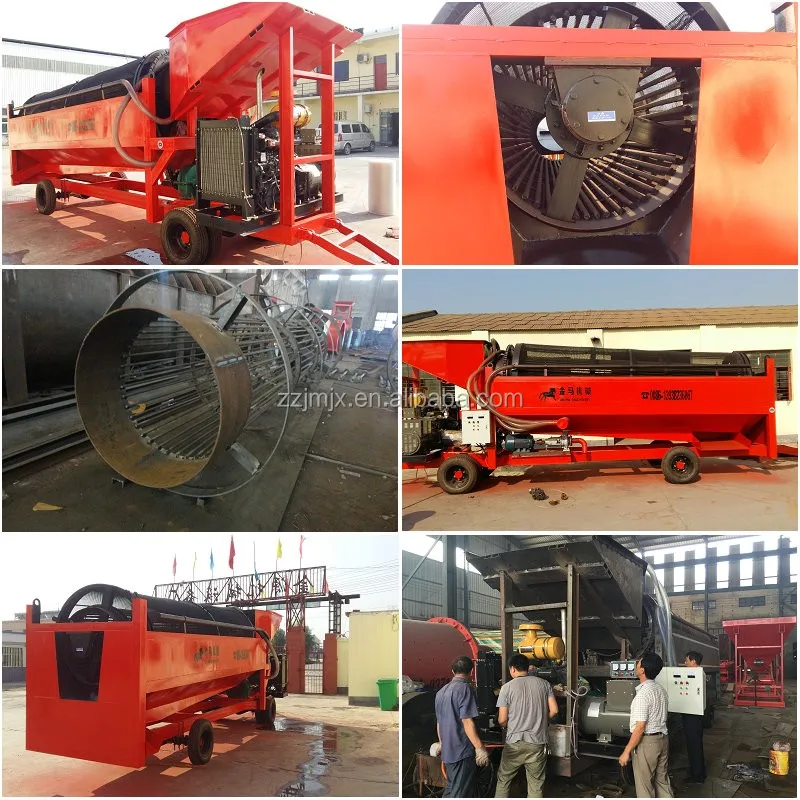

gold trommel wash plant1

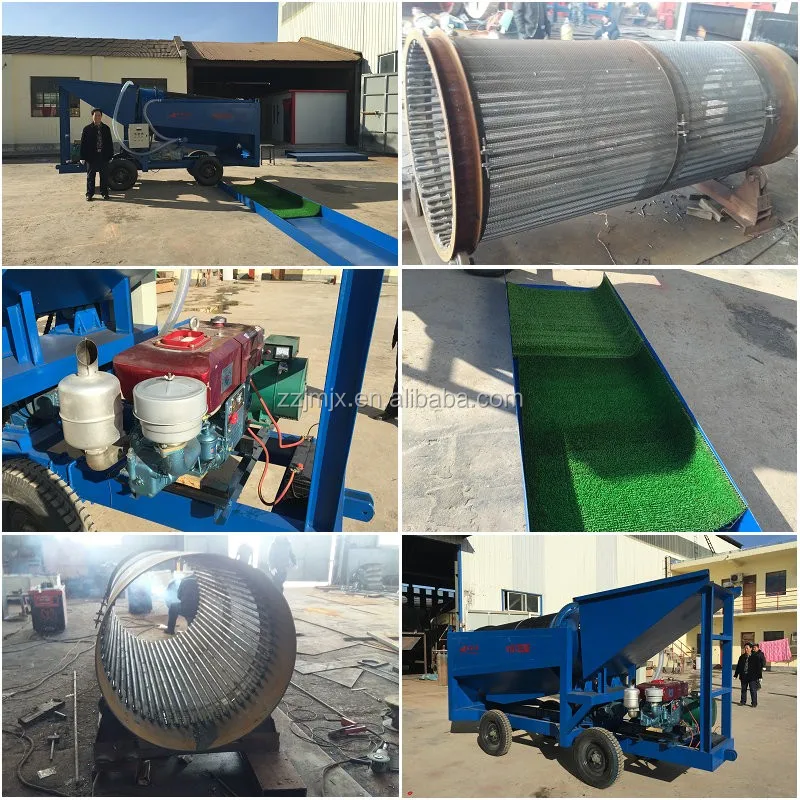

gold trommel wash plant

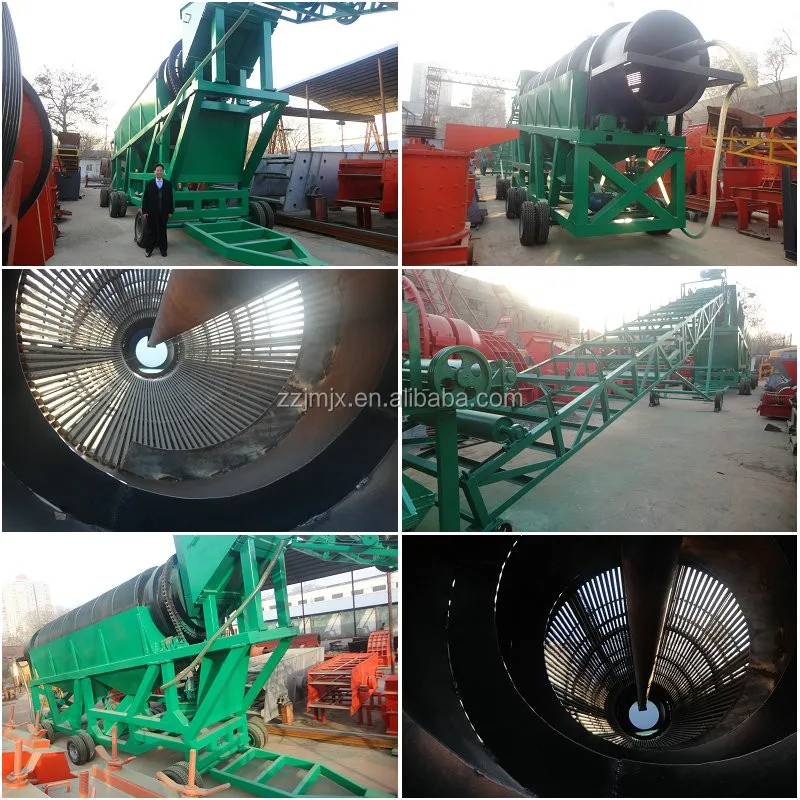

gold trommel





gold trommel plants








Features of Jinma small gold washing plant


Owing to simple operation and easy maintenance of Jinma trommel, single operator can manage several equipments at the same time.


- Simple replacement and collecting of gold-dust-gathering mat


- Gathering mat shall be replaced at every 5 hours for 10 hours of working.


- Increasing productivity of gold-dust through 24 hour working


- Eco-friendly facility without chemicals


- Wide usages from investigation stage up to the commercialized production





reasonable inclination, multiple-mesh sizes to enable multi-size classification


mobile trommel screen





Trommel screen technical parameters




























































































Model



Capacity
(T/H)



Power
(KW)



Diameter


(mm)



Length
(mm)



Mesh range(mm)



Max Feed size(mm)



Overall size
(L×W×H mm)



Weight
(t)



GTS1015



50



3.0



1000



1500



0~100



300



2600×1400×1700



2.2



GTS1020



100



4.0



1000



2000



 3390×1400×2140



2.8



GTS1225



160



5.5



1200



2500



 4146×1600×2680



4.2



GTS1530



250



7.5



1500



3000



 4460×1900×2820


5.1

GTS1545



350



11



1500



4500



400



5960×1900×3080



6



GTS1848



450



15



1800



4800



6500×2350×4000



7.5



GTS2055



600



22



2000



5500



7500×2550×4800



9.6



GTS2265



800



30



2200



6500



8500×2750×5000



12.8

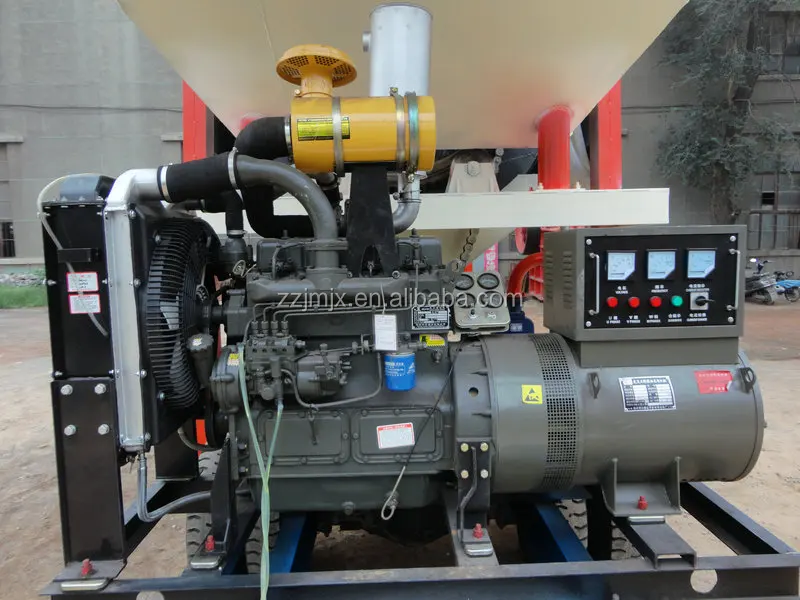

portable  trommel screen with diesel generator


motor

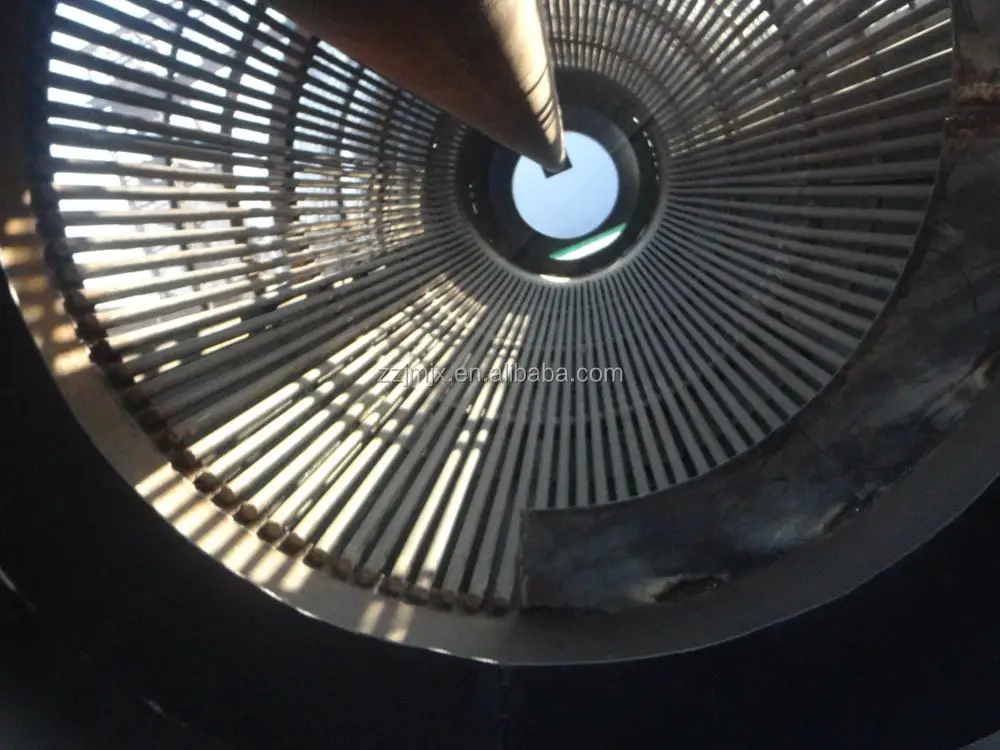

The steel bar spacing is adjustable to sorting different size of raw material


mobile trommel screen

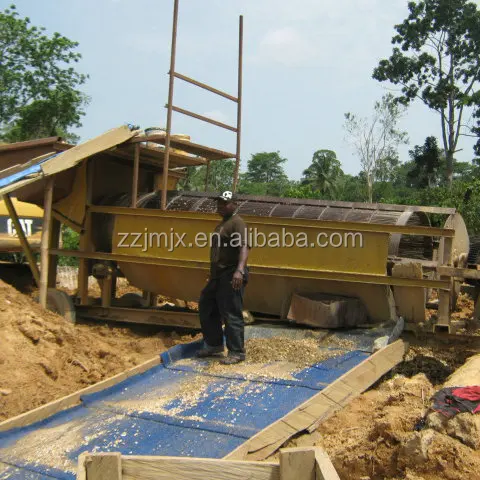

Gold Washing and Separating Working Site of Jinma's client


working site3


-2_06



 Zhengzhou jinma is the old brand professional design and manufacturing factory special for waste sorting machines. Always actively striving and pursuing progress, developing and producing various garbage sorting equipment; Strive to create a first-class level in research technology, artificial Intelligence, scientific management, and other fields.


Main business: Design, production, and sales (independent export): A complete set of solid waste sorting equipment for household waste, decoration waste, staled waste, etc., mainly include the equipment such as bag opener, trommel screen, magnetic separators, air separators, sortingTables, hydraulic baler and conveyors, etc.

123

0


.jpg



Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.

Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.

Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
