ISO17357 Large wharfs Protection Natural Rubber Ship Bumper/Marine Boat Fender

Product Overview

Description

Specifications:

1.Reliable quality assurance

2.Reasonable price advantage

3.Factory direct sales

4.Timely after-sales service

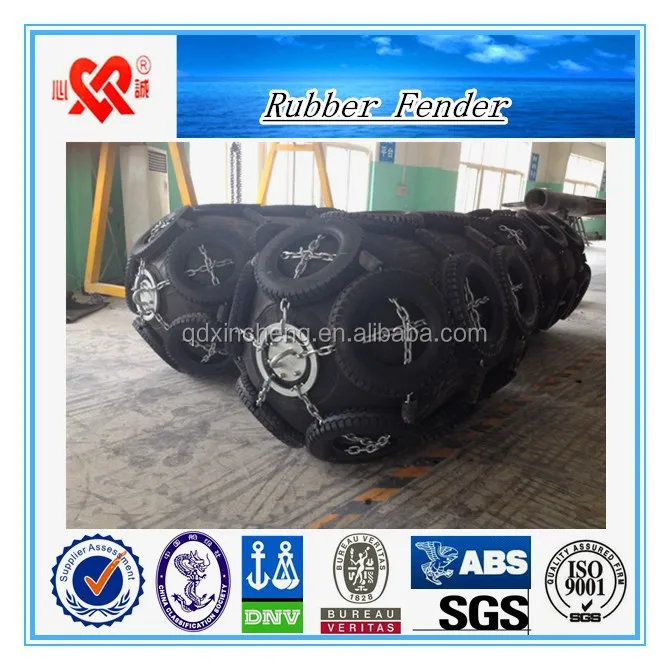

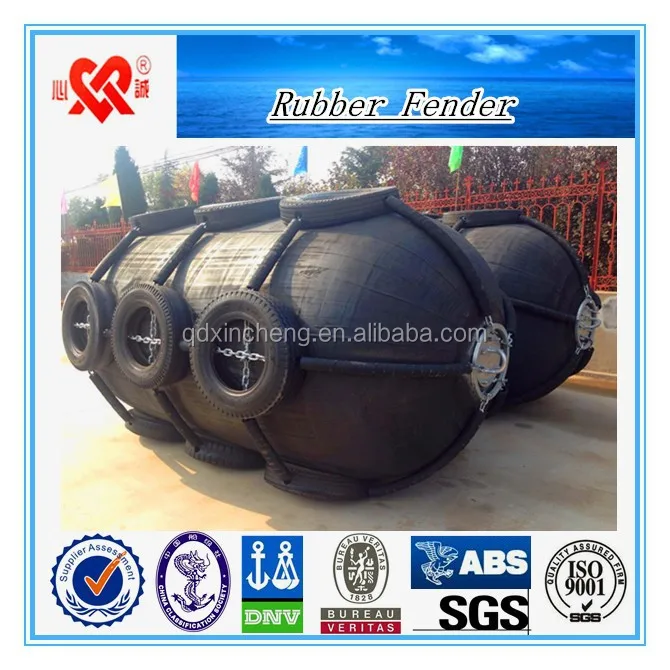

ISO17357 Large wharfs Protection Natural Rubber Ship Bumper/Marine Boat Fender









Product Description:>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

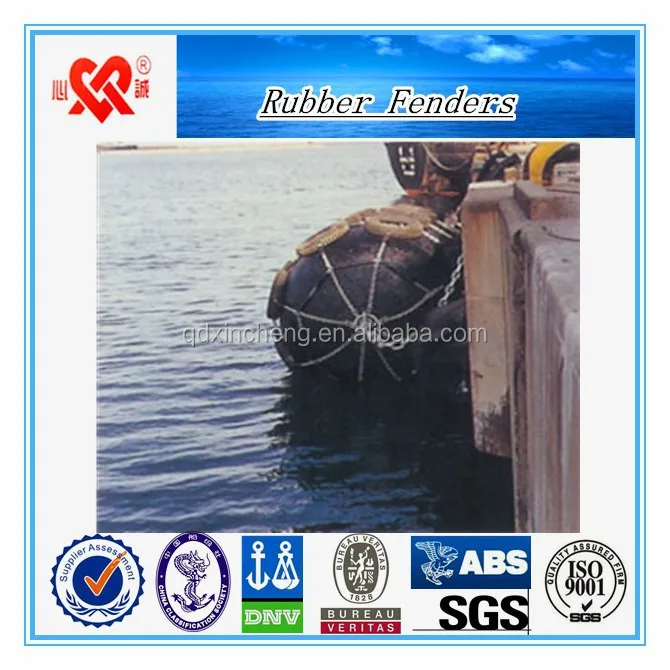

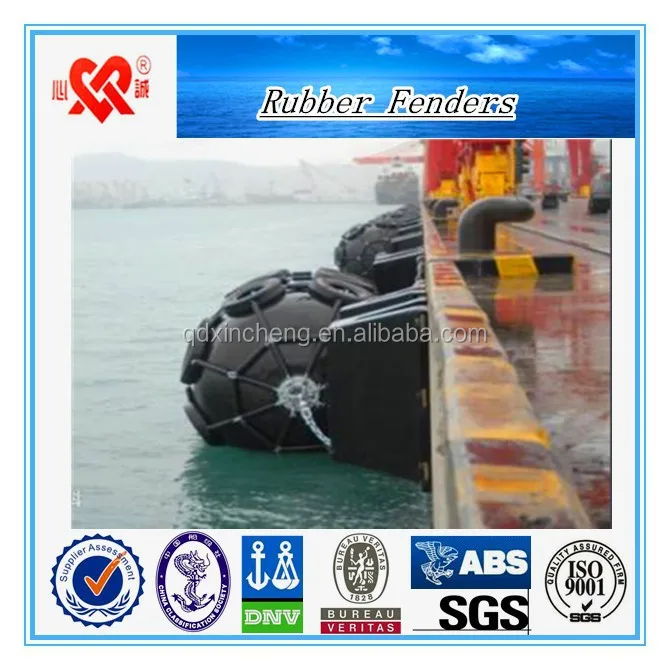

Marine boat fender is the advanced anti-collission device  for marine application in the world today. It uses compressed air as medium to absorb the impact energy when ship-to-ship contact(STS). It uses compressed air as medium to absorb the impact nergy when ship-to-berthing(STB).















>------The advantages of marine boat fender:



 1. Good elasticity, absorb the impact energy ,

    it won't compression deformation under the pressure

 2. Installation is very simple

 3. Reasonable price and good quality

 4. Environmental protection, it won't bring the pollution problems to our environment.

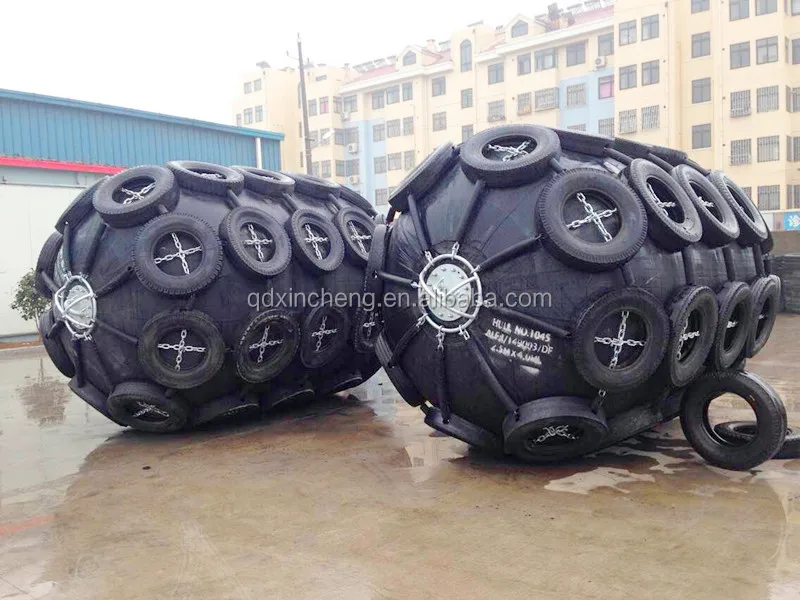

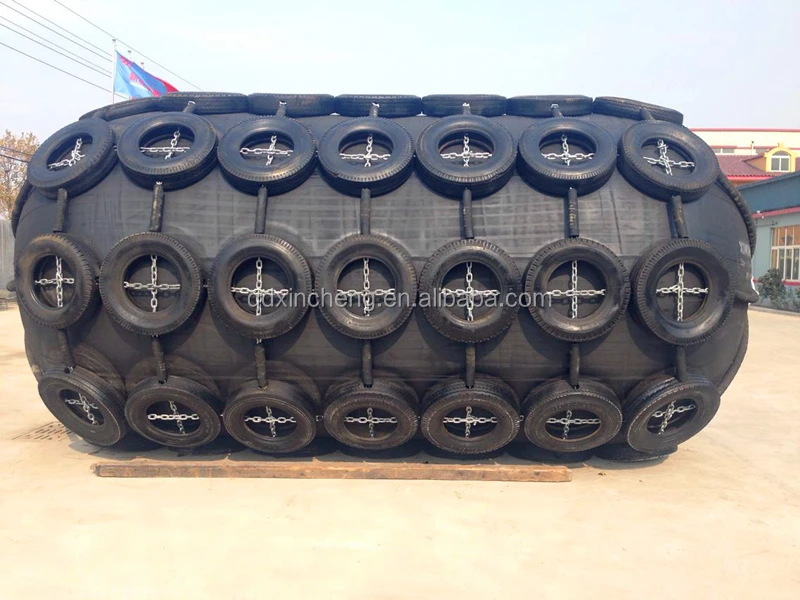

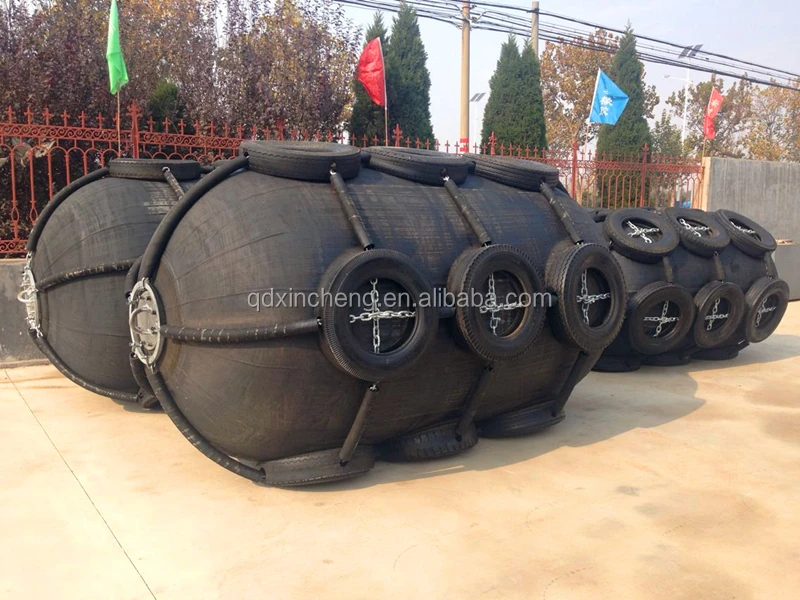

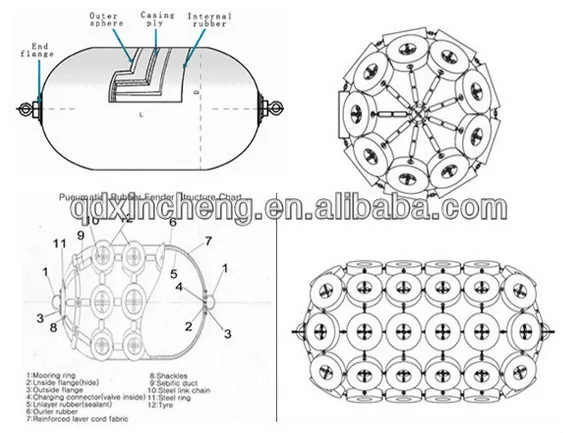

>------The structure of boat fenders:



1. The outer rubber



 Outside on the ball of rubber layer, which is used to protect by skeleton material and lining rubber

ball from external force damage or wear.



2. the inner plastic

    On the ball inside the rubber layer, which is used to prevent gas leakage and stay on the ball

pressure.



3. Cord fabric layer

      Composed of hanging plastic cord fabric, the lacquer that bake frame materials



4. Volume line ringe

     Placed in by ball end (or both) of steel ring, for fixed end cord fabric layer



5. The end of the flange

      On the ball at the ends of the metal parts, can be installed charging valve and relief valve.







>------The specification of boat fender:



size D×L(m)	Initial pressure(Po) is 0.05MPa			Initial pressure (Po) is 0.08MPa
	Weight kg	R(kN)	GEA(KJ)	Weight  kg	R(kN)	GEA(KJ)
0.5×1.0	25	64	6	25	83	8
0.6×1.0	32	74	8	32	96	11
0.7×1.5	50	137	17	50	178	24
1.0×1.5	80	182	32	80	235	44
1.0×2.0	100	257	45	125	335	63
1.2×2.0	120	297	63	165	386	86
1.35×2.5	165	427	102	226	554	140
1.5×3.0	315	597	153	370	751	211
1.7×3.0	405	639	191	436	830	263
2.0×3.5	590	875	308	632	1138	424
2.5×4.0	1050	1381	663	1110	1815	925
2.5×5.5	1333	2019	943	1410	2653	1317
3.0×5.0	1880	2104	1210	2155	2709	1571
3.0×6.0	2160	2583	1485	2470	3292	1888
3.3×4.5	2020	1884	1175	2300	2476	1640
3.3×6.0	2300	2783	1675	2600	3652	2338
3.3×6.5	2700	3015	1814	3080	3961	2532
Height: the height of rubber fendernon- coxcombing, Inaccuracy of weight: ±10% Inaccuracy of reaction force: ±10%





Our Service:>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

 Why customers choose us?

One----Commitment:

1.Material: natural rubber, rubber-dipped Nylon cord fabric.

2.Life span: 15 years.

3.Guaranty period: 3 years.

4.Certificates: CCS, CCC,SGS, BV.etc.



Two----Advantages :



1.High pressure ,explosion proof and overall winding type

2.Production and test based on ISO17357-2002 AND GB/T21482-2008.

3.quick delivery within 7 days.

4. professional for export.

5. factory with 28 years experience.

6.Tailor make different size and pattern of fenders

7.Free techical support, design, calculation and training for installation

8.We accept small order.

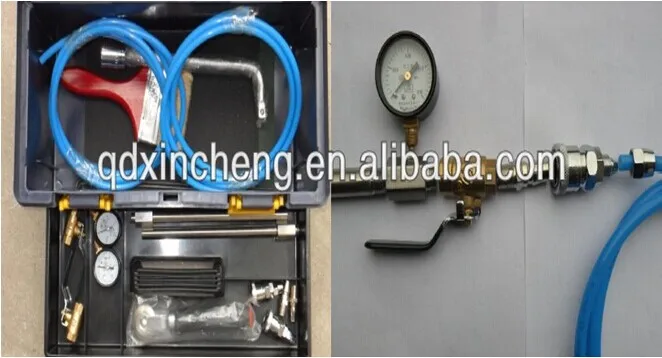

 >------The accessories of boat rubber fender:

1. Valve core.

2. A set of valve pipe.

3. Gas tube,pressure gage, repair tools and material.

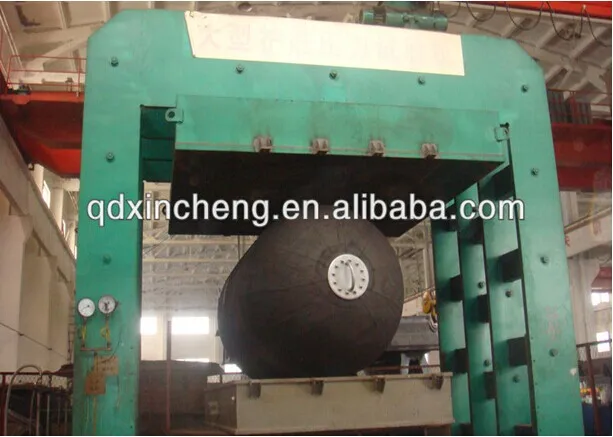

>------ Pressure test:

Production and test based on ISO17357-2002 AND gb/t21482-2008.



>------ Our equipments:



Our company own many professional machineries (internal mixer, rubber mixing machine, four roll rubber calender, vulcanizer and vulcanizing boiler with various specifications).





Packaging & Shipping >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>



PACKING:  1 .Packed in Woven bags or containter . 2 .It also depends on our clients' need.



DELIVERY:  Usually 7days, it depends on order's quantity.



PAYMENT TERM: 1. TT( 30% deposit, the balance money before shipment)

                                   2. L/C at sight





About the large size rubber fenders, we can use the deflate technical to transportation, so as to save the freight for our customers.







 Company Information>>>>>>>>>>>>>>>>>>>>>>>>>>>>>



Qingdao Xincheng Rubber Products Co., Ltd, which was founded in 1986, is a collection of

 production, scientific research and design, product development, technical services for the

 integration of enterprises, is the professional manufacturer of ship launching airbag, pneumatic

rubber fender, marine rubber fender in China area.







XINCHENG as the leading enterprise and top ten famous brands has passed the certification of

CCS , ISO9001:2008, SGS, BV etc.







  FAQ: >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>





NOTES



1. Often check the balls for damages and pressure



2. Keep the touch point without any sharps and sticking-out things



3. Keep accessories and clamp nuts from loosing under internal pressure test



4. Keep the network ropes fastness

    Our company always adhere to the principle of "quality first" and  provides our customers with good products and services.



We are looking forward to your inquiry and factory visitation is always welcome!
