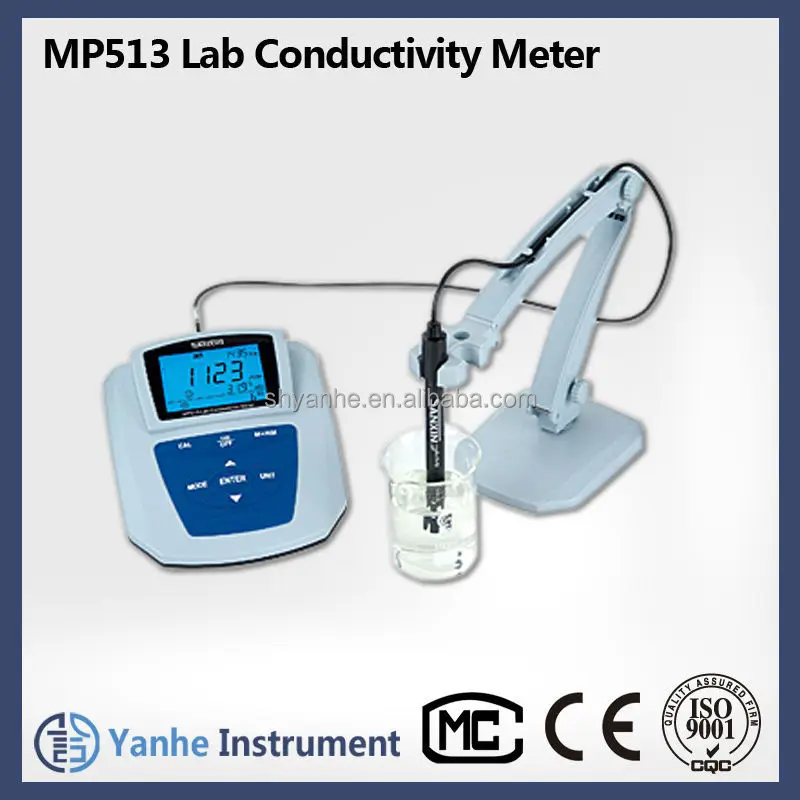

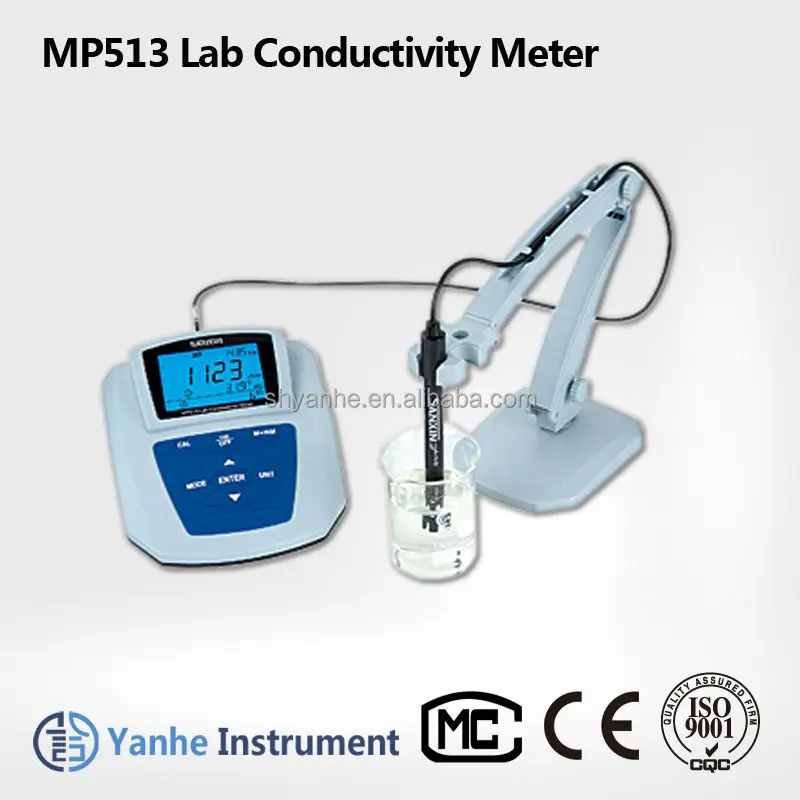

MP513 benchtop Lab electrical Conductivity Meter
- Category: >>>
- Supplier: Shanghai Yanhe Instrument Equipment Co. Ltd.
Share on (60168415827):
Product Overview
Description
MP513 benchtop Lab electrical Conductivity Meter
| Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc. |
| There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode. |
| Equips Conductivity/ATC electrode. Its measurement result is fast and precise. |
| Adopt advanced and original conductivity measurement technology, use 1 pc of conductivity electrode (K=1), it can meet measuring accuracy requirement for range within 0.5μS/cm ~ 200mS/cm by using only one-point calibration. |
| Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale. |
| Meter has the only product serial number. |
| Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps. |
Conductivity | Measuring range Resolution Accuracy Temp. compensation range Electrode constant Reference temperature | Conductivity:(0.00~20.00)μS/cm (20.0~200.0)μS/cm (200~2000)μS/cm (2.00~20.00)mS/cm (20.0~200.0)mS/cm Resistivity:(0 ~ 100)MΩ·cm TDS: (0 ~ 100)g/L Salinity: (0 ~ 100)ppt 0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm Meter:±0.5% FS,connect meter with electrode:±0.80% FS (0 ~ 50)℃(automatic ) 0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1 25℃,20℃ and 18℃ |
Temperature | Measuring range Resolution Accuracy | -10℃~ 110℃ 0.1℃ 5~ 60℃range:±0.4℃ other range:±0.8℃ |
Other Technical Parameters: | Data storage Storage content Power Communication connector Size and weight Quality and safety certification | 300 groups Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time DC9V/300mA RS232 160 × 190 × 70mm/880g ISO9001:2008, CE and CMC |
Working Condition | Environment temperature Environmental humidity IP rating | 5 ~ 35 ℃(0.01grade) 15 ~ 30 ℃(0.001grade) ≤75% IP54 Dustproof and waterproof |
| 1. Model MP513 lab conductivity meter | 1 unit |
| 2. Model 602 flexible electrode holder | 1pc |
| 3. 2301T-M plastic pH/ATC three-in-one combination electrode | 1 pc |
| 4. 1413μS/cm conductivity standard solution (50mL) | 2 bottles |
| 5. 9V power adapter | 1pc |
| 6. RS-232 communication cable | 1pc |
| 7. MP513 communication software CD | 1pc |
| 8. Operation manual | 1 unit |
| 9. Brief operation manual | 1 unit |
| 10. Packing List | 1 pc |
Accessory Categry | Description | Specifications |
Conductivity Electrode | DJS-0.1-M Pure water conductivity electrode | K=0.1 cm-1,Automatic temperature compensation, for testing the conductivity of high pure water, 4-pin plug |
2401-M Glass conductivity electrode | K=1.0 cm-1,Automatic temperature compensation, precision laboratory test for conductivity, 4-pin plug. | |
2301-M Plastic conductivity electrode | K=1.0 cm-1,Automatic temperature compensation for laboratory and field testing, 4-pin plug. | |
2310-M Plastic conductivity electrode | K=10 cm-1,Automatic temperature compensation, used to test seawater and concentrated salt water, etc., 4-pin plug | |
Glass flow cell | Equipped with DJS-0.1-M electrode | |
Temperature Electrode | MP500 Temperature electrode | Stainless steel housing, fast response, high accuracy, RCA plugs |
Conductivity Calibration Solution | 84 μS/cm Conductivity Calibration Solution | 500mL/250mL/50mL(bottle) |
1413 μS/cmConductivityCalibration Solution | 500mL/250mL/50mL(bottle) | |
12.88 mS/cmConductivityCalibration Solution | 500mL/250mL/50mL(bottle) | |
146.6 μS/cmConductivityCalibration Solution | 500mL/250mL/50mL(bottle) | |
1408 μS/cmConductivityCalibration Solution | 500mL/250mL/50mL(bottle) | |
12.85 mS/cmConductivityCalibration Solution | 500mL/250mL/50mL(bottle) | |
Electrode holder | Model 602 Flexible Electrode Holder | Nice appearance of the arc-type bracket, you can turn 360 degrees and vertical lift |
Model 601Stirring Type Electrode Holder | The electrode holder and magnetic stirrer combination of new products. | |
Model 600 Electrode Holder | Cheap simple electrode holder |
