230mm 6 Spindles Four Side Woodworking Planer
- Category: >>>
- Supplier: Foshan Zhonghaoxing Woodworking Machinery Co. Ltd.
Share on (60168875229):
Product Overview
Description
Professional solution:
1)wooden floors;
2)door frames;
3)stairs handguard;
4)wooden;
5)various wood lines and the big cutting quantity processing.
SPECIFICATION:
1) The plating workbench is smooth and wearable.
2)Short feeding device,ensures short material processing and feeding smoothly.
3) Low maintence.
4)Up&down active feeding wheel,ensures feeding smoothly.

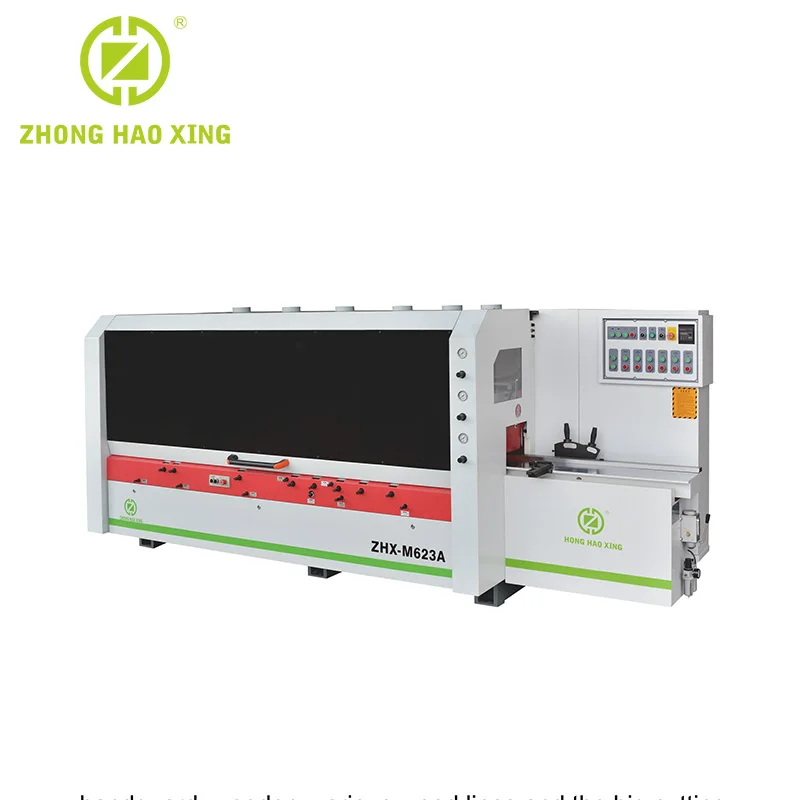

| MODEL: | ZHX-M623 | ZHX-M523 | ZHX-M620 | ZHX-M520 |
| Working Thickness: | 8-160mm | 8-160mm | 8-120mm | 8-120mm |
| Working Width: | 25-230mm | 25-230mm | 25-200mm | 25-200mm |
| Operating Platform length: | 1950mm | 1950mm | 1800mm | 1800mm |
| Feed Speed: | 5-28m/min | 5-28m/min | 5-26m/min | 5-26m/min |
| Spindle Diameter: | ø40mm | ø40mm | ø40mm | ø40mm |
| Spindle Speed: | 6000r/min | 6000r/min | 6000r/min | 6000r/min |
| Gas Source Pressure: | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
| The Ist Bottom Spindle: | 7.5kw/10HP | 7.5kw/10HP | 5.5kw/7.5HP | 5.5kw/7.5HP |
| The Ist Top Spindle: | 11kw/15HP | 11kw/15HP | 7.5kw/10HP | 7.5kw/10HP |
| Right Side Spindle: | 7.5kw/10HP | 7.5kw/10HP | 5.5kw/7.5HP | 5.5kw/7.5HP |
| Left Side Spindle: | 7.5kw/10HP | 7.5kw/10HP | 5.5kw/7.5HP | 5.5kw/7.5HP |
| Second Top Spindle: | 7.5kw/10HP | —— | 5.5kw/7.5HP | —— |
| Second Bottom Spindle: | 7.5kw/10HP | 7.5kw/10HP | 5.5kw/7.5HP | 5.5kw/7.5HP |
| Feed Beam Rise&Fall: | 0.75kw/1HP | 0.75kw/1HP | 0.75kw/1HP | 0.75kw/1HP |
| Feeding: | 4kw/5.5HP | 4kw/5.5HP+0.37/0.49HP | 4kw/5.5HP | 4kw/5.5HP |
| Total Motor Power: | 53.25kw | 45.75kw | 40.12kw/55HP | 34.25kw/48HP |
| Right Side Spindle: | ø125-ø180mm | ø125-ø180mm | ø125-ø180mm | ø125-ø180mm |
| Left Side Spindle: | ø125-ø180mm | ø125-ø180mm | ø125-ø180mm | ø125-ø180mm |
| The Ist Bottom Spindle: | ø125 | ø125 | ø125 | ø125 |
| The Ist Top Spindle: | ø125-ø180mm | ø125-ø180mm | ø125-ø180mm | ø125-ø180mm |
| The Second Top Spindle: | ø125-ø180mm | —— | ø125-ø180mm | —— |
| The Second Bottom Spindle: | ø125-ø180mm | ø125-ø180mm | ø125-ø180mm | ø125-ø180mm |
| Feed Diameter: | ø140mm | ø140mm | ø140mm | ø140mm |
| Dust Diameter: | ø140mm | ø140mm | ø140mm | ø140mm |
| Oversea Machien Dimensions (L*W*H)mm | 4080*1550*1750mm | 3635*1550*1750mm | 4000*1550*1750mm | 3600*1550*1750mm |
| NET Weight(kg): | 2880 | 2480 | 2580 | 2380 |
| Gross Weight(kg): | 2900 | 2500 | 2650 | 2450 |
