PIR Panel for HVAC Duct System
- Category: >>>
- Supplier: Xiamen Green Foam Insulation Material Co. Ltd.
Share on (60168996930):
Product Overview
Description
Banner
PIR Panel for HVAC Duct System / PIR Sandwich Panel / PIR Air Duct Panel / PIR Pre-insulated Air Duct Panel / PIR Duct Panel / PIR Insulation Panels
Specifications:

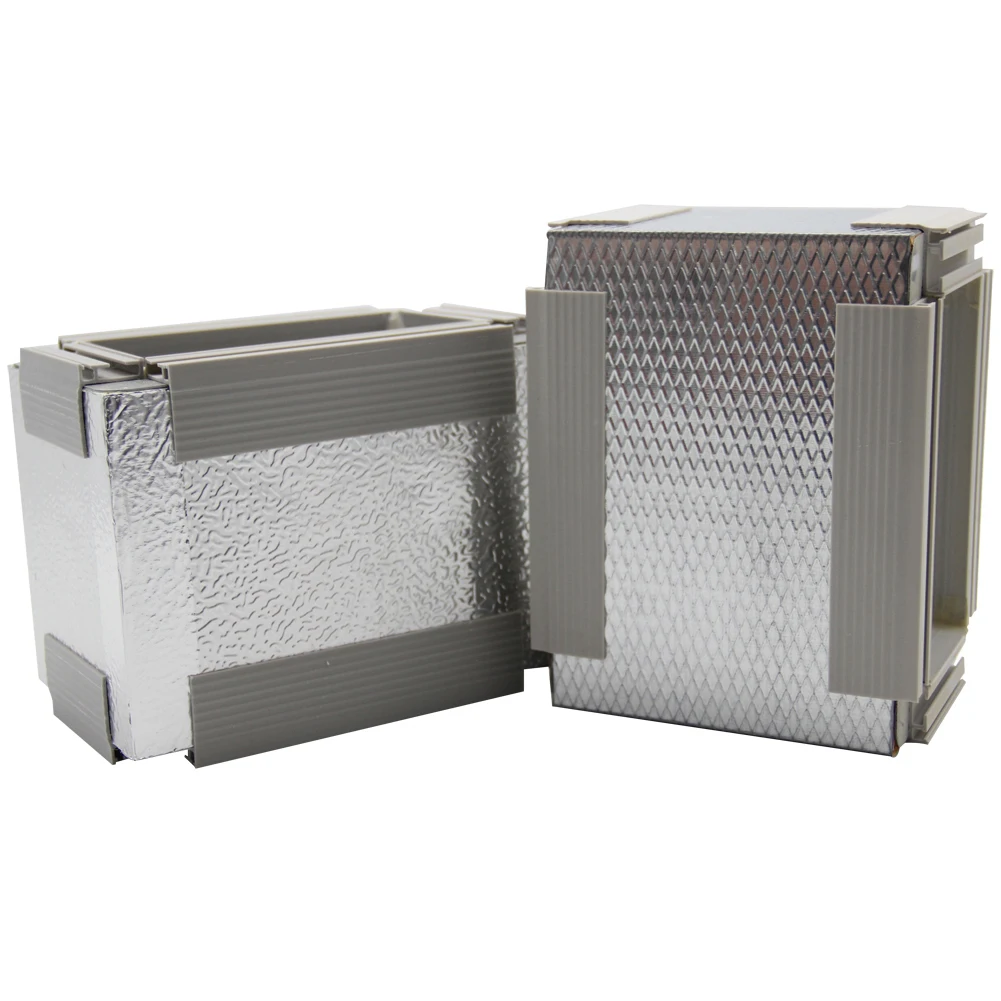

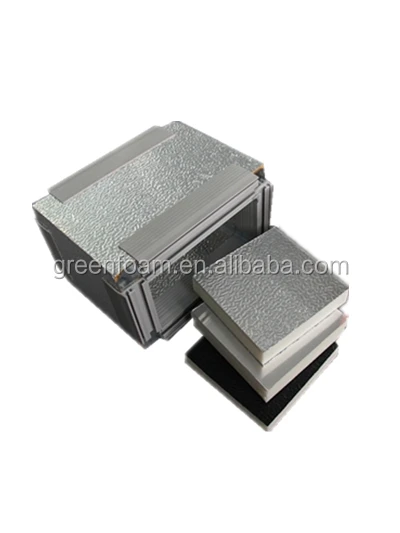

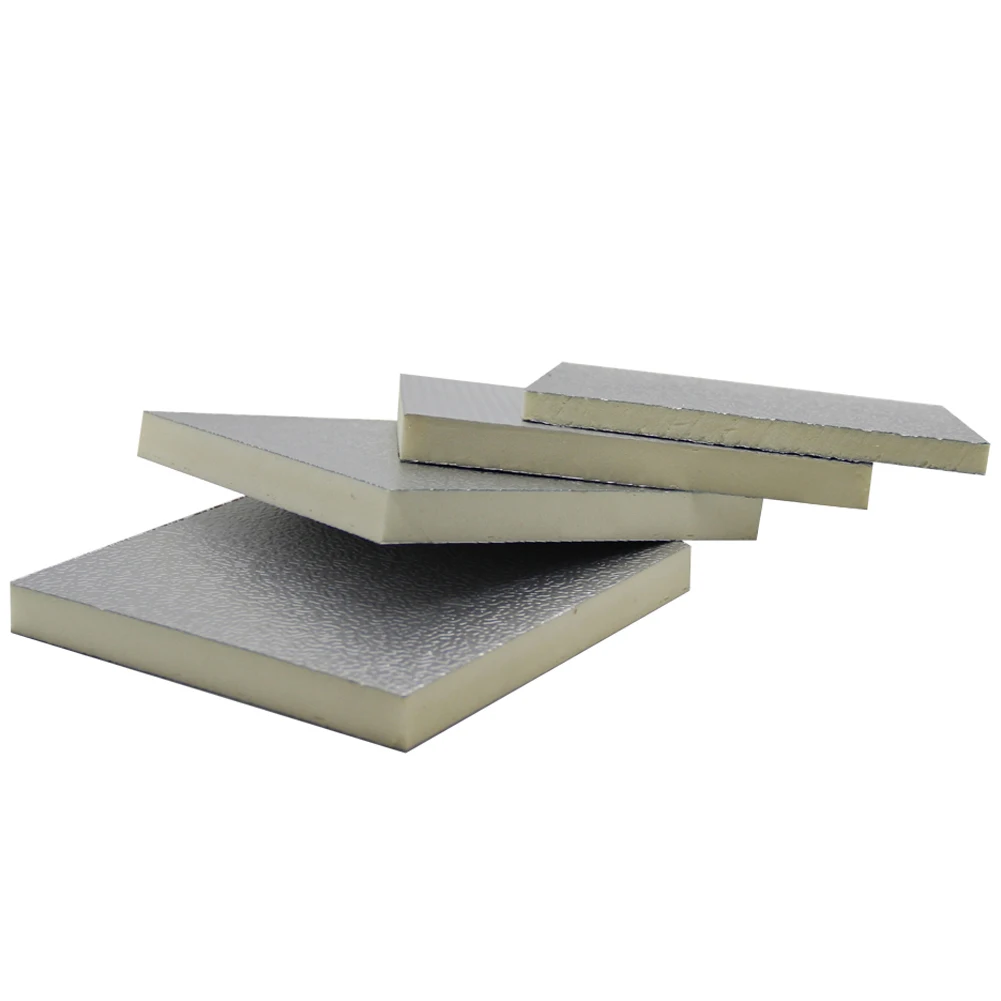

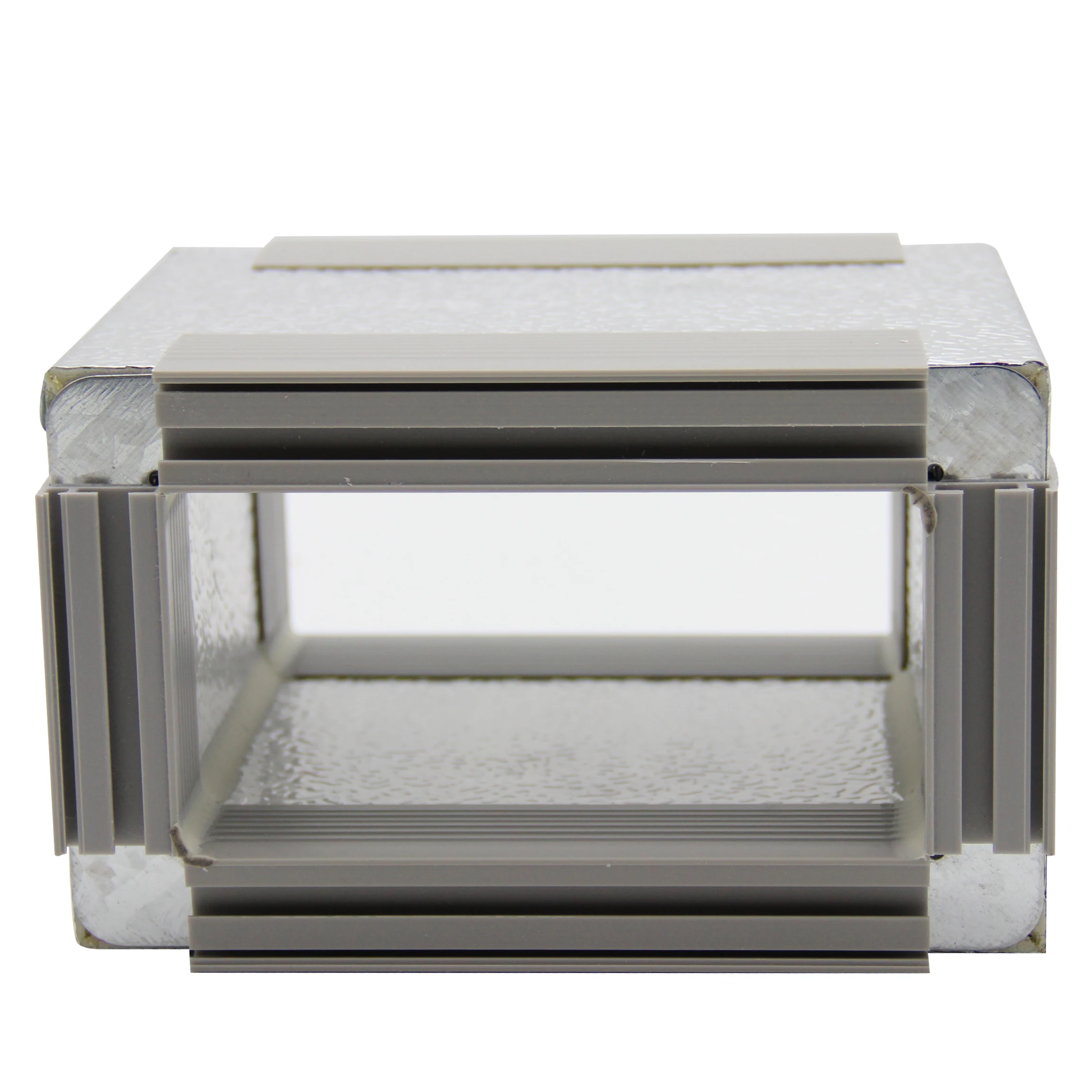

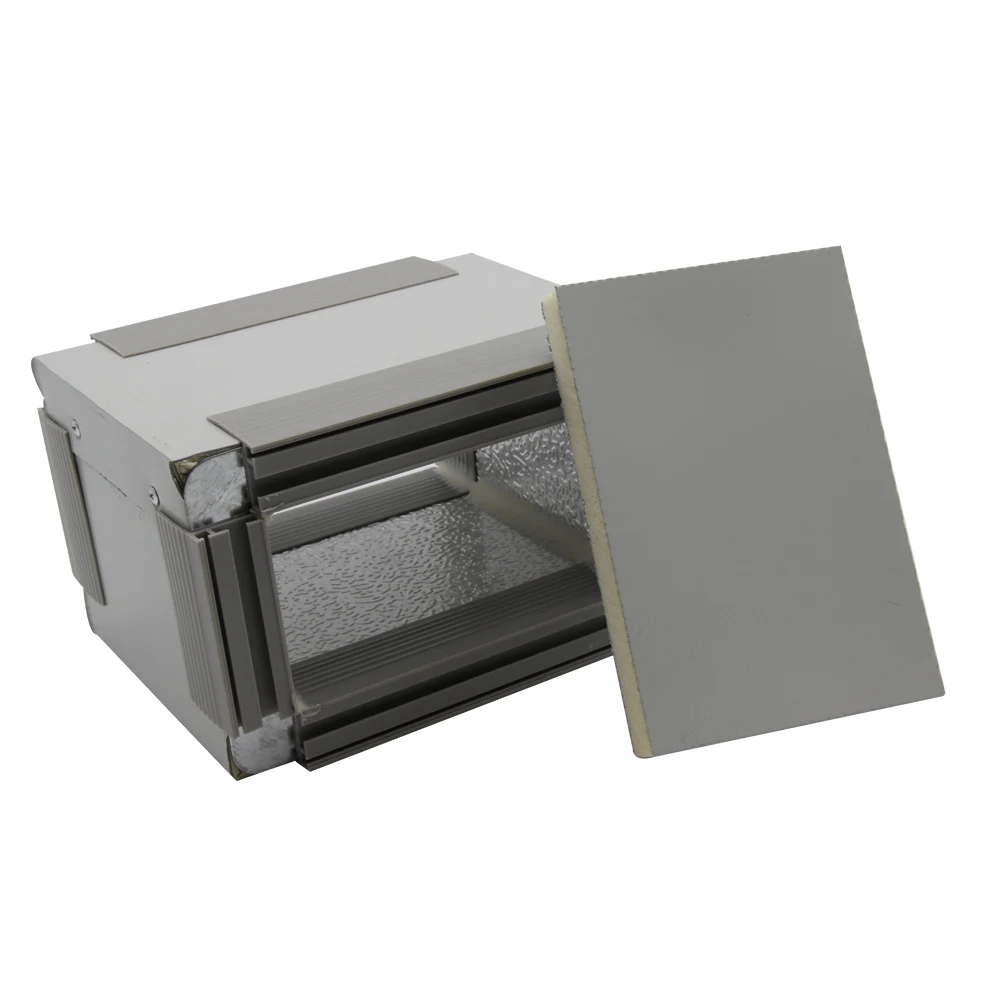

PIR Panel for HVAC Duct System
1. Be used for HVAC system;
2. Save energy, safe system;
3. Low thermal conductivity;
4. Light weight.
Product Description
Greenfoam PIR Panel is used for HVAC duct system. It is energy saving and environment-friendly. It had become more and more pupular all over the world.
PIR Panel for HVAC Duct System can offers a high performance, light weight and robust ductwork system that requires only a single fix installation process. This not only makes it a high speed operation for projects on which time is critical but also provides the advantage of a considerable saving in cost and space. It can make a saving of over 20% on operating cost over a 30 years life.
Technical Data:
| Standard Size | 3950/2950/2900*1200*20mm |
| Foam Density | 45/60kg/m3 |
| Aluminum foil thickness | 80/80micron, 80/200micron |
| Thermal Conductivity | 0.02W/m.k |
| Compressive Strength | 0.25MPa |
| Bending Strength | 2MPa |
| Water Absorption | 0.25% |
| Dimension Change | 0.3% |
| Maximum Wind Velocity | 13-20m/s |
| Maximum Running Temperature | 120 ℃ |
PIR Panel for HVAC Duct System consist of 20mm thickness PIR foam insulation faced on both sides with 80micron thickness aluminum foil, or inside with 80micron thickness aluminum foil & outside with 200micron thickness aluminum foil.
Packaging & Shipping
20mm PIR Foam Air Duct Panel will be packed as below details:
1. 40'HQ Container: 3950/2950*1200*20mm, 10 sheets packed in one carton, total 660sheets(3950mm) / 880sheets(2950mm).
2. 20'GP Container: 2900*1200*20mm, 10 sheets packed in one carton, total 400sheets.
