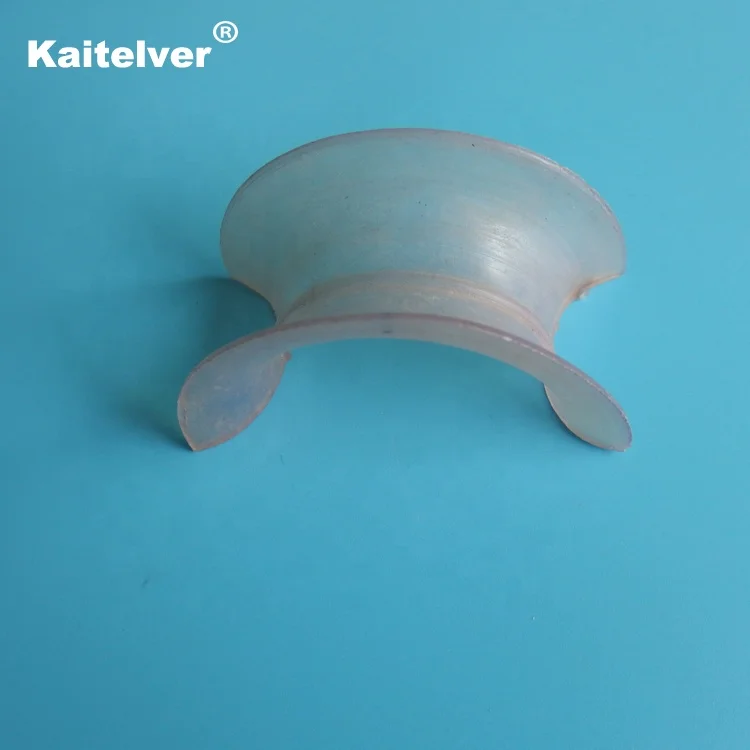

Plastic polypropylene PP plastic intalox super saddle & intalox saddle ring for mass transfer
- Category: >>>
- Supplier: Beihai Kaite Chemical Packing Co. Ltd.
Share on (60169045732):
Product Overview
Description
Product Description
The shape of Saddle Ring is a combination of the ring and the saddle, which benefits the advantages of the two. Plastic intalox saddle has the characteristic of high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on.
Product Material
Plastic Intalox Saddle Ring is made of heat resistant and chemical corrosion resistant plastic material of Polyethylene (PE), Polypropylene (PP), Reinforced Polypropylene (RPP), Polyvinyl Chloride (PVC), Chloridized Polyvinyl Chloride (CPVC) and Polyvinylidene Fluoride (PVDF) etc.
Material Item | PE | PP | RPP | PVC | CPVC | PVDF |
Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
Operation temperature | ≤90°C | ≤100°C | ≤120°C | ≤60°C | ≤90°C | ≤150°C |
Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
Compression strength (MPa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Technical Data
Size (mm) | Dimension d×h×δ (mm) | Surface area (m2/m3) | Free volume (%) | Packing factor (m-1) | Bulk number (n/m3) | Bulk density (kg/m3) |
Φ25 | 25×13×1.2 | 288 | 85 | 467 | 97680 | 102 |
Φ38 | 38×19×1.2 | 265 | 95 | 309 | 25200 | 91 |
Φ50 | 50×25×1.5 | 250 | 96 | 282 | 9400 | 75 |
Φ76 | 76×38×3.0 | 200 | 97 | 220 | 3700 | 59 |

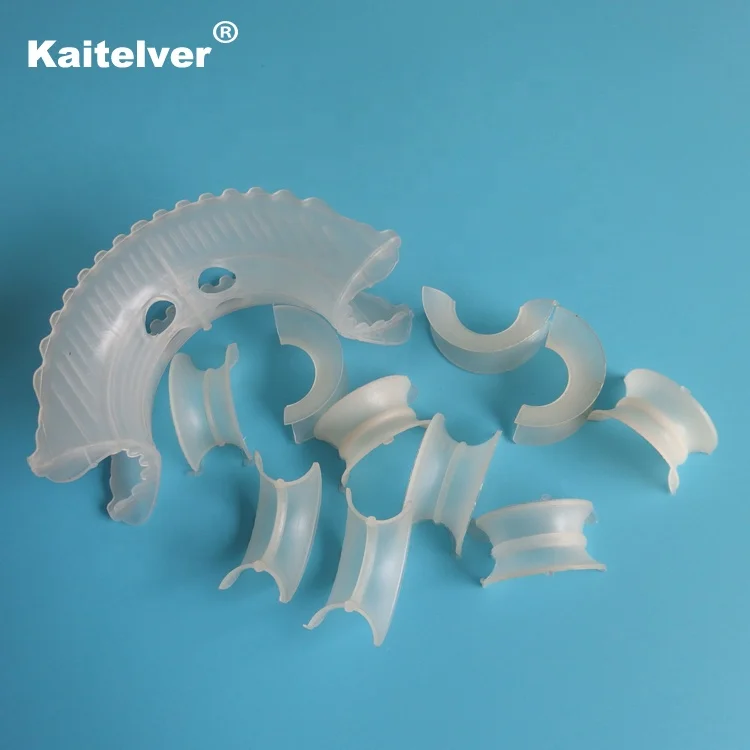

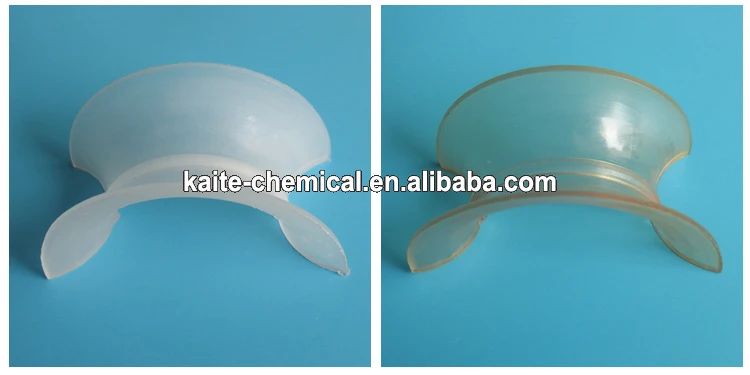

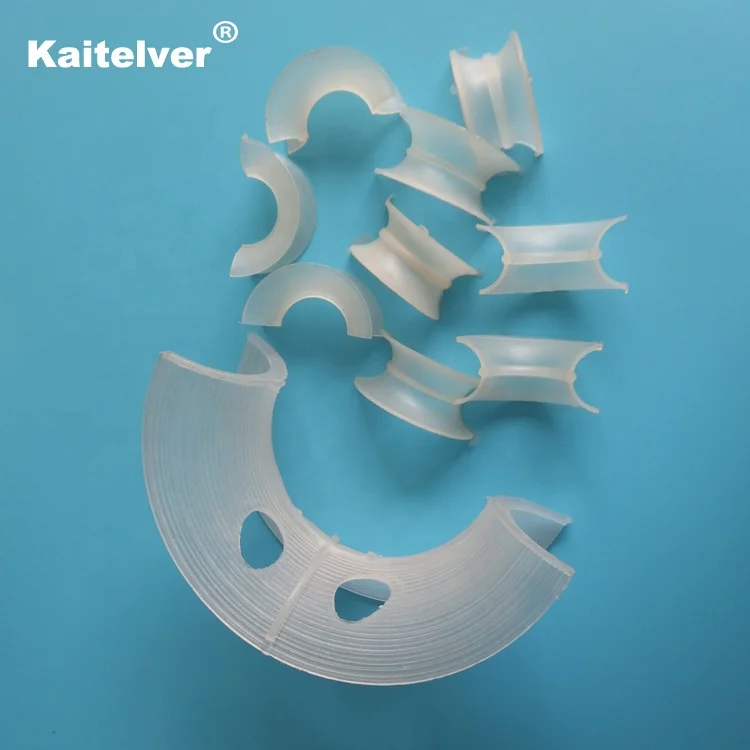

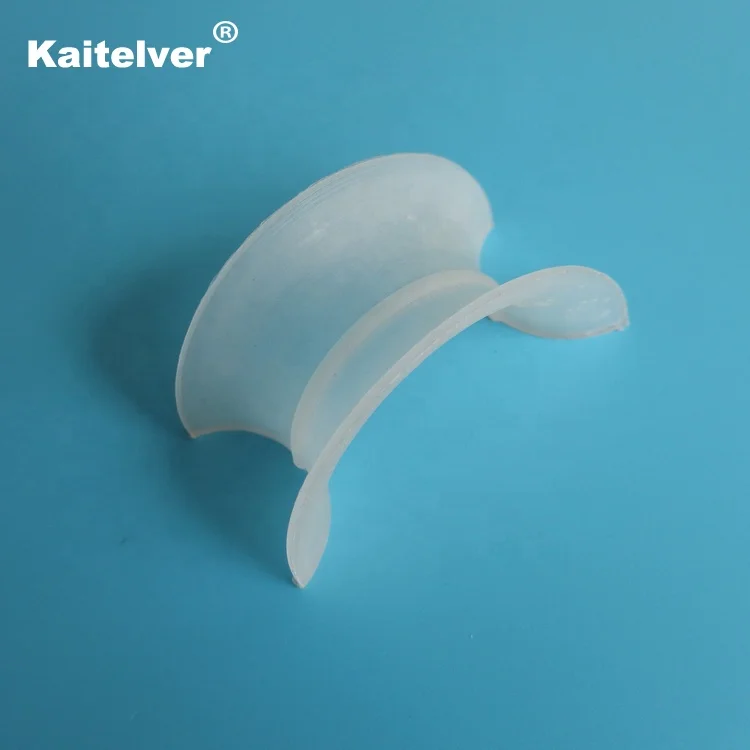

Product Show

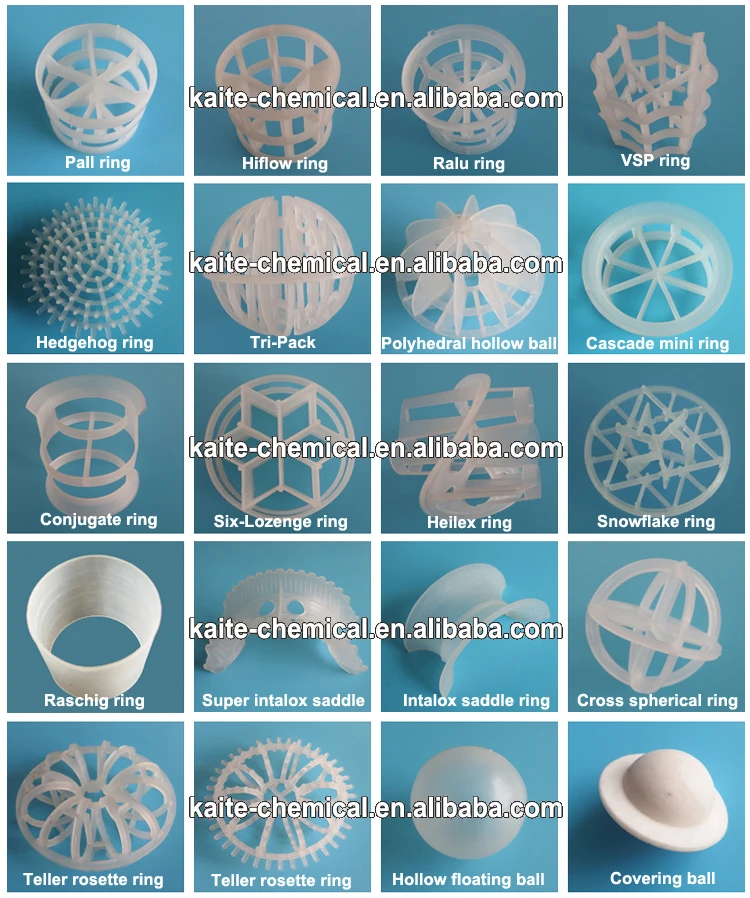

Product Series

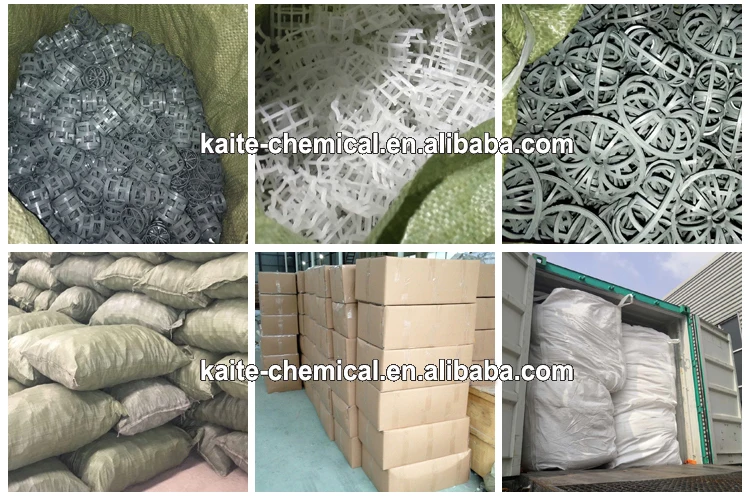

Packaging & Shipping
