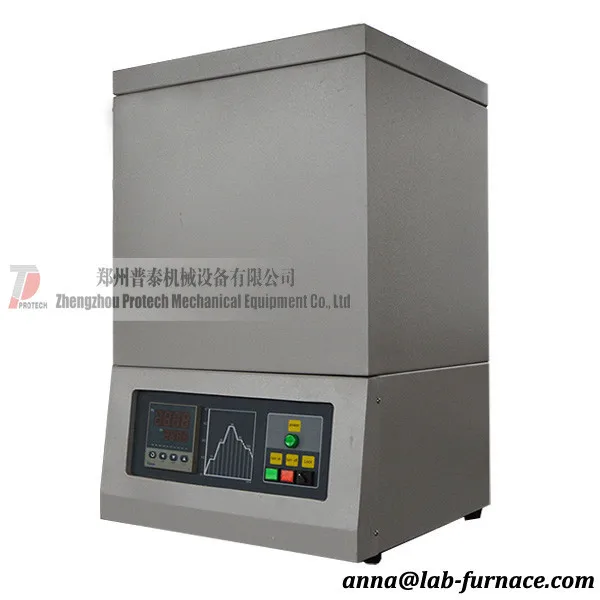

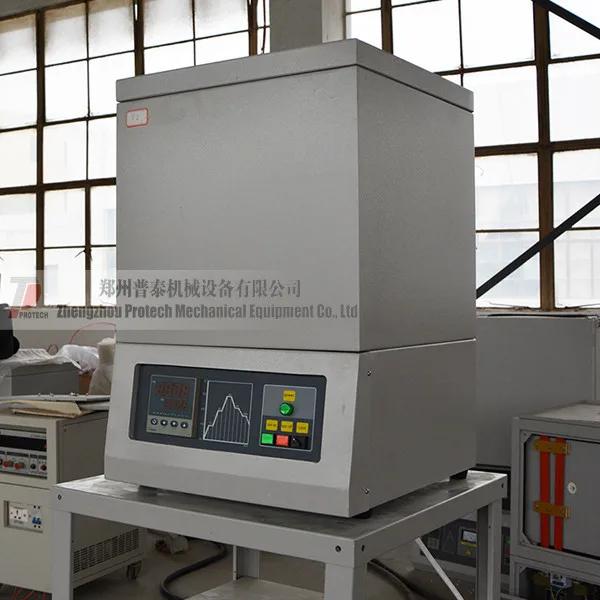

Kiln for pottery / crucible melting furnace

Product Overview

Description

Kiln for pottery / crucible melting furnace



• The crucible furnace has a unique ceramic fiber insulation around , the chamber to provide excellent uniformity and energy efficiency.

• The heating element is embedded in the insulation for maximum heat transfer to the chamber. Max. temperature can reach 1250°C

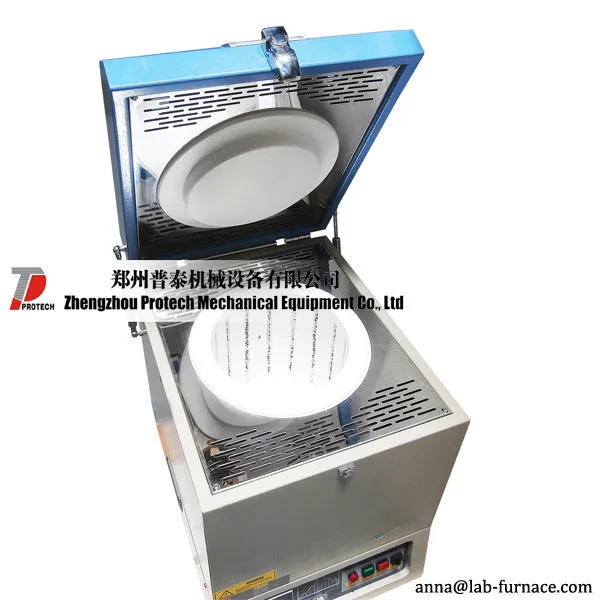

Furnace Structure & Chamber	• Double Layer steel structure with air cooling • High purity fiber alumina insulation ( made in Japan factory) for max.energy saving. • Hinged type cover for easy sample loading • All accessories are included for immediate use: •One pcs refractory disk, which can be put on bottom of furnace to protect furnace  liner from wearing out. •Three pcs refractory supports, which may be put on top of the disk and bottom  of the crucible to adjusting crucible height.
Power	3.5KW Max.
Voltage	AC 208 ~ 240V Single Phase 50/60Hz
Max. Temperature	Max. 1250 °C for short time < 1hour Continuous working temperature:< 1200°C
Max. Heating Rate	40°C/min
Temperature controller	PID automatic control and auto-tune function. 30 programmable segments for precise process Built in protection for over-heated and broken Thermal couple.
Temperature Accuracy	+/- 1 °C
Warranty	One year limited warranty (Consumable parts are not covered by the warranty )
Certificated	CE
