portable handheld ultrasonic flow meter

banner 3.png

Description of portable handheld ultrasonic flow meter

portable handheld ultrasonic flow meter utilizes two transducers that function as both ultrasonic transmitters and receivers. The handheld ultrasonic flow meter are clamped on the outside of a closed pipe at a specific distance from each other. The transducer of ultrasonic flow meter can be mounted in V-method where the sound transverses the pipe twice, or W-method where the sound transverses the pipe four times, or in Z-method where the transducers are mounted on opposite sides of the pipe and the sound crosses the pipe once.

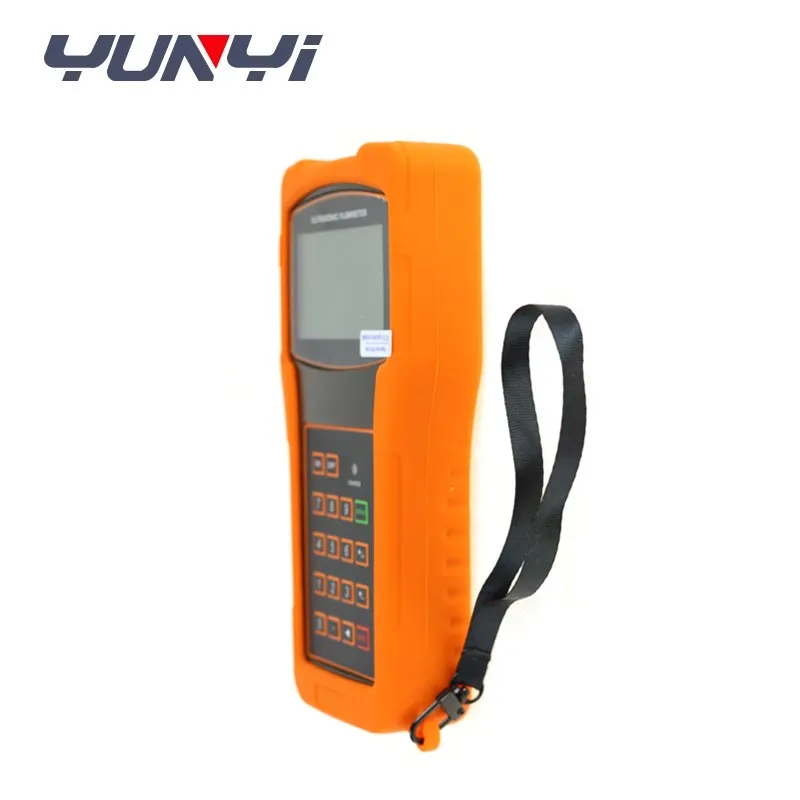

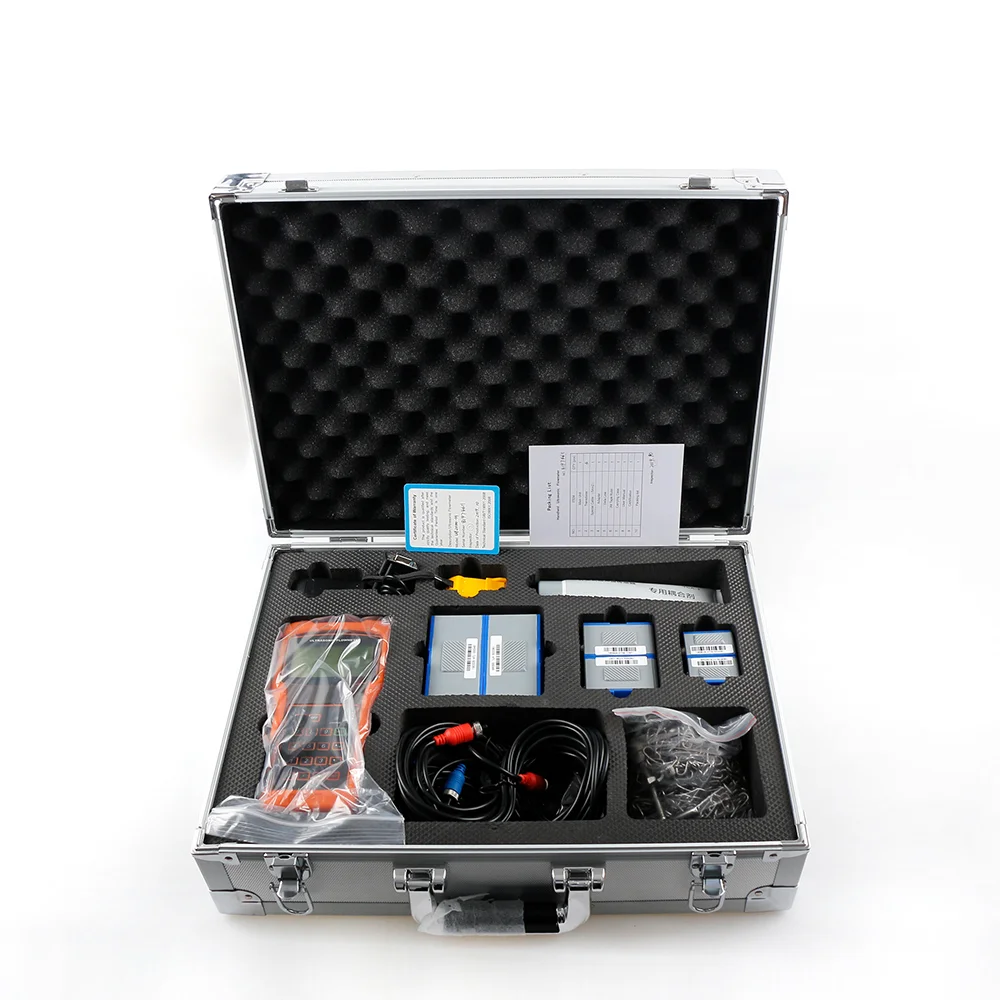

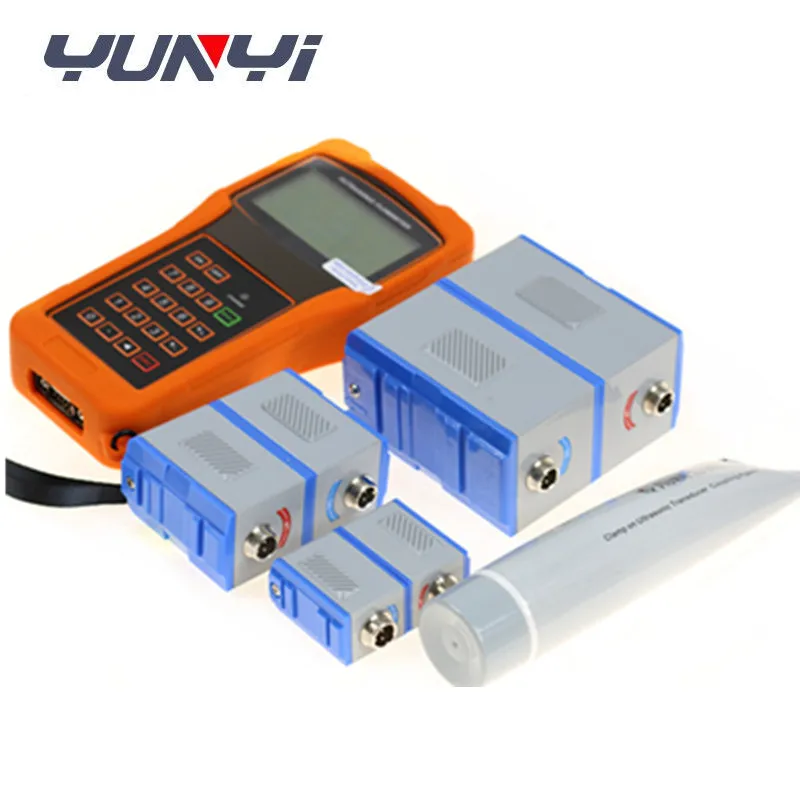

Detailed Images of portable handheld ultrasonic flow meter






Specification of portable handheld ultrasonic flow meter

Item
portable handheld ultrasonic flow meter
Linearity
0.50%
Repeatability
0.20%
Accuracy
±1% of reading at rates>0.2 mps
Response Time
0-999 seconds, user-configurable
Velocity
±32 m/s
Pipe Size
15mm-6000mm
Totalizer
7-digit totals for net, positive and negative flow respectively
Liquid Types
Virtually all liquids
Security
Setup values Modification Lockout. Access code needs unlocking
Display
4x8 Chinese characters or 4x16 English letters
Communication Interface
RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made by user requirements
Transducer Cord Length
Standard 5m x 2, optional 10m x 2
Power Supply
3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger
Data Logger
Built-in data logger can store over 2000 lines of data
Manual Totalizer
7-digit press-key-to-go totalizer for calibration
Housing Material
ABS
Case Size
210x90x30mm
Main unit Weight
500g with batteries





Features of portable handheld ultrasonic flow meter

* Large-screen LCD
* Built-in data-logger
* High accuracy measuring
* Small and light
* Non-contacting measuring
* Built-in rechargeable battery
* Wide measuring range
* RS-232/RS485 serial interface
