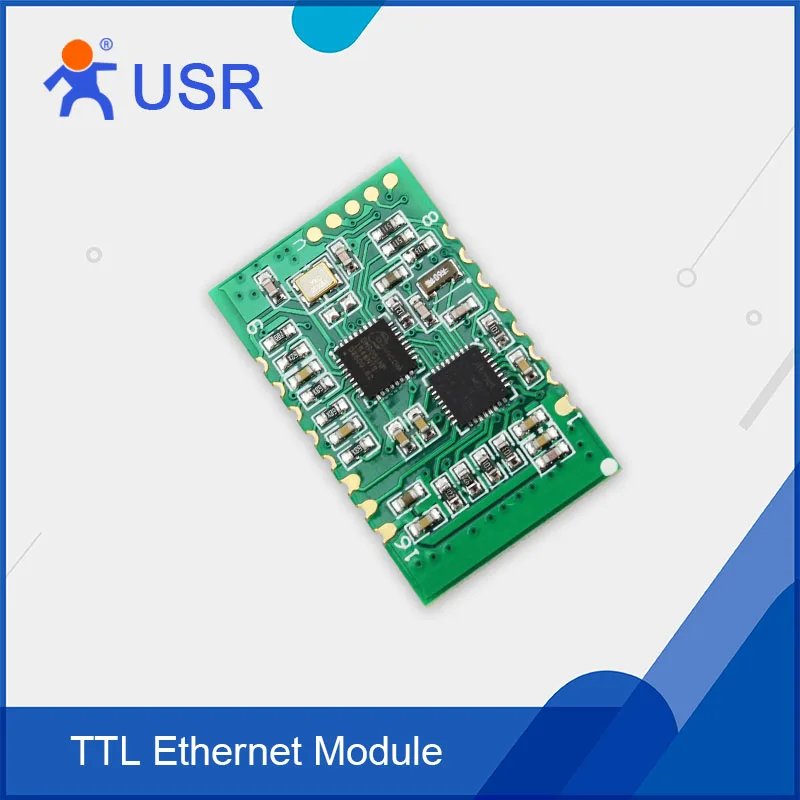

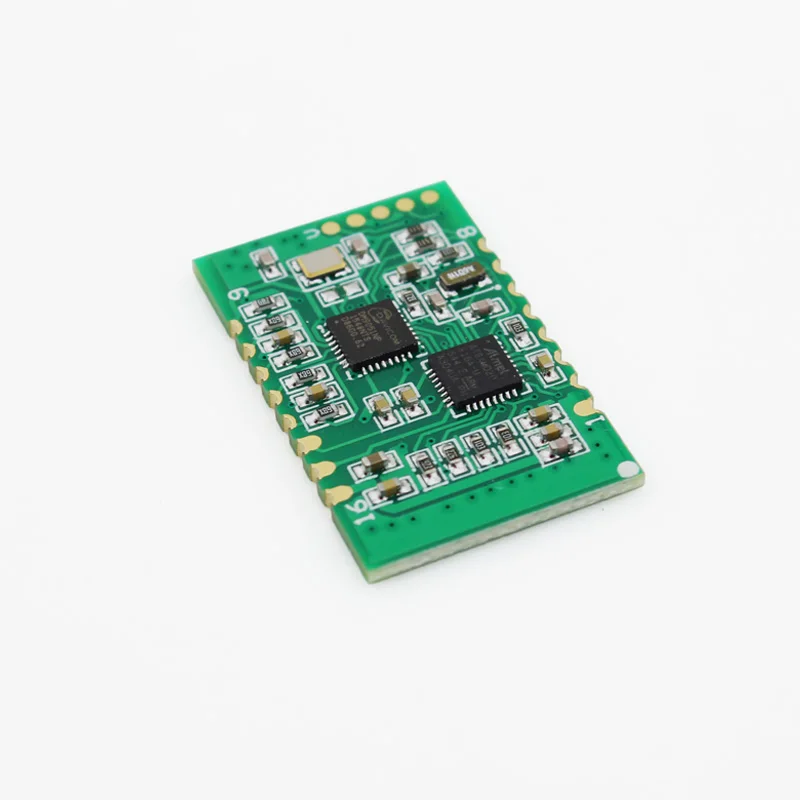

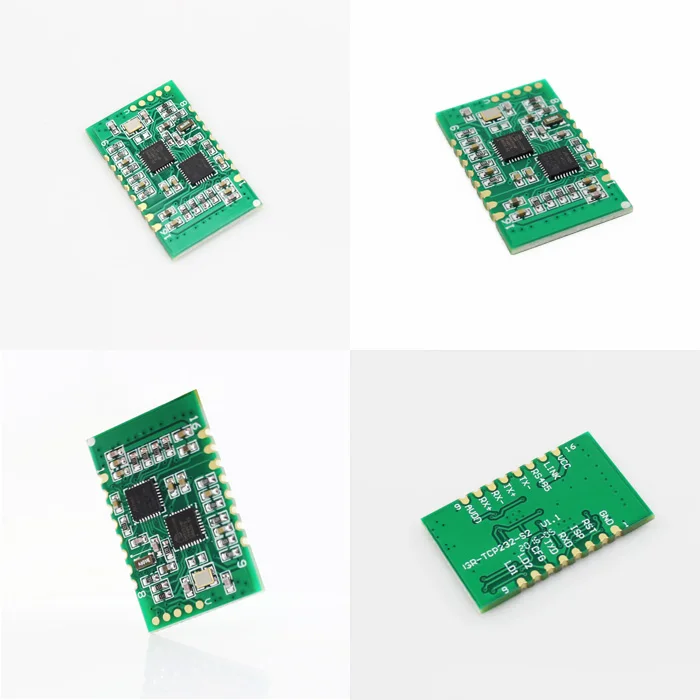

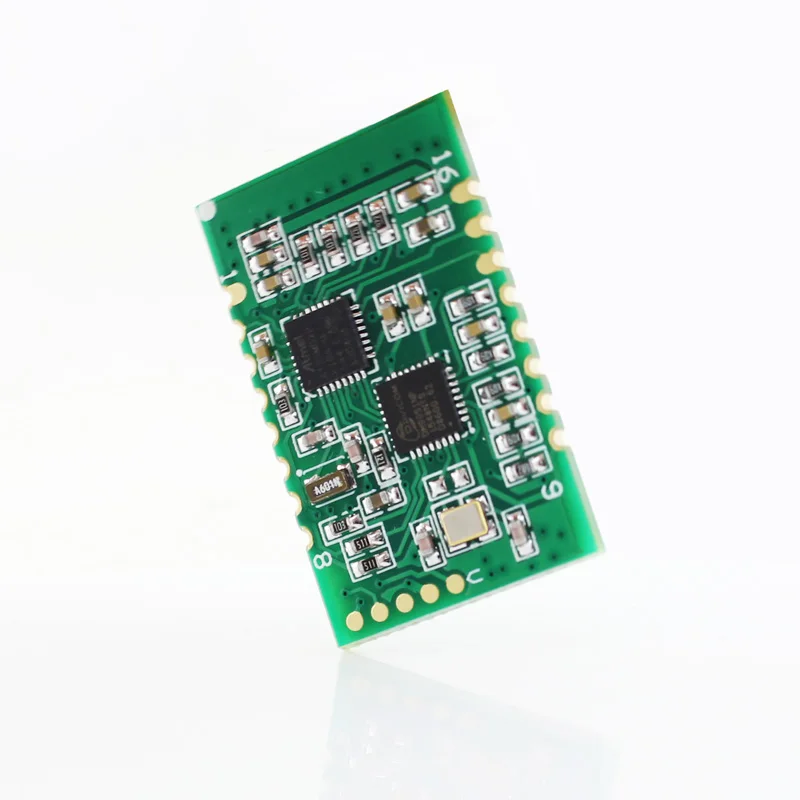

USR S2 TCP IP Module Serial UART to LAN Ethernet Converter

Product Overview

Description



USR-TCP232-S2 is a tiny size SMT serial Ethernet module which can realize data bidirectional transparent transmission between TTL and Ethernet Port. It can also be applied in RS232/ RS485 by level shift circuit.USR-TCP232-S2 is based on Cortex-M0 core. It has characters of low power, fast speed and high efficiency.







Feature



• Auto-MDI/MDIX, RJ45 port with 10/100Mbps


• Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client


• Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None,Odd,Even,Mark and Space


• Self-defined heartbeat package mechanism to ensure connection is reliable, put an end to dead link


• Self-defined registration package mechanism, check connection status and use as custom packet header


• Under TCP Server mode, Client number ranges from 1 to 16; default number is 4


• User can set parameters via webpage, AT command, serial protocol and network protocol; and setting protocol is provided, users can integrate it to their own software


• Support DHCP, automatically obtain an IP address


• Support DNS function and custom setting of DNS server


• The global unique MAC address bought from IEEE, user can define MAC address


• Upgrade firmware via network


• Support virtual serial port and provide corresponding software USR-VCOM


• Restore factory default via software and hardware


• Across the gateway, switches, routers


• Can work in LAN, also can work in the Internet (external network)


• Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS


• Support customization



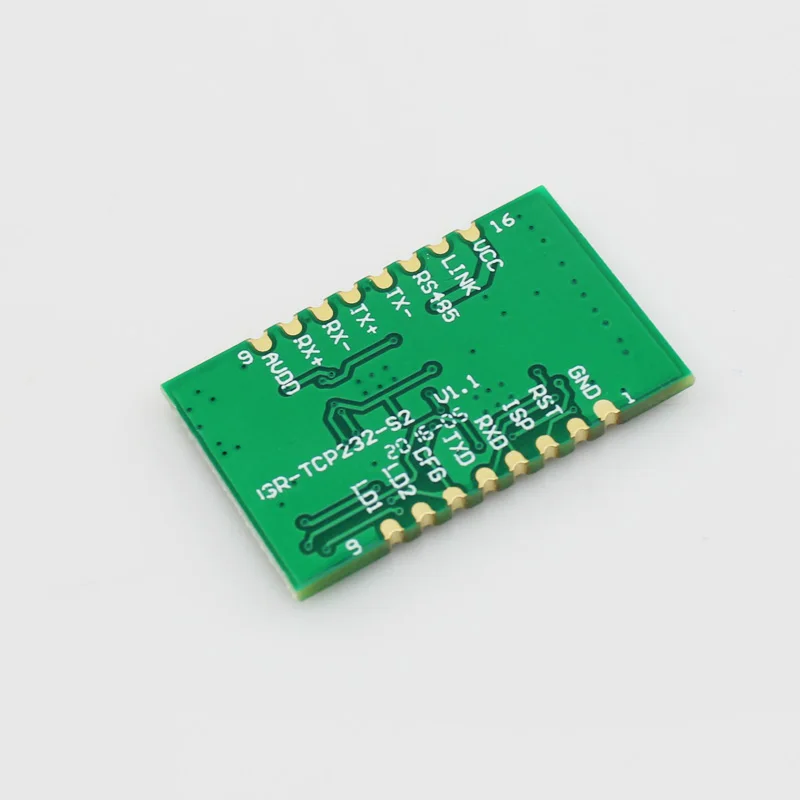

Parameter



• Input Voltage: DC 3.3V


• Current: 150mA (aver), 200mA (max)


• Size: 33 x 20.3 mm


• Operating Temp: -25 ~ 75°C


• Storage Temp: -40 ~ 105°C, 5 ~ 95% RH


• Interface : TTL UART


• Network Protocol: IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP





Function

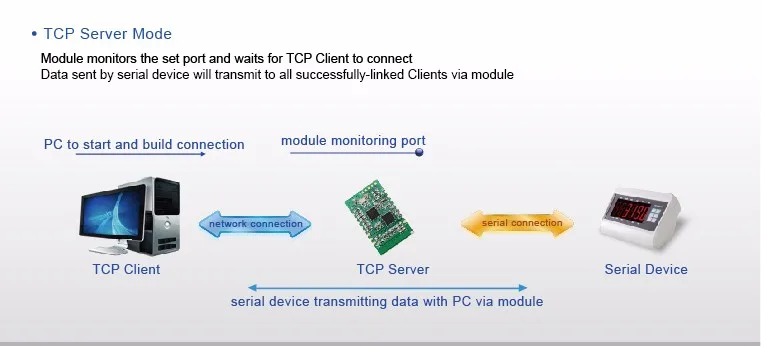

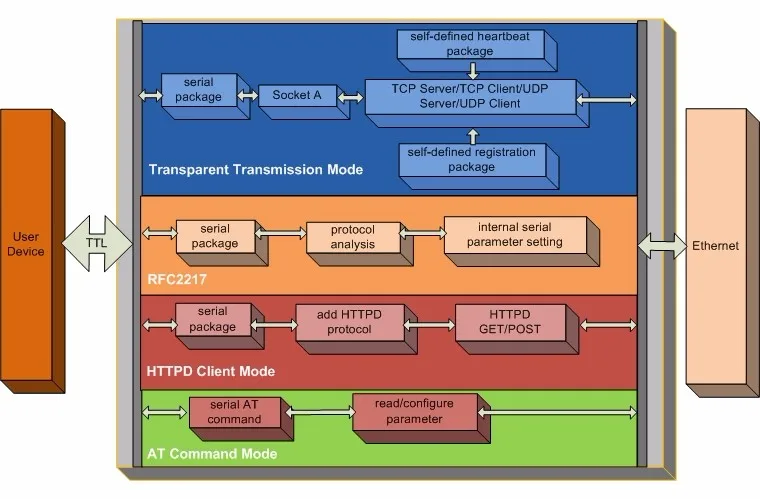

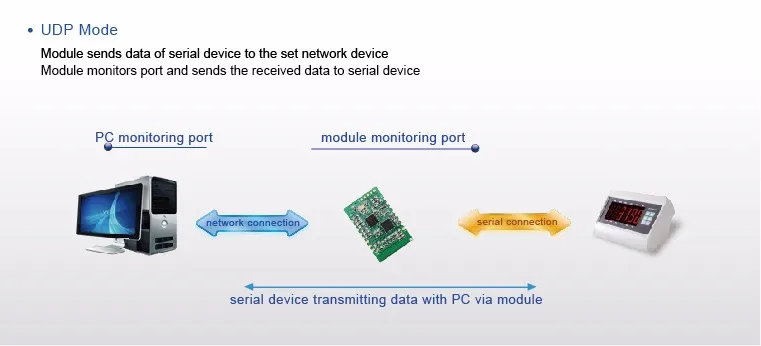

Work Mode

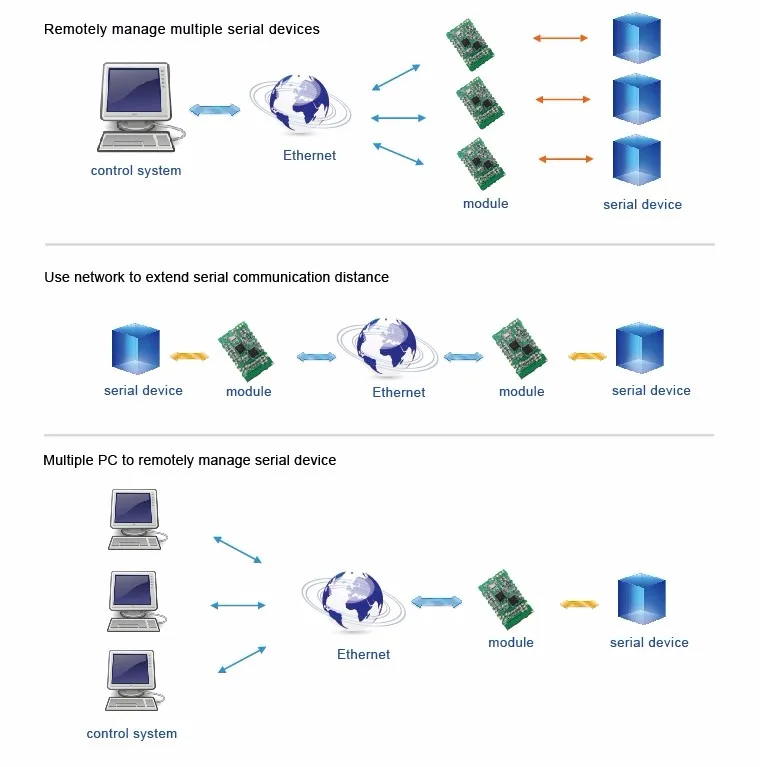

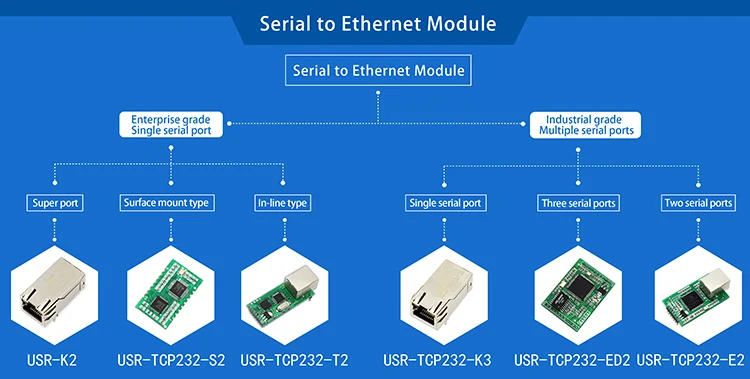

Application









• Service: 2 years guarantee, and professional technical staff help.


• Supply ability: We usually have 3000-5000 units in stock for urgent orders.


• Capacity: 50K/week, can meet the demand of most enterprises application.


• Lifetime: At least 5 years for each device, can still produce just if you need.


• Cooperation: Welcome the cooperation with distributors all over the world.
