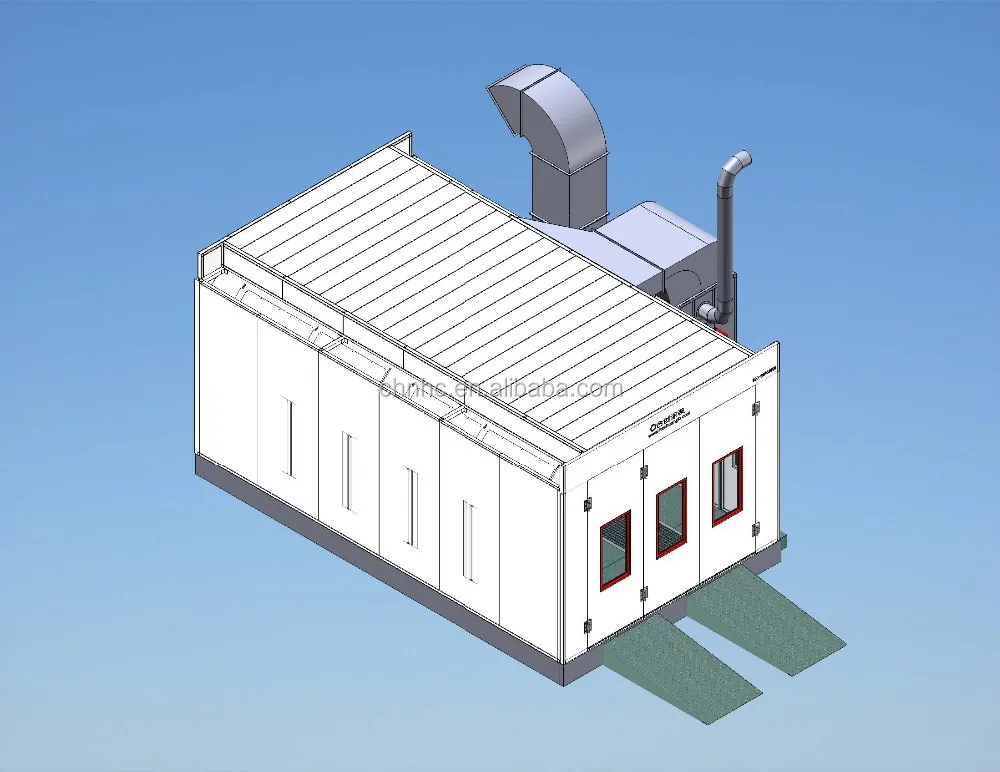

Oven for painting cars/ auto paint booth price
- Category: >>>
- Supplier: Guangzhou Hechuang Coating Equipment Manufacturing Co. Ltd.
Share on (60169686758):
Product Overview
Description
Product Description
Product Description
Specification of oven for painting cars/ auto paint booth price
Outside Size: | 7010 x 5570 x 3610 mm (L x W x H) | Inside Size: | 6900 x 4000 x 2800 mm (L x W x H) |
Foundation and Floor | Foundation | Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates | |
Metal basement | 350mm height, the ventilation effect is better than traditional spray booth | ||
Drive-in Ramps | 2 units, each size: 2000x1000 mm, diamond plate construction | ||
Wall and door | Wallboard and Roof Panel | Side wall panels adopt high quality double construction fireproof EPS insulation materials, thickness is 50mm, have function of fireproof and keeping warm. Roof panels adopt galvanized steel plate bending forming | |

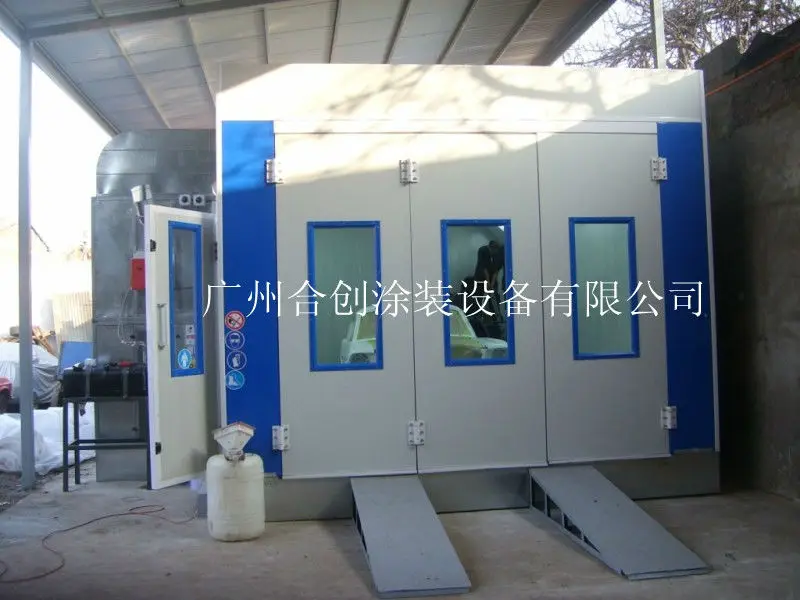

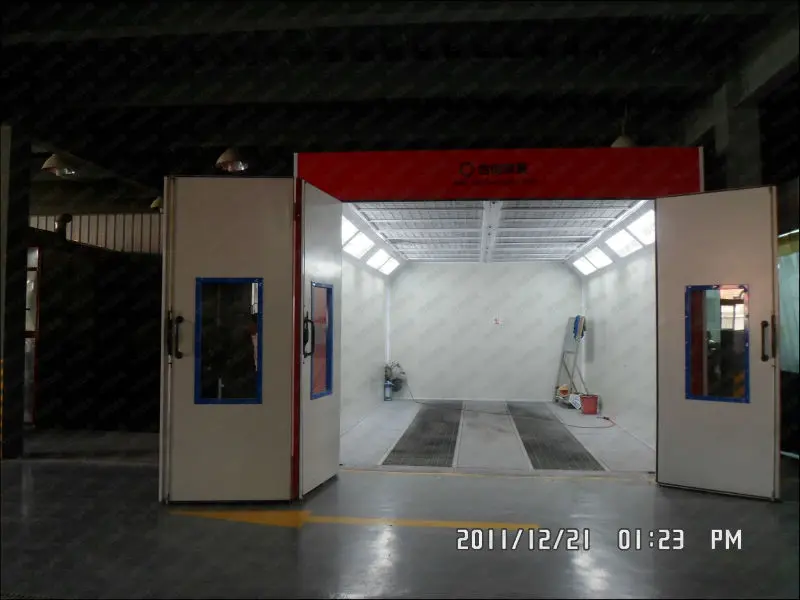

3-Folded Entrance Door With Safety Glass Window | 1 set, size: 3200x2700 mm(B x H), size is bigger than traditional spray booth | ||
-Operator’s Door With Safety Glass Window | Big opening:700x2000mm (B x H),hand-made, tempering glass observation window | ||
Light System | Ceiling Lighting | 8units, each4×36w, total 1152W , | |
Side Lighting | 8units, each2×36w, total 576W , | ||
Brightness | ≥1000 LUX | ||
Filtration System | Pre-filters | Grade G2 plate type fiber glass filter | |
Ceiling Filters | EU5 grade high efficient filter | ||
Bottom filter & exhaust filter | Fibreglass paint-stop filter | ||
Ventilation System | Inlet fan (Direct drive motor) | Adopt big impeller turbo fan, 7.5KW, 380V , 50HZ, CE | |
Outlet fan (Direct drive motor) | No | ||
Painting and baking exchange system | Solenoid valve+ pressure adjustment control cylinder driven damper exchange | ||
Fan Capacity | 25,000m³/h | ||
Air Flow Speed | 0.23 m/s in empty booth, 0.25-0.35m/s in loaded booth | ||
Heating System | Heating Exchanger | Adopt high efficient heat-resistant stainless steel as cycling heat exchanger | |
Heating Exchange Capacity | 160KW(180,000Kcal/H) | ||
Burner Model | Adopt Italy RIELLO diesel burner G20(180,000kcal/H) | ||
Heating time | 4-6 minutes (from 20 to 60º) under baking status, max baking temperature is 80° | ||
Control Board | Control system | Standard control system | |
Function | Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication | ||
Total power | 9KW | ||
![06-151511286[1].jpg](http://sc01.alicdn.com/kf/HTB1h9lVu1uSBuNjSsziq6zq8pXa7/220840012/HTB1h9lVu1uSBuNjSsziq6zq8pXa7.jpg)
![07-151511287[1].jpg](http://sc01.alicdn.com/kf/HTB1aNglmByWBuNkSmFPq6xguVXas/220840012/HTB1aNglmByWBuNkSmFPq6xguVXas.jpg)
![09-151511289[1].jpg](http://sc01.alicdn.com/kf/HTB1og4Ju1GSBuNjSspbq6AiipXab/220840012/HTB1og4Ju1GSBuNjSspbq6AiipXab.jpg)
![10-147229030[1].jpg](http://sc02.alicdn.com/kf/HTB16Q0.u1uSBuNjy1Xcq6AYjFXaA/220840012/HTB16Q0.u1uSBuNjy1Xcq6AYjFXaA.jpg)
![11-147229031[1].jpg](http://sc02.alicdn.com/kf/HTB1X7YimyCYBuNkHFCcq6AHtVXaQ/220840012/HTB1X7YimyCYBuNkHFCcq6AHtVXaQ.jpg)
Packaging & Shipping
Package and Shipping
Package: Professional export package-use the iron bracket package
Loading situations: a 20GP container
Our Services
Our Services
A. All of the machines in our factory can be customized. If you have any other requirements of the machine, please feel free to contact me. We can design it for you.
B: Payment terms: T/T. 30% in advance after order confirmed, 70% in balance before
shipment.
C: Delivery time: To effect shipment within 7 days after the receipt of deposit.
D:Warranty time: 1 year. During the warranty time, any defective caused by product’s quality, CHNHC has responsibility to offer free spare parts to customers freely and bear the
delivery cost for DHL or TNT Carrier.
Company Information
Company Information
HC Coating Equipment Manufacturing Co., Ltd. is an auto maintenance equipment company. Today it is a global player in the automotive aftermarket providing a full range of equipment and service solutions for workshops. The core products in our company are spray painting and baking booth, portable spray booth, bus/truck spray paint booth, preparation station, mixing room, brake lathe, car bench and so on. All our products are shipped to Europe, East Europe, North & South America, Africa, Australia and Asia as well as different provinces in China.
Our Factory
FAQ
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory and all machines are produced at our own factory.
Q:Can I order special color which I like?
A: Yes, we can also produce machines with special color according to client's request.
Q: Can I order spray booth in any special size?
A: Yes,you can.
The size is customized.
Q: I don't know how to assemble your spray booth
A: The complex installation is already finished before delivery, what you need to
do is finishing the simple procedures according to the installation instructions.
Q: When the product can be delivered?
A: Commonly the lead time will be within 7 working days after receiving 30% deposit by T/T.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Huadu District, Guangzhou City, Guangdong Province, China, about 10 minutes by car from Baiyun international Airport. We welcome customers from all over the world!
Q: Can you do OEM and ODM?
A: Yes, for both. We can make products according to your requirement of every aspect.
