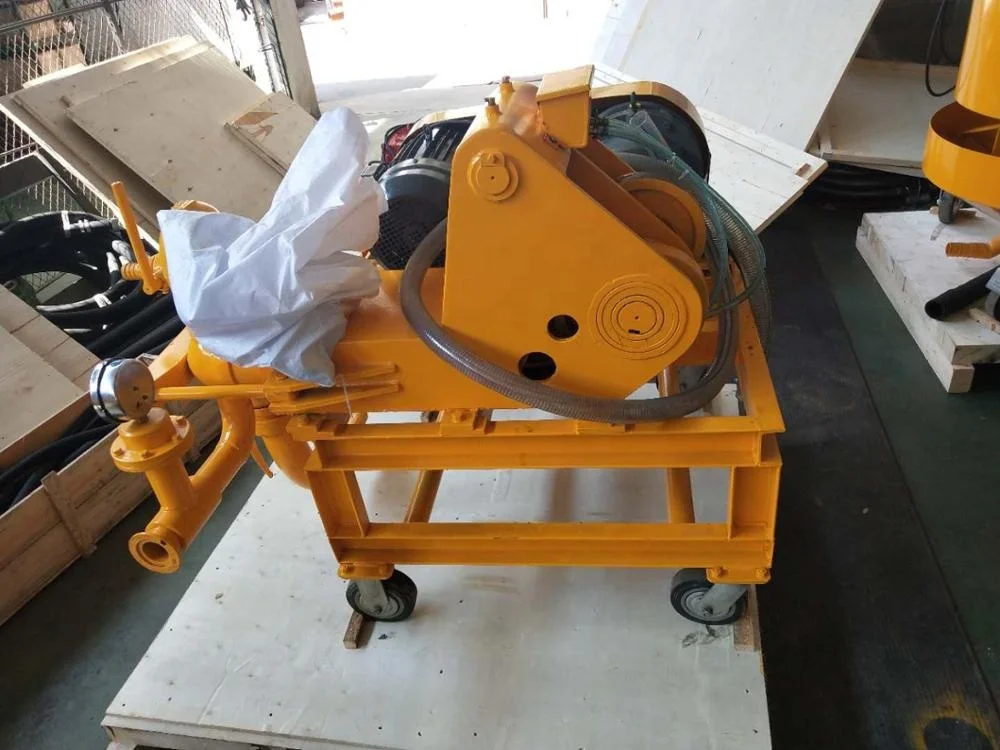

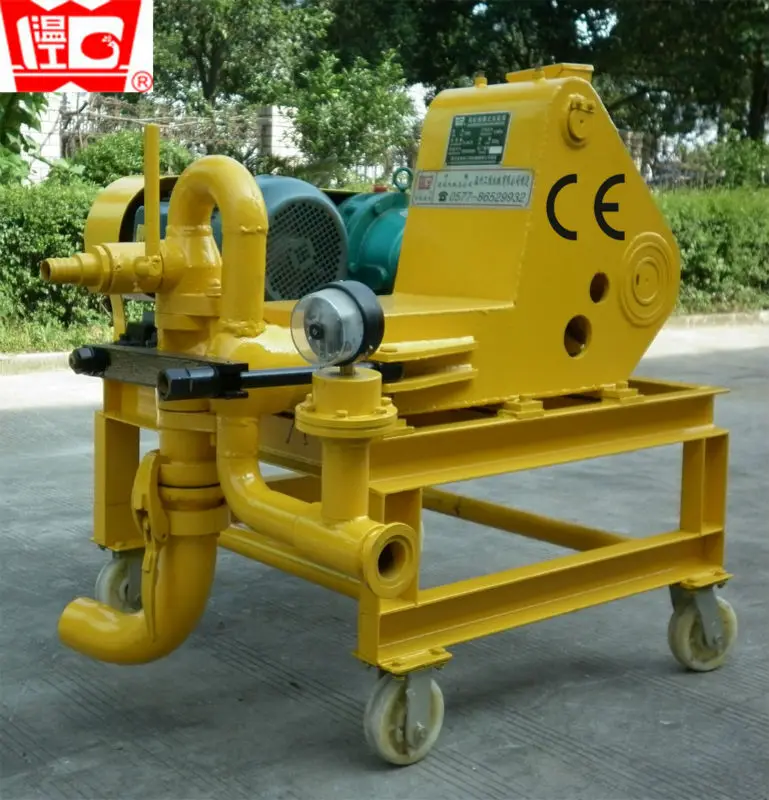

1. 2UB5 Dobule piston grouting pump is characterized in its small impulse, high pressure, high lift, large pump delivery, rational structure, flexible operation and good spraying and grouting effects, etc.
2. The pump is used for the anchor bolt grouting, grouting and spray supporting in highway, bridge, tunnel, culvert, subway, water conservancy and underground projects.
3. Can pump mortar to 30m height and 60m distance, output: 4.5m3/h
Technical parameters
Model
—
UB3
2UB5
Supply power
—
440V 50Hz
400V 50Hz
Motor power
kw
4
5.5
Piston quantity
piece
1
2
Maximum output
L/min
50
83
Delivery pressure
Mpa
3
4.5
Horizontal delivery distance
m
80
300
Vertical delivery distance
m
40
80
Feeding hose diameter
mm
64
89
Discharging hose diameter
mm
38
51
Net weight
kg
250
550
Dimension (L×W×H)
mm
1033×474×940
1350×1080×1080

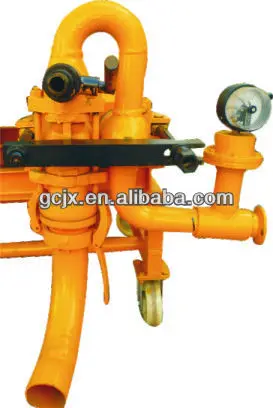

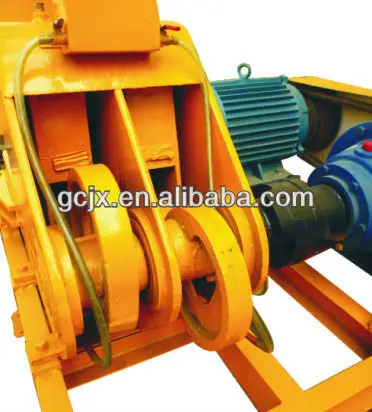

1. 2UB5 mortar pump inside structure of two piston valve balls as below:

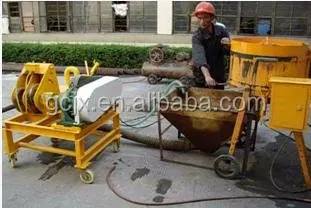

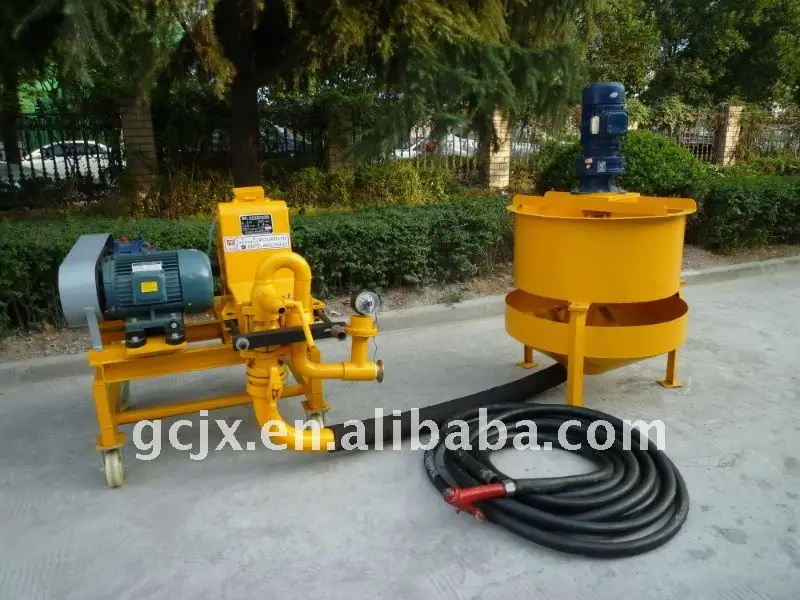

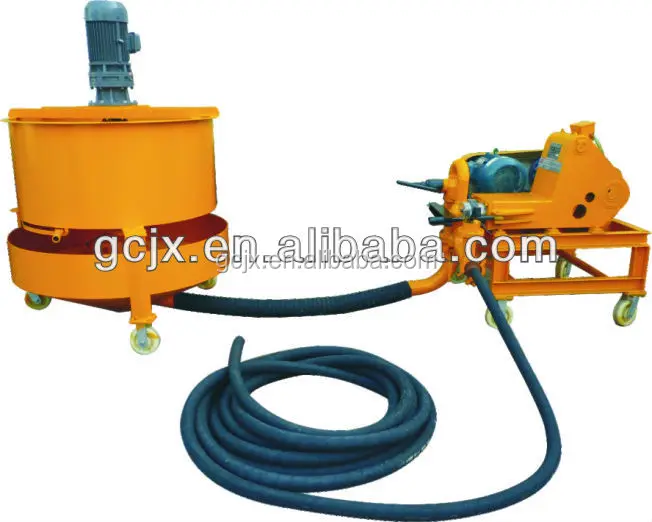

2. You should order mortar mixer and feeding hopper for matching 2UB5 mortar pump working. Or you can use it togther with SJ series repeated mixing mortar mixer directly.
Company Information

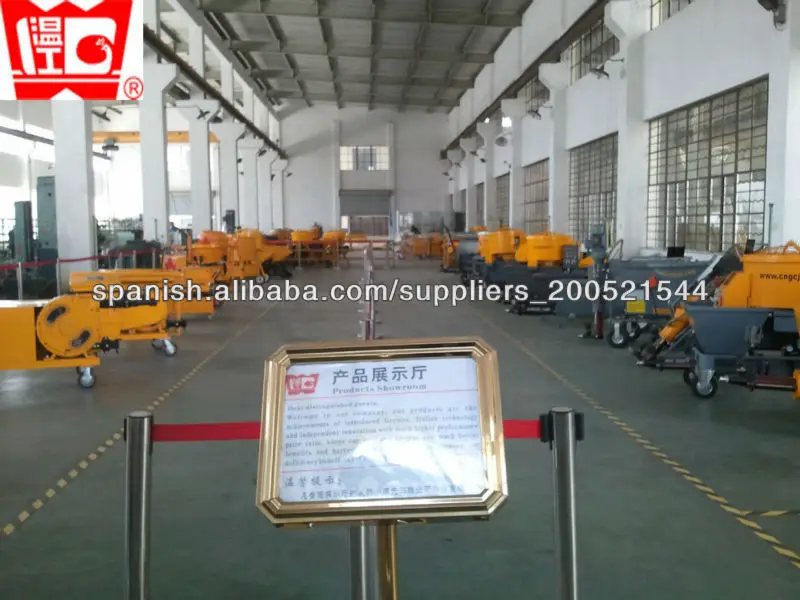

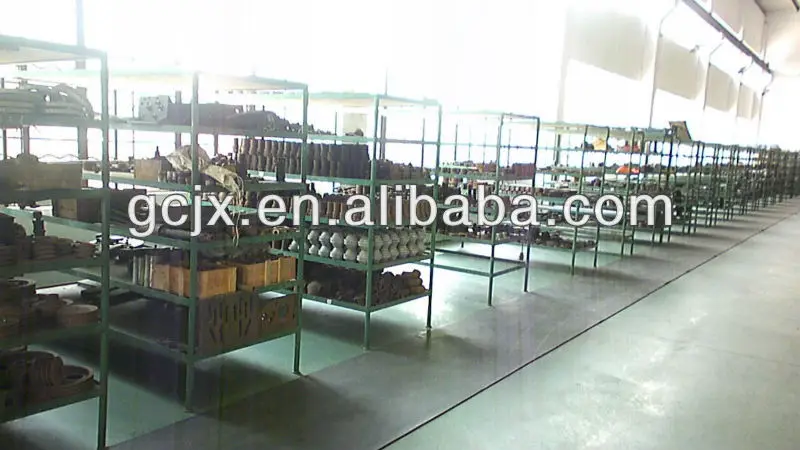

1. Our factory
Function&Application
Infinite number of possible applications
**Base coat plaster (interior and exterior) **Scraped and floating render **Sprayed and textured render **Rough trowel finish render and **bonding layers **Masonry mortar **Fire proofing
**Sealing slurry **Injection mortar and filling mortar **Dispersion plaster **Glass-fibre-reinforced concrete **Cementitious adhesive **Repair mortar and Insulating plaster **Loam rendering **and much more
Packaging & Shipping
***Wooden case packing
Full container shipment---wooden pallent package
LCL shipment----wooden carton package
Certifications
***CE certification
***ISO 9001 certification
***NGV certification
Patent & Pride from Wallgoe:
Contact
Tel: +86 577-86529608
Fax: +86 577-86529637
Mobile: +86 15258633273 (Whatsapp/Wechat)
Skype: kellyzheng55
QQ: 330363227
Email: sales @cngcjx.com
FAQ
1. Q: Which pump model or plastering machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
-use for plastering or grouting?
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: What is the vulnerable part? How many spares should we prepare?
A:Screw type plastering machine
Rotor and stator would be worn out after 1-4 weeks depends on material and operation period.suggest purchase 4--6 sets.
Concrete pump:
After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week if voltage is 3 phase 380v 50hz. 20-40 days if other voltage.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
