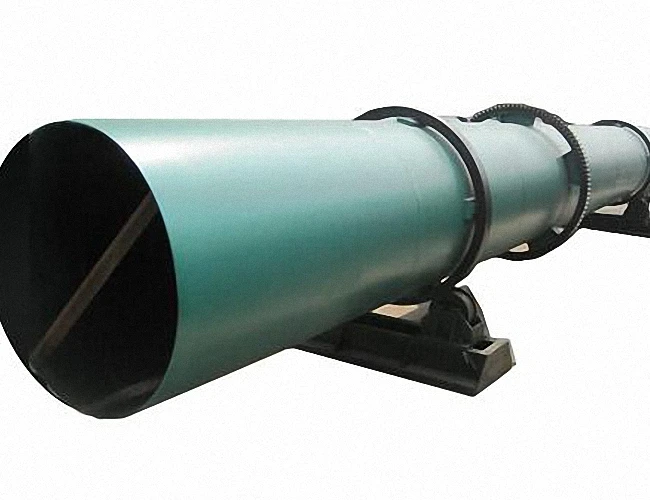

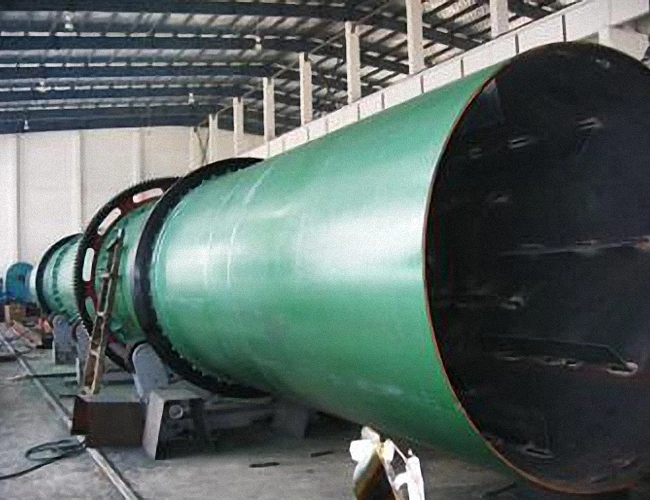

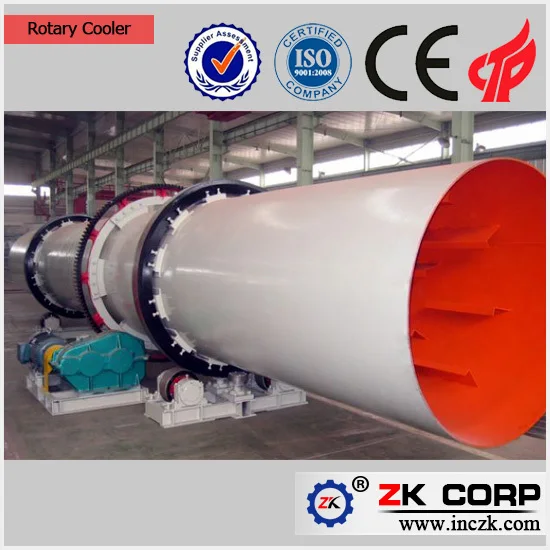

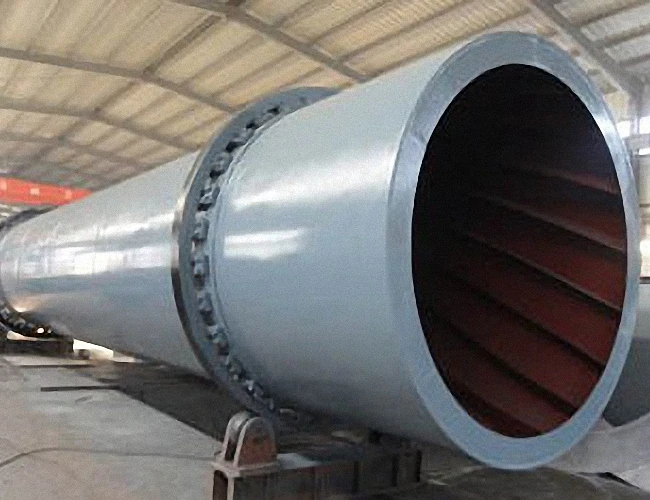

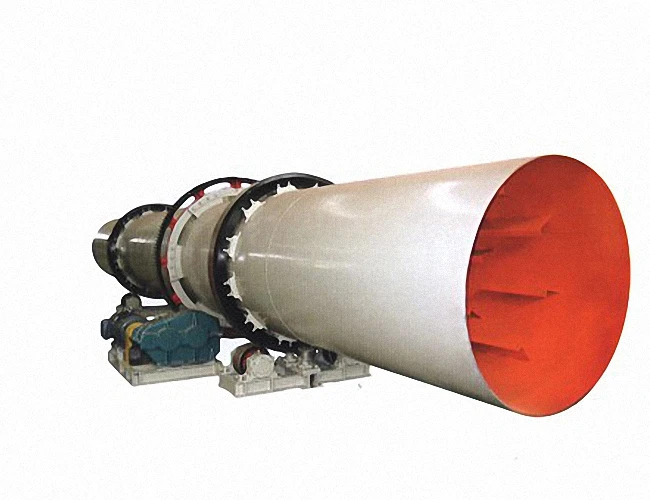

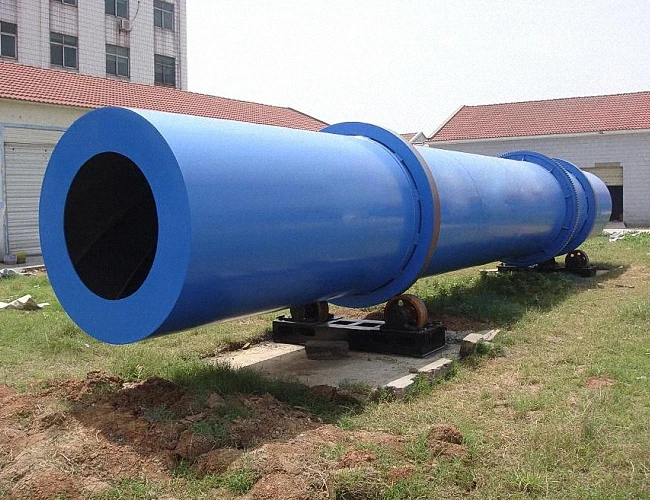

Single Cylinder Cooling Machine/ Rotary Cooler for Cooling Cement
- Category: >>>
- Supplier: Henan Zhengzhou Mining Machinery Co. Ltd.
Share on (60170211365):
Product Overview
Description
Single Cylinder Cooling Machine/ Rotary Cooler for Cooling Cement
Product Description
1. Introduction of Rotary Cooler
Rotary cooler is a key equipment of the material calcination line. It has such advantages as simple structure, high efficient operation, easy to maintenance. Rotary cooler is widely used in building materials, chemistry, metallurgy and other industries. It is usually equipped with rotary kiln.
2. Structure of Rotary Cooler
Rotary cooler mainly consists of cylinder, front roller ring, back roller ring, gear; support rollers, catch wheels, pinions, discharging part, scattering plate, reducer, motor, hot air channel, feed chute and so on. In addition, according to customer’s needs, it can be furnished with cooling tank, bucket elevator, belt conveyor, dosing feeder, cyclone dust collector, air fan and so on.
3. Working Principle of Rotary Cooler
Rotary cooler is a kind of cooling equipment for industrial use. It is used to quench clinker which is laid in levels on the grate plates with cold wind from air blower. Temperature of clinker will be rapidly cooled from 1200℃ to be less than 100℃. Plenty of waste gases after cooling could not only be used as secondary air in the kiln, but also as heat source for drying coal in the coal mill. The equipment works in natural state, with low speed revolving in a slope of 3.5%. Materials are fed from the top of cylinder, and scattering plate scatters the materials to make it discharged from the bottom side of cooler.
4. Technical Parameters of Rotary Cooler
Model and specification | Cylinder | Motor | Deceleration maxhine | |||
Volume(m³) | Speed(r/min) | Rake(%) | Model | Power | ||
Φ1x15 | 11.8 | 5 | 5 | YCT200-48 | 7.5 | ZQ400 |
Φ1.2x12 | 13.57 | 5 | 5 | YCT225-4A | 11 | ZQ500 |
Φ1.2x15 | 17 | 4-5 | 5 | YCT225-4B | 15 | ZQ500 |
Φ1.2x20 | 22.6 | 4-5 | 5 | YCT225-4B | 15 | ZQ500 |
Φ1.5x10 | 17.67 | 3-5 | 5 | YCT225-4B | 15 | ZQ650 |
Φ1.5x14 | 24.9 | 3-5 | 5 | YCT225-4B | 15 | ZQ650 |
Φ1.5x18 | 31.8 | 3-5 | 5 | YCT250-4A | 18.5 | ZQ650 |
Φ1.5x20 | 35.3 | 3-5 | 5 | YCT250-4A | 18.5 | ZQ650 |
Φ1.8x16 | 40.7 | 3-5 | 4 | YCT250-4B | 22 | ZQ750 |
Φ1.8x18 | 45.8 | 3-5 | 4 | YCT250-4B | 22 | ZQ750 |
Φ1.8x20 | 50.9 | 3-5 | 4 | YCT250-4B | 22 | ZQ750 |
Φ2.0x16 | 50.3 | 3-5 | 3.5 | YCT250-4B | 22 | ZQ750 |
Φ2.0x20 | 62.8 | 3-5 | 3.5 | YCT280-4A | 30 | ZQ750 |
Φ2.2x14 | 53.2 | 3-5 | 3.5 | YCT280-4A | 30 | ZQ750 |
Φ2.2x18 | 68.4 | 3-5 | 3.5 | YCT280-4A | 30 | ZQ750 |
Φ2.2x20 | 76 | 3-5 | 3.5 | YCT280-4A | 30 | ZQ750 |
Φ2.4x16 | 72.3 | 3-4 | 3.5 | YCT280-4A | 30 | ZQ850 |
Φ2.4x20 | 90.4 | 3-4 | 3.5 | YCT280-4A | 30 | ZQ850 |
Φ2.8x28 | 172 | 2.5 | 3.5 | Y280M-6 | 55 | ZQ1000 |
Φ3x30 | 212 | 1-2 | 3.5 | Y315S-6 | 75 | ZL115 |
Our Services
Pre-sale Service
- Determine your needs and expectations through positive communication, active advice, and visit arrangement;
- Provide you with necessary preliminary design information, bidding documents or quotation sheet based on your needs and expectations;
- Provide you with technical solutions and help you determine;
- Provide you with draft contract and technology agreements;
- Meet requirements and needs of your bidding documents or other means;
- Other services before signing contract;
- Contract evaluation and contract signing.
After-sale Service
- Select excellent installation team or installation service personnel for you;
- Provide you with operating and training services;
- Help with the equipment commissioning, and solve problems in trial operation;
- Check and acceptance service for single equipment or a whole production line;
- Service items including follow-up visit, customer satisfaction surveys and so on;
- Timely provide you with necessary accessories after acceptance;
- Provide you with warranty services of repair, replacement and refund if conditions are fulfilled.
- Help you solve other problems.
Company Information
Henan Zhengzhou Mining Machinery Co., Ltd ( ZK Corp.) is located in Wulong Industrial Park of Zhengzhou Xingyang which is the capital of Henan Province. It is at the junction of 310 State Road and Xingmi Road, close to the highway, railway station, West Zhongyuan Road, downtown area of Zhengzhou and Zhengzhou International Airport. The transportation condition is very convenient.
The main products of our company include: ball mill, rotary kiln, vertical preheater, rotary dryer, rotary cooler, jaw crusher, coal burner, magnetic separator, flotation machine, classifier, feeder, bucket elevator, dust collector, belt conveyor, ceramic sand granulator and other equipment relate to metallurgy, cement, lime, mineral processing, magnesium production, refractory, chemical industry, etc. The products of our company have been sold to every province of China and exported to Russia, Korea, Vietnam, Malaysia, Nepal, Bangladesh, Mexico, Armenia, Africa, South America and other countries and regions.
FAQ
How to choose the righ type of rotary cooler?
- The following factors need to be taken into consideration: the feeding size and kind of material, material temperature, production capacity, power, working hour, etc.
- We have professional sales manager and engineers who can help you to decide the type.
What about price of rotary cooler?
- Different models of rotary cooler have different prices.
- We will give you the most favorable price.
- Discount is negotiable.
How about the after-sale installation of rotary cooler?
- Our engineers are aviliable to help you install rotary cooler onsite.
- We also can offer commissioning and operation training service.
