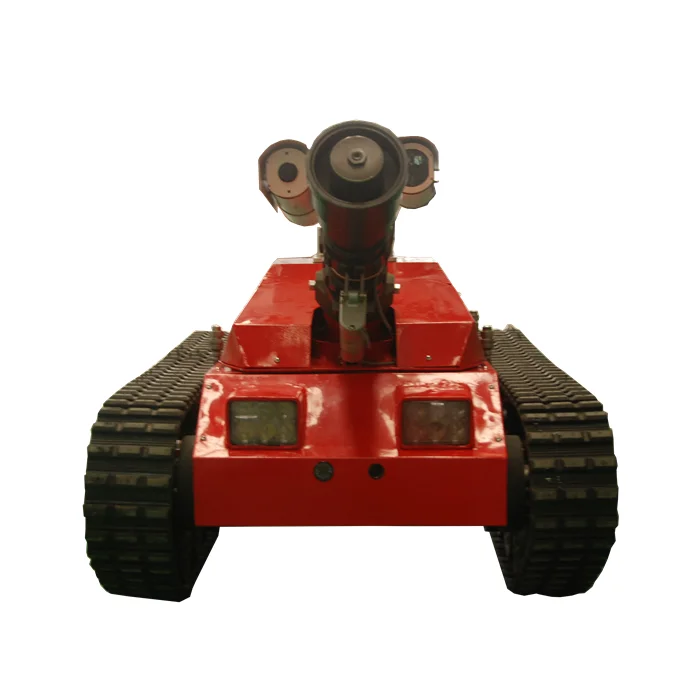

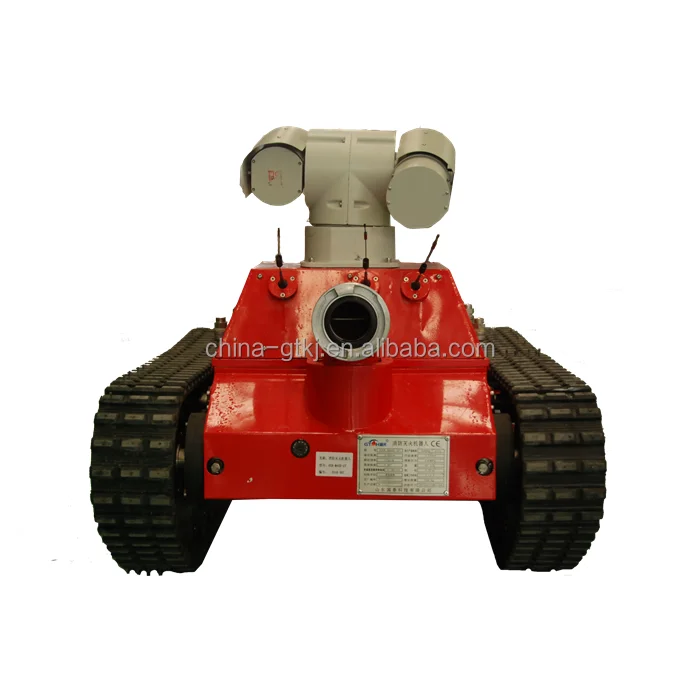

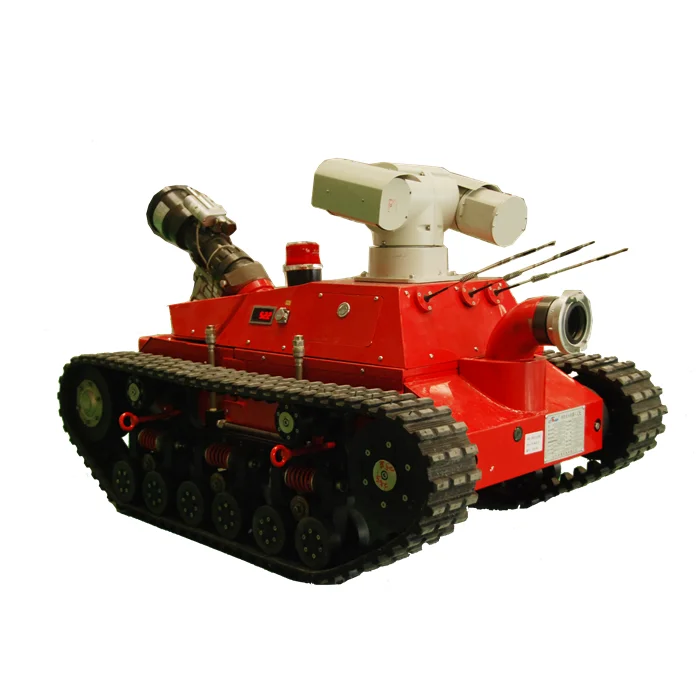

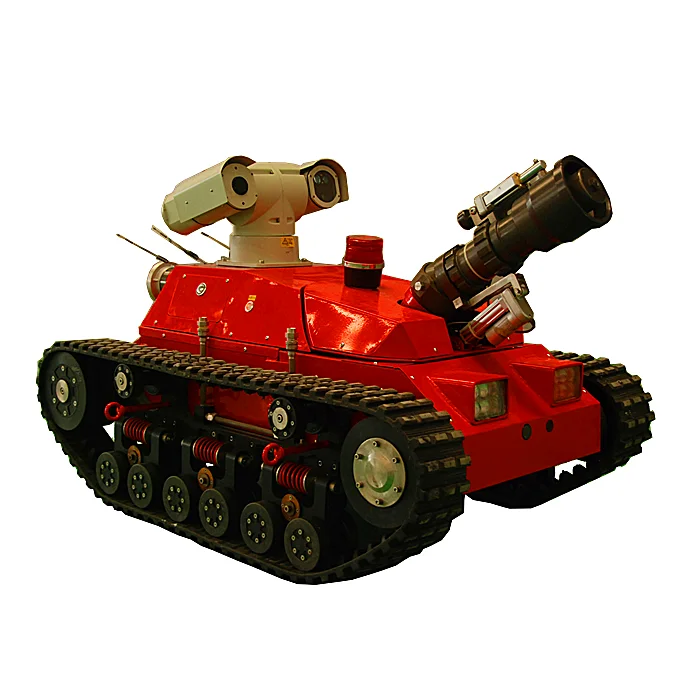

M40D remote control fire extinguishing robot

Product Overview

Description



 Fire Extinguishing Robot



Product Introduction:

1.No loss of life.

As a carrier without life,fire extinguishing robot can be fully effective when face high temperature,toxic,hypoxia,and smoke etc dangerous complicated environment where people are not able to move into.It will decrease the loss of fireman.



2.Reusability.

Fire extinguishing robot is a special equipment,it can be used repeatedly while maintain normally.

3.Functional diversification.

 Fire extinguishing robot can not only extinguish the fire efficiently,but also realize the function of scene image transfer,toxic and hazardous gas detection etc.



Fire Extinguishing Robot Technical Parameter:



RXR-M40D-GT02 TECHNICAL PARAMETER
Walking mechanism form	crawler
Engine rated power(w)	1700
Effective remote distance(m)	≥200
Walking speed (km/h)	≥3
Walking temperature(°C)	-20~+55
IP grade	IP65

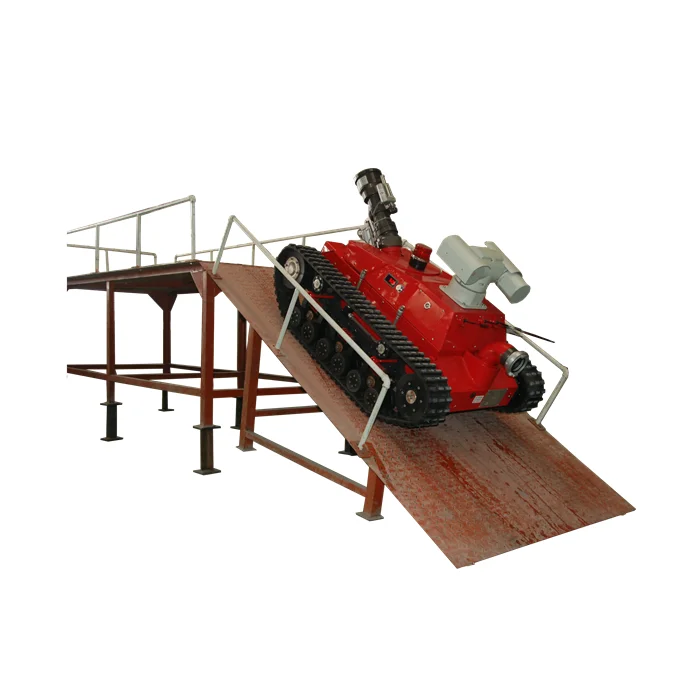

Climbing slope angle( °)	≥30
Crossing vertical obstacle height(mm)	≥180
Fording depth(mm)	≤200
Minimum ground clearance(mm)	148
Gyration	pivot steering
Rated flow(L/s)	40
Rated spraying pressure (MPa)	0.8~1.0
Spraying distance(m)	≥65
Spraying angle (°)	≥90
Total weight (kg)	180
Dimension(L*W*H)(mm)	1450*820*800
