Product Overview
Description
JP22 Gypsum plaster pump machine
1. JP22 gypsum plaster pump machine has measuring water, mixing itself, pressure conveying and spraying.
2. They have many advantages with light weight, small volume, easy to dismounting, move flexible, be suit for narrow environment to use.
3. It's applicable for pumping and spraying different kinds ready-mixed mortar which include of inner-external plastering mortar, masonry mortar, self-leveling mortar, cement mortar and lime mortar.
4. JP22 can pump max grain size with 5mm, max pumping height to 15m, distance to 25m.
Technical parameter
Model | — | JP22 |
Supply power | — | 220/400V 50Hz |
Motor power | kw | 4 2.2 |
Maximum grain size | mm | 4 |
Output | l/min | 25 |
Delivery pressure | bar | 40 |
Horizontal delivery distance | m | 40 |
Vertical delivery distance | m | 15 |
Hopper volume | L | 50 |
Net weight | kg | 185 |
Dimension (L×W×H) | mm | 1200×660×1100 |

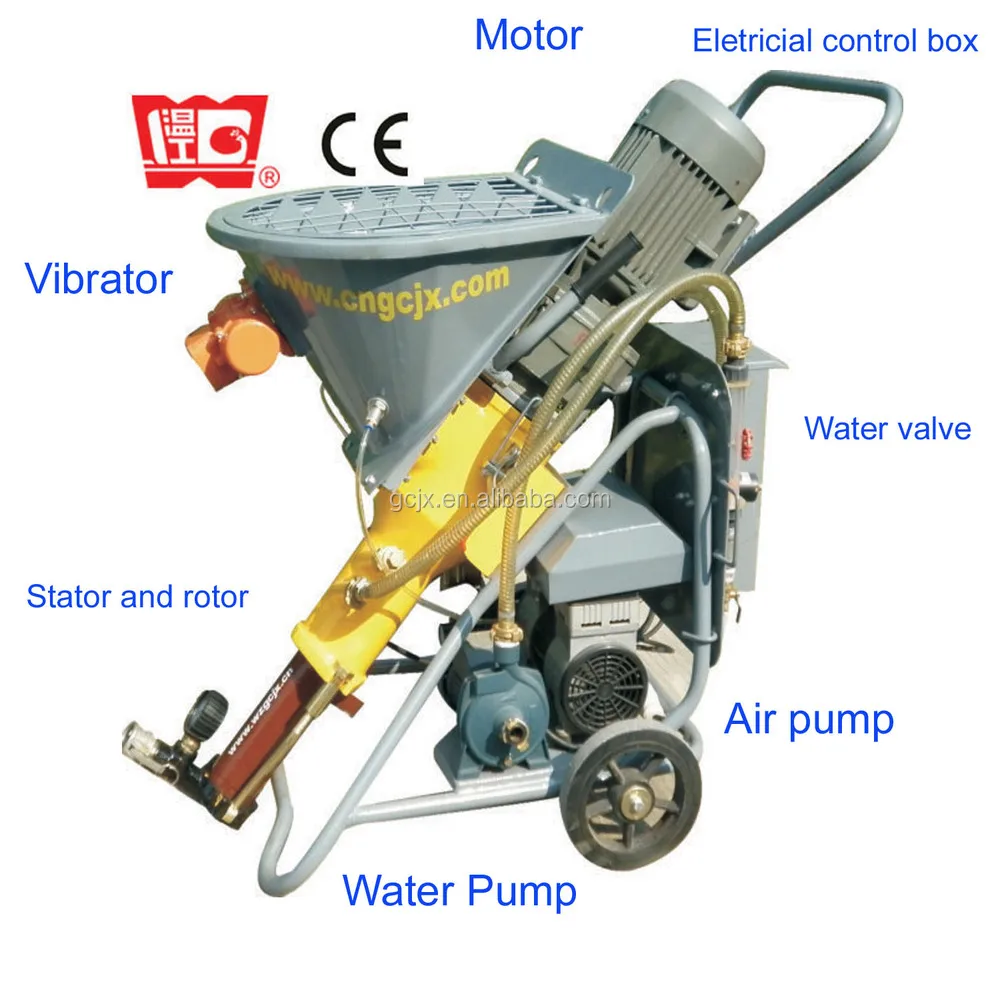

1. JP25 inside structure as below AND YOU CAN SEE ITS DESIGNE SAME PUTZMEISTER MP22.

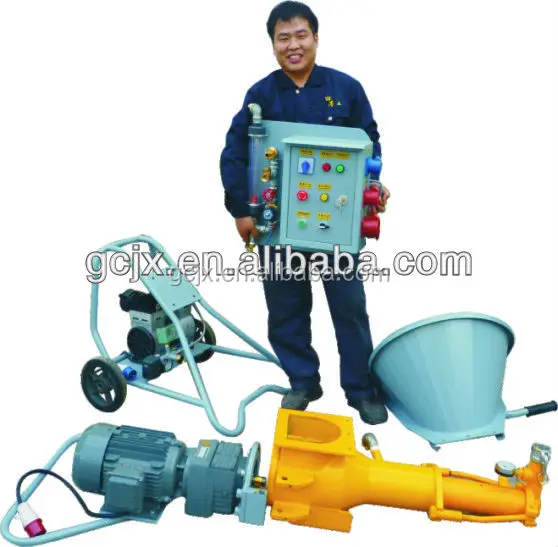

2. JP22 can be disassemble into several parts for easily movement.
3. JP22 can spray pre-mixed mortar, lime and fireproof etc. It can cover 600-800m2 per 7hours.
4. JP22 standard spare parts list as below:
5. JP22 mortar spraying machine approved CE
Exhibition & Visitng
Welcome to our factory!!!
It would be our great honor to show & test our machine for you.
***Clients from AUE/Saudi Arabia/Franch/ Chile/ India visited our factory.
***Exhibition every year---Welcome to our fair
company information
Wenzhou Engineering Machinery Co., Ltd. is a member of China Construction Machinery Association, China Bulk Cement Association of Popularization & Development, is the first batch of key enterprises in Zhejiang Province. It is leader of China's mortar spraying technology, and recognized as one of the scale of strong enterprises for the manufacture of mortar spraying machine.
Wenzhou Engineering Machinery Co., Ltd. has been committed to the manufacture of concrete machinery for such a long time, based on the domestic leading technology, relying on international cooperation R & D advantages, together with Germany NORD, CELLMANN and other famous companies to import advanced management concepts and management models, improved product quality management system. Following the ISO9001 quality management system, and with full implementation and effective operation of it, we are able to ensure product’s quality and stability.
Our products are renowned because of high quality and a famous brand at home and abroad. In the 1970s, our company introduced the German plunger type, squeeze type, Screw concrete transportation, Mortar spraying technology into China. And nowadays the continuation of the current concrete pump, mortar spraying machine products from the Chinese market has expanded to Europe, South America, North America, Australia, the Middle East, Southeast Asia, Africa and other regions and countries. Our products with high quality and reliable performance services are popular with the trust of users around the world. Now we have been formed the ability that our annual output of various types of mortar spraying machine reaches 12000 sets.
Packaging & Shipping
***Wooden case packing
Full container shipment---wooden pallent package
LCL shipment----wooden carton package
