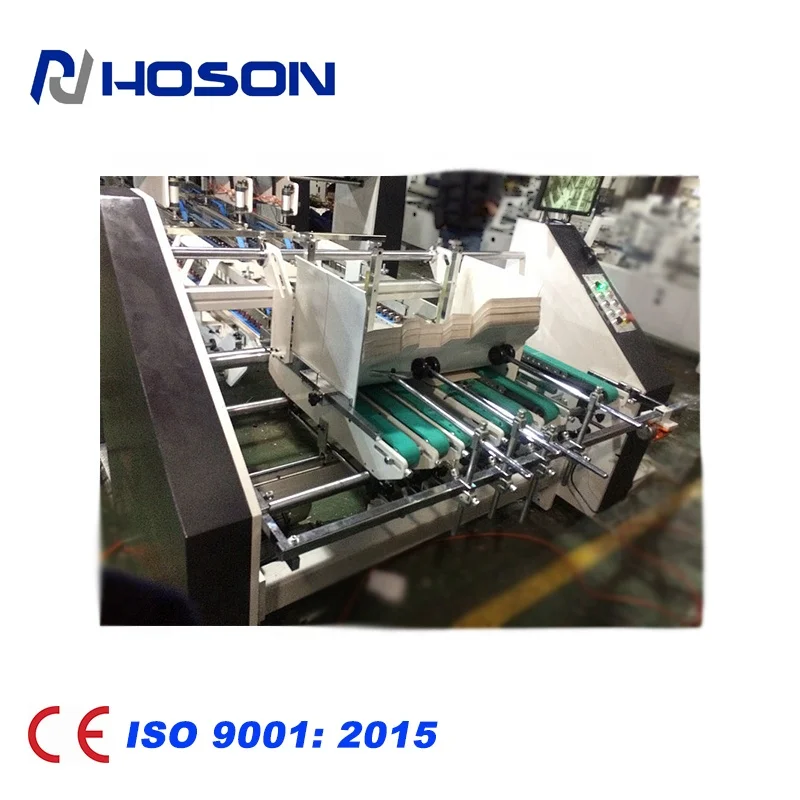

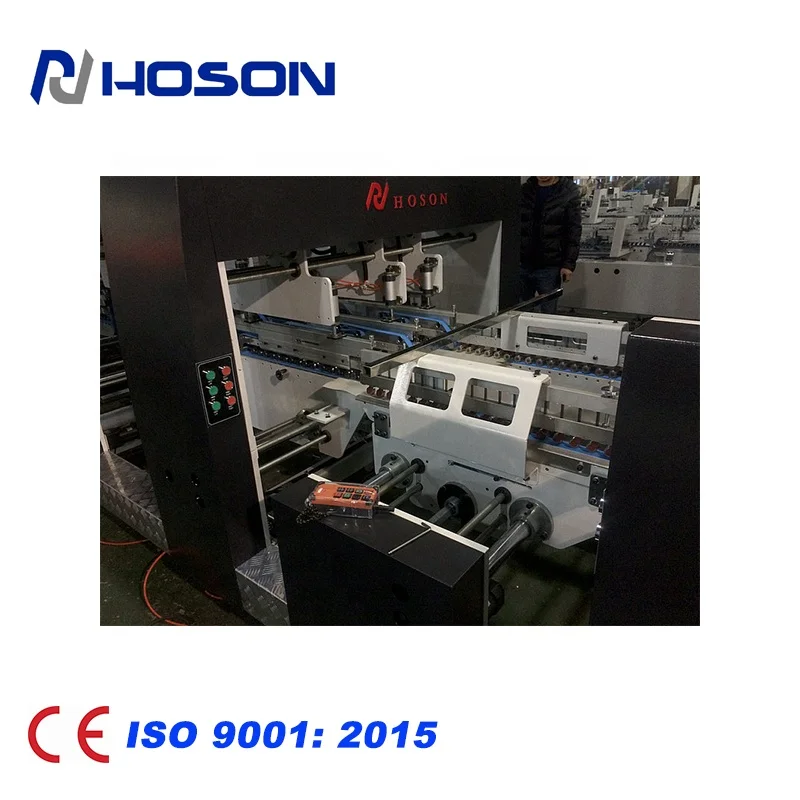

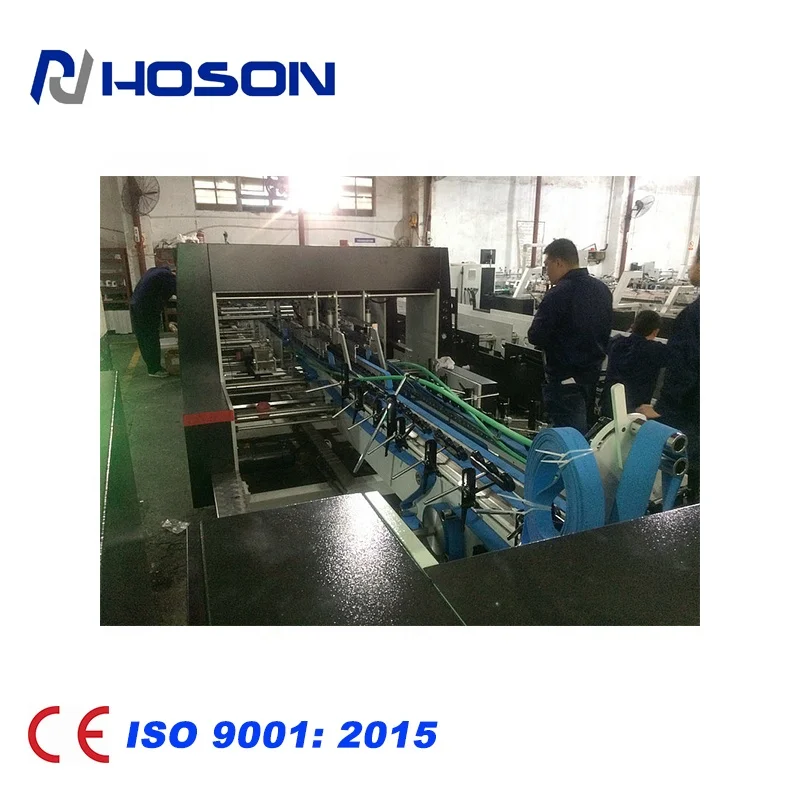

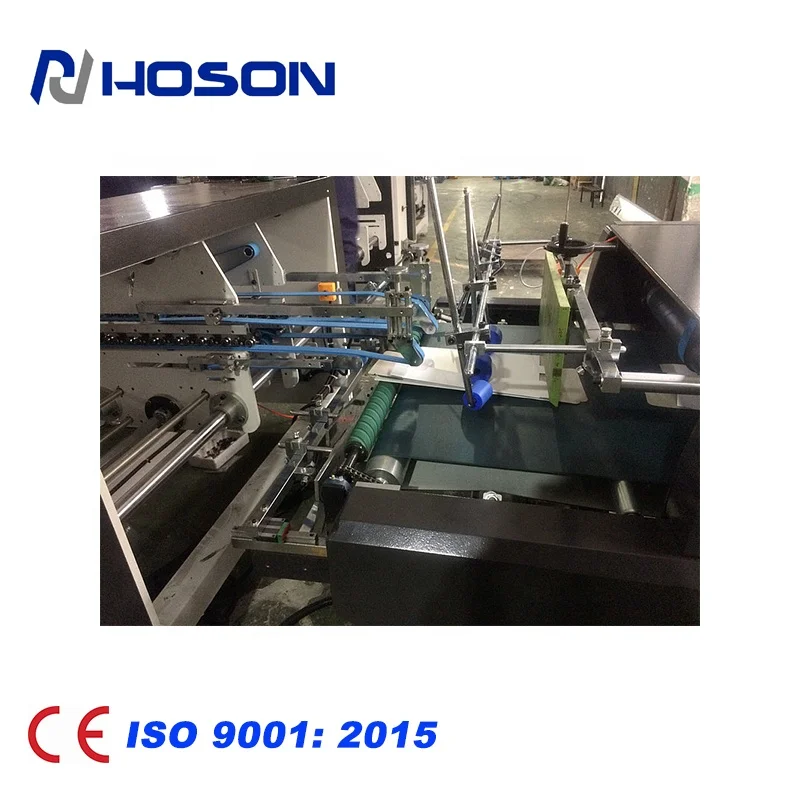

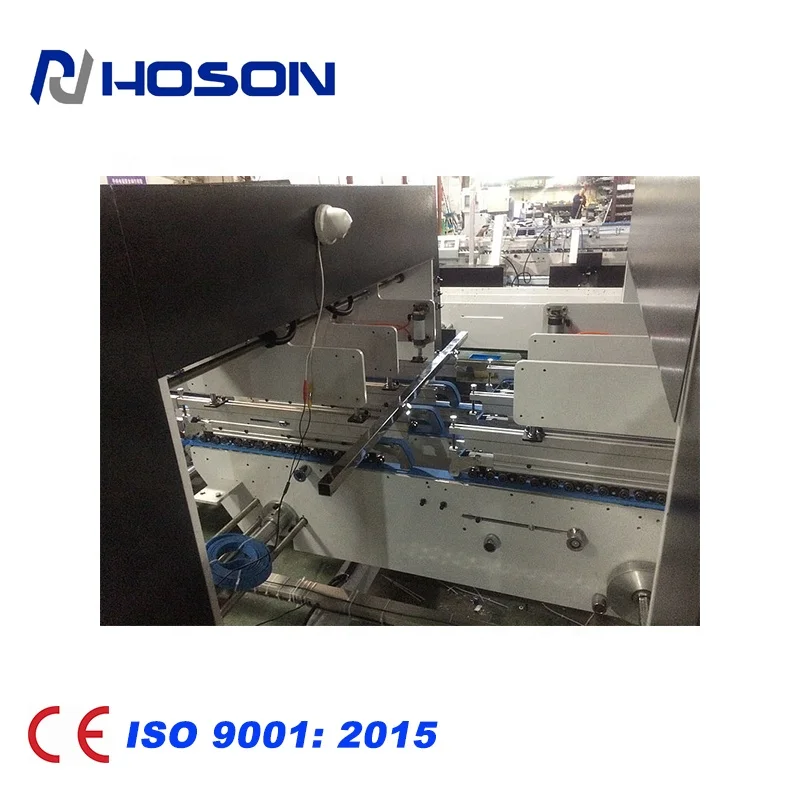

ZH 1600BFT Automatic Carton Box Folder Gluer Machine

ZH-1600BFT Automatic Carton Box Folder Gluer Machine

Feature

1.The machine is running steady with strengthened single-side driving system, and it is also easy for maintenance.

2.The motor is controlled by a transducer (inventer) which is available for automatic timing. It is power saved and helps to work stably.

3.Paper is feed by several thick belts under the help of vibration motor. Feeding is continuous,exact and automatic with this system.

4.Grinders are provided in both sides of machine, to make gluing more stable and firm.

5.Two sets of gluing units: top unit for bottom glue and lower unit for the side glue. All standard glue units apply line glue. Space adjustment is through the tooth rods.

6.PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc., is able to set by this system. A remote diagnosis helps to maintenance (remote controller system included), and a photo electric system for speed control in pressing unit (speed in pressing unit is corresponding automatically with the one in feeding unit). Counting through photo-electric sensor & electromagnet kicking.

7.Back Delivery unit use pressing sponge belts for pressing to ensure out-put in a perfect condition. A transverse paper collection table after the pressing unit helps to collect boxes quickly.

8.The machine is able to make 2-fold or 4-fold crash-lock bottom boxes. In the pre-folding part, the 1st fold at 180°, the 3rd fold at 135°, the 2nd & 4th fold box at 180°.

9.Small box like out-put size at 30mm is able to be done after the special design according to customer requirement.

Main Technical Parameters:

ZH-1600BFT FITTING PARTS LIST

Germany hhs Spray Gluing System Cold Glue                   Chinese Spray Gluing System Cold Glue

Chinese Plasma Surface Treatment System

                 One Gun                     Tow Guns                                           Three Guns

According to the customer's requirement, seller will arrange one technician to help to install the machine, but all the expenses like tickets,  therefrom shall be born by the buyer.

Warranty: one year. The manufacturer will send the buyer new parts ( no intentional damage). However, the courrier should be covered  by the customer.   Please note that the belts are excluding the one year's warranty.
