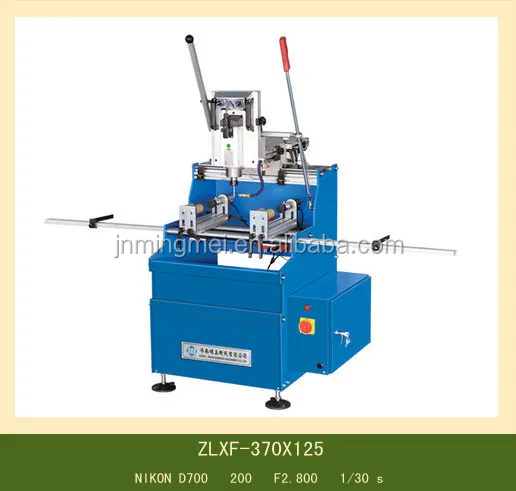

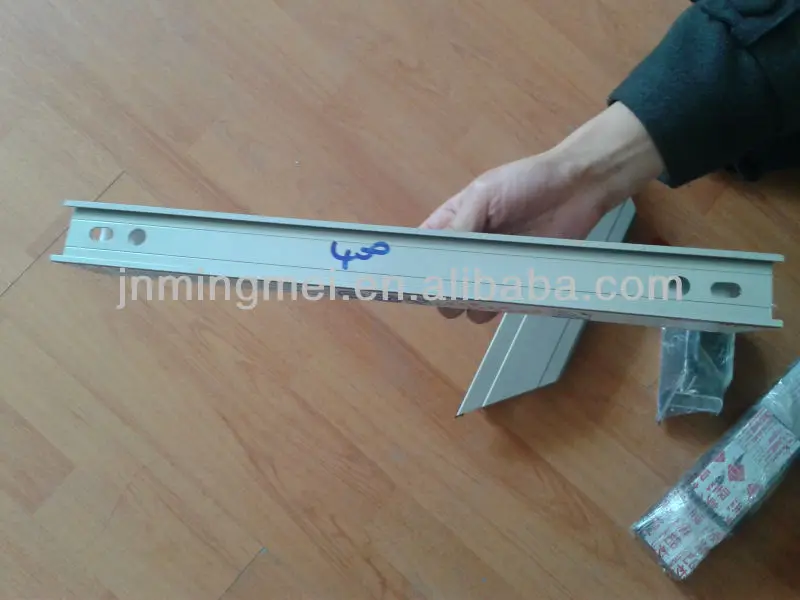

1. Used for copy-routering processing various holes, grooves and water slots on aluminium/PVC windows and doors. High-precision copy routing, easy operation, two hand operation. Changeable template for different copy routing.
2. By copying template and auxiliary position two copying method.
3. using a foot switch control the pressing cylinder, safe and reliable.
4. It has features of compact structure and small volume.
Main specification
Power supply
380V 50HZ or customer specification.
Input power
2.2KW
Motor rotary speed
2800r /min
Operation air pressure
0.6-0.8MPa
Milling cutter diameter
Φ5, Φ8
Diameter of the three-hole drilling head
Φ12
Distance of the three-hole drilling head
21.5mmx21.5mm
Copy-routing range
290*100mm
Overall dimension
1000*1130*1600
Weight
310kg
Standard accessory
Solenoid Valve
FESTO(Germany Brand)
Cylinder
JPC(FESTO Joint Venture Brand)
Motor
Anhui Sanyang
Air Filter Device
STNC

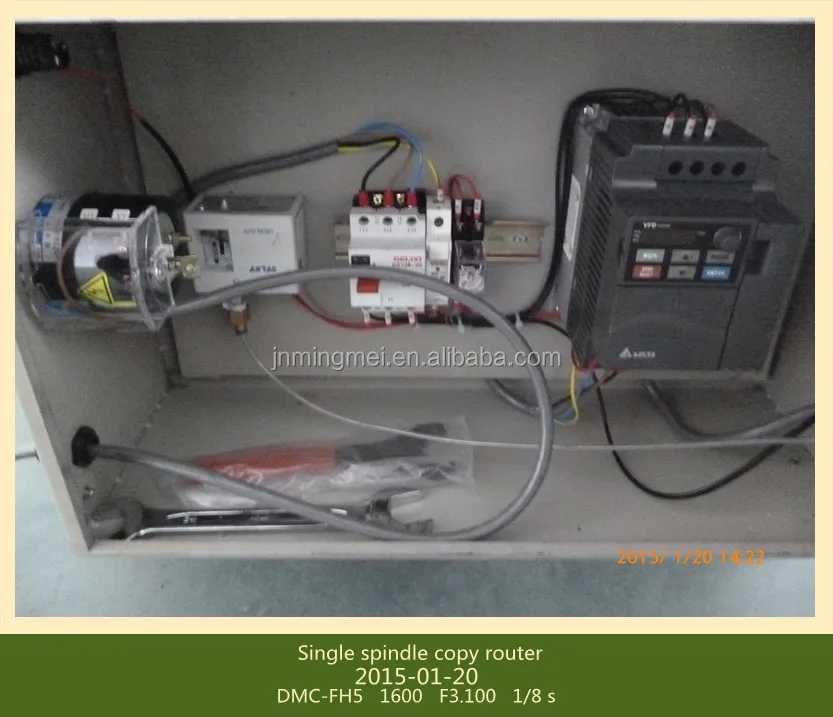

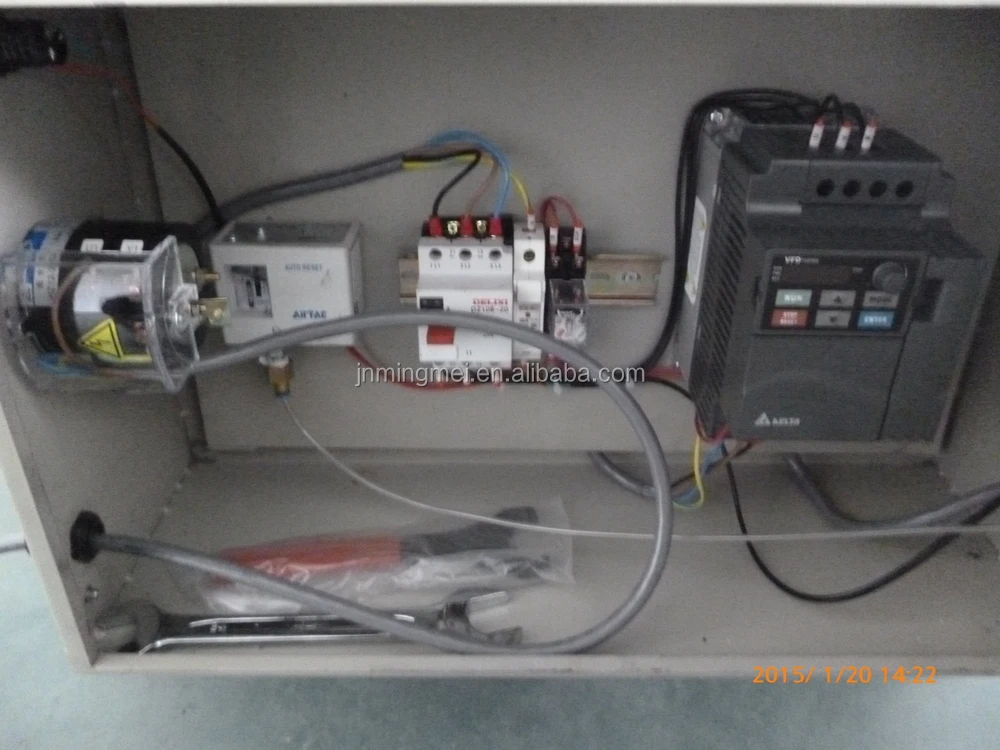

Electrical
Schneider
AC Contactor and Circuit Breaker
Schneider
Approach Switcher
Japan Omron
Air Gun
1pc
Operation Manual
1pc
Complete tooling
1set
Certificate
1pc
Coolant Device
1pc
Remarks
1. All the electrical elements,Circuit breaker protection and AC contactors are schneider or other world famous brand.
2. International CE standard high flexibility, high shielding cables.
3. Warranty time: 1 year
4. Quotation Valid: 90 days
5. Payment terms: 30%T/T as deposit, 70% balance made before shipment by T/T
6. Delivery time: 30 days upon receipt of 30% deposit by T/T
7. Packaging: Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box, just use the tray)
8. After sales service:
1)24 hours service on Internet and Telephone, free instructions and problem solving
2) Free training to make sure a master of the operating of cnc router for the person who come to our factory
3)User-friendly English manual or operating video for machine using and maintaining
4) on-the-spot training, installation and repairing can be met if required.(If so, need the buyer afford the visa and air ticket and 60USD/DAY Salary)

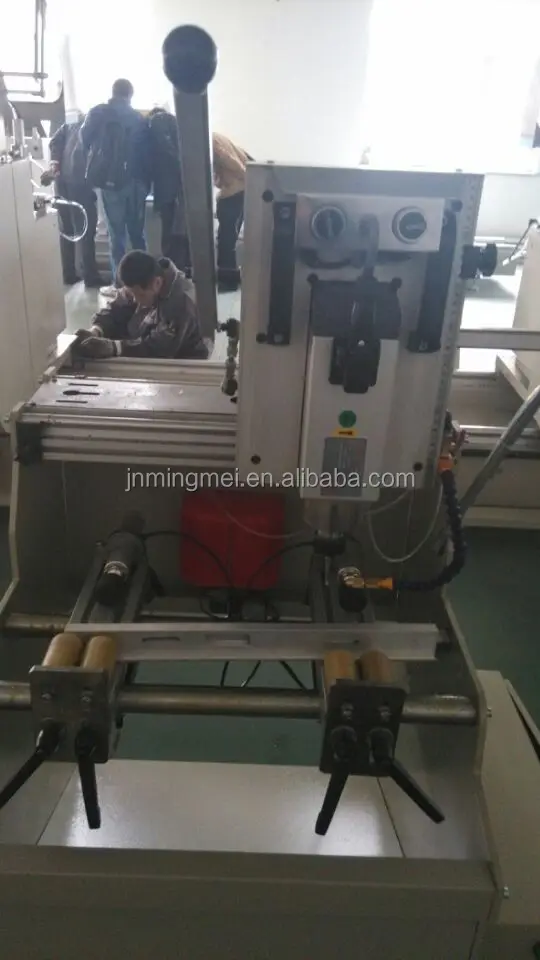

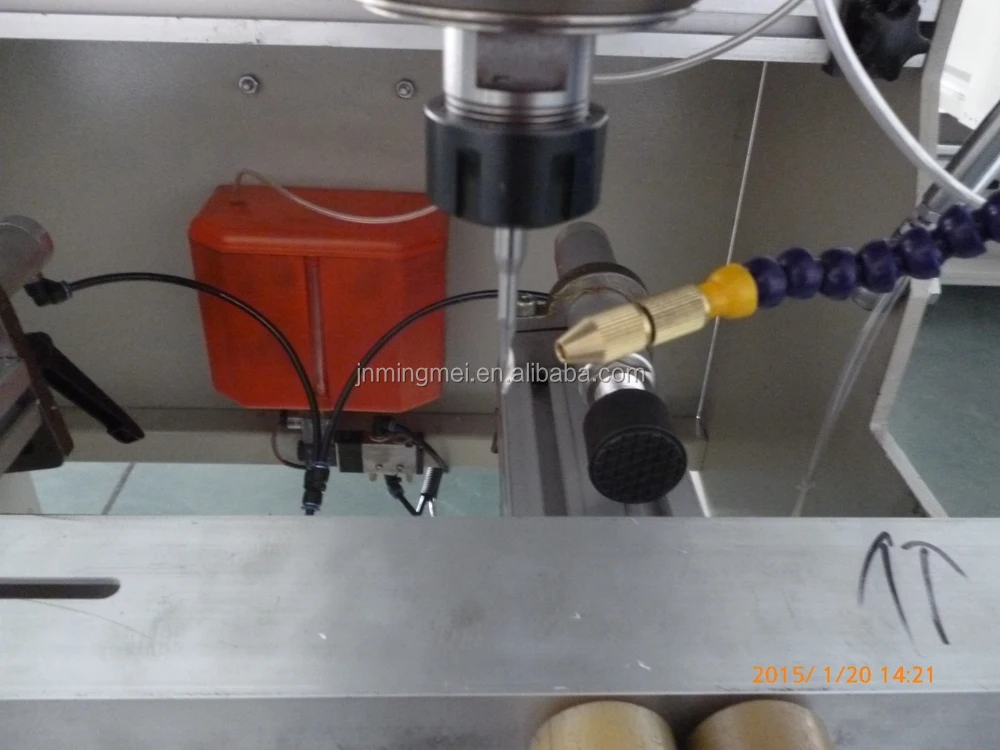

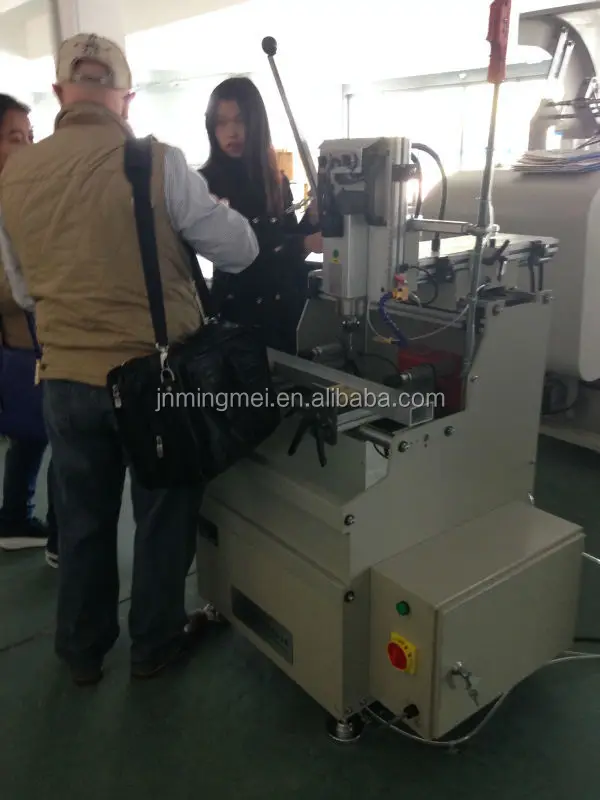

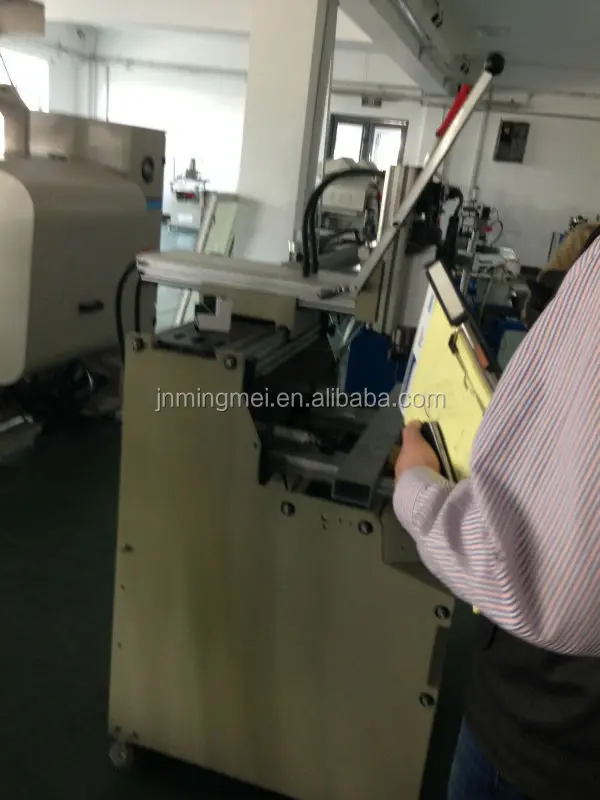

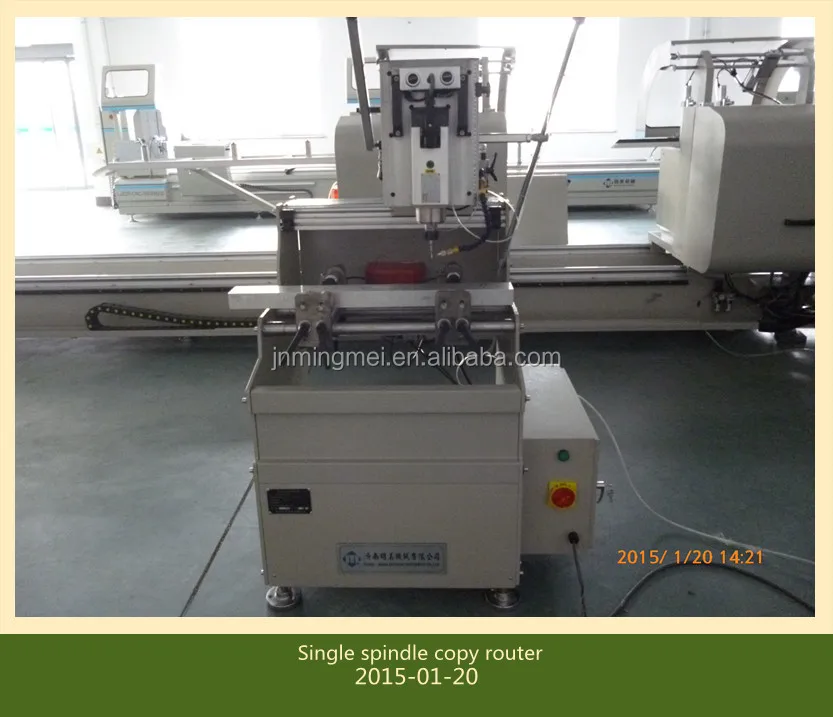

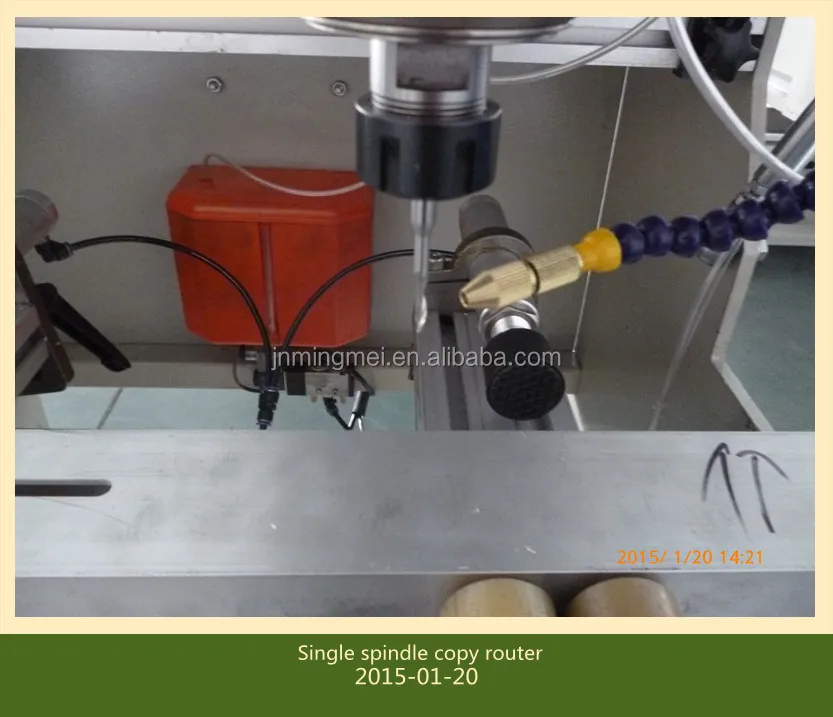

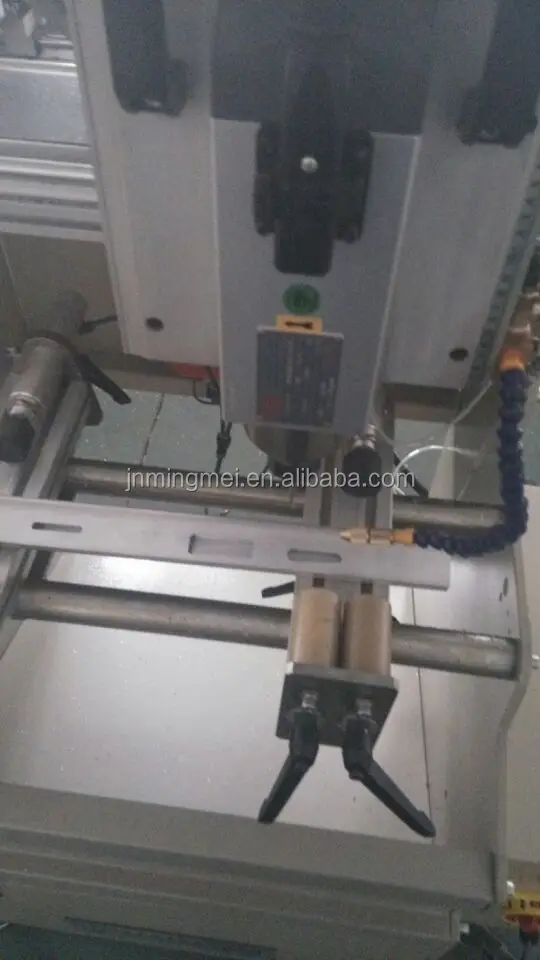

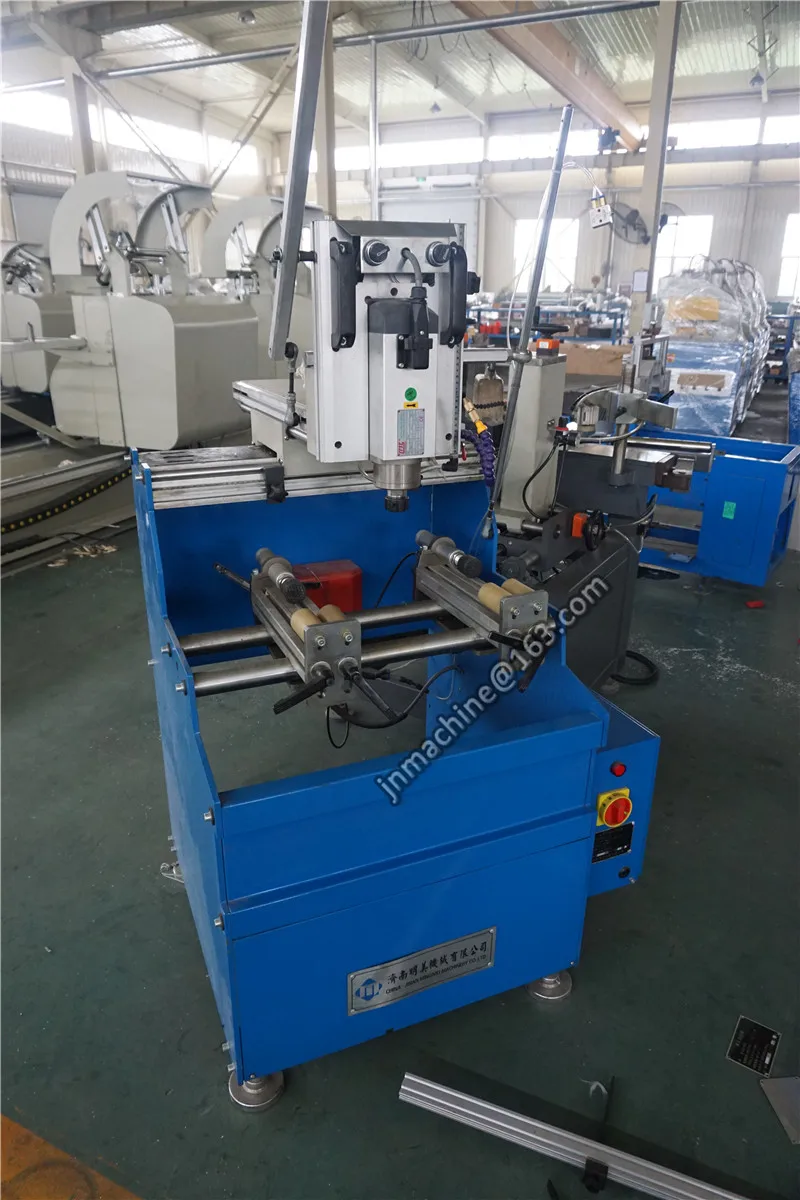

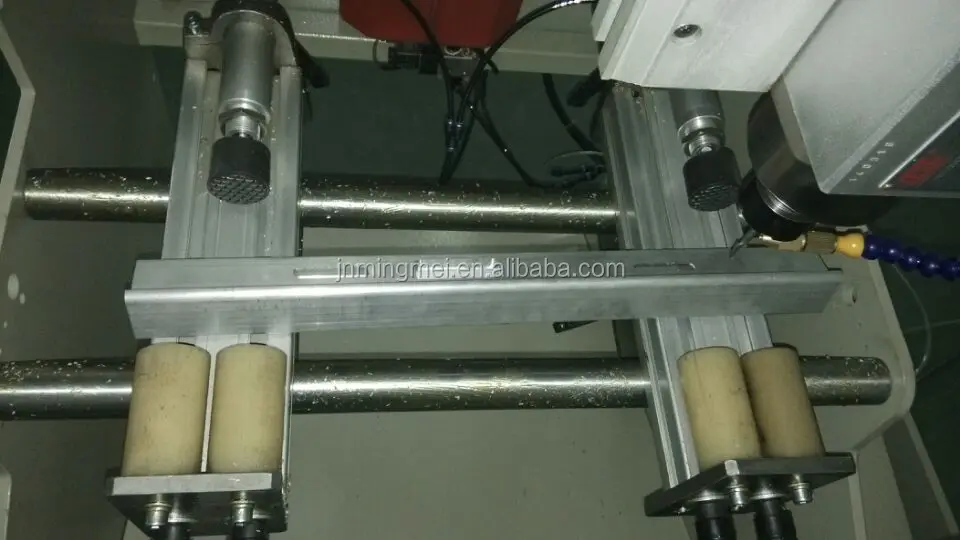

Machine details
Certificate
Whole production line program chart and other machines pictures
If you want to open up a aluminum/pvc window door factory, you need a whole production line, except the copy router machine, you also need profile cutting saw, pvc welding machine/aluminum corner combining machine, water slot milling machine, punching machine and so on, we hope we could talk details by email or online chatting.
Kindly and friendly inform
In Jinan city, there are many many factory producing the cnc router and pvc/aluminum window door machine and insulating glass machine, and the price and quality both have the very big differences.
We are the national company founded in 1995, we do OEM for many trading companies in Jinan.For me, i have been in this machinery for 4 years, i know well how to give you the suitable process program and focus on the after sales service during China's third industry transform to the second stage period.
Please note that you need compare the price when same quality, or compare the quality when getting same price, we believe our product must be the best quality in same price, also best price in same quality.
We hope we could establish longterm business relationship only one machine.
Please do not hesitate to contact me if any needed!
