50cm 100cm 120cm jewelry counter lighting LED stripe 12v waterproof
- Category: >>>
- Supplier: Zhongshan Ruixian Electronics Factory
Share on (60171054678):
Product Overview
Description
50cm 100cm 120cm jewelry counter lighting LED stripe 12v waterproof
Product Advantages
- CRI >75
- Input Voltage DC12V
- Luminous efficiency 100Lm/W
- SMD5050 LED, 22Lm/LED
- Waterproof IP65 or IP68 ( can be soaked in water )
- Optional Length 500mm/1000mm/1200mm or customized
- Color Option CW6000~6500K,WW2700~3200K,NW4000~4500K
- Maximum Series Connection 3.6 meters
- Long Life >40000hours at 25°C
- Operating Temperature -30~50°C
- CE RoHS FCC
- Warranty 3 Years
Data Sheet
Product Details | ||
MODEL | ALA50-16U-H32-120 | ALA50-16U-H32-120-IP68 |
Size | 1200mm | 1200mm |
LED QTY | 71LED | 71LED |
Power | 15.6W | 15.6W |
Luminous Flux | 1560Lm | 1320Lm |
Protection Level | IP65 | IP68 |
LED Spacing | 16.66mm | |
Luminous efficiency | 100Lm/w | |
Beam Angle | 120° | |
LED Light Source | SMD5050 ( Epistar ) 22Lm/LED | |
Voltage | DC 12V | |
CRI | Ra >75 | |
CCT | CW6000~6500K,WW2700~3200K,NW4000~4500K | |
Life Span | >40000hrs | |
Operating temperature | -30~50°C | |
Light Decay Rate | <30% | |
Full Models for your option | |||||
MODEL | Diameter | LED QTY | Lumen | Waterproof Rating | Power Input |
ALA50-16U-H55-50 | 16.8x5.5x500mm | 30LED | 660Lm | IP65 | 6.6W |
ALA50-16U-H55-100 | 16.8x5.5x1000mm | 60LED | 1320Lm | 13.2W | |
ALA50-16U-H55-120 | 16.8x5.5x1200mm | 72LED | 1580Lm | 15.8W | |
ALA50-16U-H55-50-IP68 | 16.8x5.5x500mm | 30LED | 560Lm | IP68 | 6.6W |
ALA50-16U-H55-100-IP68 | 16.8x5.5x1000mm | 60LED | 1120Lm | 13.2W | |
ALA50-16U-H55-120-IP68 | 16.8x5.5x1200mm | 72LED | 1340Lm | 15.8W | |
ALA50-16U-H32-100 | 17.5x7x1000mm | 59LED | 1298Lm | IP65 | 13W |
ALA50-16U-H32-120 | 17.5x7x1200mm | 71LED | 1560Lm | 15.6W | |
ALA50-16U-H32-100-IP68 | 17.5x7x1000mm | 59LED | 1100Lm | IP68 | 13W |
ALA50-16U-H32-120-IP68 | 17.5x7x1200mm | 71LED | 1320Lm | 15.8W | |
The above data testing at room temperature is 25 °C, DC12V; LED color temperature 6000-6500K, CRI > 75 | |||||

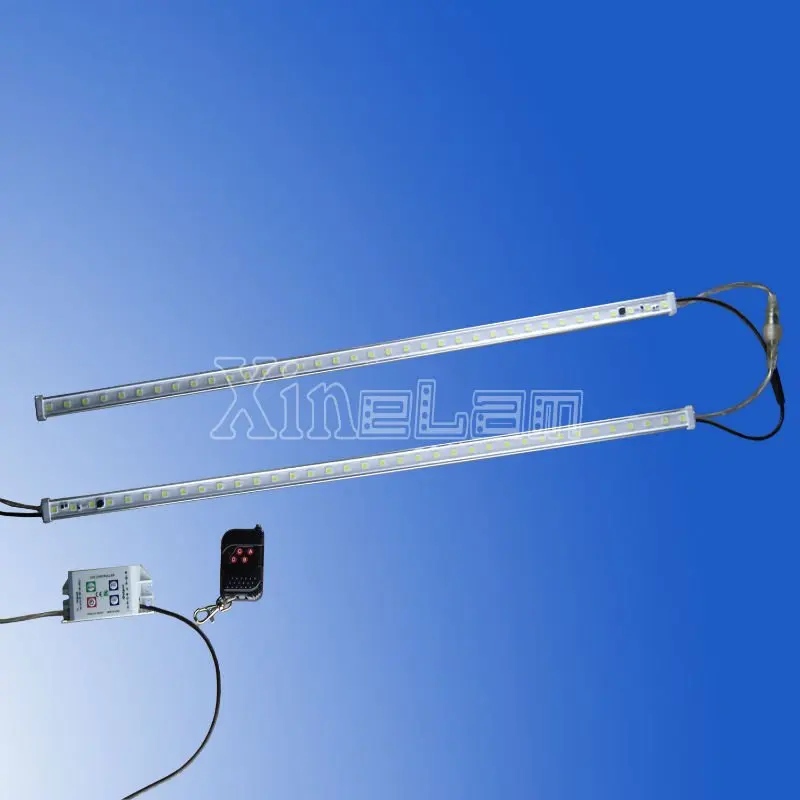

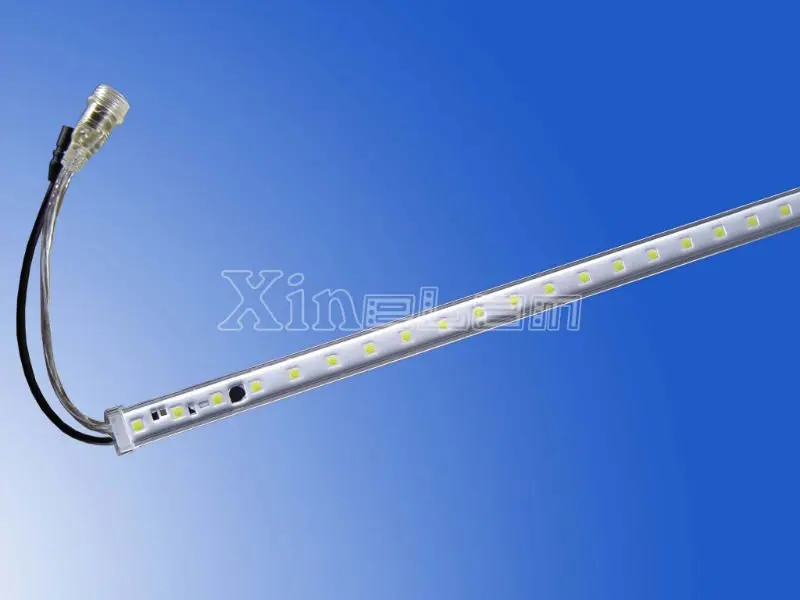

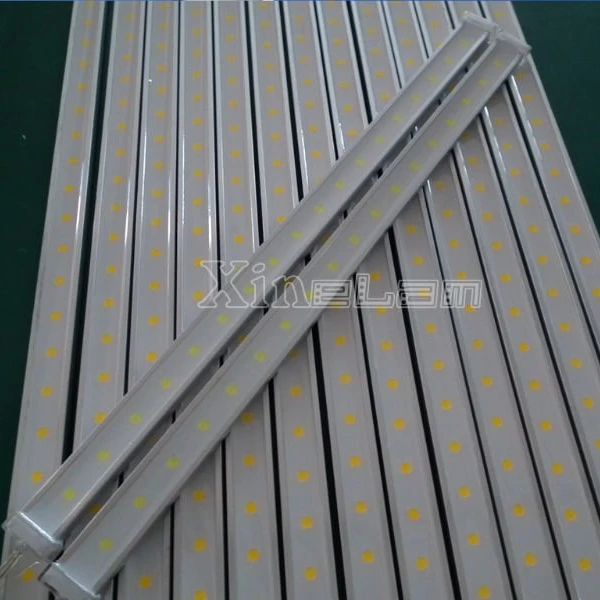

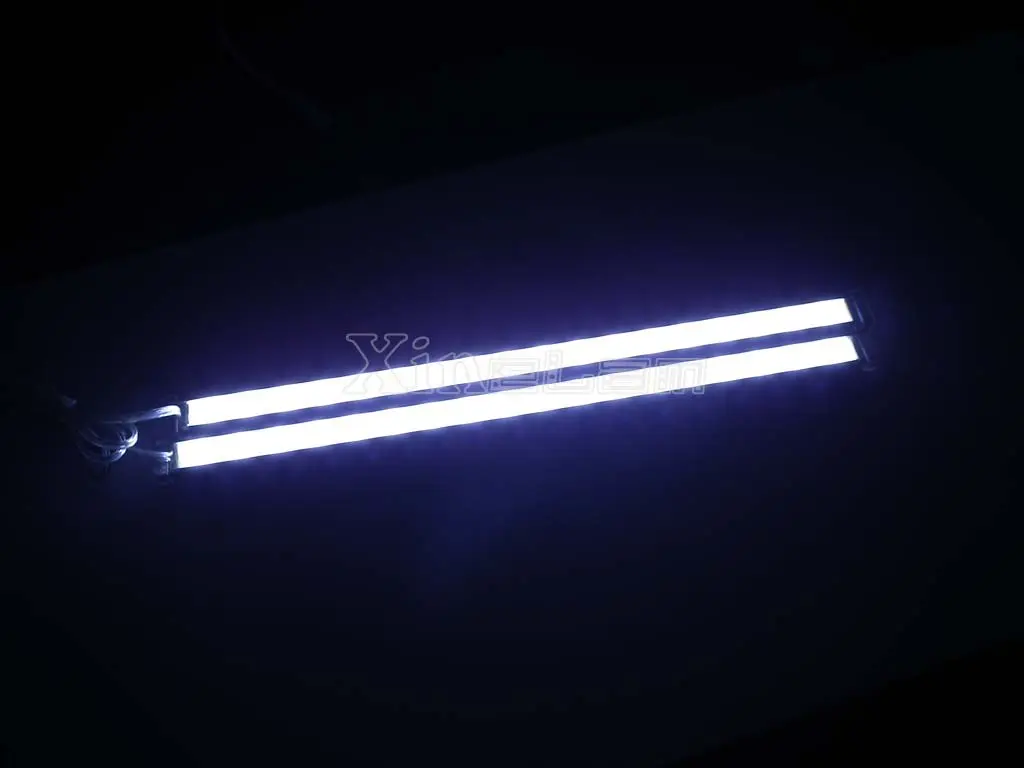

Product Images
Application Showcase
LED Light bar is extremely versatile can be adapted to nearly any linear lighting application. |
Ideal lighting applications include:
    |
Company Information
XineLam - Ruixian Electronics Factory, which is specialized in LED Light field since 2003, focusing on designing, developing and producing green LED lighting products.
Our team having strong R & D capabilities and 11 product patents included the patent right for invention, utility model or appearance design.
Company Business Approach: Technical Innovation, Quality-oriented, Credit Foremost, Professional Focus, Creating Value for Customers.
Main products ( designed for indoor and outdoor advertising backlighting )
1. Waterproof LED Aluminum Panel – 3mm thin, bespoke any sizes, shapes
2. LED Lattice- available in single and double-side
3. Flexible LED Sheet – 1mm paper thin, free bending, cuttable
4. LED Lens Module – 3 or 4 sizes quick linkable with terminal block
5. LED Lens Bar - Ultra slim, ideal for edge-lit light boxes
Lighting Exhibition
| 2014 HK Lighting Fair |
 |
Our Services
- Your inquiry will be replied within 24 hours
- Fast delivery time once order confirmed
- All products with 3 Years warranty
- Any sample or small order accepted
- Payment terms: Bank Transfer, Western Union, Paypal, Escrow
- OEM & ODM available
