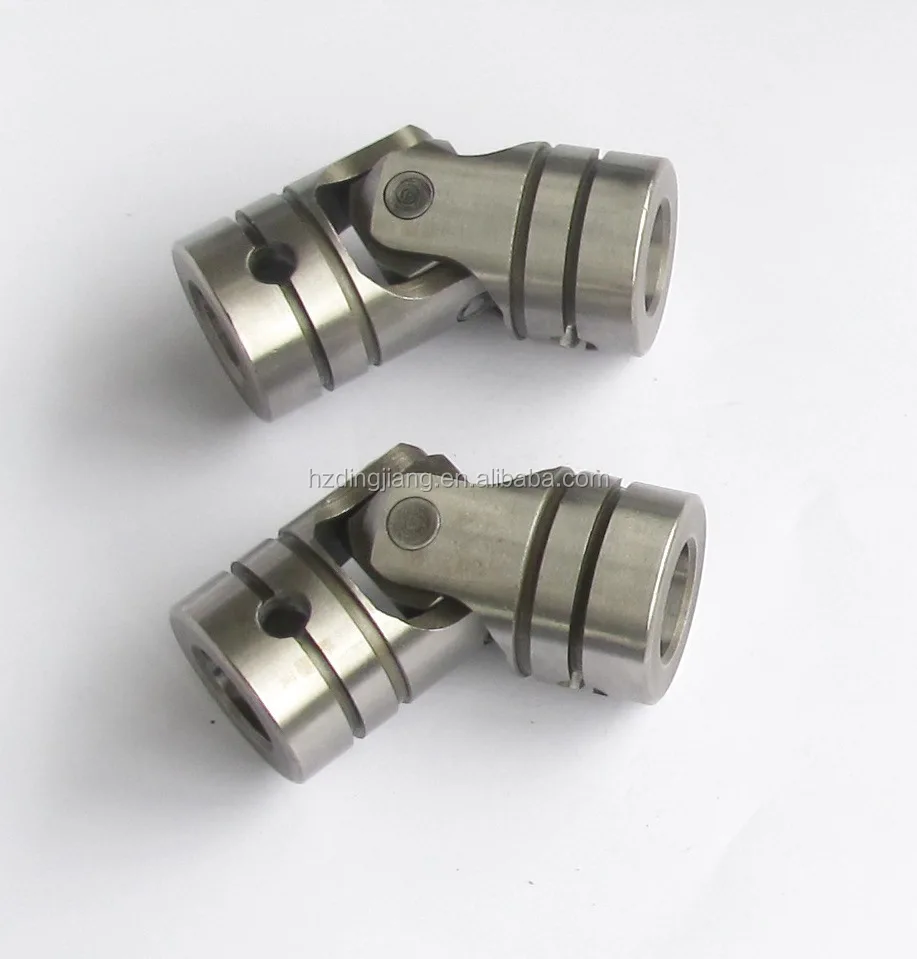

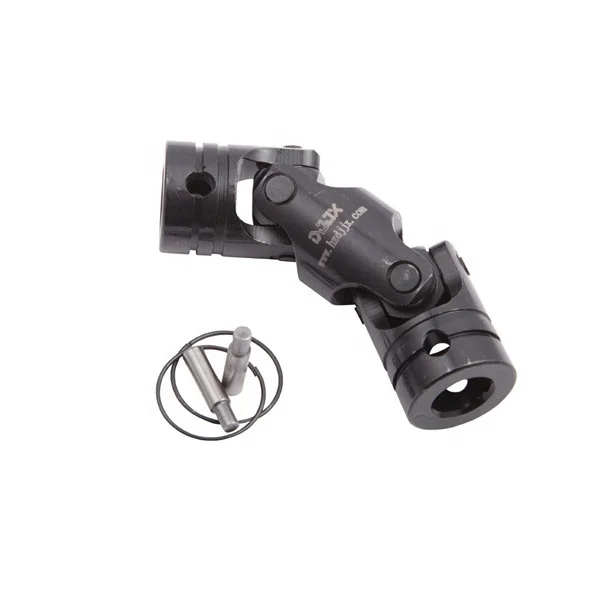

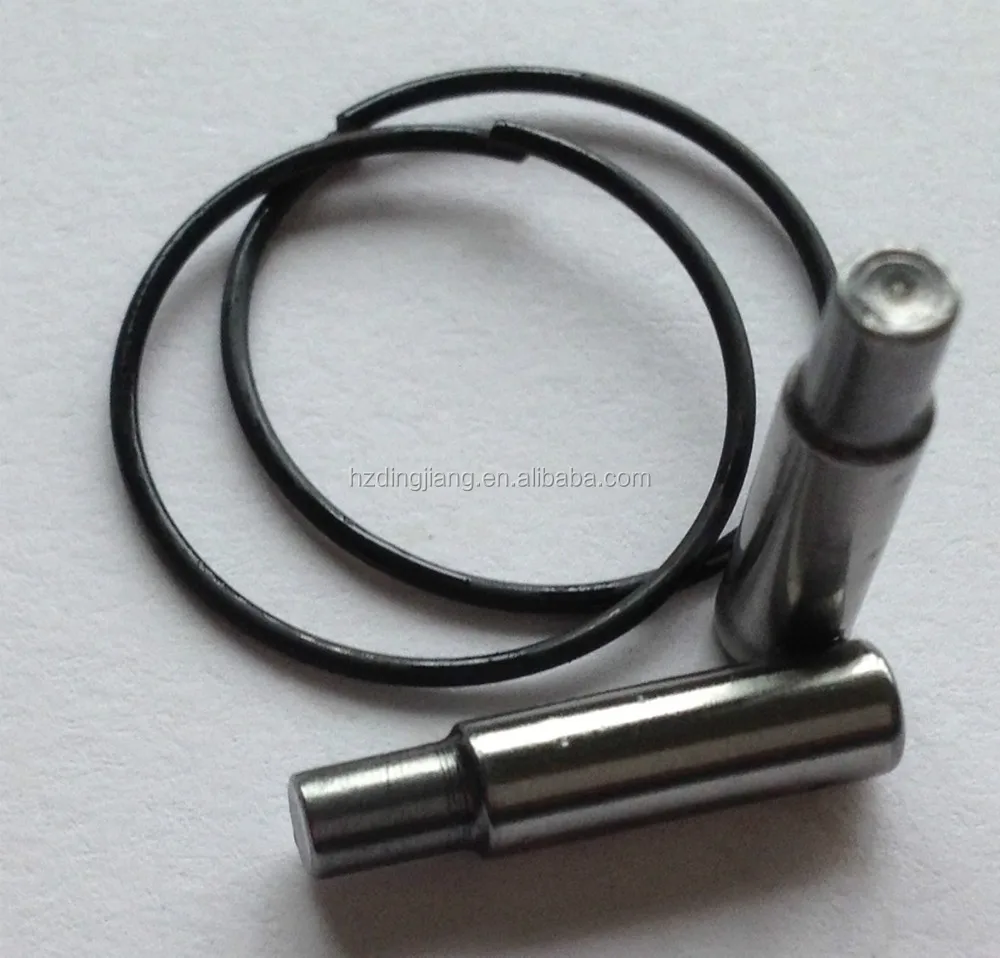

Special universal joint(KYOWA),Small universal joint, Steering U joint

Product Overview

Description

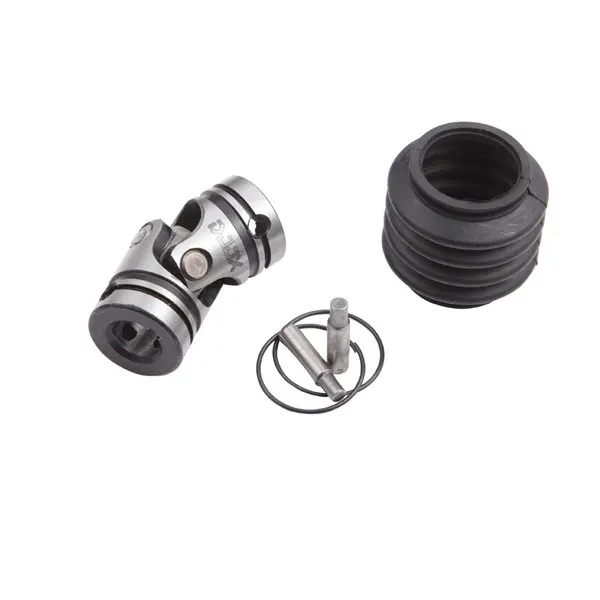

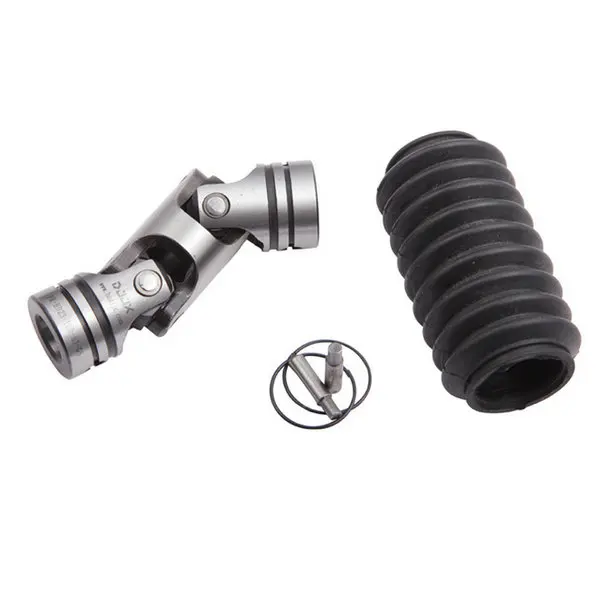

Coupling Universal joint Universal joint cross Auto universal joint (withdut boot)

1.Application to all kinds of general mechanical situation, maxmum rotates speed may reach 800~1000r/min

2.Maxmum torsion can be 33.7n.m

3.Each point of the largest rotation angle can be 45^o

4. Provides th efast locking arrangment that only has finshed product hole with the tolerance of H7 .Standard spline or hexagonal hole is available.

 It widely used in multiaxle drilling machine ,construction machine,packaging machine,automobile.parking facility and paper machine

Specifications

Material is 20CrMo,HRC54-58
Max speed of rotation may reach 2000r/min
Max working angle is 35













PR SERIES



Typical applications:
Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a Coupling .Lawn and garden equipment, conveyors and material handling equipment, food processing equipment,packaging systerm, printing equipment and so on.

Advantages of DJJX’s Universal Joints, over those of other manufacturers:
• Many sizes available
• Max. angle 35 degree
• Max. speed 1000 rpm
• Available in various materials
• All subcomponents very precisely machined from bar: No cheap castings or powdered metal parts, resulting in better overall and more consistent performance
• Several subtle design innovations that optimize performance and reduce cost
• Could manufacture products according to your provided drawing or samples

Variations offered by DJJX Couplings:
• Materials for midsection(Cube and Pin): 20Cr,40Cr
• Materials for hub: 40Cr,45#steel
• Materials for spline:45#steel

Catalog

APPLICATION :Multiple spindle drill heads and machines ,Transports tape ,Woodwork machine and so on

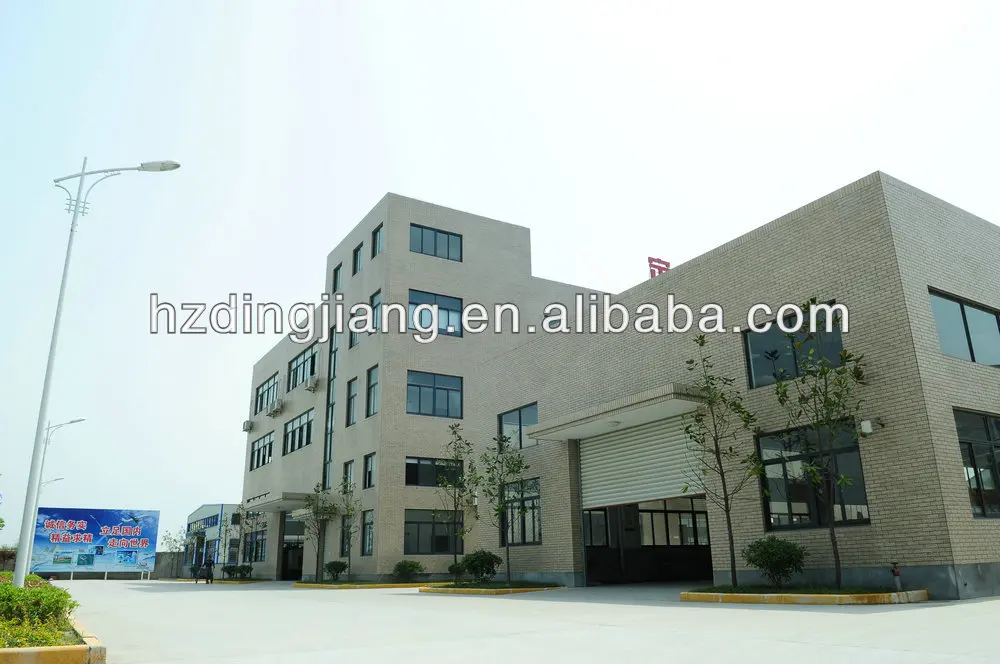

Factory Room
