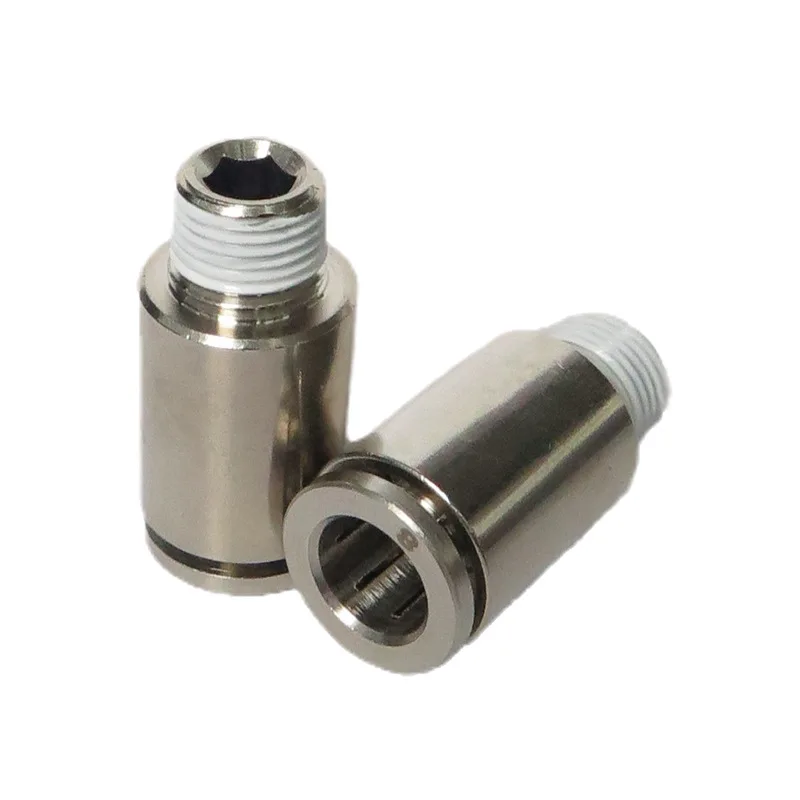

Nickel Plating Pneumatic Brass Pipe Fitting Connector Push Pneumatic Metal Union Straight Fitting
- Category: >>>
- Supplier: Ningbo Puremix Machinery Parts Co. Ltd.
Share on (60171625657):
Product Overview
Description
Metal Push In Fitting
Push-In fittings with different shape, only one hand can be very convenient to insert the tube and pull out without any tools. The
fitting with safety sealing, and it's thermostable. In addition, these pipe fittings meets repeated insertion and pull-out
requirement. When it gets older along with the timed, MP series can easily be replaced.
Reliability - Rapid manual connecting and disassembling. Full flow
Compatibility - Works with the use of nylon, PU, Teflon tube
Adaptability - Hot and cold water systems, steam, machine tool, lathe Such as application if corrosive environment SP series
Tube OD:
04, 05, 06, 08, 10, 12, 14 mm
1/8, 1/4, 3/8, 1/2 Inch
Connections:
M5, G1/8, G1/4, G3/8, G1/2
R1/8, R1/4, R3/8, R1/2
N1/8, N1/4, N3/8, N1/2
Applicable to: Compressed Air, Fluid
Working pressure: 15 Bar
Temperature range: -20° C to +80° C (200° C )
Material:
Body: Brass Nickel-Plated or Stainless Steel
Gripper: Brass Nickel-Plated
O-ring: NBR or FKM/FPM
G = BSPP Conform ISO 228
R = BSPT Conform ISO 7
N = NPT Conform SAE AS 71051: 1999
Push-In fittings with different shape, only one hand can be very convenient to insert the tube and pull out without any tools. The
fitting with safety sealing, and it's thermostable. In addition, these pipe fittings meets repeated insertion and pull-out
requirement. When it gets older along with the timed, MP series can easily be replaced.
Reliability - Rapid manual connecting and disassembling. Full flow
Compatibility - Works with the use of nylon, PU, Teflon tube
Adaptability - Hot and cold water systems, steam, machine tool, lathe Such as application if corrosive environment SP series
Tube OD:
04, 05, 06, 08, 10, 12, 14 mm
1/8, 1/4, 3/8, 1/2 Inch
Connections:
M5, G1/8, G1/4, G3/8, G1/2
R1/8, R1/4, R3/8, R1/2
N1/8, N1/4, N3/8, N1/2
Applicable to: Compressed Air, Fluid
Working pressure: 15 Bar
Temperature range: -20° C to +80° C (200° C )
Material:
Body: Brass Nickel-Plated or Stainless Steel
Gripper: Brass Nickel-Plated
O-ring: NBR or FKM/FPM
G = BSPP Conform ISO 228
R = BSPT Conform ISO 7
N = NPT Conform SAE AS 71051: 1999
