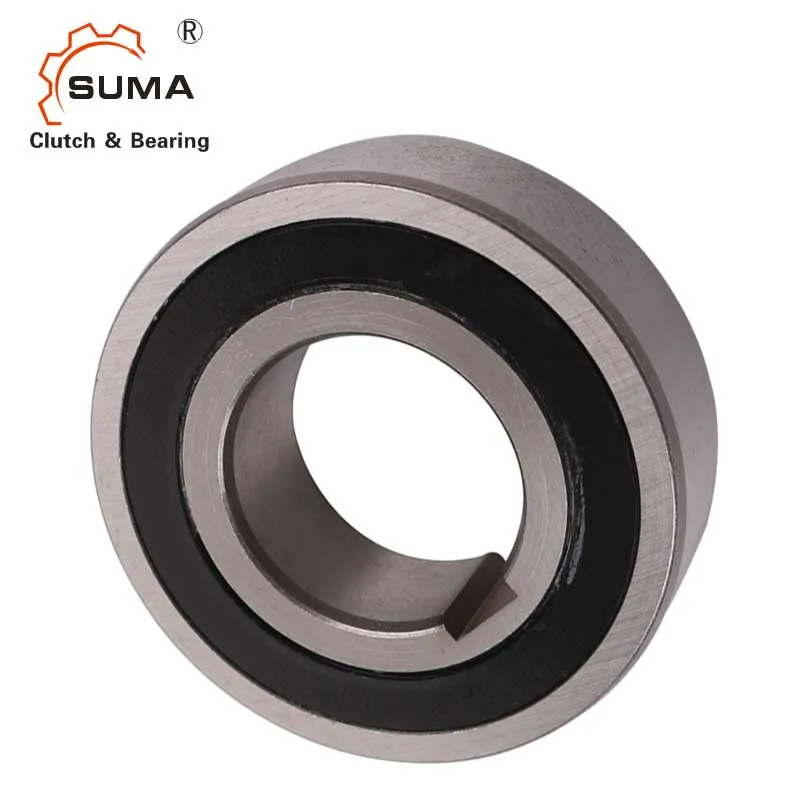

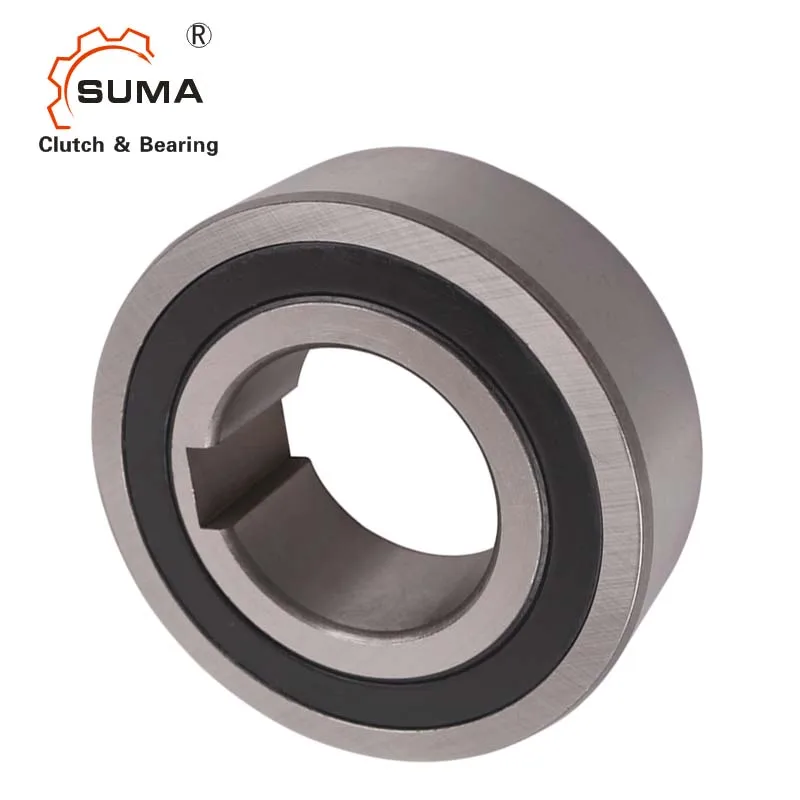

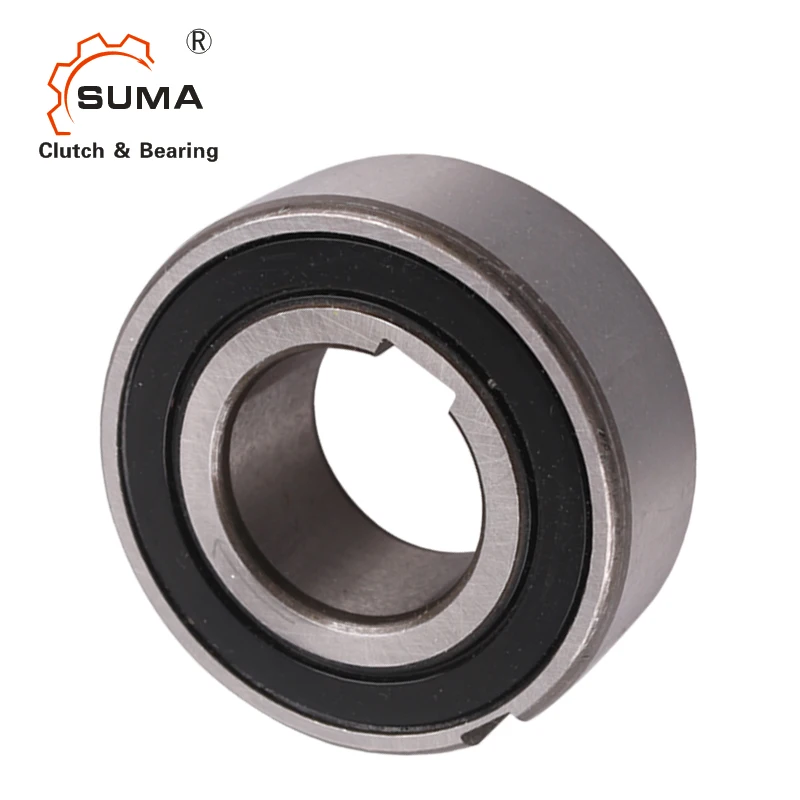

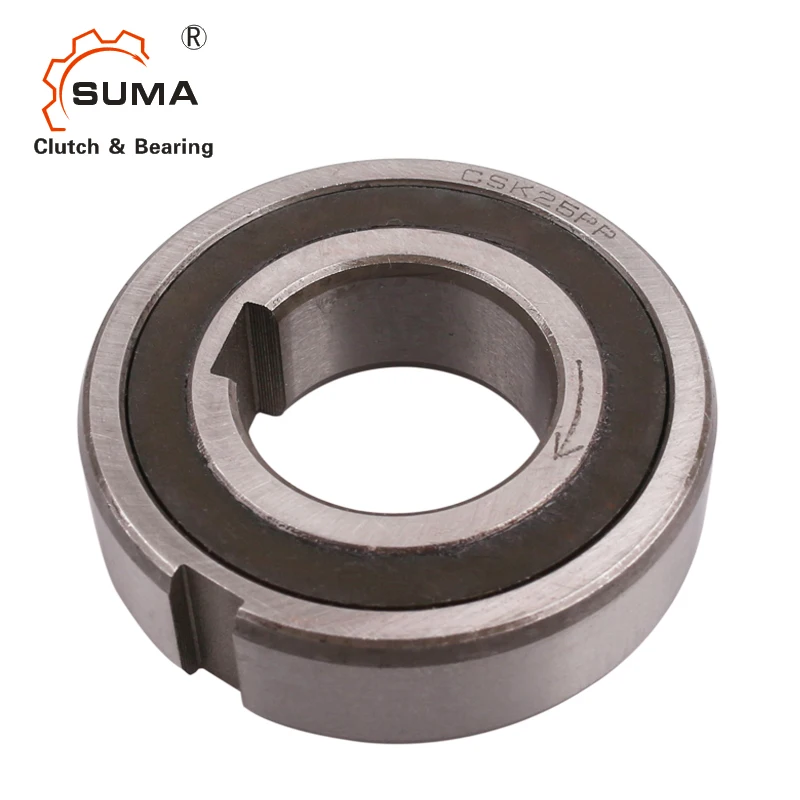

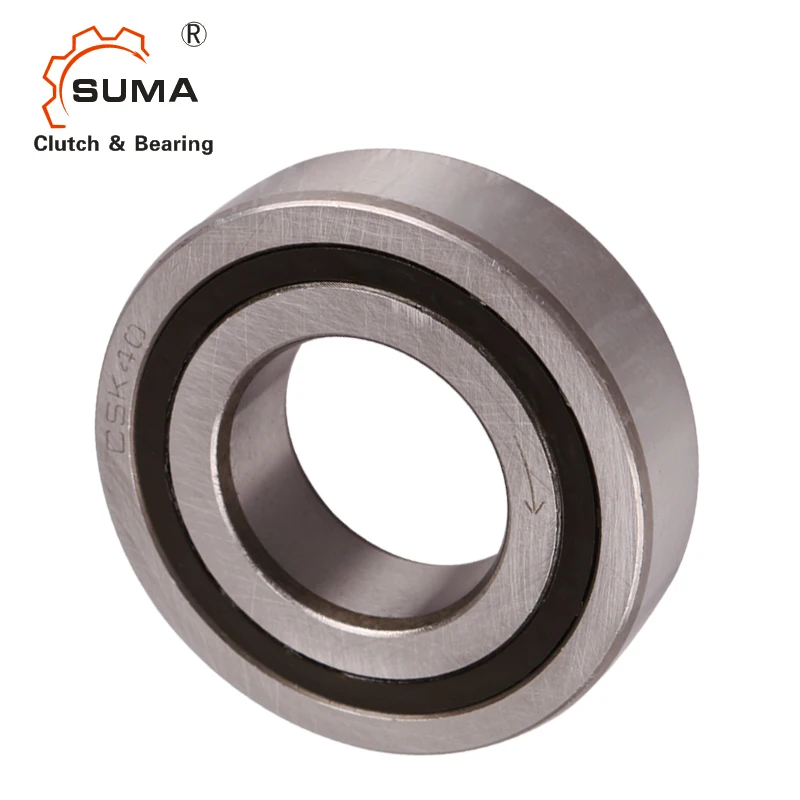

CSK series one way freewheels are sprag freewheels with bearing support and ball bearing proper-ties. The freewheels are supplied grease-filled for normal operating conditions. The freewheel is built into the customer housing. This makes compact, space-saving fitting solutions possible. The freewheels CSK series are used as: Backstops Overrunning Clutches Indexing Freewheels
Nominal torques up to 325 Nm. The torque is transmitted on the inner ring and/or on the outer ring by press fit or keyway connection. Bores up to 40 mm.
The following series are available:
Parameter sheet of CSK series One Way Clutch Bearing
Type
Size
Bearing series
Bearing loads
Weight
Drag torque
dynamic
static
CSK (KK)
d
TKN1)
N max
D
L
C
C0
TR
[mm]
[Nm]
[min-1]
[mm]
[mm]
[kN]
[kN]
[kg]
[Ncm]
8*
–
2.5
15000
22
9
3.28
0.86
0.015
0.5
12
6201
9.3
10000
32
10
6.1
2.77
0.04
0.7
15
6202
17
8400
35
11
7.4
3.42
0.06
0.9
17
6203
30
7350
40
12
7.9
3.8
0.07
1.1
20
6204
50
6000
47
14
9.4
4.46
0.11
1.3
25
6205
85
5200
52
15
10.7
5.46
0.14
2
30
6206
138
4200
62
16
11.7
6.45
0.21
4.4
35
6207
175
3600
72
17
12.6
7.28
0.3
5.8
40
–
325
3000
80
22
15.54
12.25
0.5
7
CSK..2RS
8**
2.5
15000
22
9
3.28
0.86
0.015
0.8
12
–
9.3
10000
32
14
6.1
2.77
0.05
3
15
17
8400
35
16
7.4
3.42
0.07
4
17
30
7350
40
17
7.9
3.8
0.09
5.6
20
50
6000
47
19
9.4
4.46
0.145
6
25
85
5200
52
20
10.7
5.46
0.175
6
30
138
4200
62
21
11.7
6.45
0.27
7.5
35
175
3600
72
22
12.6
7.28
0.4
8.2
40
–
325
3000
80
27
15.54
12.25
0.6
10
MOUNTING EXAMPLE
FAQ
Q: How do you pack the goods?
Total less than 25 KG:Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG :Carton box +Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
