Быстрая скорость тип электричества гидравлический сплиттер рока для продажи
- Category: Rock Splitter >>>
- Supplier: Xiamen Betopper Mining Machinery Co. Ltd.
Share on (60172343444):
Product Overview
Description
Product Description
| Product Name: | Fast Speed Electricity Type Hydraulic Rock Splitter for Sale | ||||||||

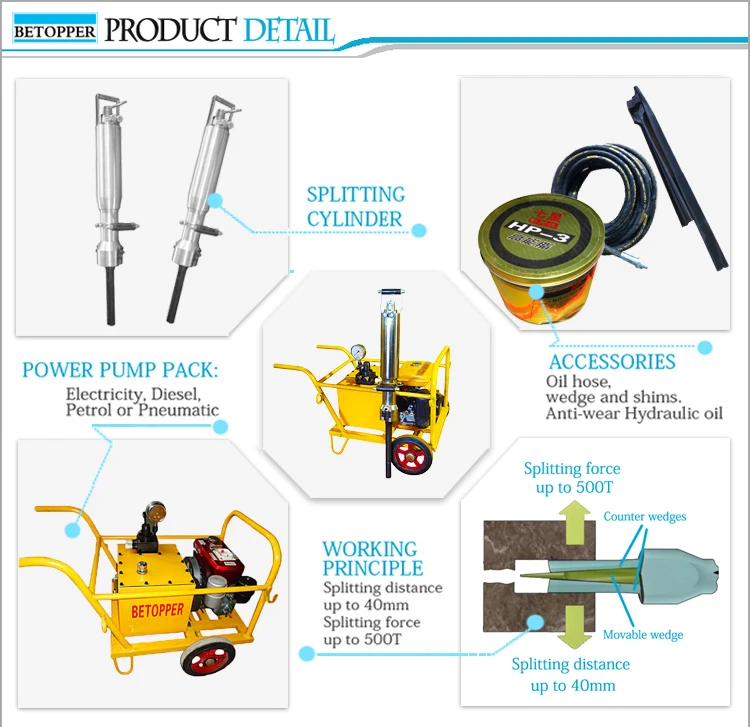

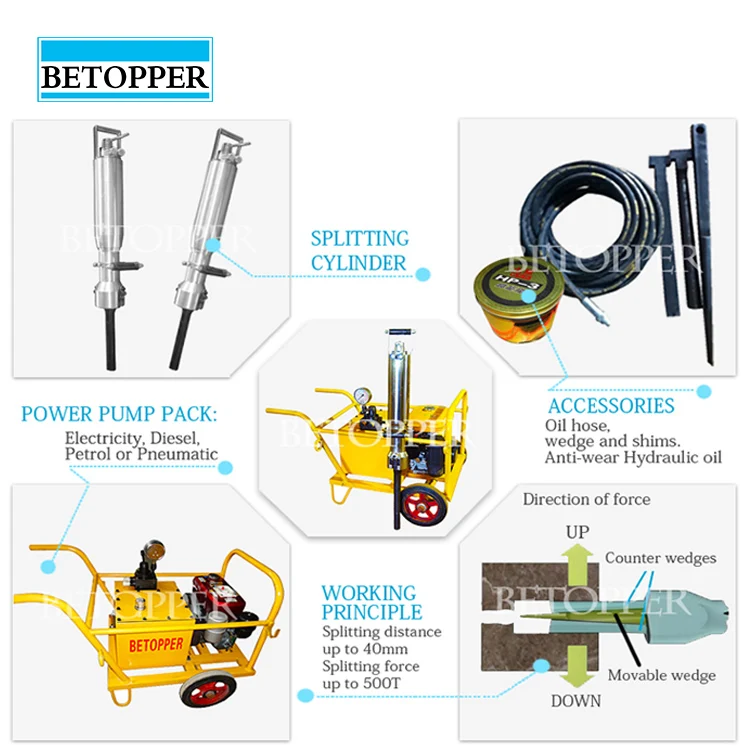

| Description: | 1. Hydraulic rock splitter is maninly composed of power pump pack and hydraulic cylinder. | ||||||||
| Mainly applicable to the secondary breaking. | |||||||||

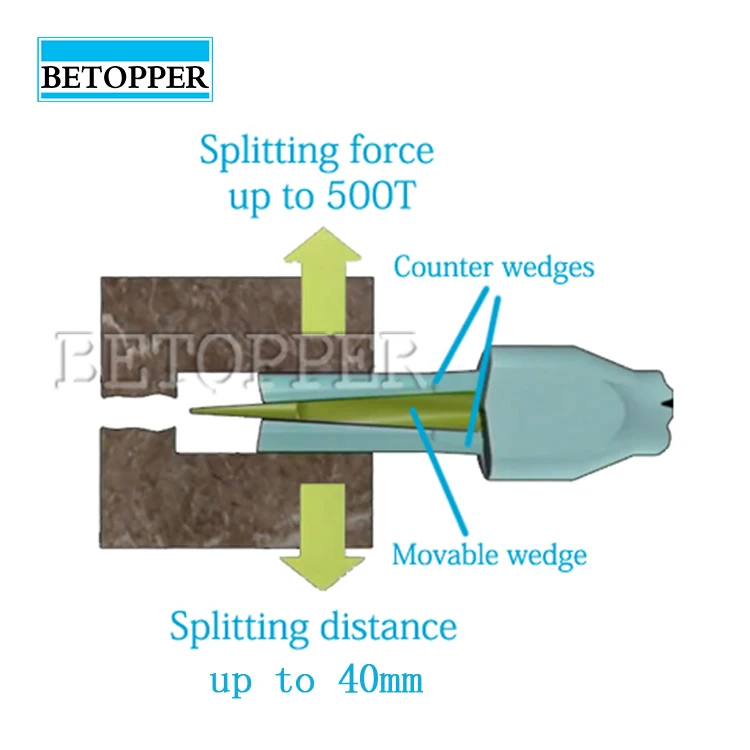

| 2. First drill hole in stone, then insert hydraulic cylinders which is contain wedge and feathers, | |||||||||
| Start engine to provide hydraulic pressure. | |||||||||
3. Repeat the process until the whole structure is fractured into smaller sections and ready for removal. | |||||||||
| Advantages: | 1. Enormous splitting force up to 500 tons & vibration free | ||||||||
| 2. Dust free and near silent operation & Light weight and Easy handling | |||||||||
| 3. Different sizes of counter wedge and center wedge can use on the same splitter | |||||||||
| Application: | 1. Split all kinds of natural stones, rock, granite, marble mining & quarrying | ||||||||
| 2. Remove redundant reinforced concrete structures, concrete machine beds and plinths etc. | |||||||||
| 3. Underwater demolition & Demolition in a restricted space | |||||||||
| 4. Controlled demolition of pillars, concrete and walls where heavy equipment is impractical | |||||||||
| Specification about power pump pack of Fast Speed Electric type Hydraulic rock splitter - hydraulic rock splitter | |||||||||
| Power Pump Pack | Dimension (mm) | Weight (kg) | Tank Capability (L) | Engine Power | Pressure (Mpa) | Flux (L/m) | Splitting cylinder (pc) | ||

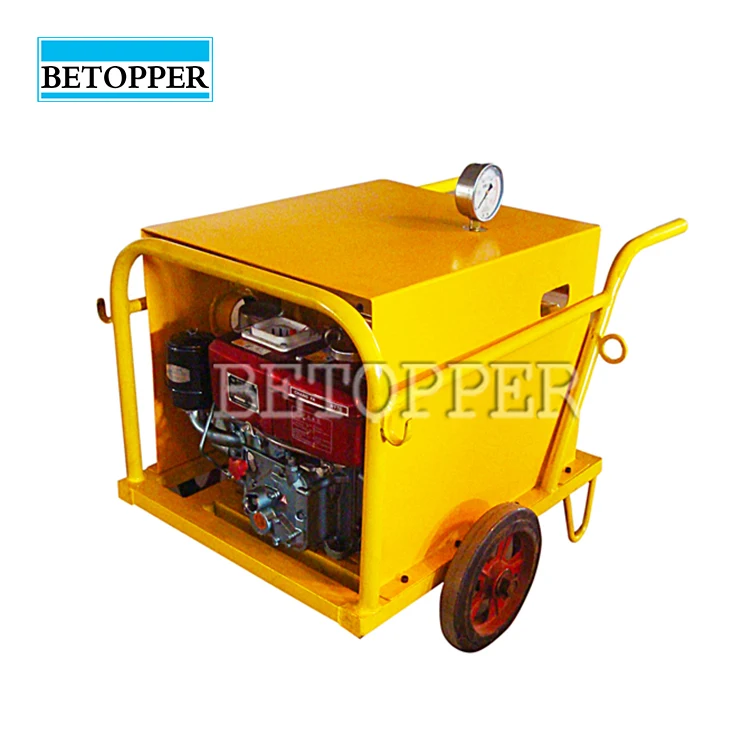

Diesel engine | 1150*1180*940 | 120 | 40 | 4.2KW | 55-60 | 2-13 | 1-10 | ||
Air motor | 384*280*620 | 100 | 40 | Rated Speed (RPM) | Rated Power | 55-60 | 13 | 1-10 | |
| KW | HP | ||||||||
| 2000 | 4.04 | 5.5 | |||||||
Gasoline engine | 1200*1170*800 | 100 | 40 | 7.5HP | 55-60 | 2-13 | 1-10 | ||

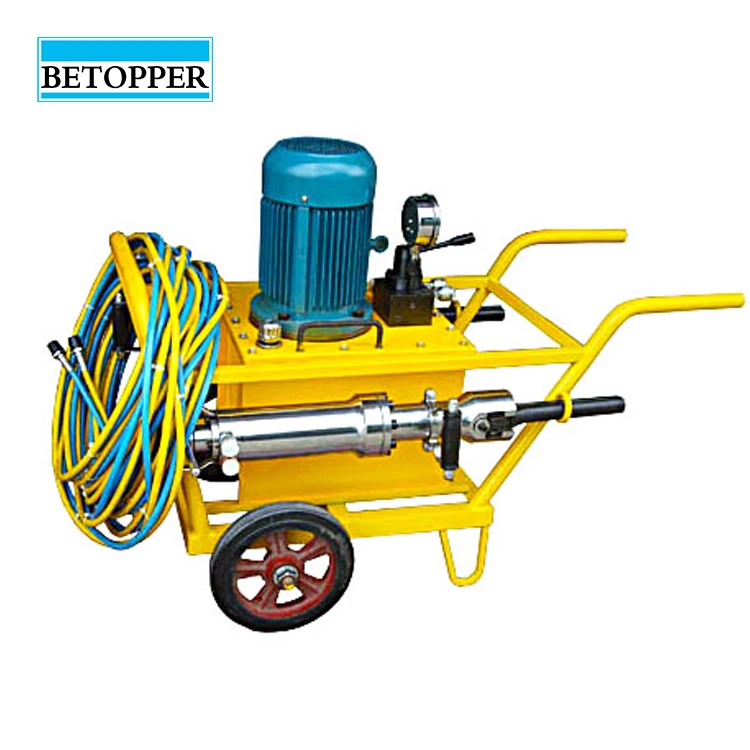

Electricity engine | 450*410*700 | 100 | 40 | 7.5KW (380V) | 55-60 | 13 | 1-10 | ||
Note: 1. Splitting cylinders means the engine can supply power for 1-10 pcs cylinders. 2. For quotation, please kindly inform us type of power pump pack and quantity of cylinders you need. | |||||||||
Packaging

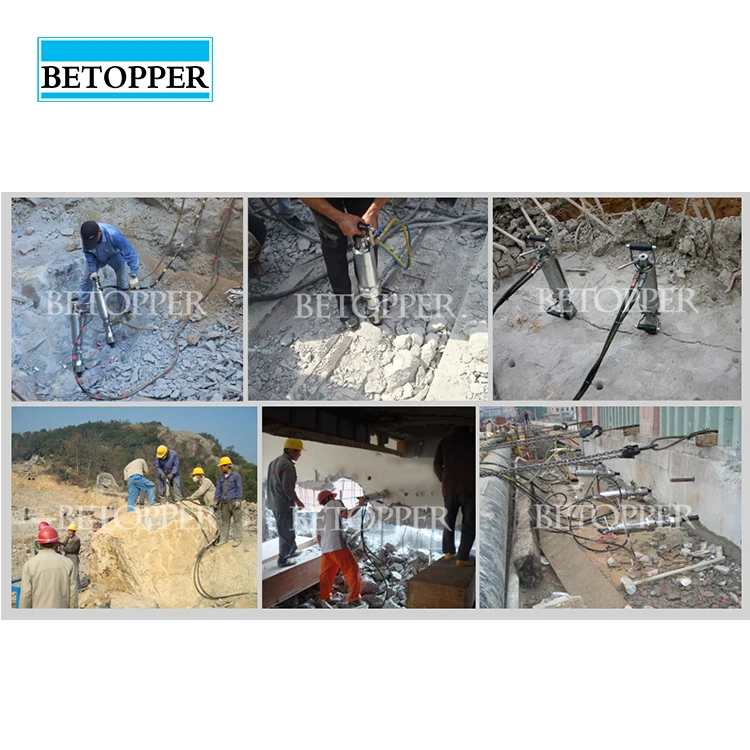

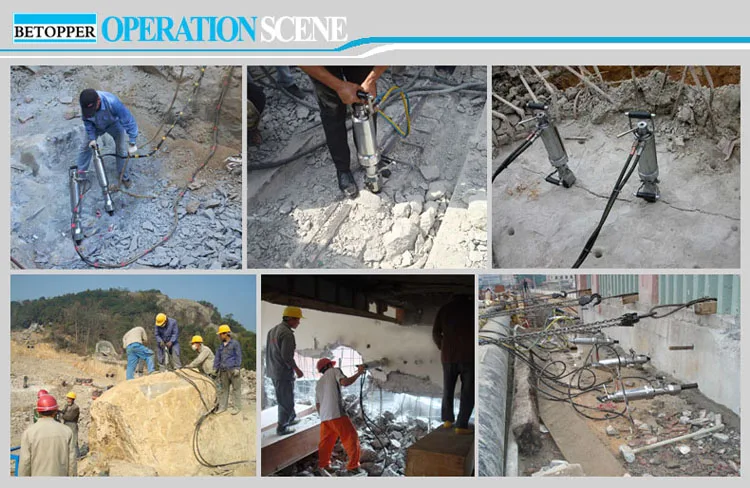

Operation Scene
FAQ
The information you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Normally. it takes about 10 days supplied from stock.
And it takes about 20 days if need any changement to meet normals in your side.
3. Shipping way
By air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available at any time
c. Free replacement will provide once the failure confirmed caused by our product quality
Fair&Clients visit
Company Information
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts since 1980.
2. We have advanced technology and equipment.
3. Our technician has more than 25 year’s professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA,
Canada, Australia, Brazil, Uruguay, Philippines, Thailand, India, etc.
ydraulic rock splitter | hidráulica roca divisor | hidráulica rocha splitter | hydraulique diviseur de roche | hydrau
lische Rock-Splitter | Hidrolik kaya splitter | idraulico roccia splitter
