Far Infrared Gas Heater Ceramic Plate
- Category: >>>
- Supplier: Yancheng Xuanyuan Heating Equipment Technology Co. Ltd.
Share on (60172377086):
Product Overview
Description
Description for Far Infrared Gas Heater Ceramic Plate
Infrared ceramic heater made by xuanyuan company are 96% infrared energy efficient. Uses for electric infrared heat can be found in many industries and applications and can be grouped into four major categories:1)Curing 2)Drying 3)Heating 4)Cooking 5)Saunas
Infrared ceramic heater are widely used in pre-heating of plastic sheets for vacuum forming & thermoforming, drying paints, lacquer & varnish curing, drying printing inks, drying textiles, activating adhesives, removing surface water from objects or moisture removal from fabric and paper, animal husbandry and rearing.The ceramic IR heaters are highly efficient.Ceramic infrared heater offers precise targeting and control with minimal peripheral heat. It is possible to apply heat only where and when it is required. The energy in an infrared heater is transmitted at the speed of light from the element to the product. A constant rate of heating is obtained because the source temperature is normally much higher than that of the product even at the end of the heating cycle.
Technology Data of Far Infrared Gas Heater Ceramic Plate
Wattage | 150w | 250w | 300w | 400w | 500w | 650w | 750w | 1000w |
Mean surface temperature | 262℃ | 354℃ | 400℃ | 464℃ | 486℃ | 589℃ | 634℃ | 722℃ |
Operating temperature | 700℃ | 700℃ | 700℃ | 700℃ | 700℃ | 700℃ | 700℃ | 700℃ |
Max power density kW/m²( W/inch²) | 9 | 15 | 18 | 24 | 30 | 39 | 45 | 60 |
Features of Far Infrared Gas Heater Ceramic Plate
1.Durable, splash-proof, non-corrosive finish
2.Watt densities from 3 w/cm² (tolerance within +/- 2% )
3.Maximum temperature output is 1292 F (700 C.)
4.Available color in white/ black/yellow
5.Standard voltages: 220/230v
6.Estimated life in excess of 10,000 hour

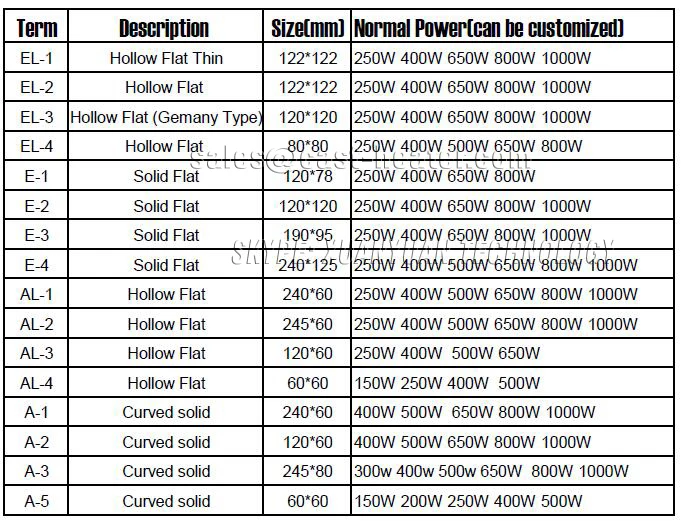

More sizes and shapes for choose of Far Infrared Gas Heater Ceramic Plate

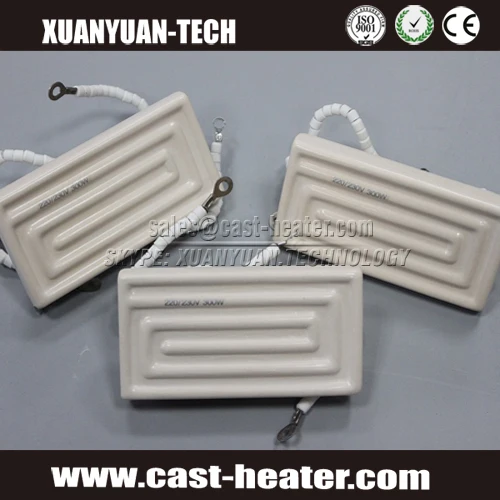

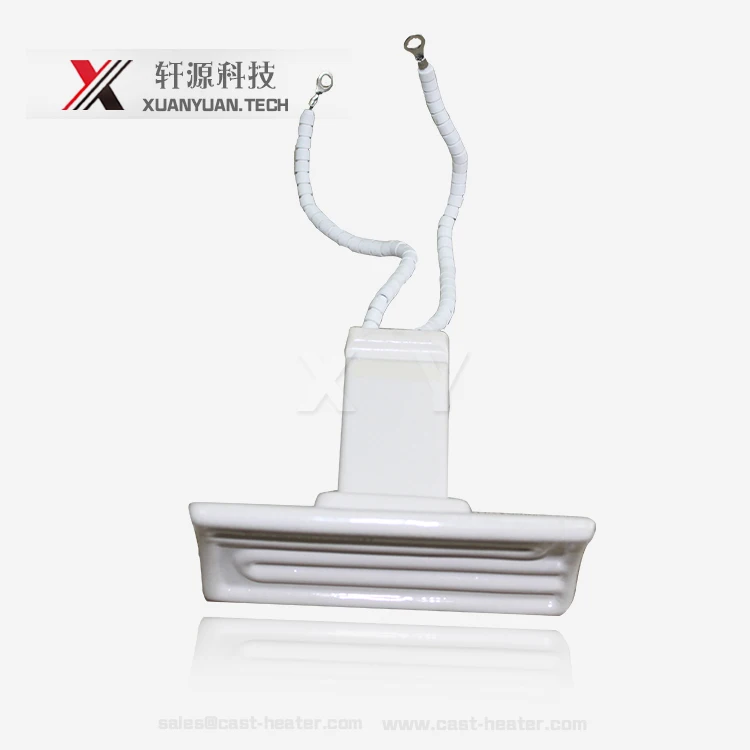

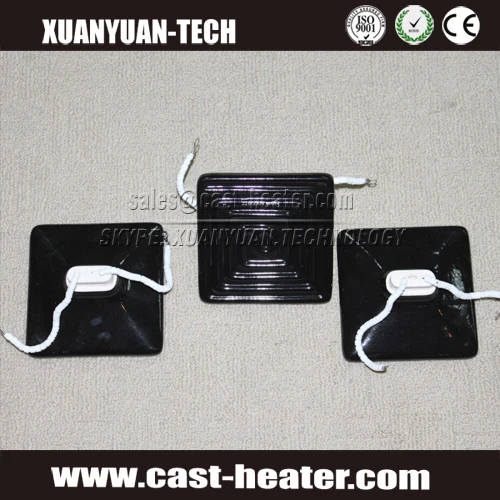

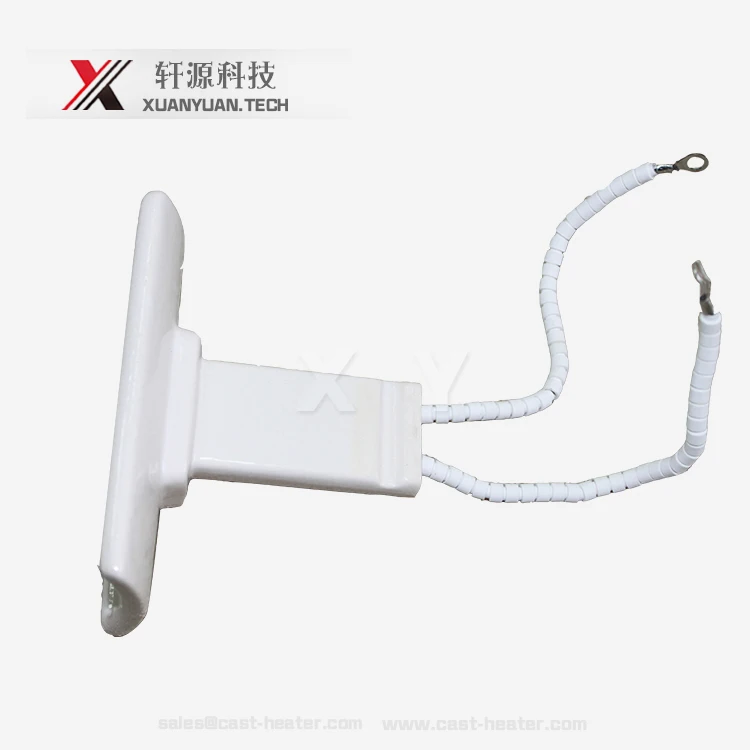

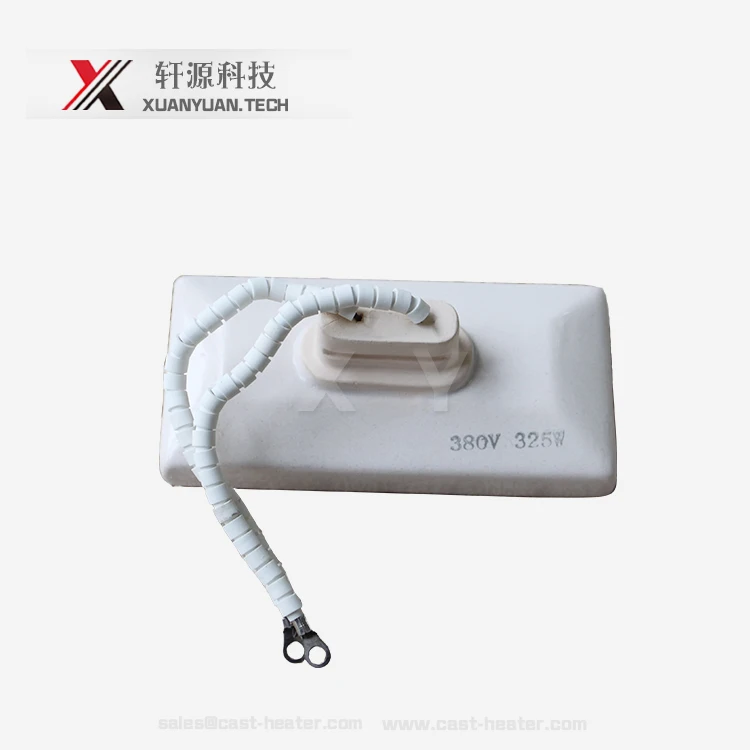

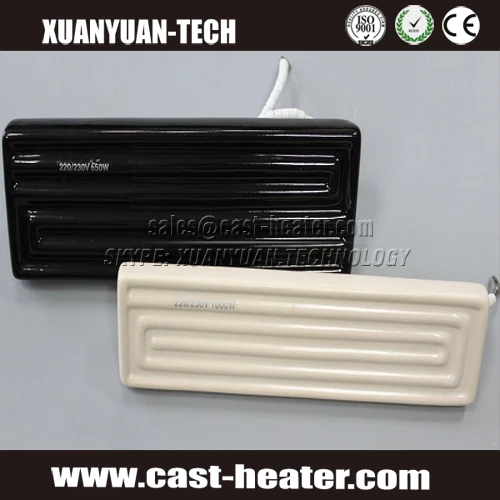

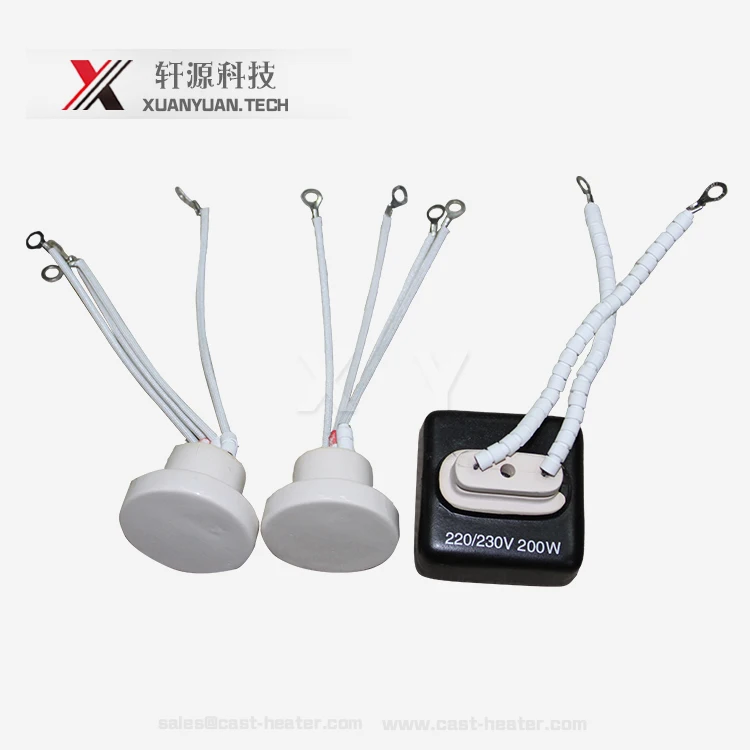

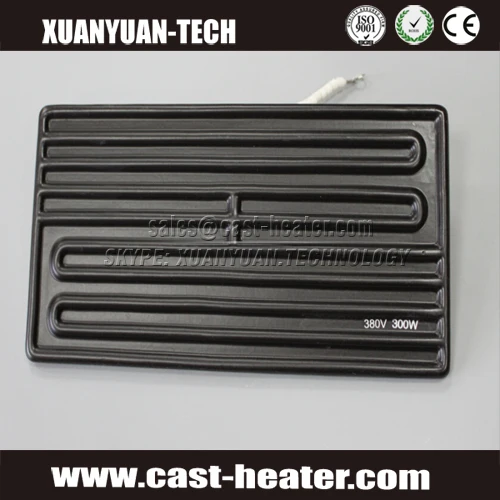

Product Photos of Far Infrared Gas Heater Ceramic Plate
Packaging & Shipping
Packaging:Standard carton or any other packing needs for Far Infrared Gas Heater Ceramic Plate
Delivery:7-10 working days after CFM order details

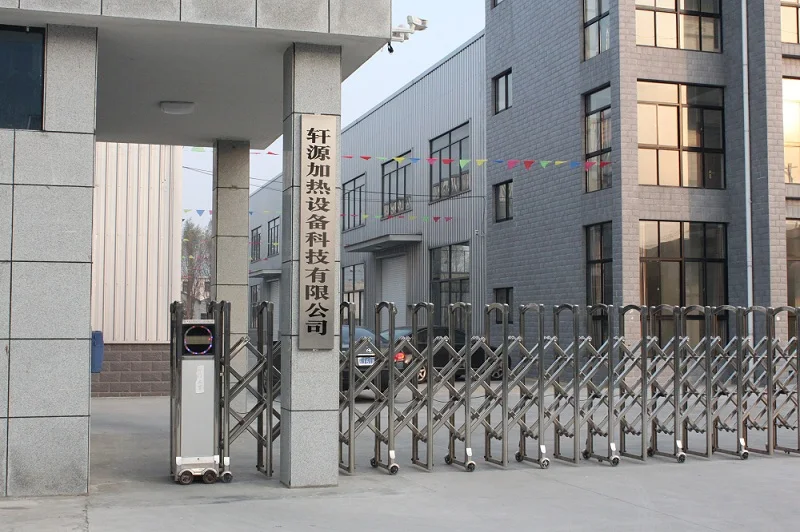

Comopany Information
Yancheng Xuanyuan Heating Equipment Technology Co.,ltd are the direct supplier with more than 10 years of manufacturing Cast Aluminum Heater,Cast Copper Heater,Teflon coated heaters,Cast Iron Electric Heater, other material heaters ,such as Flexible Silicone Rubber Heaters, Ceramic IR Heaters, Flange Heater,tubular heater,stainless steel heater, Laboratory heater board..
Our company has a modern standard working area of 10000 m2, There are 80 sets of various precision machining and checking facilities. It also has technical talented people over 30%. Our company has an abundant ability to develop new products and perfect checking means.
The company has obtained CE mark and ISO 9001 international quality system certificate. Product coverage nationwide and has entered Western Europe,North Africa, South America and Southeast Asia market.
Order Guide for Far Infrared Gas Heater Ceramic Plate
1. Inquiry-Professional quotation. |
2. Confirm the price, lead time, artwork, payment term etc. |
3. Xuanyuan sales send the Proforma Invoice with xuanyuan seal. |
4. Customer make the payment for deposit and send us Bank receipt. |
5.Initial Production Stage-Inform the clients that we have got the payment,And will make the products according to your request,. After getting the sample or drawing approval, we inform that we will arrange the production & inform the estimated time. |
6. If possible,middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
7. End Production-Mass production products photos will send to you for approval. You can also arrange the third party Inspection . |
8. Clients make payment for balance and We Ship the goods .Also can accept other payment ways. |
RFQ for Far Infrared Gas Heater Ceramic Plate
1. About price ?
We supply you Xuanyuan factory Direct sale price ,may be it's not the lowest ,
best quality with pecfect follow-up service
2.Factory located? How can I visit there?
Qinnan Industrial Park,Yandu County,Yancheng City ,Jiangsu Province,P.R. China.
It's about 4 hours bus ride from Shanghai to Our city
3.Payment way?
We accept TT and L/C,as sample order,the Western union,Money gram and Aliexpress is available.
4. samples?
We are honored to offer you samples. you can send me your sample or drawings for designment.
5.Quality control?
There are many sets of various precision machining and checking facilities ,Every product will be checked by xuanyuan QC Dearpartment before packing.
Certification for Far Infrared Gas Heater Ceramic Plate
