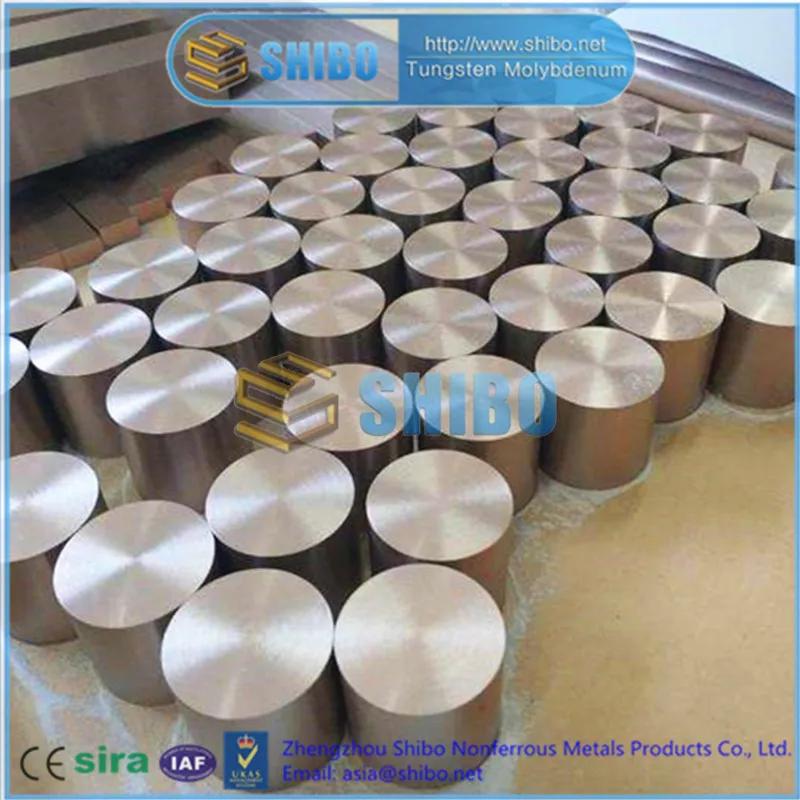

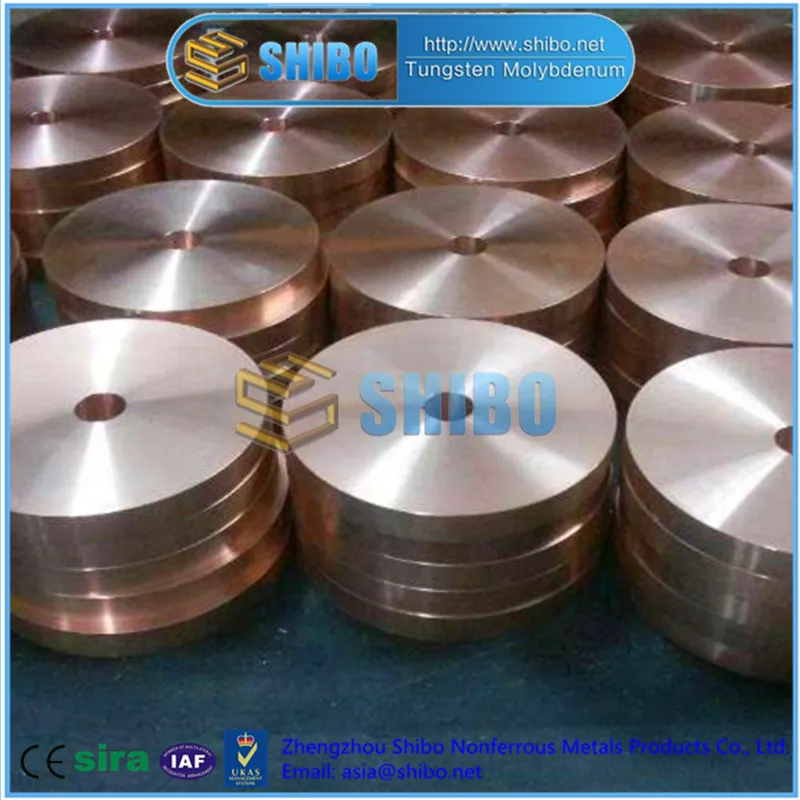

Professional Manufacturer CuW70 polished Tungsten Copper Alloy Disc

Product Overview

Description

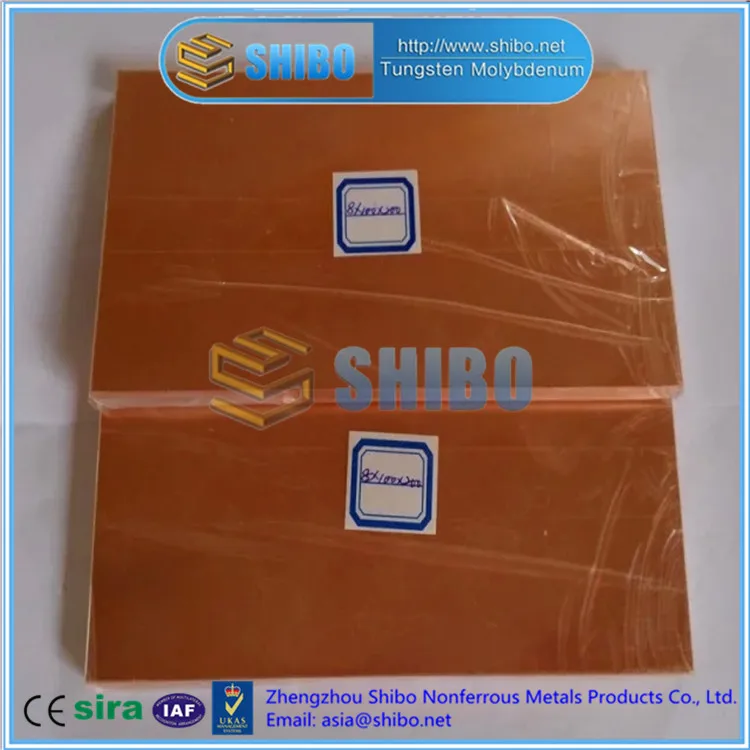

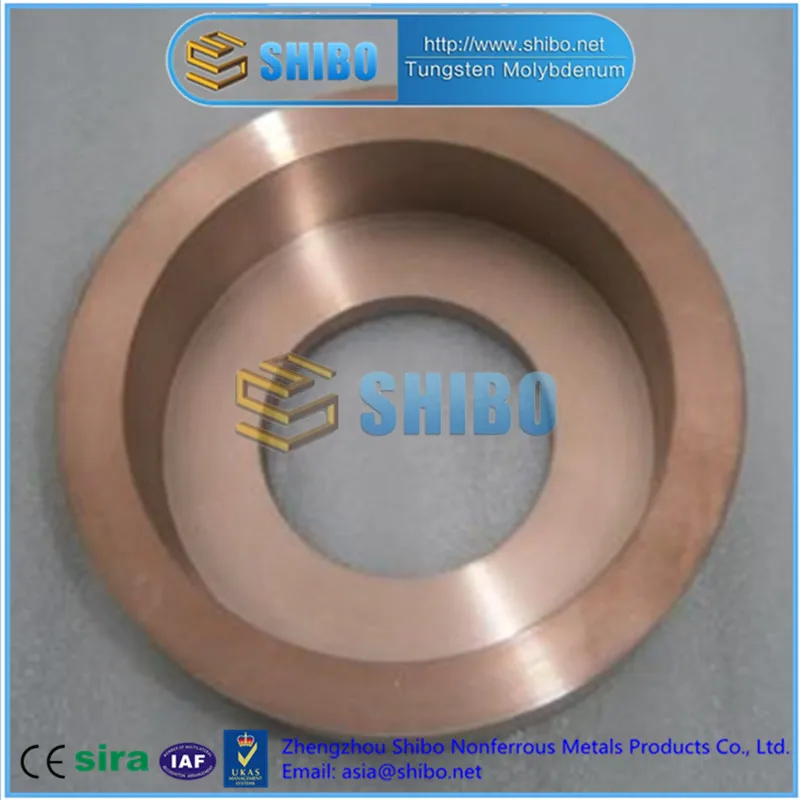

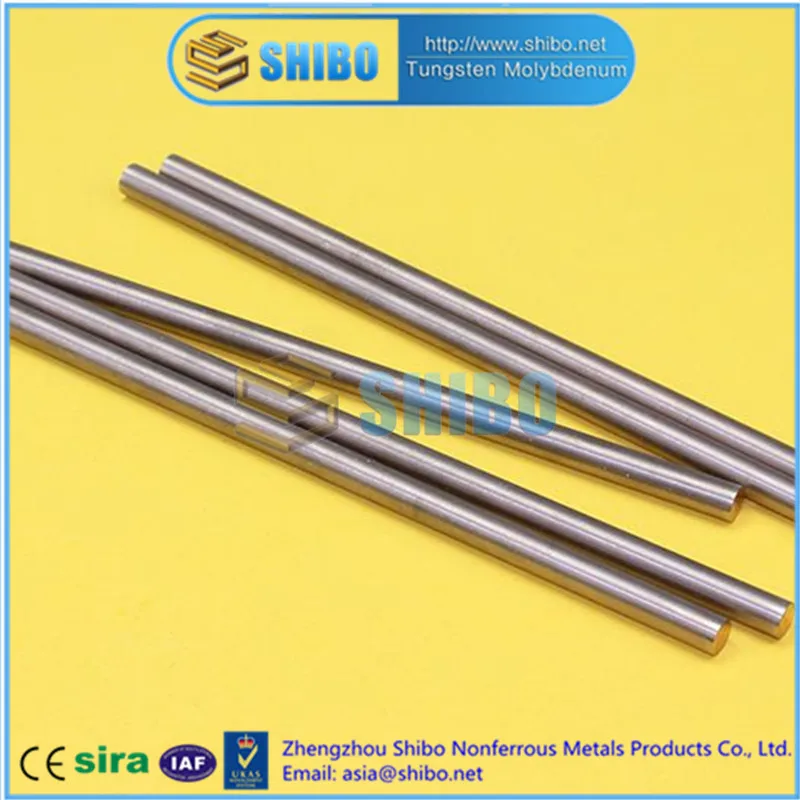

Tungsten Copper Alloy Sheet / Plate / Rod / Bar / Disc / Pipe (Cu-W)

Tungsten copper alloy is the composite of tungsten and copper which own he excellent performance of tungsten and copper .



Specification

Name	Chemical composition(%)			Physical properties
	Cu	Impurity	W	Density(g/cm)≥	Hardness (HB)≥	Resistivity(µΩ.cm)≤
Copper-tungsten(50)	50±2.0	≤0.5	allowance	11.85	115	3.2
Copper-tungsten(55)	45±2.0	≤0.5	allowance	12.3	125	3.5
Copper-tungsten(60)	40±2.0	≤0.5	allowance	12.75	140	3.7
Copper-tungsten(65)	35±2.0	≤0.5	allowance	13.3	155	3.9
Copper-tungsten(70)	30±2.0	≤0.5	allowance	13.8	175	4.1
Copper-tungsten(75)	25±2.0	≤0.5	allowance	14.5	195	4.5
Copper-tungsten(80)	20±2.0	≤0.5	allowance	15.15	220	5
Copper-tungsten(85)	15±2.0	≤0.5	allowance	15.9	240	5.7
Copper-tungsten(90)	10±2.0	≤0.5	allowance	16.3~16.75	260	6.5
High Specific Gravity (W94)	6±2.0	≤0.5	allowance	16.8~17.2



Character

1. High density

2. Good machinability

3. High absorption capacity against x-rays

4. Harmless to the health

Application

1) Arcing contacts and vacuum contacts in high and medium voltage breakers or vacuum interrupters

2) Electrodes in electric spark erosion cutting machines

3) Heat sinks as passive cooling elements of electronic devices

4) Electrodes for Resistance Welding
