Внешний датчик TPMS для грузовиков hud

Product Overview

Description

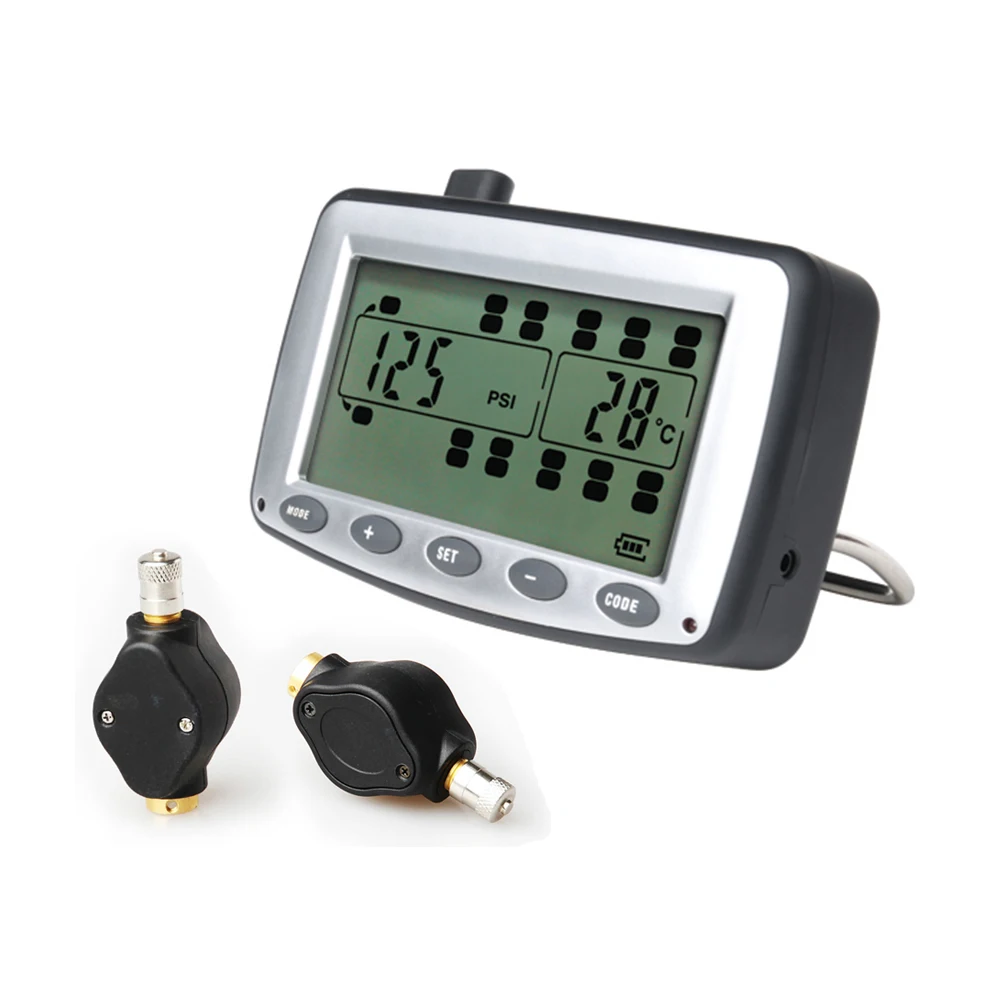

truck hud external sensor TPMS







1. What are the advantages of TPMS ?



Reduce Driving Risks



Improve Fuel Economy



Prolong lifetime of the tires





2. Features:



Easy installation and reliable
Clear and large display
Solar power supported
Build in with rechargeable lithium battery
Automatic waking up when vehicle start in motion
Automatic backlight on/off for daytime or nighttime
High pressure and low pressure setting by user
High temperature setting by user
Visual and audible alerts for high/low pressure, high temperature and fast leakage
Pressure unit selectable: PSI, BAR
Able to read up to 5 tires
Automatic pair sensor with tyre location, no need to input sensor ID





3. Specifications:

Video-in TPMS receiver Specifications:



Operating voltage:	12 to 24 V
Frequency	433.92MHz
Operating temperature	-20 to +85° C
Standby current:	140~170mA
Sensitivity:	-110~-116dBm

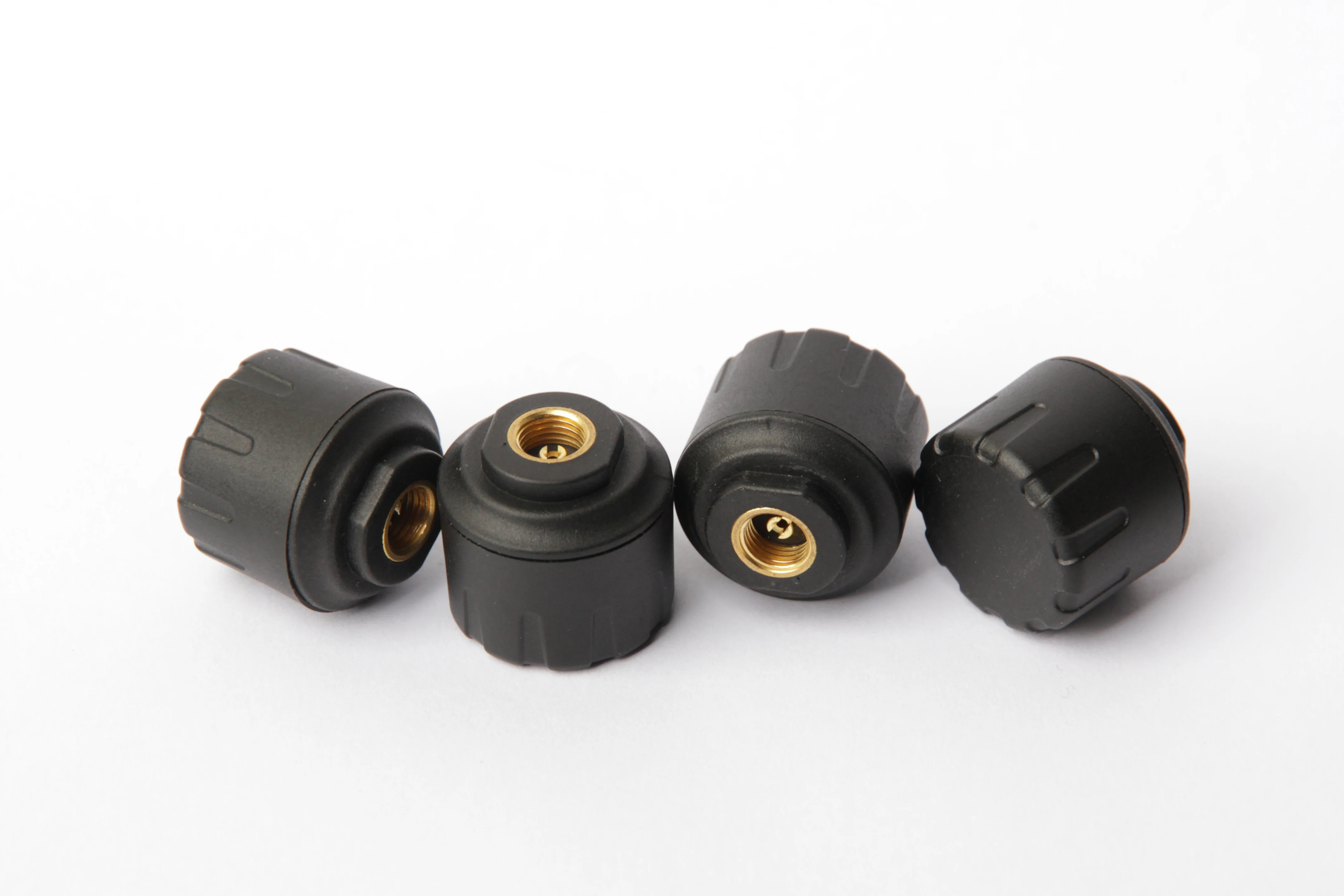

External Sensor Specifications:



Pressure range:	0 to 6 bar, 0 to 87psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3℃
Transmission power:	< 10dBm
Transmission frequency:	433.92MHz
Battery life:	2 years (Sensor battery replaceable)
Operating temperature:	-40 to +85° C
Weight:	19grams
Size:	diameter:28mm, height:30mm



4. Our Facilities:





5. Our Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent



6. Cooperate with us, you will gain:



0EM or ODM service



Professional Research & Development Engineer



Competitive Price & Professional sales team



2-4 weeks leadtime





Looking Forward to Cooperating with You!
