Product Overview

Description






Product Description

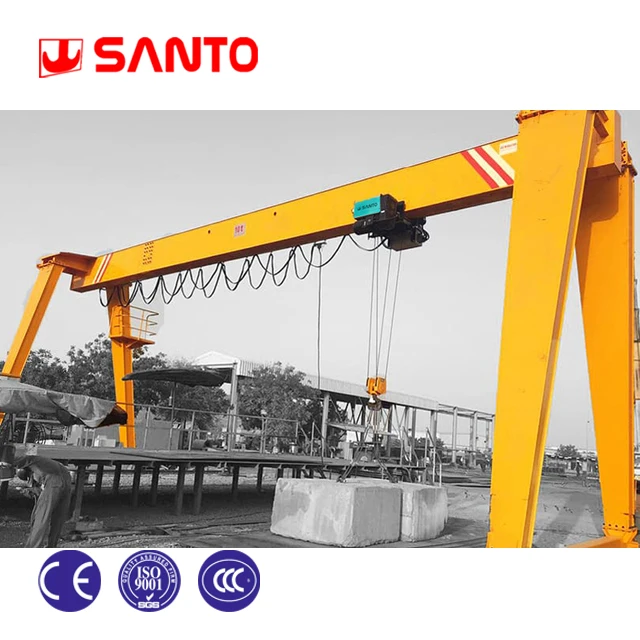

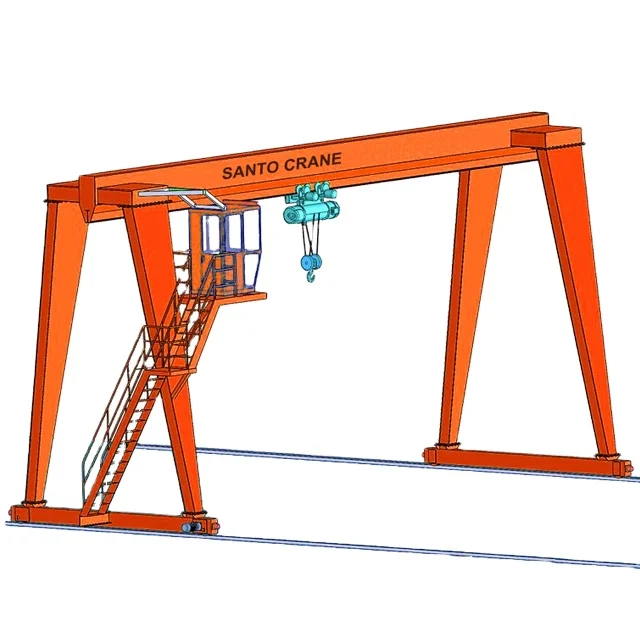

                                           Single beam large mobile gantry crane



This crane is normally matched with CD MD hoist, easy control, low cost. Applied outside to do common loading and unloading with strong winch.


MH
Description:
ELectric single beam gantry crane with hook is applied outside warehouse or railway sideways to do common lifting and unloading works, this kind of crane is composed of bridge, support legs, crane traveling organ, electric equipment, strong lifting winch, the frame adopts boxed-type welding mechanism, crane traveling mechanisms are operated in the driver cabin or remote control, Power is supplied by cable or slide wire.
Safety feature:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
Control method:
Pendent line with press button or remote control or cabin or both
Design and construction rules:
All the standards which is required for the crane is the Chinese standard
 Technical data:

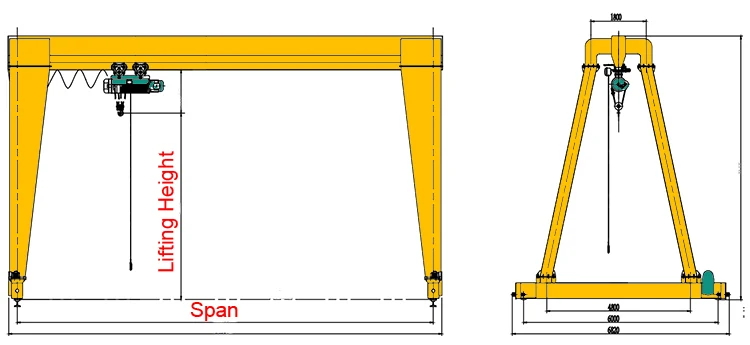

MH box gantry





















































































































Capacity

T



3



5



10



16



20



Span



m



12,16,20,24,30



Operational method







Pendent Line With Press Button /Cabin/ Remote



Speed



Lifting






m/min



8 ,8/0.8



8,8/0.8



7,7/0.7



3.5



3.5



Cross travelling



20



20



20



20



20



Long travelling



Ground



20



20



20



20



20



Cabin



20, 30,45



20, 30,40



30,40



30,40



30,40



Motor



Lifting



Type /kw



ZD41-4/4.5
ZDS1-4/0.4/4.5



ZD141-4/7.5 ZDS10.8/4.5



ZD151-4/13 ZDS11.5/4.5



ZD151-4/13



ZD152-4/18



Cross travelling



ZDY12-4/0.4



ZDY121-4/0.8



ZDY21-4/0.8×2



ZDY121-4/0.8×2



YZD-4/0.8×4



Long travelling



Ground



ZDY21-4/0.8×2
ZDY21-4/1.5×2



YZY22-4/1.5×2
YZR132M2-6/3.7×2



YZR22-4/1.5×2



YZR160M1-6/6.3×2
YZR160M2-6/8.5×2



YZR160M1-6/6.3×2
YZR160M2-6/8.5×2



Cabin



ZDR100-4/1.5×2
ZDR112-4/2.1×2



YZR112L1-4/2.1×2
YZR160M1-6/2.1×2



YZR112L1-4/2.1×2
YZR160M2



YZR160M2-6/8.5×2
YZR160L2-6/11×2



YZR160M2-6/8.5×2
YZR160L2-6/11×2



Electric hoist



Model



CD1/MD1



CD1/MD1



CD1/MD1



CD1



HC



Lifting height



m



6,9



Working duty







A3



Power supply







380V 60HZ 3phase AC (According to your demand )







Application

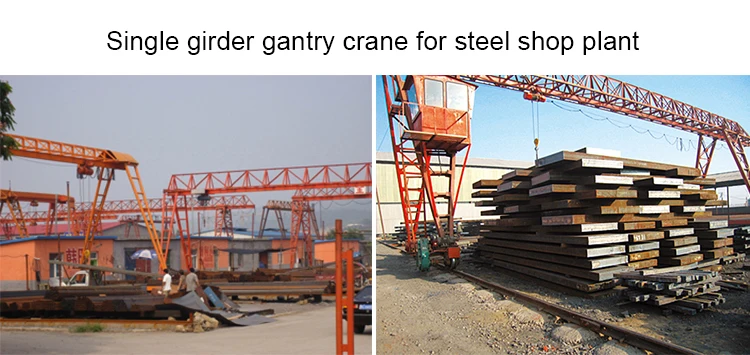

-3

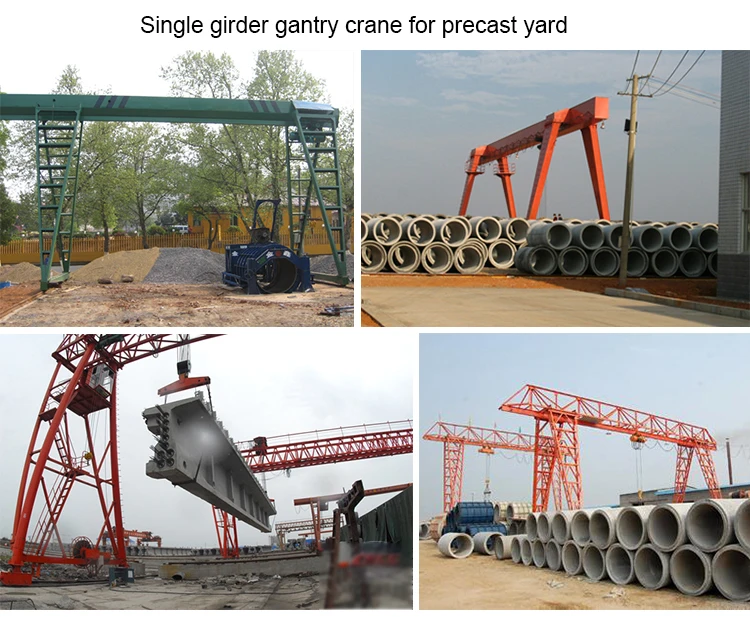

precast yard single girder gantry crane

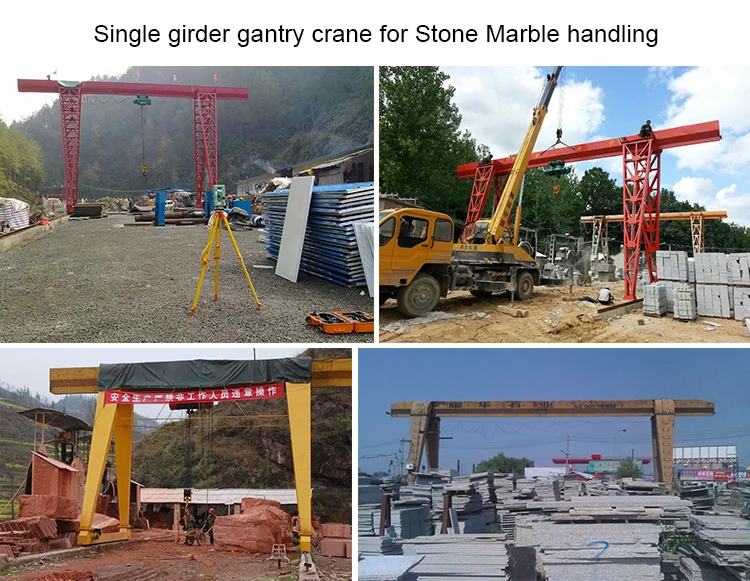

-2





Related Products





8 set single girder overhead cranes for 4 spans

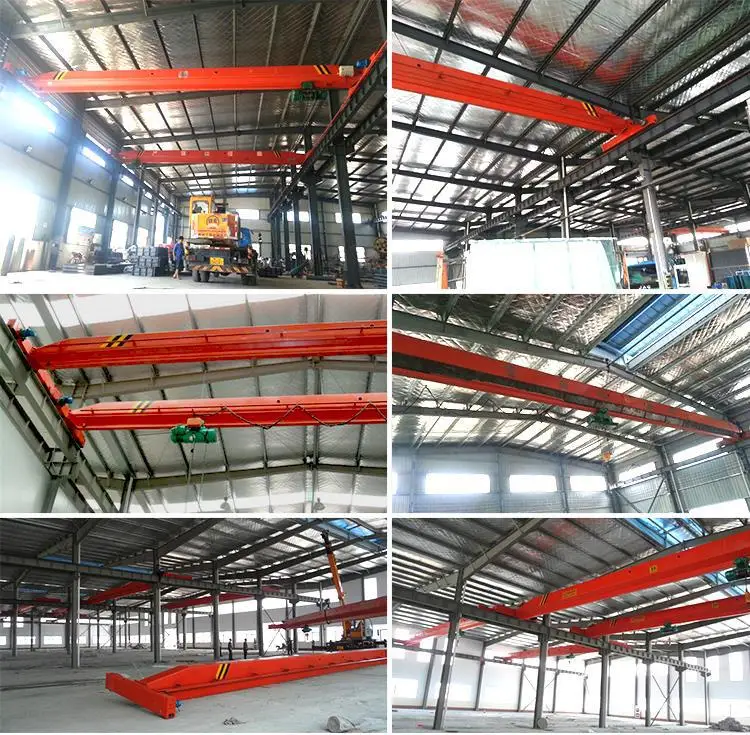

LDA-


 Euro type single girder overhead crane

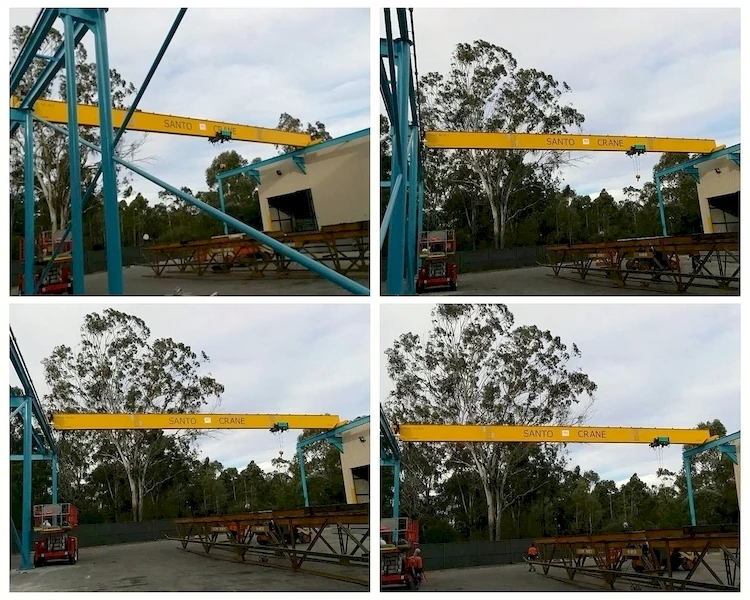

_20200610121-750


  Project installtion

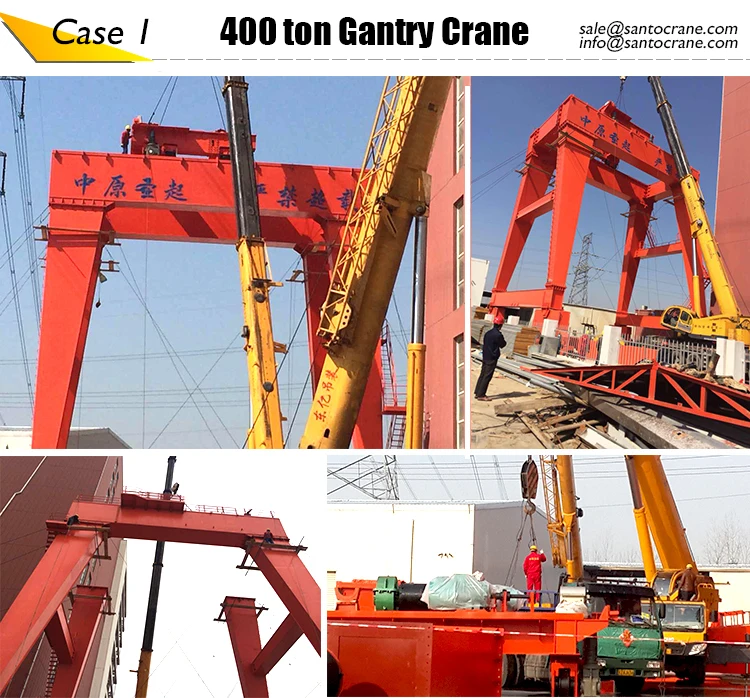

anli

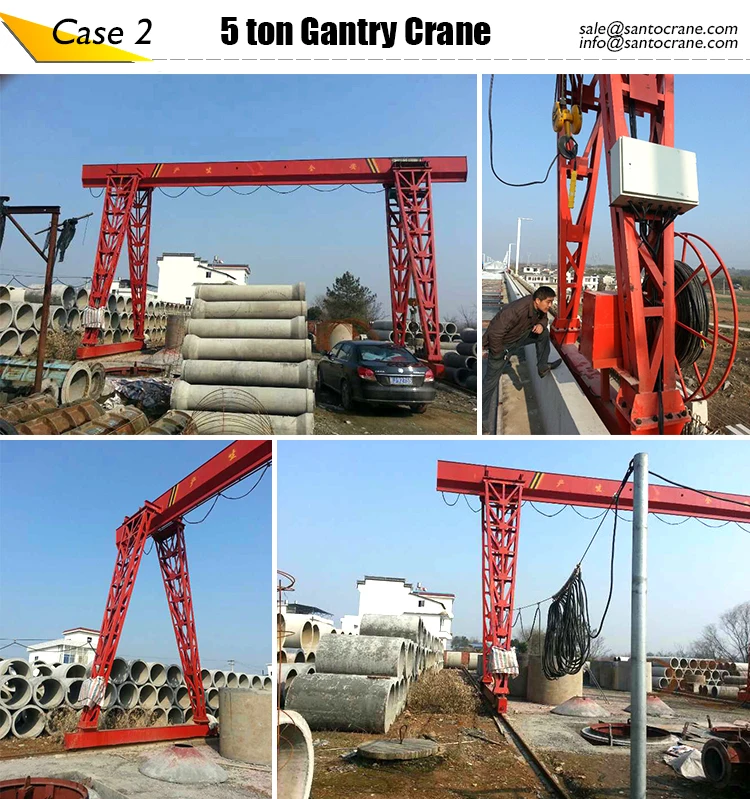

anl i

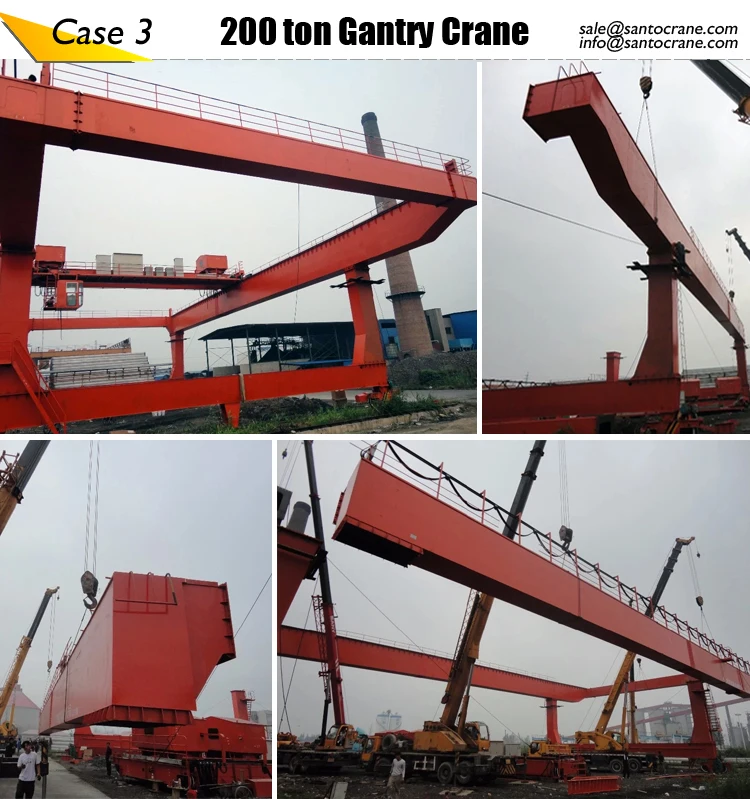

anli3





Free inquiry





















































Dear friend, It's better to send us inquiry with confirmation of the info below, then we can offer very quick.

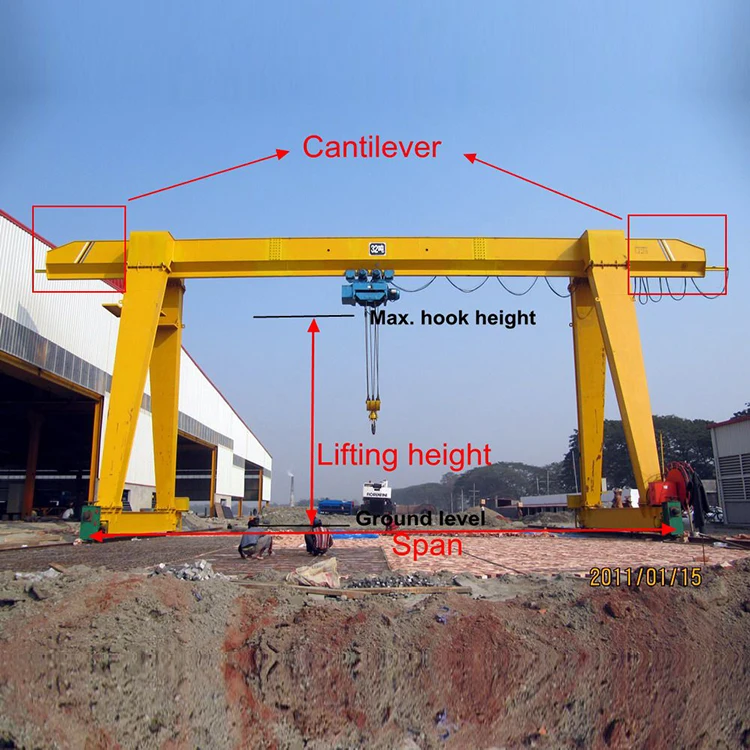

MH gantry crane dimension


















































Load Capacity, ton:(_____)
Span, S,m:(_____)
Lift Height, h, m:(_____)
Cantilever Length, L, m(_____)
Voltage:(_____)
Control way:(_____)
Lift Speed, m/min:(_____)
Cross travel speed, m/min:(_____)
Long travel speed, m/min:(_____)
Power cable and drum need or not?(_____)
Rail need or not?(_____)

{Tips: 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 16ton, 20 ton, 32ton)
{Tips: Up to 31.5m}
{Tips: 3m, 6m, 9m}
{Tips: shorter than 1/3 of span }
{Tips: 380V, 50Hz, 3-phase please confirm as yes, other pls note }
{Tips: Pendent control, remote control, cabin control}
{Tips: Single speed 8, double speed 8/0.8, Stepless speed}
{Tips: Single speed 20, Stepless speed}
{Tips: Single speed 30, Stepless speed}
{Tips: Please note the travel distance}
{Tips: Please note the travel distance}
Please copy and fill the infomation with the inquiry, If any questions or any more request, welcome contact me anytime












  High Quality Electric Motor Drive Gantry Crane 30 Ton


Looking forward to your inquiry!
