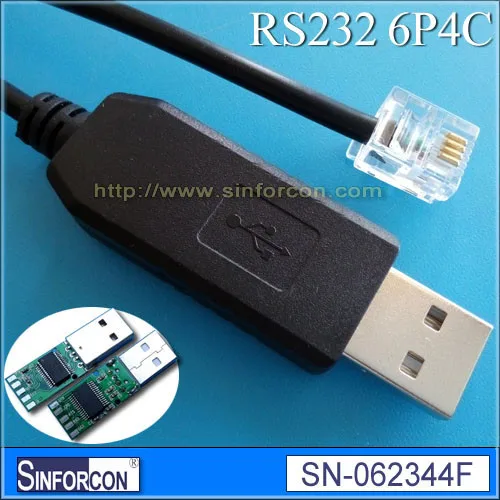

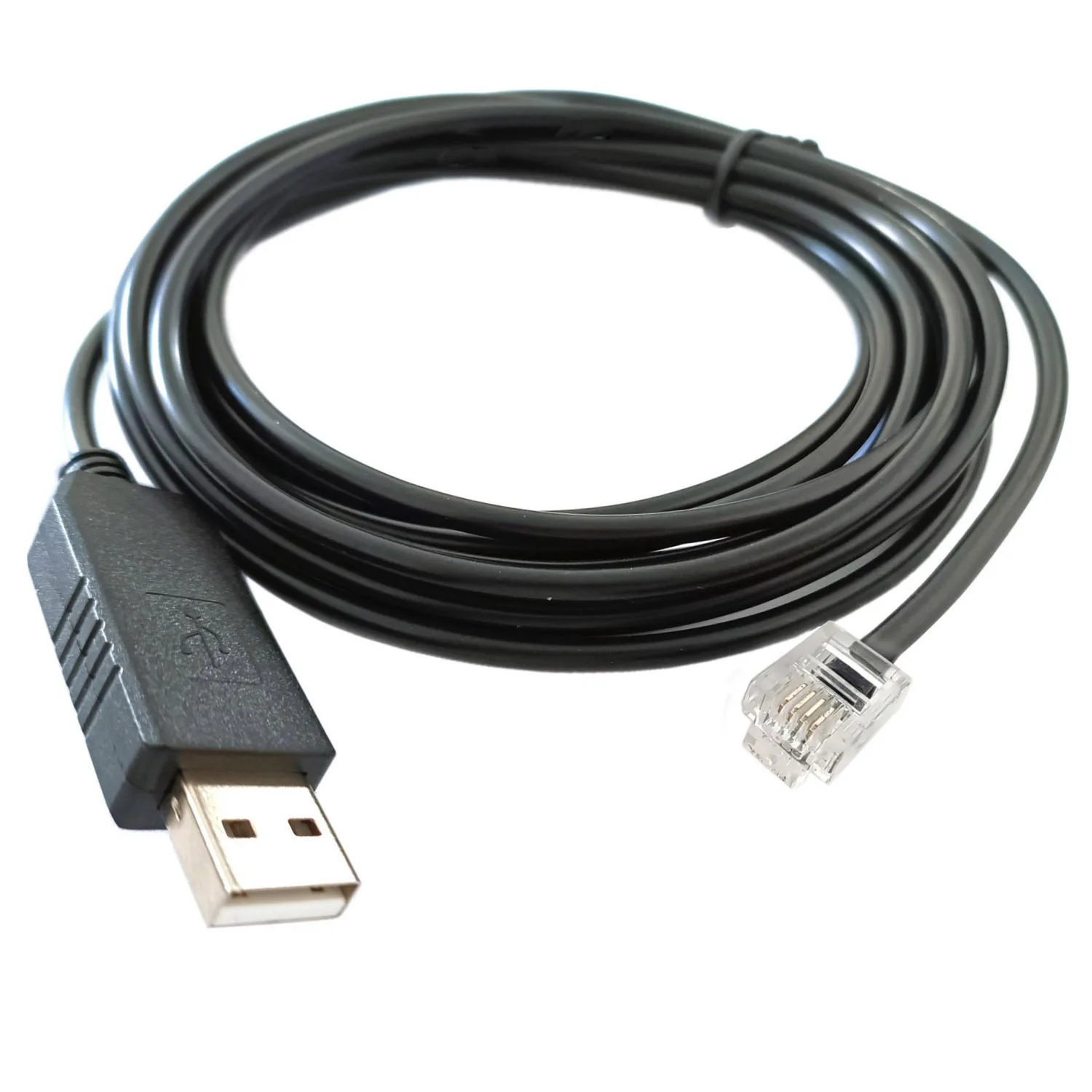

FTDI USB RS232 to RJ11 for Ixion Remote Serial Cable

USB2.0 RS232 cable

USB RS232 to RJ11 for IXION REMOTE CABLE

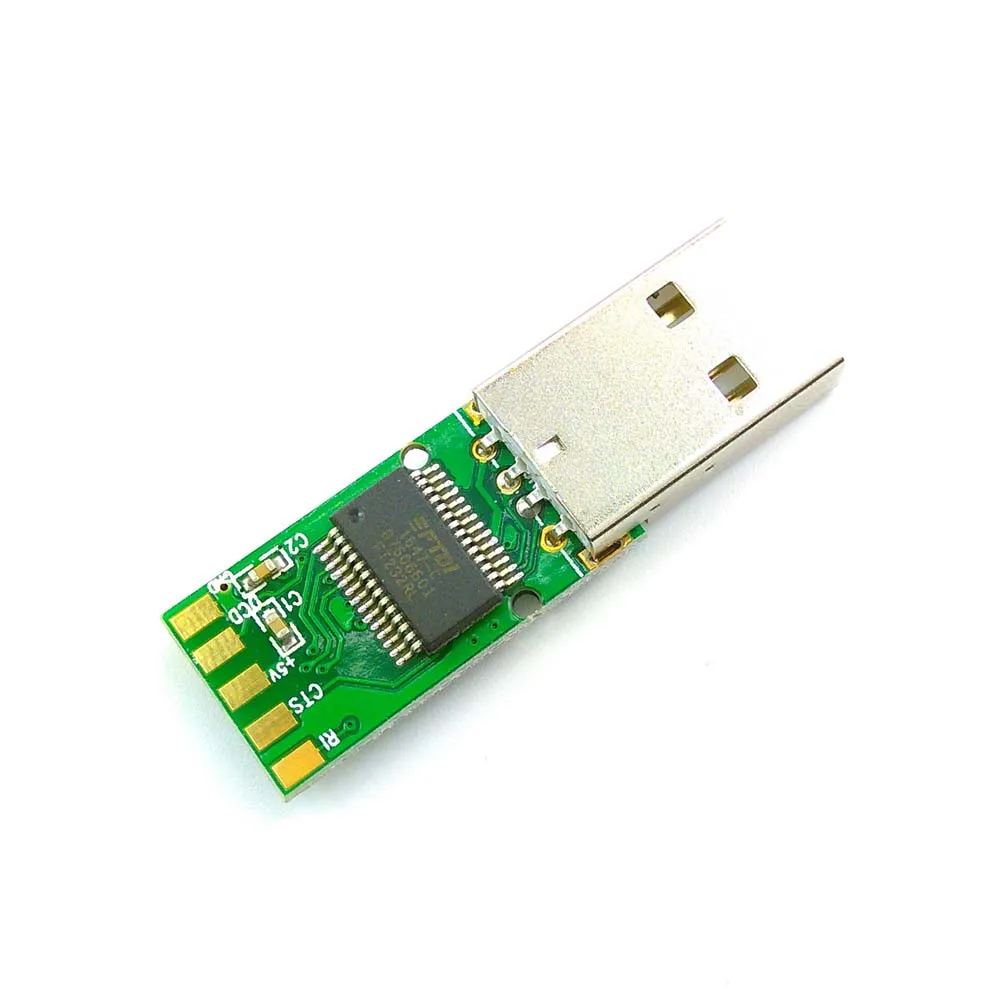

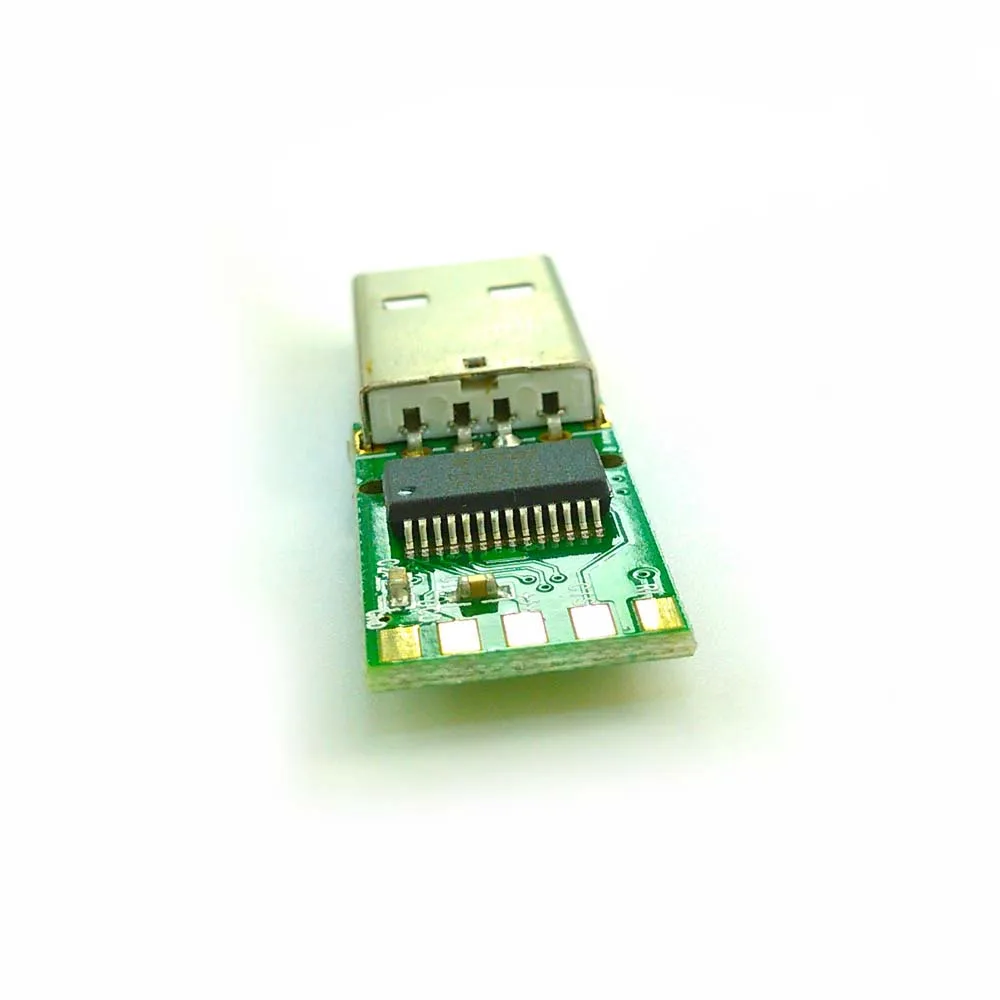

FT232RL + ZT213 chip

FT232RL for USB UART signals transfering

ZT213 for UART signals to RS232 shift

Support Win XP, Win 7, Win 8, Win 8.1, 32bit or 64bit, Android, Linux, Win cE, etc

300 ~ 1M baud rate speed support

1024 bit EEPROM integrated

Support VID, PID, decription re-writable

USB RS232 to RJ45

USB RS232 to RJ11

USB RS232 to RJ12

USB RS232 to RJ25 optional

Pin diagram can be customized

CE, RoHS, REACH certificated

PE bag for each, then in carton

Drivers are available which allow FTDI devices to work with the following operating systems:

•


  Windows 8.1





•


  Windows 8.1 x64





•


  Windows 8





•


  Windows 8 x64





•


  Windows Server2012





•


  Windows Server 2008 R2





•


  Windows 7





•


  Windows 7 x64





•


  Windows Server 2008





•


  Windows Server 2008 x64





•


  Windows Vista





•


  Windows Vista x64





•


  Windows Server 2003





•


  Windows Server 2003 x64





•


  Windows XP





•


  Windows XP x64





•


  Windows ME





•


  Windows 98





•


  Linux





•


  Mac OS X





•


  Mac OS 9





•


  Mac OS 8





•


  Windows CE.NET (Version 4.2 and greater)





•


  Android





•


  Windows RT




Support for WinCE7.0
Initial functional testing conducted by FTDI has shown that the FTDI drivers function as expected on Windows CE 7.0

Support for older versions of Windows Desktop

NOTE: Microsoft have ended support for certifying XP and VISTA through their WHCK test program. As such current builds will still work on XP and VISTA but are not Microsoft certified.

Differences in Driver API

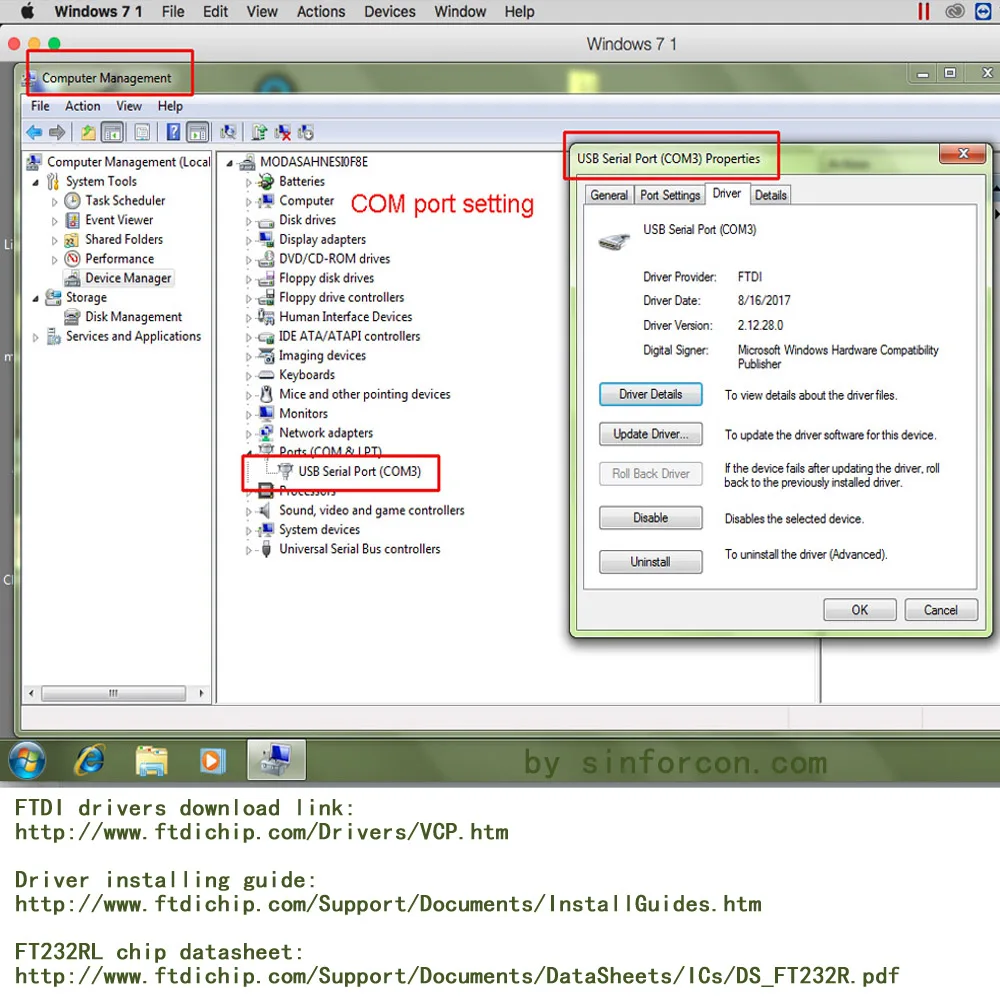

For most of these operating systems two types of driver are available: Virtual COM Port (VCP) drivers and direct (D2XX) drivers. The VCP driver emulates a standard PC serial port such that the USB device may be communicated with as a standard RS232 device. The D2XX driver allows direct access to a USB device via a DLL interface.

To locate the drivers you want to install for a device, select which of the driver types you wish to use (VCPor D2XX) and then locate the appropriate operating systems.  With the exception of Windows 98 and Windows ME, all devices are supported in each driver package.

If a VCP driver is required for Android please refer to the following application note: TN 132 Adding FTDI Devices VCP Driver Support to Android

FTDI drivers download link:
//www.ftdichip.com/Drivers/VCP.htm

Driver installing guide:
//www.ftdichip.com/Support/Documents/InstallGuides.htm

FT232RL chip datasheet:
//www.ftdichip.com/Support/Documents/DataSheets/ICs/DS_FT232R.pdf
