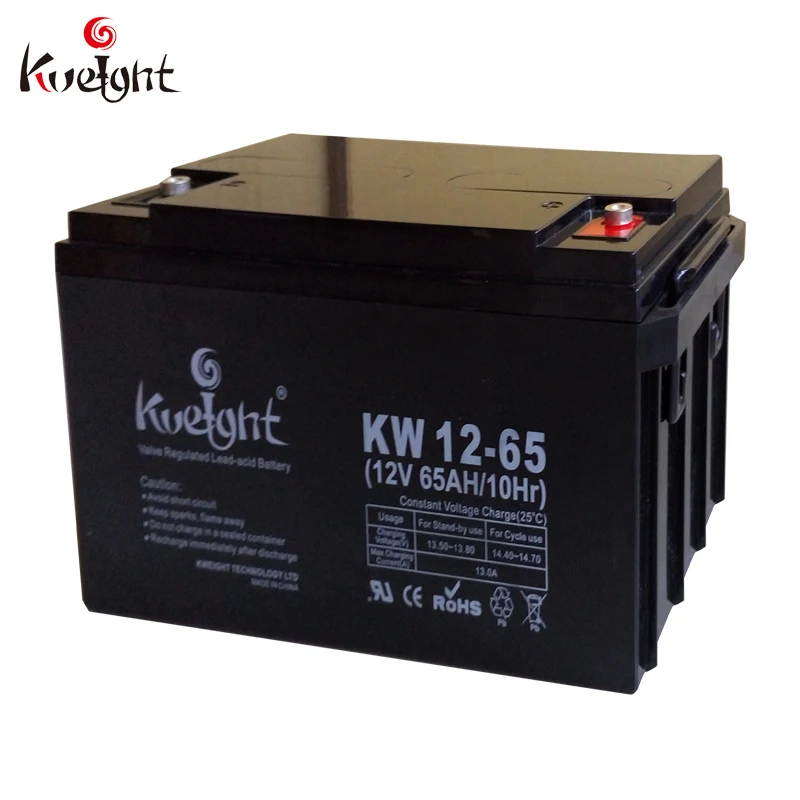

12V65AH deep cycle batteries manufacture brand Small model AGM VRLA SAL UPS back up

Product Overview

Description

Specificaiton

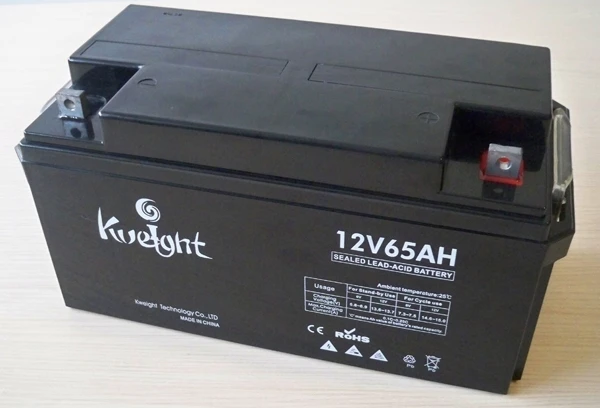

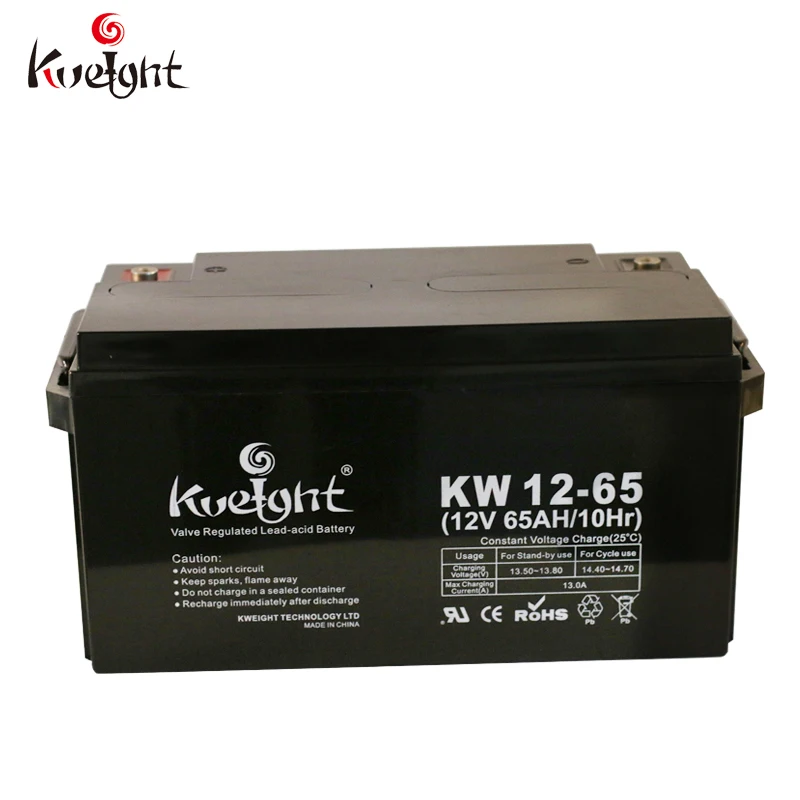

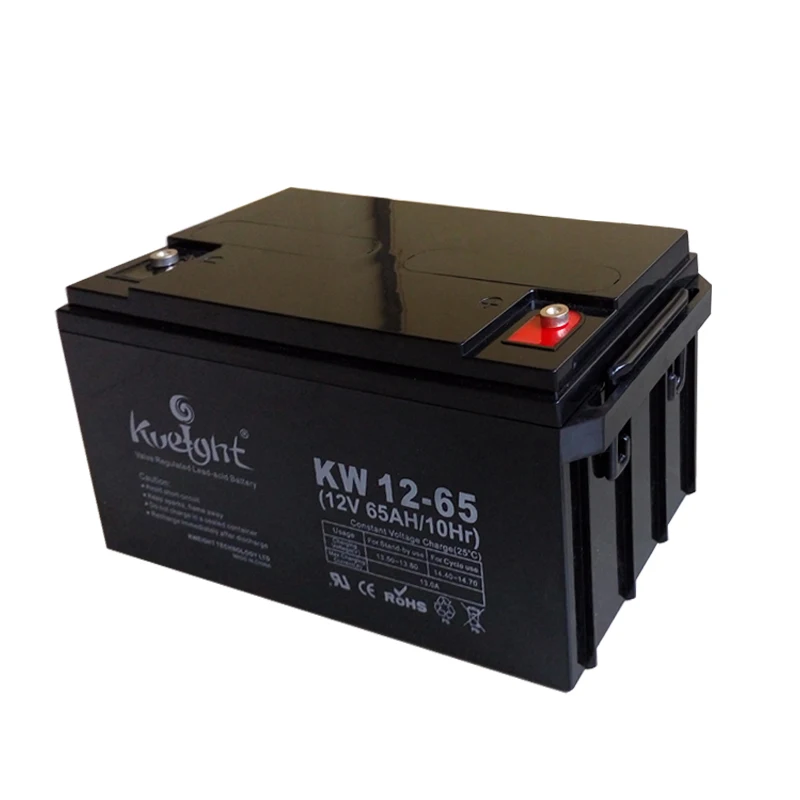

Bateri 12V65AH deep cycle batteries with competitive price
Nominal Voltage		12 V
Rated Capacity (10 hour rate)		65AH
Dimensions (Length*Width*Height*Total Height )/mm		L350*W166*H179mm
Weight Approx		20.5kg
CHARACTERIESTICS
Capacity 25°C	20 Hour rate		65.6AH
	10 Hour rate		65.1AH
	5 Hour rate		55.4AH
	1 Hour rate		41.7AH
Internal Resistance	Fully charged battery at 25°C		7mΩ
Capacity affected by temperature (10 hour rate)	40°C 25°C 0°C -15°C		107% 100% 76% 56%
Self-Discharge At 25°C	Capacity after 3 month storage Capacity after 6 month storage Capacity after 12 month storage		91% 82% 64%
Terminal Type	B5,I2,M6
Charge (Constant Voltage)	Cycle use	Initial Charging Current less than 16.25A Voltage 14.4~14.7V
	Float use	Voltage 13.5~13.8V





Battery features

-Low self-discharge and long shelf life

- Non-spillable construction

- Safety valve installation for explosion proof

- Exceptional deep discharge recovery performance

- No memory effect

- High recovery capability on deep discharge

- Good performance in harsh condition

- 99.7% pure lead calcium grids,recognized component of UL



Battery construction

-Component……Raw material                     -Positive………..Lead dioxide

-Negative……….Lead                                      -Container……..ABS

-Cover………….ABS                                           -Sealant………..Epoxy Resin

-Safety valve…..EPDR                                    -Terminal………Copper

-Separator……..Fiber glass                            -Electrolyte……Sulfuric acid



Warnings

- Matrix series batteries have acid in the case and are fully charged before leaving factory. Do not attempt to dismantle the battery, if accidental skin/eye contact is made with electrolyte, seek medical advice immediately.

- Do not use a new battery with an old one.

- Do not use the battery in sealed container.

- Each battery should have detailed record including the ex-factory date, installing date and using record.

- Check the connection of wire in a fixed interval (once a year). If there is any looseness should tighten the wire.

- Wipe the surface of the battery with soft cloth in a fixed interval (once three months) and always keep the battery clean.

- Avoid using any kind of organic solvents for cleaning the surface of the battery.



Other series 12V65Ah

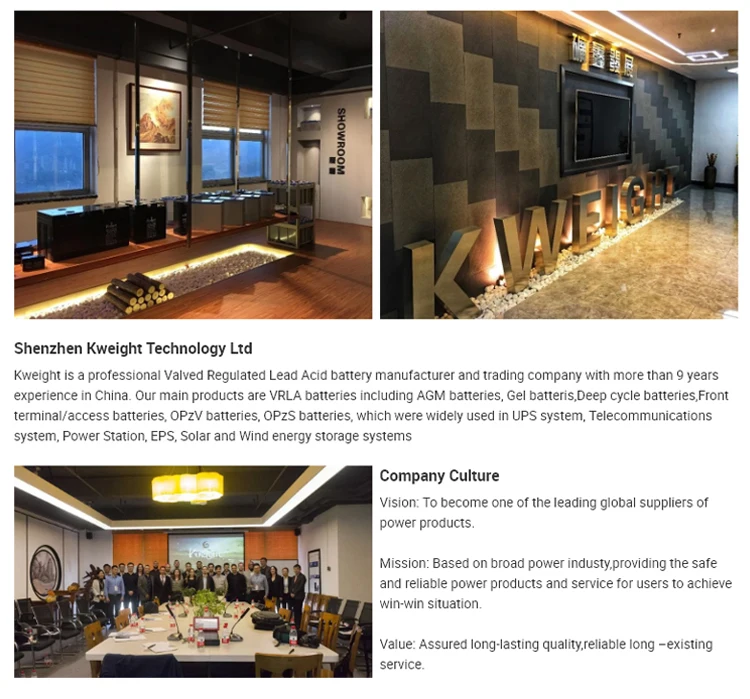

 Company Information

      Kweight Battery is a professional Sealed-acid battery manufacture in Shenzhen, Guangdong of China.Our company specialized in manufacture 2V,6V and 12V series maintenance free lead acid battery, gel battery, deep cycle battery, solar battery , front access gel battery, OPzS and OPzV battery etc.

     Kweight Battery have passed CE  approval and have been widely applied for Telecom  system, Solar system, UPS, Emergency lights etc.







Certifications









1.What kinds of battery your company can provide?

Our factory can produce AGM,GEL,Deep cycle,Front Access,OPzS and OPzV battery. 2V50Ah~3000Ah,  6V1.3Ah~200Ah, 12V0.8Ah~250Ah,OPzS 2V50Ah~3500Ah,OPzV2V200Ah~3000Ah.



2.What certifications does your battery meet?

Our battey had passed the CE/RoHS,America ISO19001 certifications.



3.Would your factory like to accept customers logo?

Yes! We can produce the battery with OEM.



Why choose us?

1.We have over ten year experience of doing lead acid battery;

2.Our battery have been used in 2010 singpore youth olypic games and gained the best battery

supplier of power products;

3. Changing on the material:color,shape acceptable;

4.Third party inspection:acceptable;

5.Full check after every individual process finished;

6.Full check after production half-done;

7.Spots check after production before shipping.



Any other questions,please don't hesitate to contact with me freely,thank you
