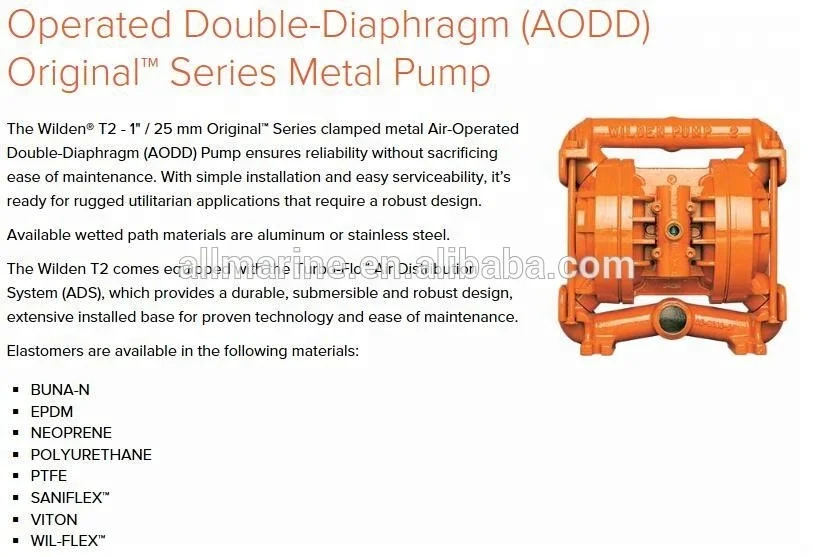

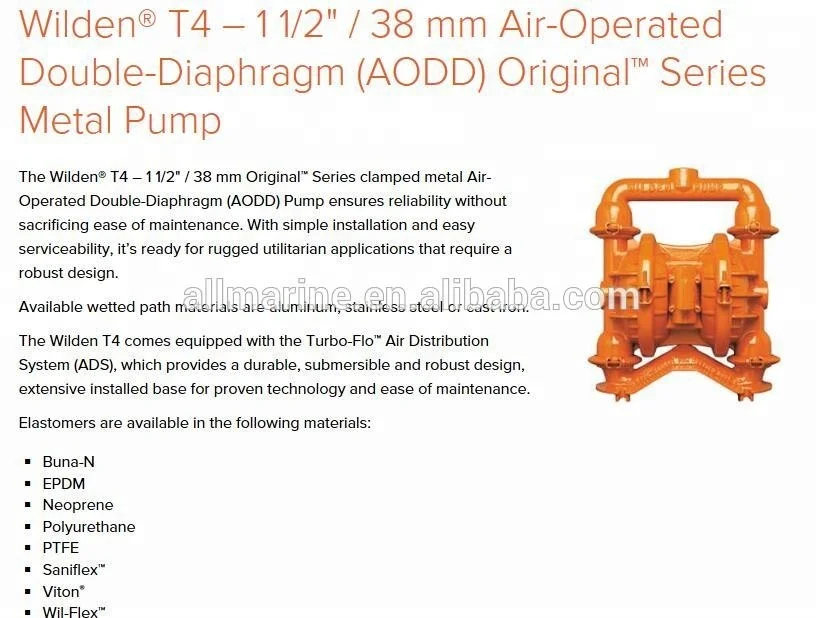

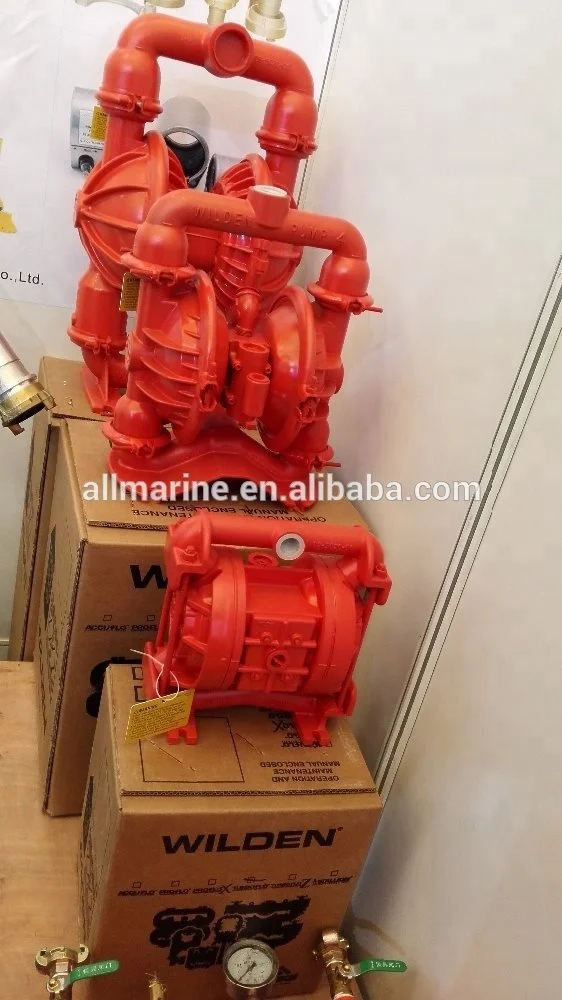

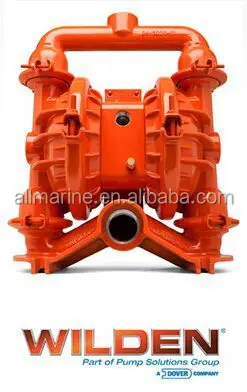

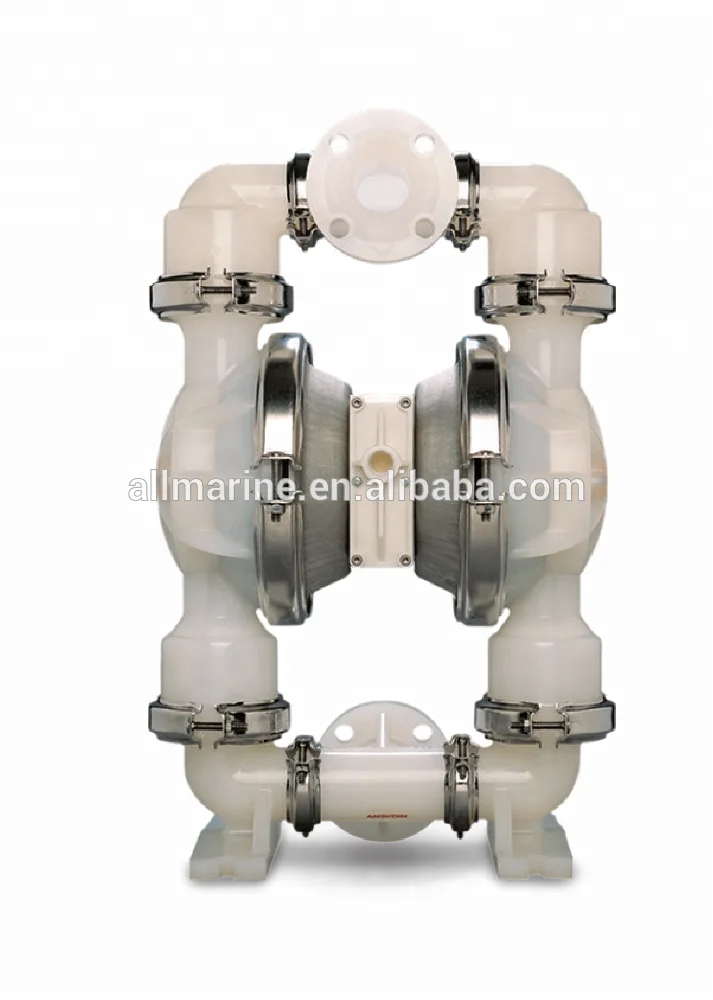

Wilden Pump, T series T1,T2,T4,T8 Aluminium case

T-2

T-4

T-8

T-15

MAX Flow

132.49lpm

(35gpm)

287.7lpm

(76gpm)

617lpm

(163gpm)

878.2lpm

(232gpm)

MAX Press

8.6 Bar (125psig)

8.6 Bar (125psig)

8.6 Bar (125psig)

8.6 Bar (125psig)

MAX Solids Passage

3.18mm /1/8’’

4.8mm / 3/16’’

6.35mm / 1/4’’

9.53mm / 3/8’’

MAX Suction Lift

9.45m(31’H2O)

for Wet

8.53m(31’H2O)

for Wet

9.45m(31’H2O)

for Wet

9.45m(31’H2O)

for Wet

5.18m(17’’H2O)

for Dry

5.49m(17’’H2O)

for Dry

6.40m(21’’H2O)

for Dry

5.50m(18’’H2O)

for Dry

Air Inlet

6.35mm

1/4’’ FNPT

12.7mm

1/2’’ FNPT

19.10mm

3/4’’ FNPT

9.10mm

3/4’’ FNPT

Liquid Inlet

25.4mm / 1’’

31.8mm / 1-1/4’’

50.80mm / 2’’

76.20mm / 3’’

Liquid Dis.

19.05mm / 0.75’’

31.8mm / 1-1/4’’

50.80mm / 2’’

76.20mm / 3’’

Material of Body

Aluminum

Aluminum

Aluminum

Aluminum

Diaphragm

Buna-N (-12.2 ℃ - 82.2℃)

Neoprene( -17.8℃ - 93.3℃)
