wire coiling machine wire winding machine wire spool machine
- Category: Scrap Metal Shredders >>>
- Supplier: Zhengzhou Lankai Machinery Co. Ltd.
Share on (60173373620):
Product Overview
Description
Product Description
Wire coiling/wrapping machine wire coiling winding machine
Model | HL-800 |
Wire rage | 0.8-12 mm square |
Pay off plate size | Outside diameter:800mm Inside diameter:80mm Width:450mm |
Pay off way | Automatic tension way |
Wire arrange way | Automatic arrange wire |
Main rotary speed | 0-360r/min(adjustable) |
Coil part plate size | Outside diameter less than:400mm Inside diameter less than:120mm Width of plate:30-100mm |
Coil plate channel | 3 channels |
Power | 5HP(3.7kw) |
Capacity | 400 plate per 8hours |
Wire/cable rage | Wire /cable:0.5 mm2-6 mm2 | ||
Pay-off reel diameter | ≤φ630mm | Binding wire slot qty | 3 slot |
Binding wire inner diameter | Φ120mm φ130mm-φ180mm | Pay-off way | Automatic tension way |
Binding wire outer diameter | ≤φ320mm | Main shaft rotary speed | 0-800r/min adjustable |
Measure way | Data measure | Wire arrange way | Automatic arrange |
KG1600 wire /cable Coil winding machine | |||
Wire/cable rage | Wire :10 mm2-75 mm2 Cable outside diameter:18mm | ||
Pay-off reel diameter | ≤φ1600mm | Binding wire slot qty | 3 slot |
Binding wire inner diameter | φ200mm-φ300mm | Pay-off way | Automatic tension way |
Binding wire outer diameter | ≤φ700mm | Main shaft rotary speed | 0-250r/min |
Binding wire height | 100mm-200mm | Motor power | 4KW |
KG1600 wire /cable Coil winding machine | |||
Wire/cable rage | Wire :10 mm2-75 mm2 Cable outside diameter:18mm | ||
Pay-off reel diameter | ≤φ1600mm | Binding wire slot qty | 3 slot |
Binding wire inner diameter | φ200mm-φ300mm | Pay-off way | Automatic tension way |
Binding wire outer diameter | ≤φ700mm | Main shaft rotary speed | 0-250r/min |
Binding wire height | 100mm-200mm | Motor power | 4KW |
KG1250 wire /cable Coil winding machine | |||
Wire/cable rage | Wire :10 mm2-75 mm2 Cable outside diameter:18mm | ||
Pay-off reel diameter | ≤φ1250mm | Binding wire slot qty | 3 slot |
Binding wire inner diameter | φ200mm-φ250mm | Pay-off way | Automatic tension way |
Binding wire outer diameter | ≤φ700mm | Main shaft rotary speed | 0-250r/min |
Binding wire height | 70mm-150mm | Motor power | 4KW |

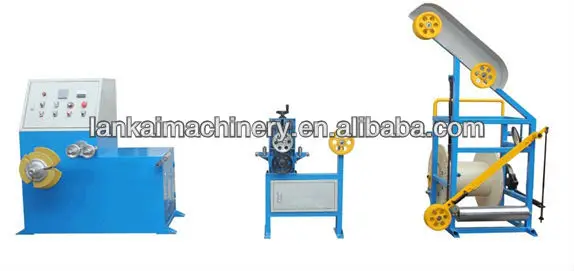

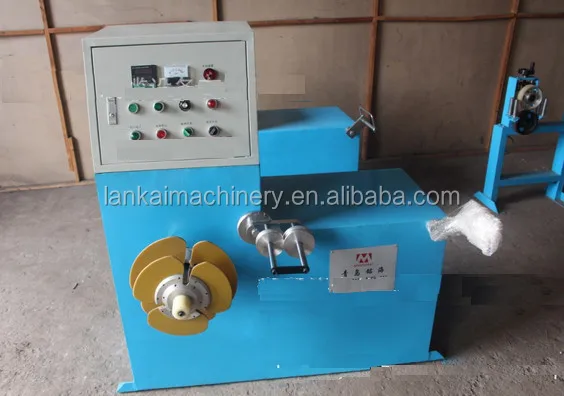

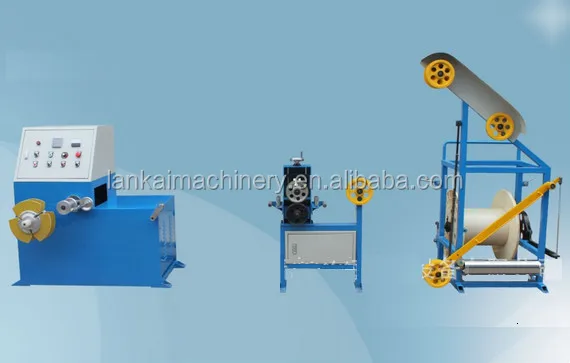

Here are some pictures of wire coiling winding machine :
If you are interested in this wire coiling winding machine ,please feel free to contact
