KUS TN fuel level sensor for generator sets JSM2800

Product Overview

Description

Application

• KUS TN fuel level sensor for generator sets for oil tank of generator sets.

Technical Data



• Main material:stainless steel
• The TN sensor uses fluid buoyance and magnetic induction to measure the liquid level.
• The sensors provide precise measurements, are corrosion-resistant, and are leak-proof when turned over.
• These features allow the sensors to be wildly used ih light trucks, buses, boats, and in various engineering and mechanical fields.
• The graceful deisigns and superios quality of the sensors has received approvals and numerous acclams from famous vehicle OEMs from around the world.
• The sensor is designed according to the actual tank shape for exact measurements of the tank content.
• Measurements are done by series of reed switches positioned inside the level tube.
• A float, with built-in megnets then triggers the reed relays, generating a potential-free resistance with a ohm value that increases or decreases according to the respective fluid level.
• Resistance output is fully customizable.
• The float is the oly moving part of the sensor, thereby minimizing potential mechanical failures.
• All sensors are fully insulated to protect against voltage inside the tank.
• Mounting:SAE standard 5 holes or 6 holes
• Length:150-700mm
• Rated power:125mW
• Rated Current for alarm switch:500mA
• Wire:PVC material (PA corrugated pipe cover is optional)
• Output signal:Resistance control signal 0-190ohm, 240-33ohm, or customize as required.
• Operating temperature:-40°C ~+85°C
•  Resolution range:10-40mm
•  Connector:Delphi, Tyco, or others are available according to your requirements.



Warranty:

• Within one year after shipment except for improper installation and operation by the user.

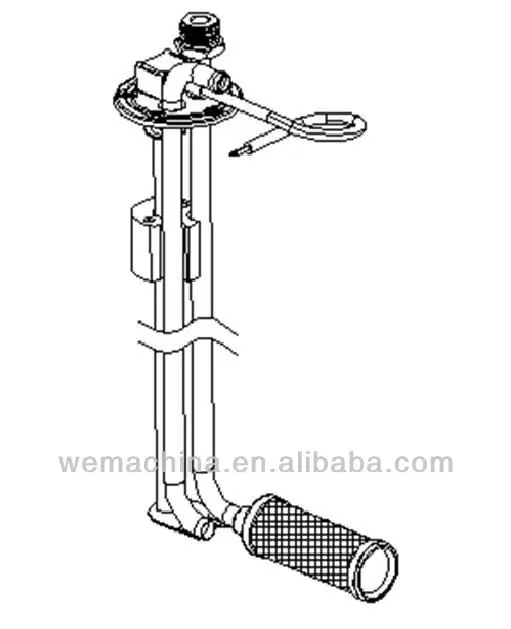

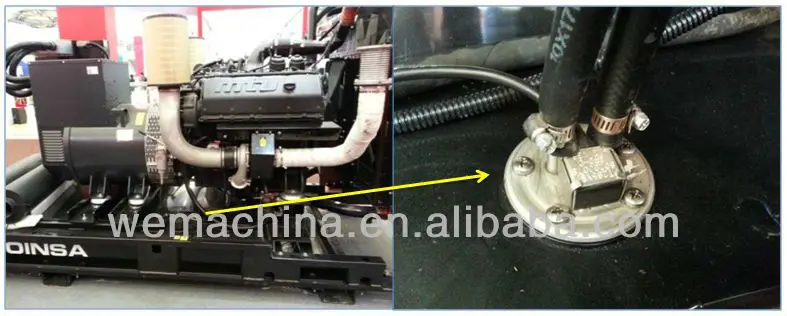

Product Photo

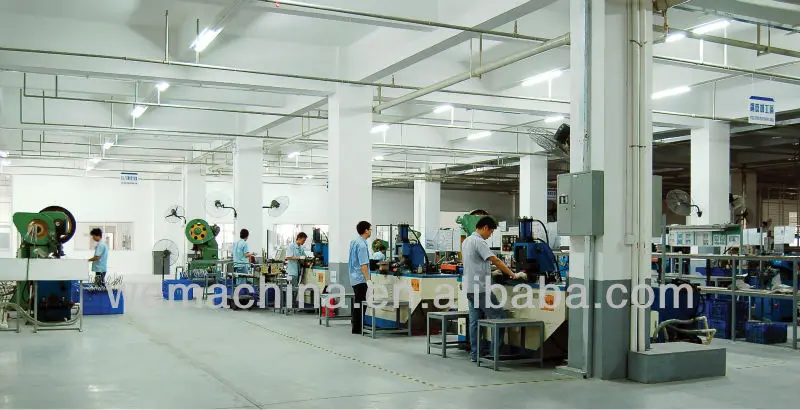

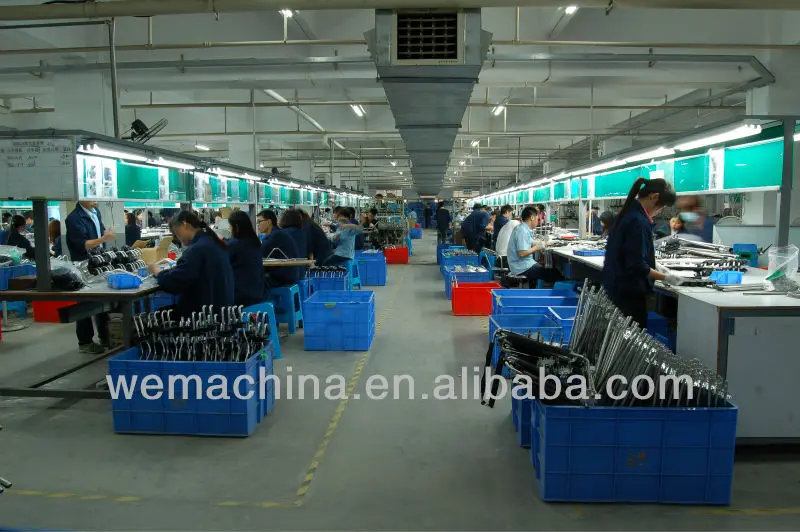

Workshop





Warranty

• Within one year after shipment except for improper installation and operation by the user.

Certificates
