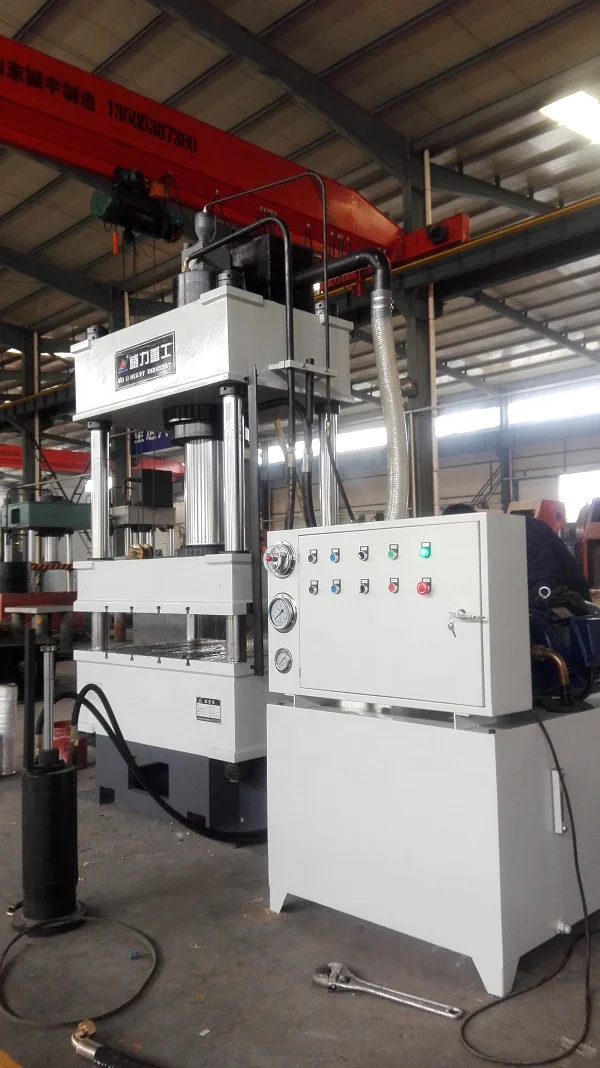

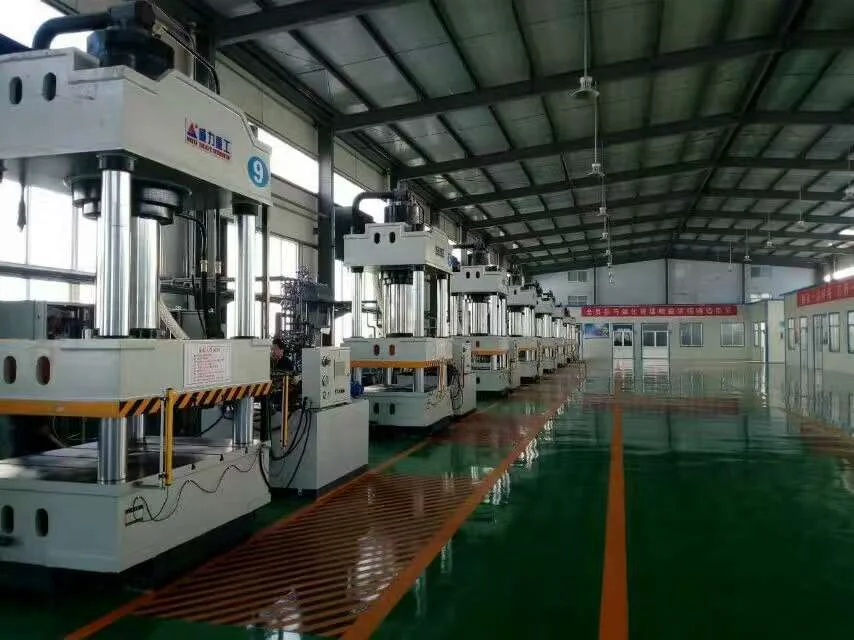

YW32 100TA three beam four column hydraulic press machine

1. Computer optimized structure design, three-beam four-post structure, simple, economical and practical.
2. Hydraulic control cartridge valve integrated system reliability, long life and small hydraulic impact, reducing the link pipe and leak points.
3. Independent electrical control system working reliably. Action and intuitive. Easy maintenance.
4. Use the button centralized control, with adjustment for manual and semiautomatic operation.
5. Via the operator panel to choose from. Can be achieved given away two constant pressure forming process, and has features such as security during rolling.
6. Slider working pressure load and slow down quickly work into the travel range can be adjusted according to process requirements.

1.Hydraulic press is composed of main machine, hydraulic transmission system, electrical control system and lubrication system.
2.There are three operation modes of hydraulic press: manual operation, point operation and semi-automatic switching control. The operation mode is selected by the switch and the button is centralized controlled.
3.The fuselage is a three-beam and four-column structure, the slider is guided by the cylinder surface of the column, the guide sleeve is guided by the guide sleeve to facilitate maintenance, and the column is a four-Nut structure.
4.The slider of hydraulic press is a single cylinder pressurized structure with upper transmission.
5.The main control system of hydraulic system adopts two-way cartridge valve integrated system.
6.The main oil pump of hydraulic system adopts YCY14-1B constant power axial piston pump.
7.The main cylinder of slide block adopts piston type cylinder, and the cylinder seal adopts original imported U-ring seal.
8.Hydraulic power system, electrical cabinet, operation button box placed in the right end of the machine.
9.Proximity switch control is adopted in the stroke control of hydraulic press slider and ejection cylinder.

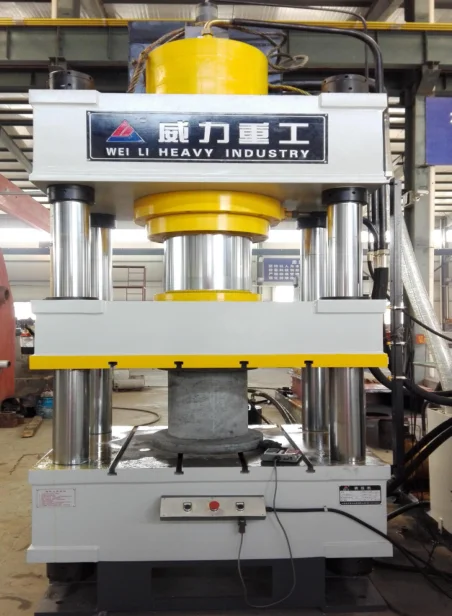

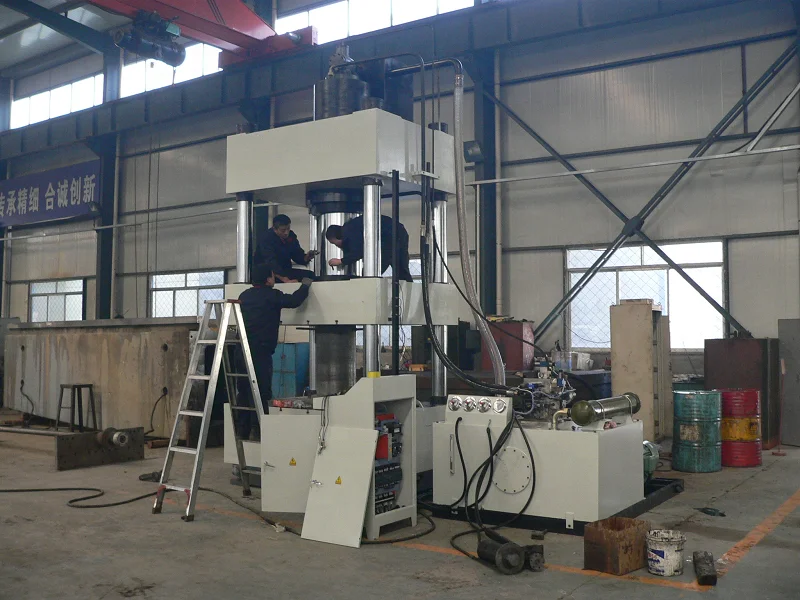

1.Main machine: The fuselage is a three-beam and four-column structure, which consists of upper beam, sliding beam, worktable, column, lock mother, guide sleeve, etc.
2.Main cylinder: The main cylinder is a piston type cylinder. The cylinder body is connected with the upper beam through flange, the piston rod is connected with slider, and the surface of the piston rod is quenched and grinded to improve its surface accuracy and wear resistance. Imported U-ring seal is selected for cylinder seal, which is reliable and has long service life.
3.YCY14-1B series constant power variable displacement pump is used in the main oil pump of hydraulic system of power system. The pump has reasonable structure and superior performance. In hydraulic system, two-way cartridge valves are used for valve blocks, which are highly integrated and reduce piping. Two-way cartridge valve has the advantages of compact structure, fast response, small internal leakage, sensitive and reliable action, large flow, strong anti-pollution ability, convenient use and maintenance, and long service life.
4.The normal closed filling valve is selected as filling valve of filling valve. The valve is a standard product with excellent and reliable performance.
5.Flange connection is used in high pressure pipeline of pipeline hydraulic system to prevent pipeline leakage. Pipeline installation should be passivated by acid pickling. The oil pipeline is tested by 40MPA pressure test and maintained for 40 minutes without leakage.
6.Oil tank: The oil tank is welded with steel plate. It is equipped with oil level indicator, which can display the oil level. When installing the oil tank, pickling, passivation and rust-proof treatment should be carried out.
7.The hydraulic station is located at the right part of the equipment, which has compact structure and beautiful appearance.
8.Pressure display device The pressure display of this machine is displayed by pressure gauge.
9.The electric control system of electric control system is divided into two parts: power system and control system. The power part includes control power supply, start-stop and protection switch of each motor. The starting of large motor adopts step-down starting, and the power supply adopts three-phase four-wire system. The control part includes the control box and the mobile operation table. The control box can be equipped with PLC programmable control system according to the customer's requirements, which can complete the control of all the actions of the machine. The mobile operation table can complete the operation of all the actions of the machine. There are operation buttons for each part of the hydraulic press, function conversion switches, start and stop buttons for each motor and alarms for each part, and monitoring fingers. Lights and so on.
