pringles chips packing machine

Product Overview

Description

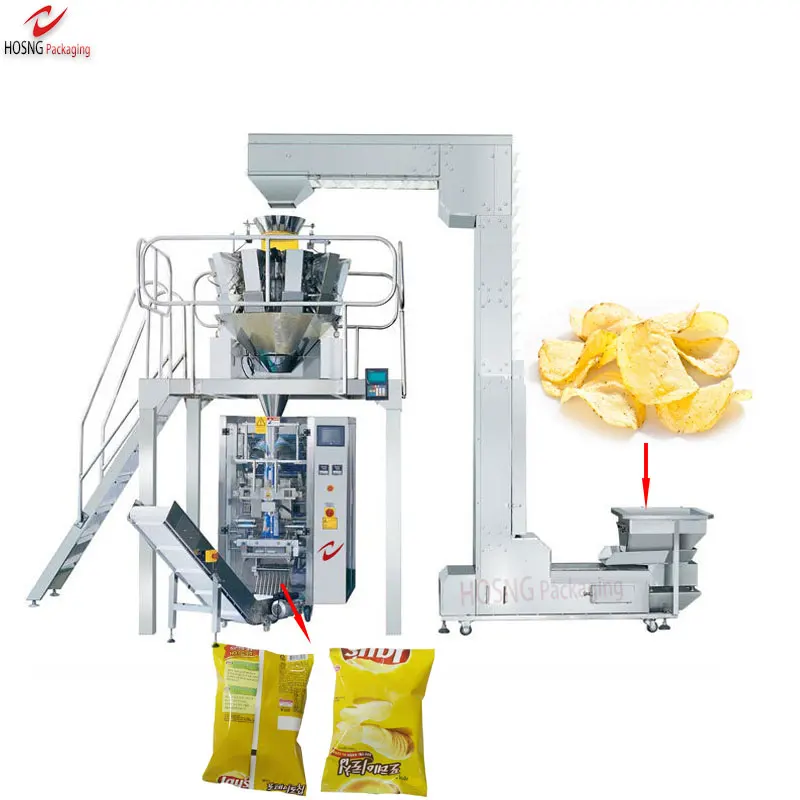

HS-420A Pringles Chips Packing Machine

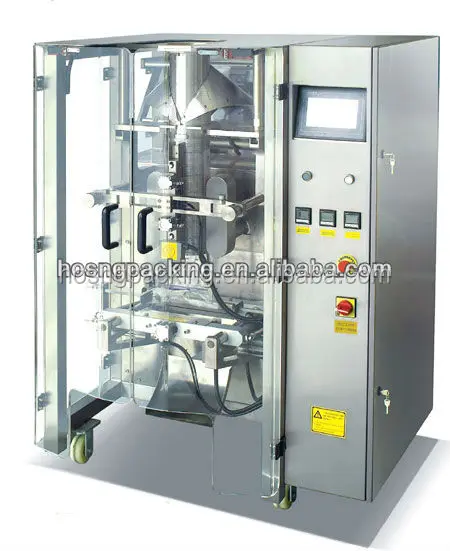

HS-420 Large vertical main packaging machine technical parameter

Items	Content
Packing speed	15-80 bag/min
Bag size	(L)50-300mm (W)80-200mm
Bag making mode	Pillow-type bag, standing bag, punch
Range of measuring	150-1500ml
The maximum width of packing film	420mm
Thickness of film	0.04-0.10mm
Air consumption	200L/min 0.7×105Pa
Main power/voltage	2.2KW/220V 50-60Hz
Dimension	1400×970×1600mm
The weight of switchboard	450kg



I.The scope of packaging

Its suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , Potato Chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .



II.The major performance and structural feature

*Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;

*Precise positioning with servo film transporting system; excellent complete machine performance and nice packing;

* Minimize the loss with complete automatic warn protection function;

* Supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag ma

* The way of bag making: the machine can make pillow-type bag and standing bag according to customers requirements.

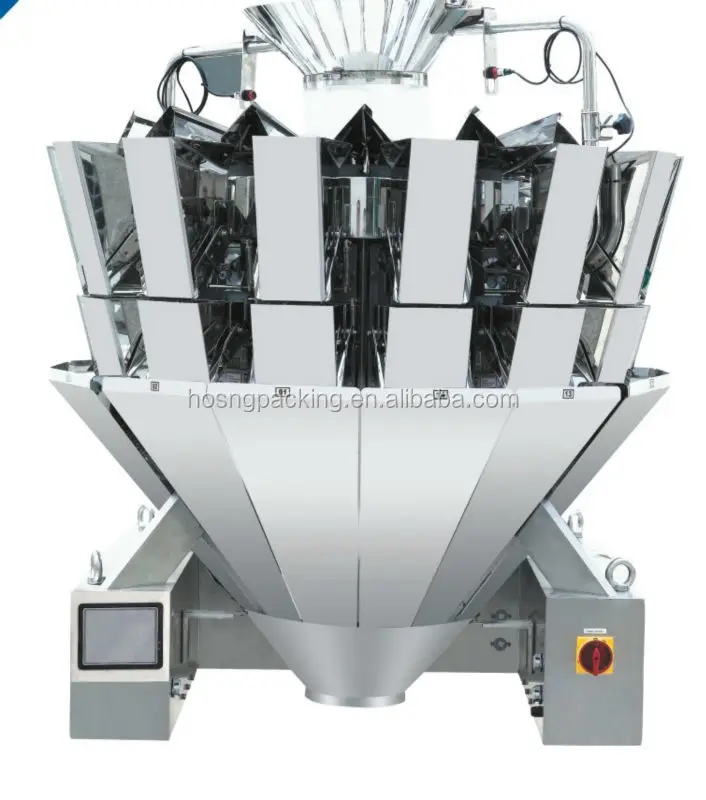

HS-A  Features of ten-hopper computer combination scale

Main performance and structural features

*Select the best combination immediately from diversified weight combinations through computer with perfect combination of high precision and high speed.

*High precision data-type weighing sensor realizes precise weighing.

*Liquid crystal screen operating system in multiple languages such as Chinese and English, etc.

*IP65 grade water-proof and dust-proof design. Its clean and sanitary with all stainless steel parts. Full sealed design prevents accumulation of material and facilitates cleaning.

*It can fine the opening and closing speed of hopper door according to the features of items to be weighed, and prevent crushing and blocking of material.

*With powerful digital automatic counting function, it can record the index for each batch of product such as total bag number; pass rate and difference of single bag, etc.

*Optional devices: triply balance ball, suction hopper, printing device, tolerance sorting device.

*Strong compatibility and more compact structure with it directly installed on the upper part of packing machine.

*Fast return for investment by largely saving large quantity of raw material and labor cost.

*Net weight: 300kg; Gross weight: 370kg

*Voltage: 220V; Power: 1500W; Frequency: 50/60HZ; Rated current: 9A.

*Out package dimension(mm)1400(L)×1130(W)×1120(H):



Ten-hopper computer combination technical parameter

Type	Ten-hopper computer combination scale
Range of single weighing	10-1000g
Maximum weighing quality	3000g
Average tolerance for single bag	0.2-0.5g
Range of weighing precision	0.1-1.5g
Maximum weighing speed	70 bags /minute
Hopper capacity	1300ml
Hopper type	Bi-row hopper without memory
Driving	Step motor
Preset number for product	99 kinds
Size of machine body(mm)	1150(L)X950(W)X1129(H)
*Voltage/ Power:/ Frequency	220V;/1500W; 50/60HZ; Rated current: 9A.
