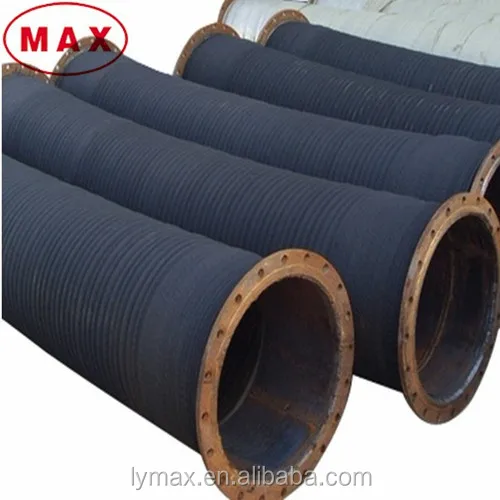

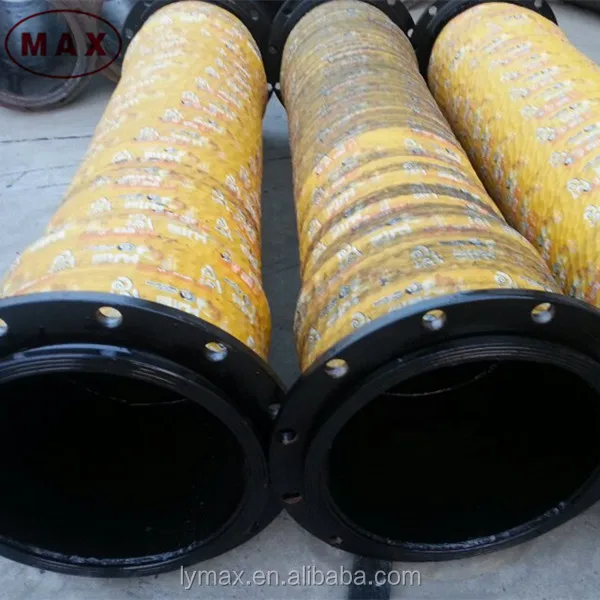

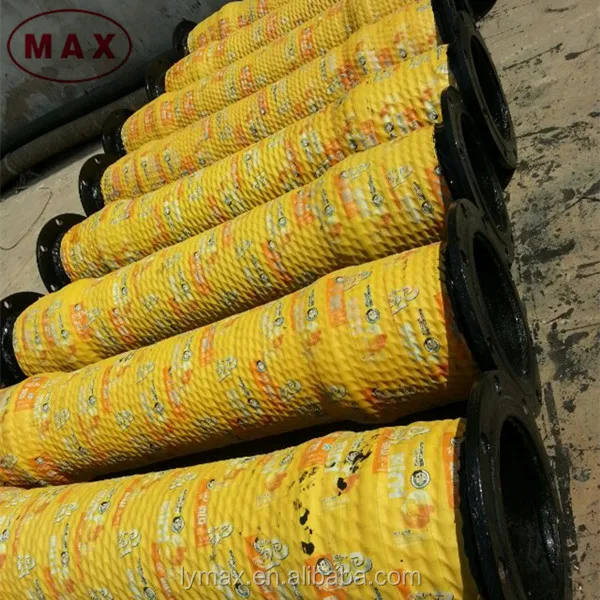

8 inch Flexible Hose, 8 inch Diameter Flexible Rubber Hose, 8 inch Flexible Suction Hose

Share on (60174476387):


Price:

Quantity:


Product Overview

Description




8 inch Flexible Hose, 8 inch Diameter Flexible Rubber Hose, 8 inch Flexible Suction Hose

Applications of  8 inch Flexible Hose:
1. Used for mud piping of dredge.
2. Widely used for sucking or discharging of mud,water, oil, air, and  Powered in Industry, agriculture, factory, mining and building etc.

Materials of  8 inch Flexible Hose:
Tube: Smooth NR/ synthetic rubber, generally color is black
Reinforcement: one or multilayer spiral fabric reinforcements, steel wire spiral layer,
Cover: Oil, abration and weather-resistant wrapped synthetic rubber.

Structure of 8 inch Flexible Hose:
1. The inner rubber liner is composed of wear-proof natural rubber and synthetic rubber
2. The reinforcement layer is composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3. The rubber cover is composed of natural rubber and synthetic rubber.
4. The surface of the hose takes the shape of corrugated

Performance of  8 inch Flexible Hose:
1. Rubber hose pipes are used with dredgers for silt/gravels conveyance.
2. Pipe wall thickness range: from 20mm up to 50mm.
3. The suitable working temperature: from -20°C to +50°C.
4. Abrasion-resistant and bending –resistant.
5. It is convenient to install, flexible to use and safe.


Specification Table of  8 inch Flexible Hose:

Ship type

Dredging hose I.D.

Thickness of the steel ring

Number of tyre cord layer

Length

200m3 /H

400mm

35mm

12

1400mm

350m3/H

560 mm

35 mm

12

1500mm

Beaver1600

500 mm

35mm

12

1500mm

Beaver3800

650 mm

40mm

15

1500mm

Beaver4600

700 mm

40mm

15

1500mm

                                                            Note: other size can be customized



Physical Index of  8 inch Flexible Hose:

Testing Item

National Standard of Hose Lining

Standard of the Company

Tensile Strength at Break (MPa)

>12

>150

Elongation at Break %

>400

>500

Akron Abrasion  cm3/1.6km

1

<0.8

Shore Hardness



63±3

Application Temperature  °C



-40~+60
