Automatic Walking High Frequency pvc inflatable tent ,blimp welding machine
- Category: >>>
- Supplier: Shenzhen Hipower Ltd.
Share on (60174601443):
Product Overview
Description
Automatic Walking High Frequency pvc inflatable tent ,blimp welding machine
Application:
It is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water
cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas
of agricultural,canopy,swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, etc.
Product Description

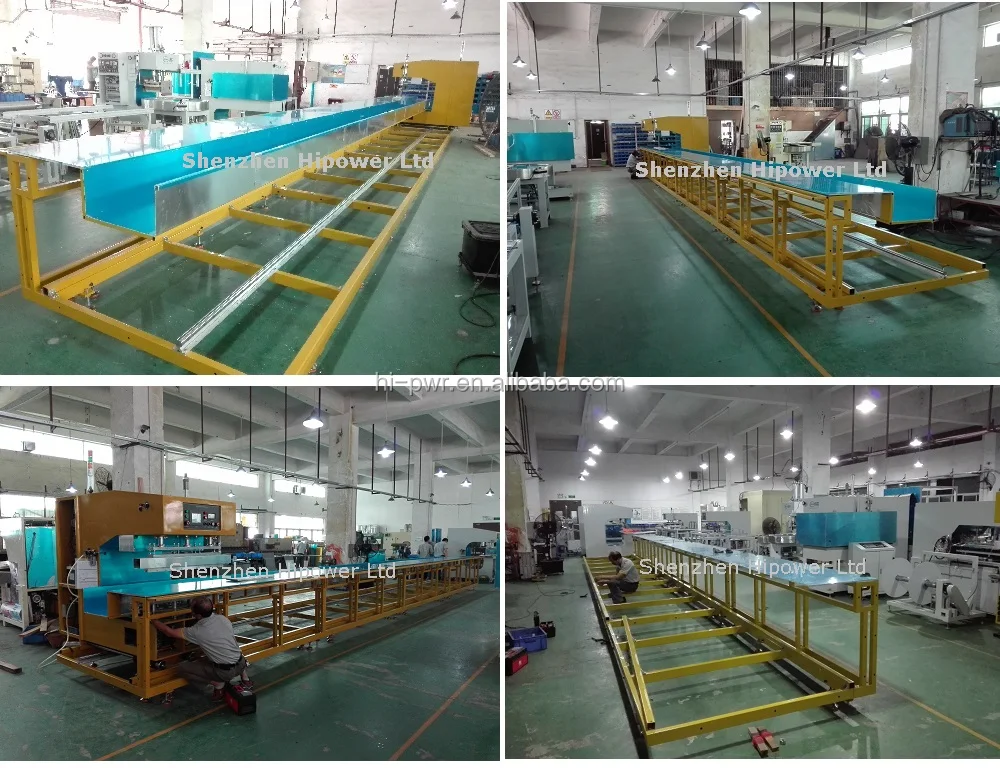

Machine Views:

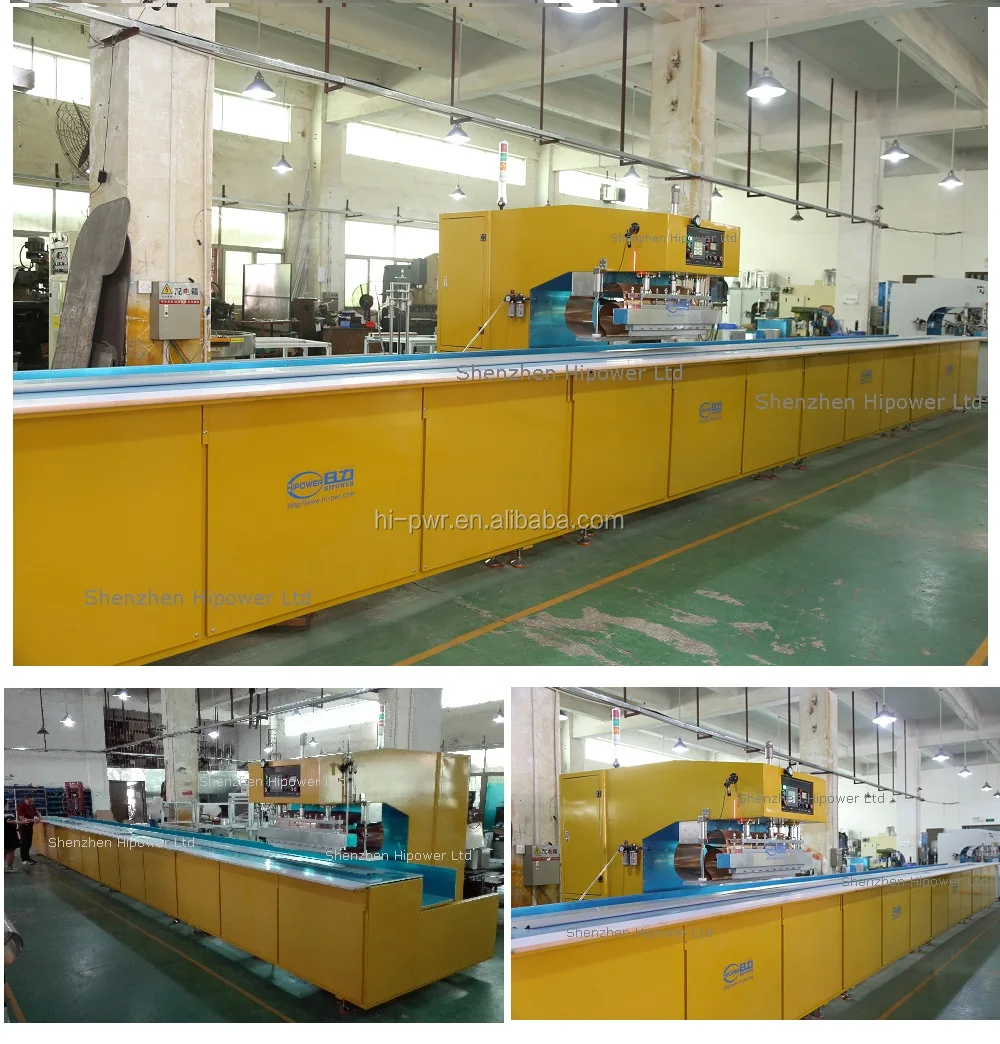

Manufacturer View:
Technical Specification:
| Model | HR-8KWA | HR-12KWA | HR-15KWA | HR-25KWA |
| Power | 8KW | 12KW | 15KW | 25KW |
| Power Supply | 220/380V*3P*50/60Hz or Customized | |||
| Frequency | 27.12MHz | 27.12MHz | 27.12MHz | 13.56Mhz |
| Input power | 15KVA | 20KVA | 25KVA | 35KVA |
| Rectifier | SILICON DIODE | SILICON DIODE | SILICON DIODE | SILICON DIODE |
| Oscillation tube | 7T69RB Toshiba | E3130 Toshiba | 8T85RB Toshiba | 8T825RA Toshiba |
| Max pressure | 500KG | 800KG | 800KG | 1000KG |
| Gap of electrodes | 150MM | 150MM | 150MM | 150MM |
| Moving distance of active horn | 150MM | 150MM | 150MM | 150MM |
| The size of upper electrode | 50*50*800MM | 50*50*900MM | 50*50*900MM | 50*50*900MM |
| The size of lower electrode | 450*900MM | 450*900MM | 450*1000MM | 450*1100MM |
| Working table | 15Mt long working tale (3Mt for each ) | |||
| Welding surface each work cycle max | 240cm2 | 300-400cm2 | 400-500cm2 | 500-600cm2 |
| Welding time | 0~10S Adjustable | 0~10S Adjustable | 0~10S Adjustable | 0~10S Adjustable |
** Our welders is CE rated, adjust any of the above parameters if required at additional cost.
** Each machine is built according to customers needs and production specifications. We can modify !

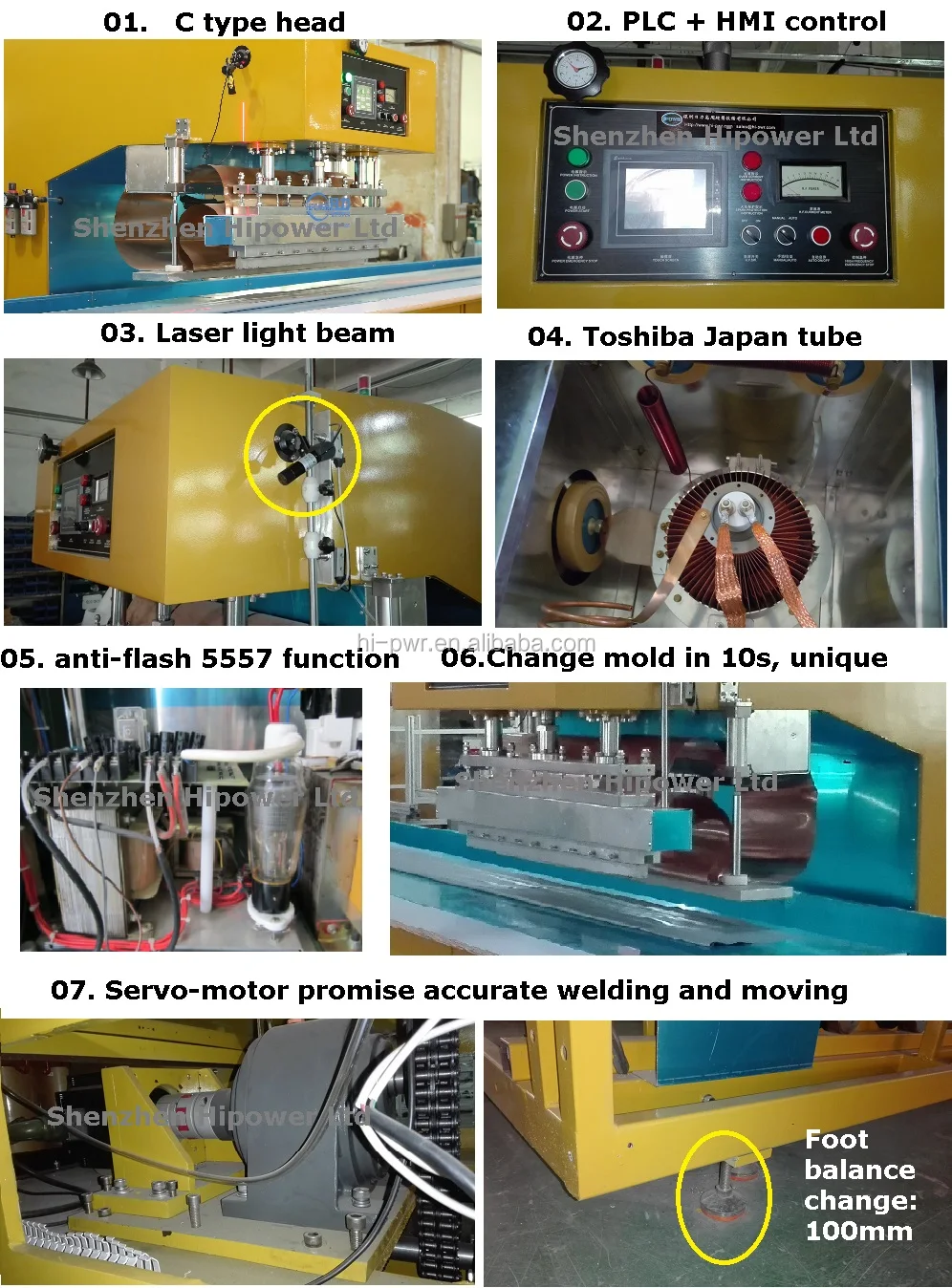

Function and Parts View:
High Frequency PVC Welding Machine for Tensile Membrane Truck cover Welding Machine Tent Canvas Tarpaulin Welder
Company Information
Who We Are:
Since 2000, Shenzhen Hipower Ltd, concentrates on highest quality, on-time delivery, professional technology support, customer-oriented service and competitive price.
Where Are our Customers:
Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....
What we do and Why Us:
Hipower is at the forefront of newest technical developments in the field of high frequency and ultrasonic welding technology, automation of production processes and other innovative industrial solutions.
Our equipments are widely used in industrial application like: Automotive Parts, Stationery, conveyor belts Tarpaulin, Big Covers,Tents products, Tensile structure, Medical Bags, Blister Packaging, Cylindrical Box, and other plastic welding industries.
Certificatioins
Our company are verified by SGS, BV. and our machines are with CE certificates.
Production Process

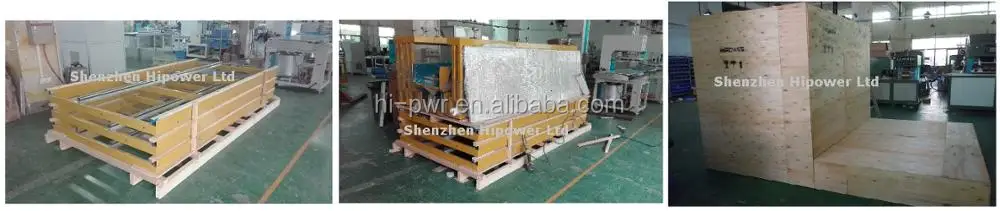

Packaging & Shipping
We use Ply-wood case for packing machines, it will meet export standard like safty, protection requirment
and durable performance in long time shipping by sea or by air.
We can provide non-solid wood packing decleartion, our packing no need fumigation.
Our Services
a) Customer's site installation, training & maintenance available
b) 3 to 24 hours Online service by Email, Fax, Video Online for basic setup and repairs
c) 12 months warranty for machine, life-long tech. support
d) Recommend equipment of top choice based on your requirements for product;
e) Examining mold drawings on your behalf to confirm optimum structure size meeting the requested process;
f) Providing assistance in manufacturing and modifying tools;
g) Our engineering instruction will guarantee your productive manufacturing of top-quality products.
FAQ
Questions 07. How Do You Pack the machines
RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting standard, and no need addtional fumugation)
Questions 08. Is it difficult to install the machine ?
RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine;
you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get install videos, and install instructions from us.
It will be an ABC thing to install machines at your side.
Questions 09. Does the machine power voltage meet buyers' factory power source?
RE: We can make machine with voltage like:
frequency: 50 - 60HZ Phases: single phase / 3 phases
Voltage: 110V / 220V / 380V/ 415V/ 440V / On request
Questions 10. Could you make die / mould for me, if I buy machine from you?
RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.
