Product Overview
Description
Hand Pallet Truck A100，A101, A102
1.Load-in/lead-out rollers under the fork tips enable pallets to be entered any kind of pallet truck
2.No routine maintenance at all is needed on the hydraulics unit and bearings
3.Key seals made in Germany, which prolong the working time of hydraulic unit
4.Specially designed to lift and transport the widest variety offloads in stores and warehouse
5.Key components of the fully sealed oil pump are from Germany, solving the oil leakage problem.
6.The soild chromeplated piston rod has overloading protection, which can control the descent speed.
7.Valve plug is an integral piece, easy to maintain.
8.Movement parts of our hand pallet truck are applied with alloy bush, which is wear resistant and easy to replace.
2.No routine maintenance at all is needed on the hydraulics unit and bearings
3.Key seals made in Germany, which prolong the working time of hydraulic unit
4.Specially designed to lift and transport the widest variety offloads in stores and warehouse
5.Key components of the fully sealed oil pump are from Germany, solving the oil leakage problem.
6.The soild chromeplated piston rod has overloading protection, which can control the descent speed.
7.Valve plug is an integral piece, easy to maintain.
8.Movement parts of our hand pallet truck are applied with alloy bush, which is wear resistant and easy to replace.
Olift Pallet Truck Hand Pull Trolly Hydraulic Hand Pump Jack Nulon Wheel Hand Manual Forklift
Product Description
2 Ton 2.5 Ton 3 Ton Hydraulic Hand Pallet Truck Features:
1. High reliability, suitable for a variety of environments. It can be used for 3~ 5years under normal maintenance.
2. The first design of forging & casting integral pump, which prevents any loosening and leakage.
3. High-strength alloy steel carefully rafted, increased loading capacity.
4. Set the active safety valve to prevent overloading of operation.
5. 54mm fork thickness ensures high capacity.
1. High reliability, suitable for a variety of environments. It can be used for 3~ 5years under normal maintenance.
2. The first design of forging & casting integral pump, which prevents any loosening and leakage.
3. High-strength alloy steel carefully rafted, increased loading capacity.
4. Set the active safety valve to prevent overloading of operation.
5. 54mm fork thickness ensures high capacity.

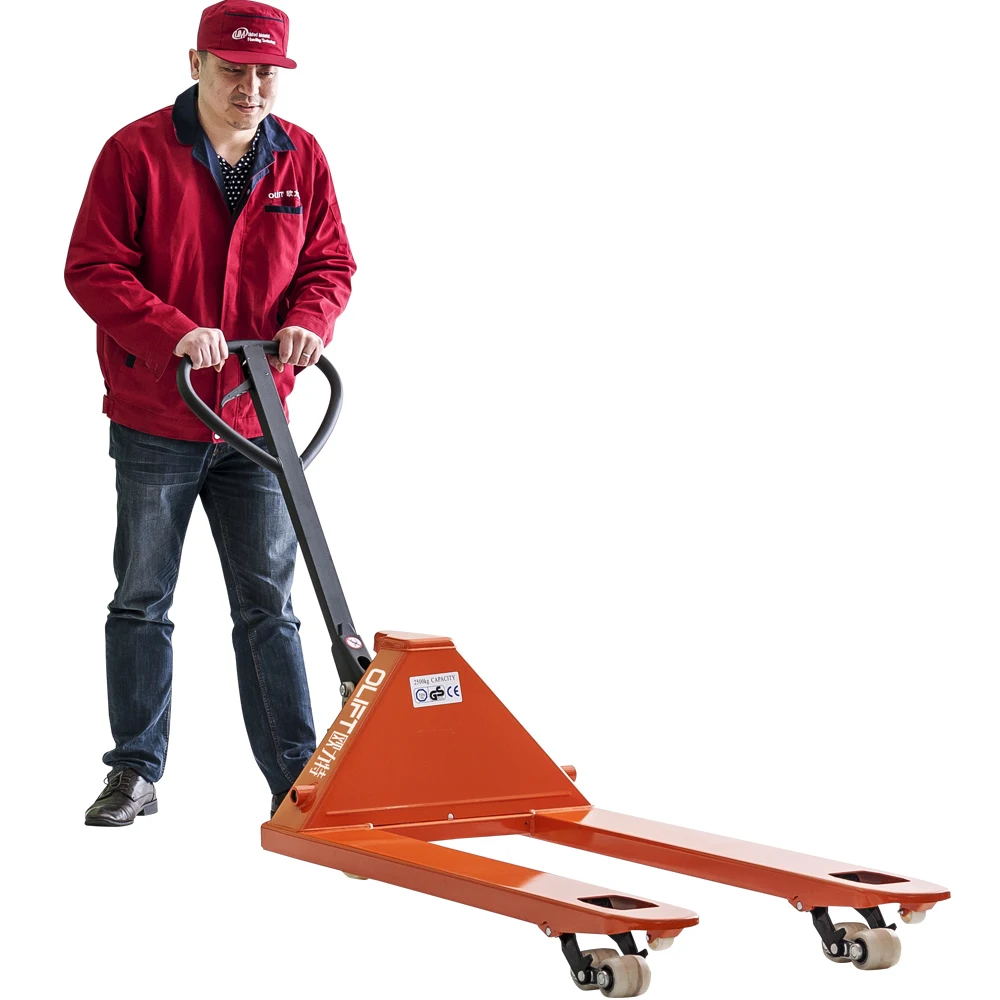

Manual Pallet Truck A100
Lowering position:
Pull up the finger tip control handle to lower the truck.
Neutral position:
Stay the position during move.
Lifting position:
Pull down the tip control, press the pump to raise the truck.
Pull up the finger tip control handle to lower the truck.
Neutral position:
Stay the position during move.
Lifting position:
Pull down the tip control, press the pump to raise the truck.
Hand Pallet Truck Advantages
1. Welding pump with leaking proof design.
2. With over loading safety valve.
3. Chrome plate piston.
4. Different fork length are available.
5. Options: nylon wheel, polyurethane wheel.
6. Optimized round fork tips ensures easy operation.
7. 50mm fork thickness ensures high capacity.
8. Curve design on the fork tips help pallets entry in/out.
Pallet Truck Model | A100 | |
Load capacity | Q(kg) | 2000 |
Net weight | kg | 55-65 |
Type size, front | mm | 160*50 |
Type size, rear | mm | 70*60 |
Lifting height | h3(mm) | 190 |
Height of tiller in drive position max | h14(mm) | 1177 |
Lowered height | h13(mm) | 75 |
Fork dimensions | s/e/l | 54/150/1150 |
Distance between fork- arms | b5(mm) | 520/550/685 |
Aisle width for pallets 1000x1200 crossways | ast(mm) | 1730/1800 |
Aisle width for pallets 800x1200 lengthways | ast(mm) | 1780/1800 |
Ground clearance, centre of wheelbase | m2(mm) | 23 |
Hand Pallet Truck A101, A102
Optimized round fork tips ensures easy operation;
54mm fork thickness ensures high capacity;
Curve design on the fork tips help
Pallets entry in/out.
54mm fork thickness ensures high capacity;
Curve design on the fork tips help
Pallets entry in/out.
Hand Pallet Truck Advantages
INNOVATION D ESIGN
1. Reduce maintenance cost.
1. Reduce maintenance cost.
2. Improve working efficiency.
3. Increase truck service life.
4. High reliability, suitable for a variety of environments.
4. High reliability, suitable for a variety of environments.
5. It can be used for 3~ 5years under normal maintenance.
6. The first design of forging & casting integral pump, which prevents any loosening and leakage.
7. High-strength alloy steel carefully crafted, increased loading capacity.
8. Set the active safety valve to prevent overloading of operation.
9. 54mm fork thickness ensures high capacity.
6. The first design of forging & casting integral pump, which prevents any loosening and leakage.
7. High-strength alloy steel carefully crafted, increased loading capacity.
8. Set the active safety valve to prevent overloading of operation.
9. 54mm fork thickness ensures high capacity.
Pallet Truck Model | A101 | A102 | |
Load capacity | Q(kg) | 2500 | 3000 |
Steering wheel | mm | 180*50 | 180*50 |
Fork wheel single | mm | 80*70/74*70 | 80*70/74*70 |
Fork wheel tandem | mm | 80*93/74*93 | 80*93/74*93 |
Lifting height | h3(mm) | 200/190 | 200/190 |
Lowered height | h13(mm) | 85/75 | 85/75 |
Overall length | l1(mm) | 1534/1604 | 1534/1604 |
Fork dimensions | s/e/l | 54/160/1150(1220) | 54/160/1150(1220) |
Distance between fork- arms | b5(mm) | 520/550/685 | 520/550/685 |
Turning radius | wa(mm) | 1249/1319 | 1249/1319 |
Ground clearance, centre of wheelbase | m2 (mm) | 32 | 32 |
Height of tiller in drive position max | h14 (mm) | 1224 | 1224 |
Detailed Images
Olift Pallet Truck Hand Pull Trolly Hydraulic Hand Pump Jack Nulon Wheel Hand Manual Forklift

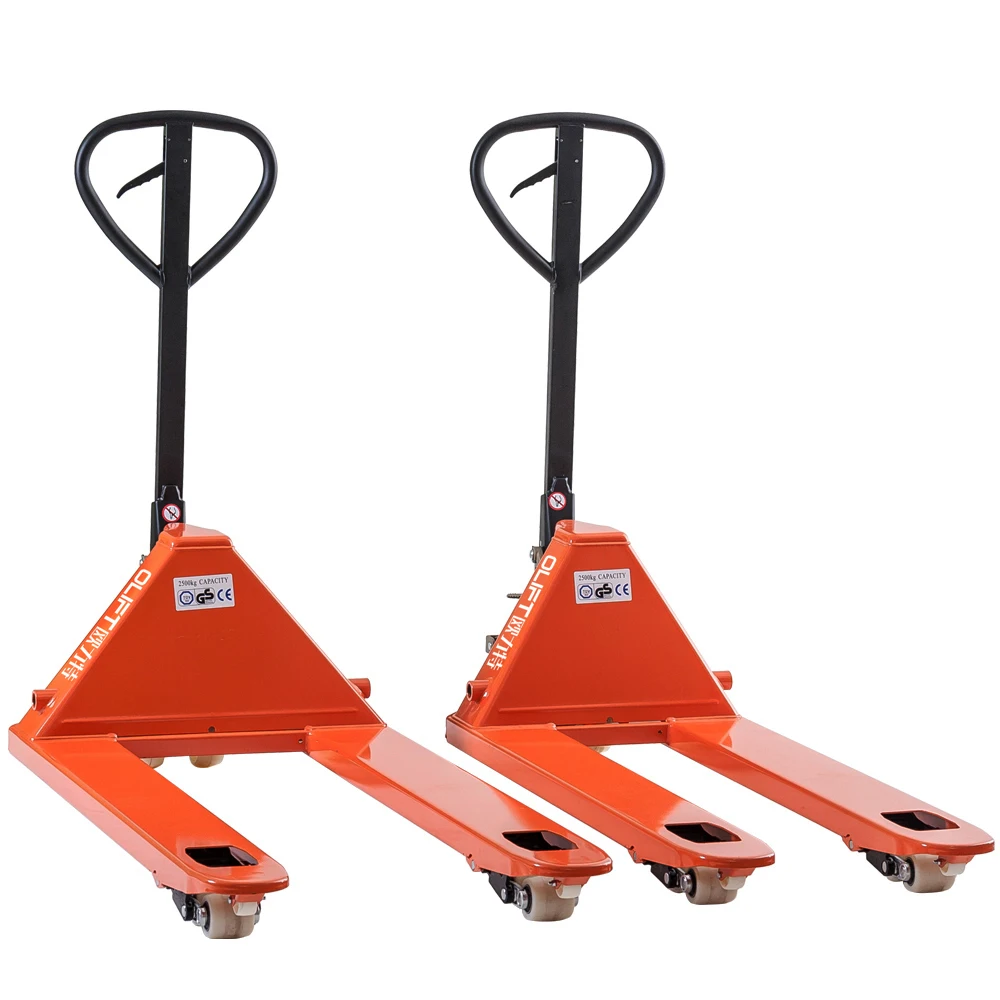

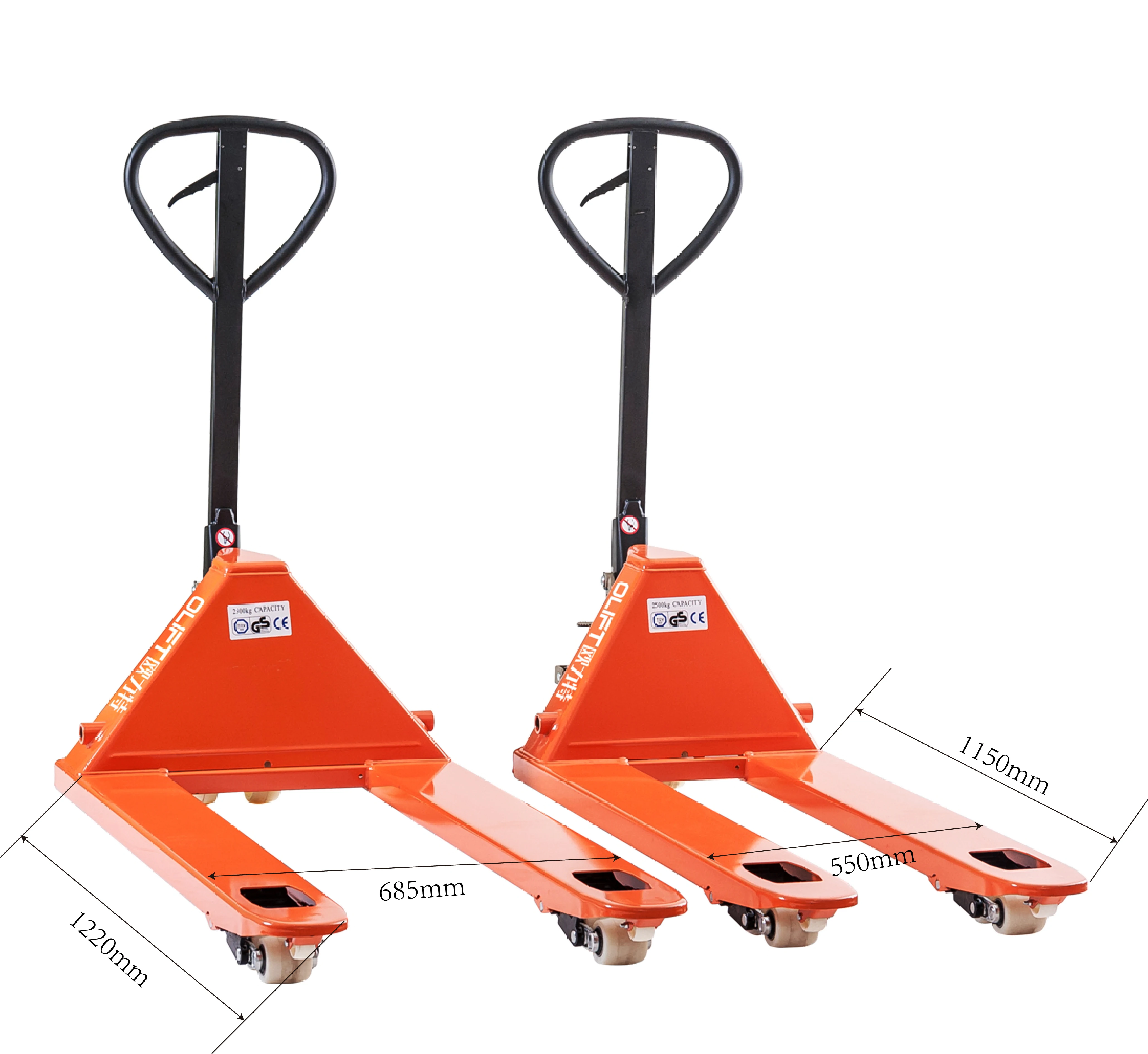

Wide Forks & Narrow Forks are available for Manual Hydraulic Pallet Truck
Wide Fork Size: 1220mm x 685mm
Narrow Fork Size: 1150mm x 550mm

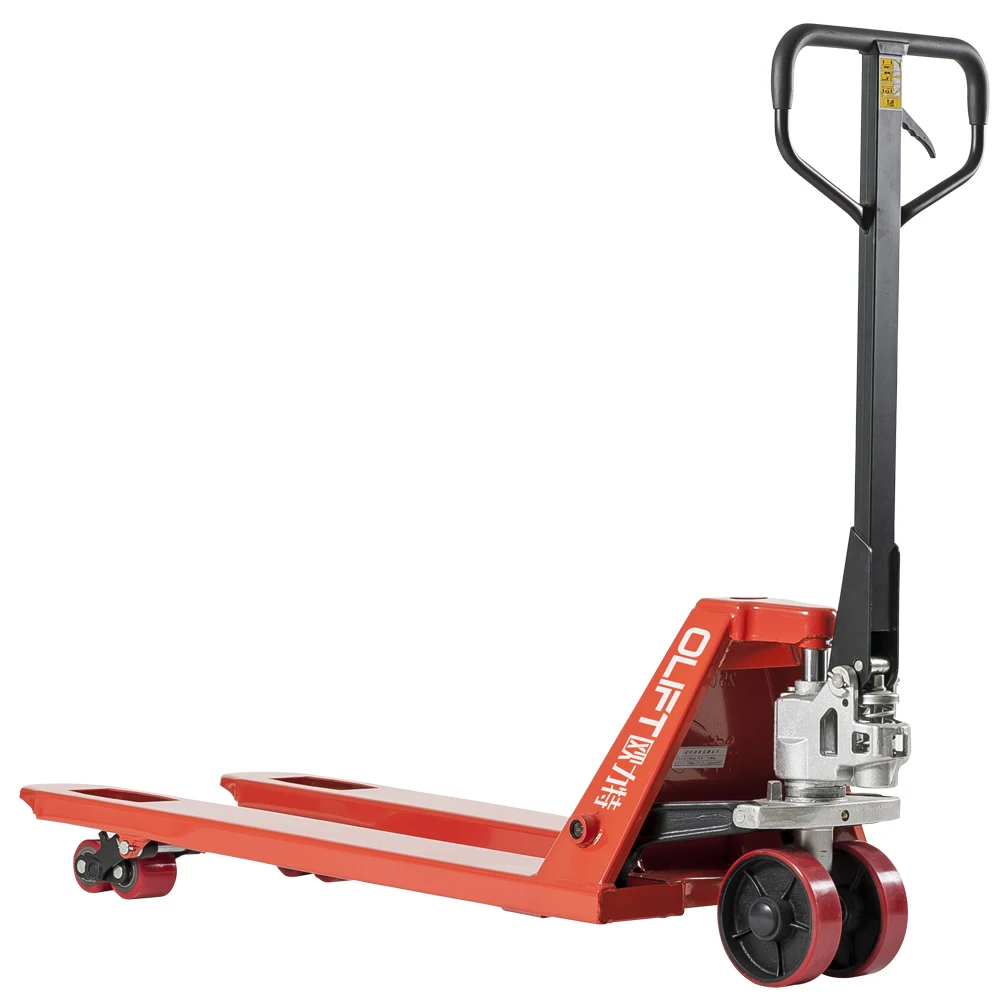

Hand Pallet Truck with Polyurethane Wheels

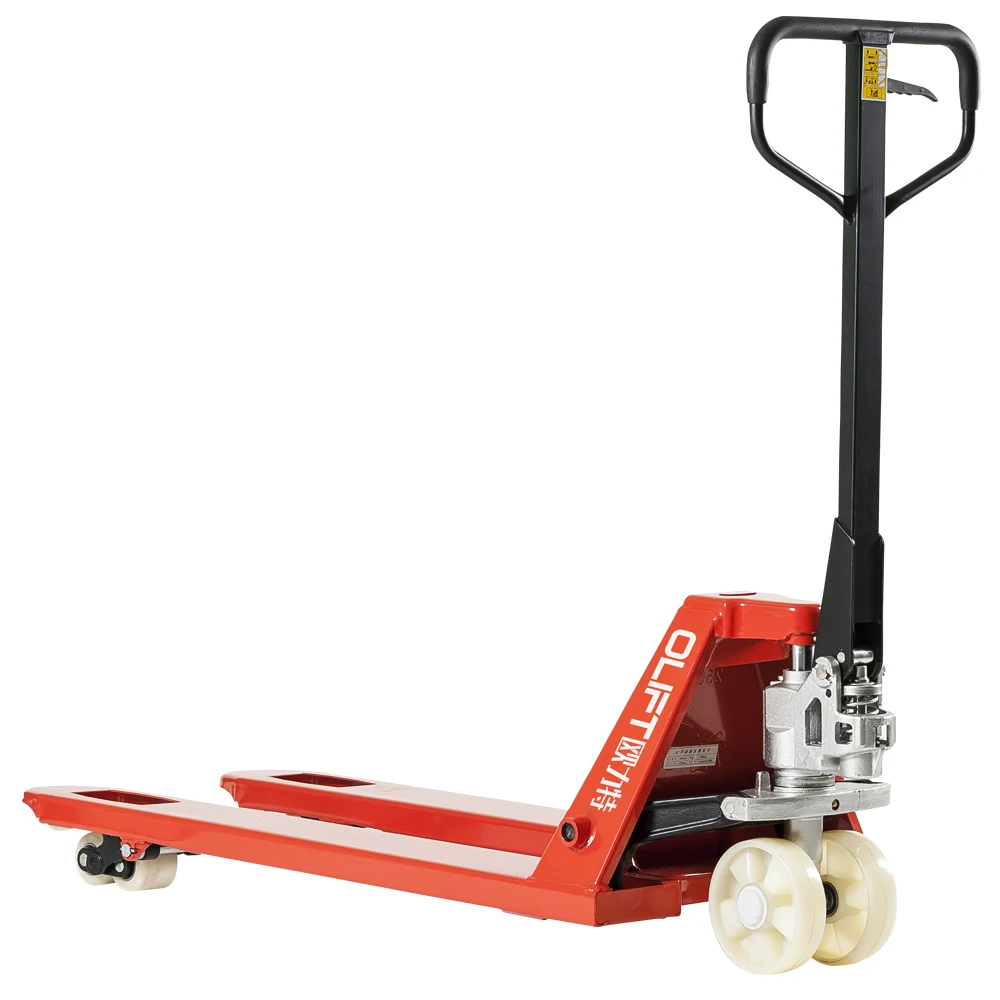

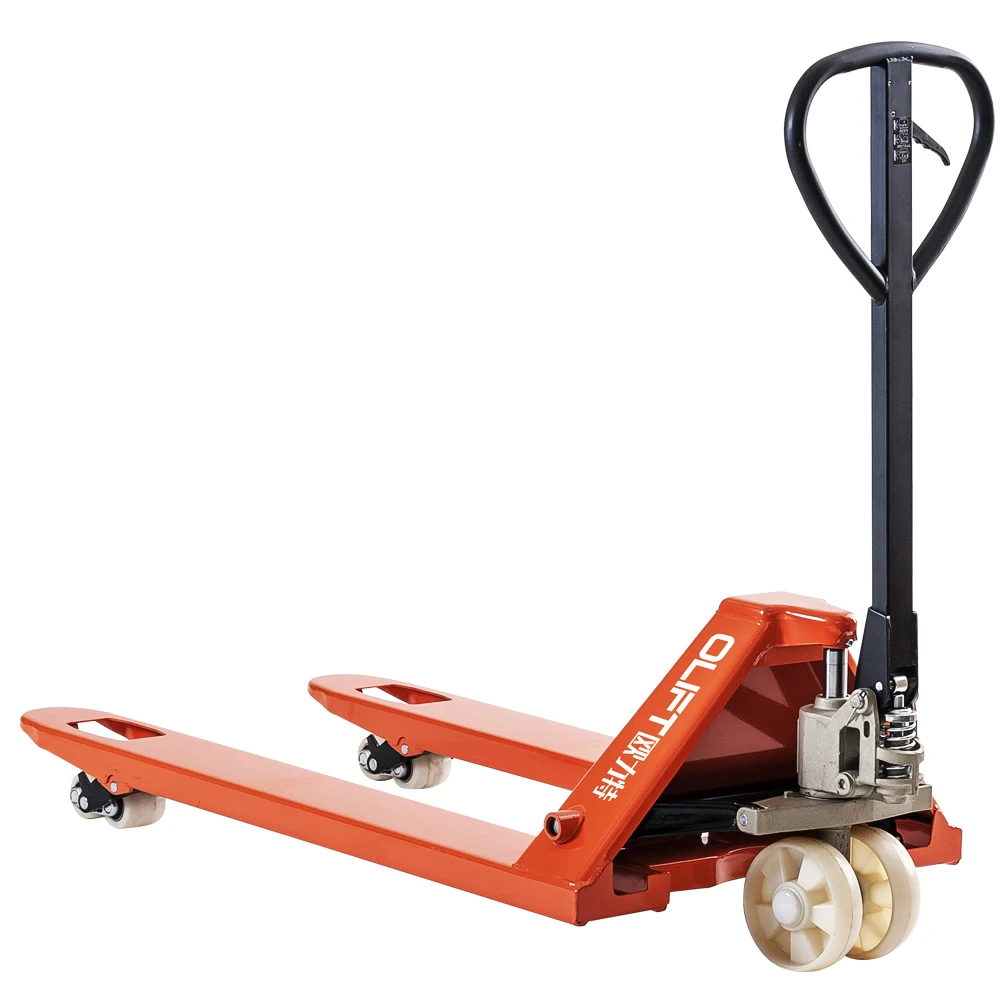

Hand Pallet Truck with Nylon Wheels
Manual Pallet Truck with Polyurethane Roller
Manual Pallet Truck with Nylon Roller
Rubber Warpped Handle for Pallet Truck A101, A102
Iron Handle for 2 Ton Hand Pallet Truck A100

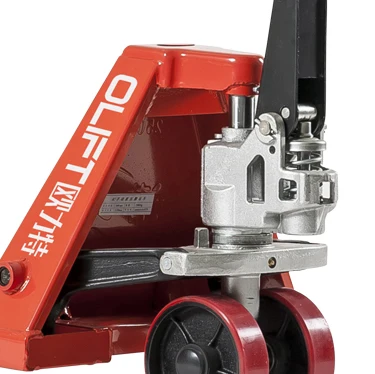

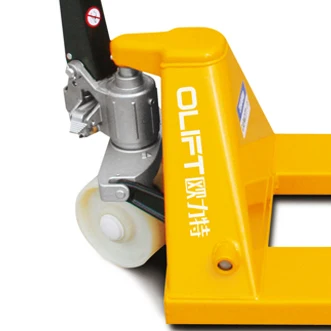

Strong Silver Galvanized Pump
Small Silver Painting Pump
Related Products
Packing&Shipping
Packaging Detail: | Olift Pallet Truck Hand Pull Trolly Hydraulic Hand Pump Jack Nulon Wheel Hand Manual Forklift will be packed by Flexible Package, Seaworthy Package | ||||||
Delivery Detail: | 15-30 days for Manual Hydraulic Hand Pallet Truck, Manual pallet truck. | ||||||
Certifications
Olift Pallet Truck Hand Pull Trolly Hydraulic Hand Pump Jack Nulon Wheel Hand Manual Forklift has passed the CE certificates
