heavy duty pan tilt motor MG 5024 for CCTV

Product Overview

Description



CCTV outdoor pan tilt motor

Cangzhou Haina Electronic Technology Co.,ltd. Products are widely used in coastal defense monitoring, the monitoring of the military airport, ships, military vehicles and other military project, Qingdao Olympic sailing competition, large venues such as the 11th national games field monitoring, as well as a number of provinces and cities "safe city", such as oil field, railway, water monitoring projects, and exported to the United States, north Korea, Iran, Malaysia, Saudi Arabia, etc.



Product feature

1.High strength aluminum alloy material 2.waterproof,high temperature resistance, aging resistant, Corrosion resistant function 3.professional design of cable,Prevent cable wear,Save the wire length  4.worm gear drive

Specification:

Model	MG-5024	MG-5024P(inside decoder)		MG-5024PE(preset position)
Voltage	AC24V/220V
Power	26W
Optional heater device	40W
Pan range	0°~356°
Tilt range	-90°~+90°
Pan speed	3.5°/S
Tilt speed	2.1°/S
Communication	RS485
Protocol			Pelco-P,Pelco-D
Baud rate			2400\\4800\\9600\\19200
Preset position	no			128
Work temperature	-10°C~50°C;  -30°C~50°C(Heater device optional)
Humidity	<90%RH
Size	278mm×150mm ×282mm
Weight	12kg
Material	aluminum
Load	Top load 24kg

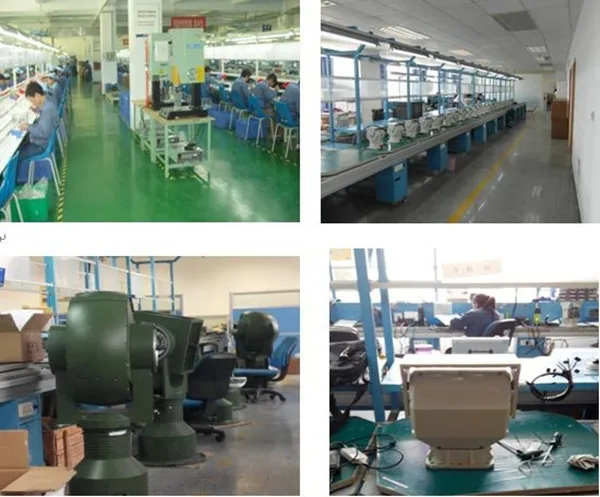

WORKSHOP

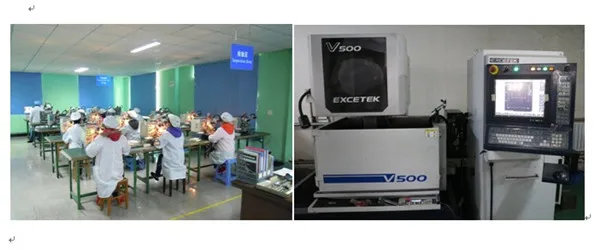

QUALITY CONTROL



QC / Technical Support

The QC department of us is fully equipped with all the necessary testing and inspection facilities. We also have experienced professional inspectors and Engineers guided by an ISO 9001:2000 certified quality management system.

QC Staff

14-20

Materials/Components

Some QC instruments and meters are sourced domestically, and some are imported form the Germany and Japan.

Procedures/testing details

All raw material and components are subject to rigid metallurgical tests and only qualified materials are used.

All components processed in every manufacturing stage are inspected and tested strictly.

100 percent inspection and testing is carried out before packing.

Inspection flow:

1. Packing checking: products quantity, packing method, packing mark, products putting.

2. Appearance checking: Put products at the place of 46cm from eyes, inspect with seeing, feeling plug gauge and graduated scale.

3. Machine performance inspection.

4. Electricity performance inspection.

5. Insides of products inspection.

6. Character and reliability testing: Life testing and Temperature test in operation

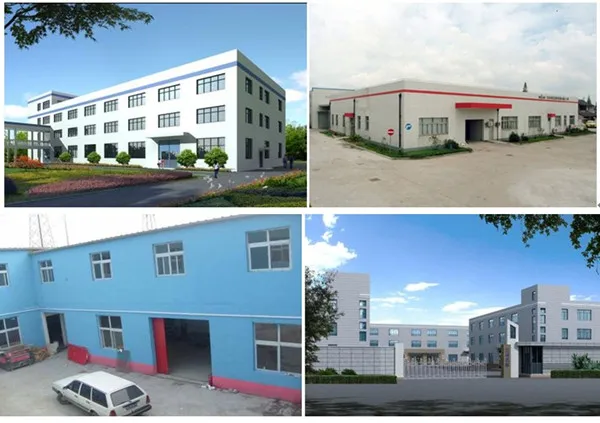

FACTORY

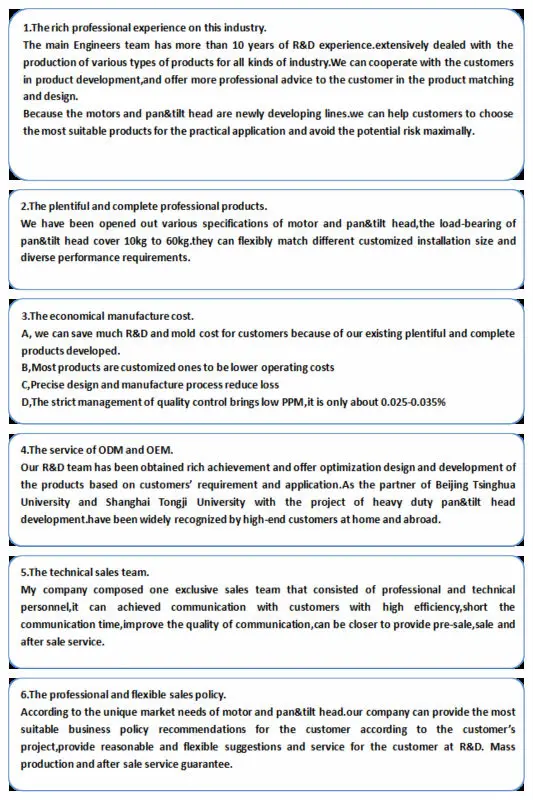

WHY CHOOSE US?
