Shanli industrial heated adsorption air dryer

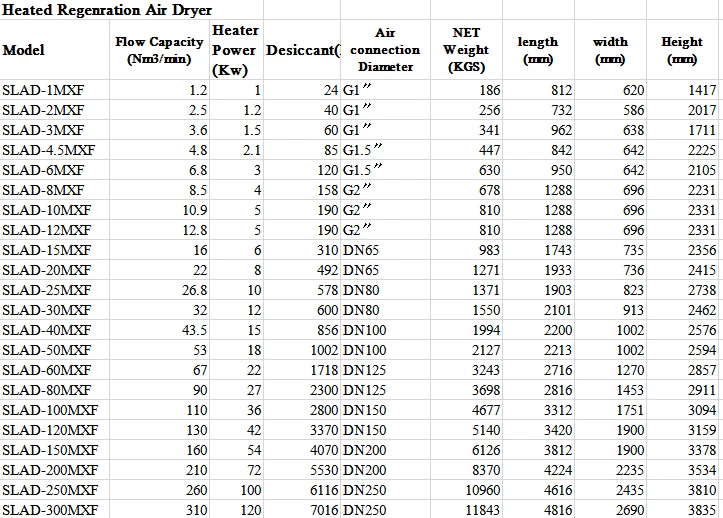

Heated/heatless desiccant air dryer parameters:

Standard working condition

Inlet temperature: 0~45 °C

Inlet oil content::≤0.1PPM

Work pressure: 0.6~1.0MPa

Pressure loss: ≤3% of the working pressure

Designed pressure dew point: -40°C (-60°C is optional.)

Regeneration purge loss: ≤14%

Desiccant: activated alumina (F-60°C, activated alumina & molecular sieve are both used with different proportion.)

Regeneration mode: heatless regeneration /slightly heat regeneration

Operating style: alternative operation of two vessels

Working cycle: 10min

            120min /240min /360min/480min  (HEATED)

Control mode: microcomputer  autocontrol

Installation: SLAD-1~30WXF: inside installation, base unnecessary;

          SLAD-40WXF & above: inside installation, fixed by bolts

Note: All the above parameters are accessed to under our standard working pressure 0.7MPa.



Note: we accept customer-made servie,So pls contact me if your parameters is different with the above sheet.

And our regeneration air dryer are compatible with many brands of air compressors like as Atlas Copco,Ingersoll Rand,Sullair,FUSHENG,Compair,Hitachi.We will be your valued supplier for compressor factroy.

Packaging & Shipping

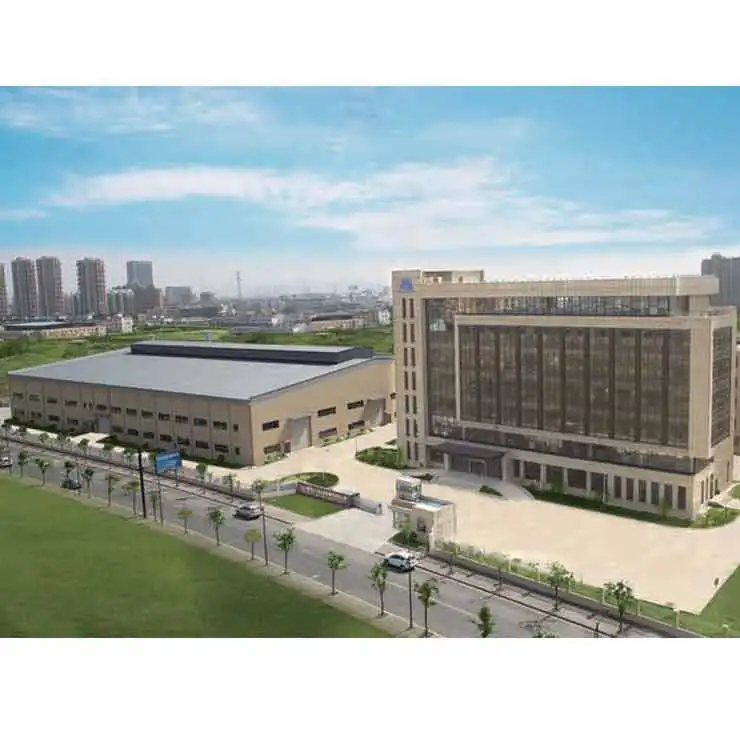

Company Information

HangZhou SHANLI Purify Equipment Corporation was founded in 1997,shanli have near 20 years history in compressed air dryer field.Our company already get many patents in air dryer technology,and shanli can independently design,developing,produciton and sales.Shanli already get lots of honor in domestic market in past years.Although Shanli just start to export goods to oversea market in recetantly years,but we believe that shanli will be your valued supplier in air dryer industry.

Hangzhou Shanli Purify Equipment Corporation’s enterprise spirit is “Sincere Dedication, Pursuit Excellence”. On basis of advanced product design, comprehensive quality guarantee, prompt pre-sales and after sales network, Shanli will reach the aim of business promotion with technology, quality and service.

 License:

At present, it is awarded 18 product patents and also got through the CE certification, Production Licence and ISO9001 Quality System Certification in order to offer the best product service and the most impeccable pre-sale and after-sale service.

 Customer site images:

Where is shanli air dryer used for?

Shanli brand compressed air dryer is the after-treatment purification equipments for all kinds of the oil contented and oil-free compressor.The products are widely used in the electricity,shipbuilding,aerospace, electronic,metallurgy, machinery, auto manufacture,fossil oil, chemical industry, textile, chemical fiber,light industry, paper marking, rubber, instrument, food staff, air separation,cigarette, medicine, biology, daily chemical industry etc.

FAQ



1. Do you OEM or ODM?

      Yes.We do.



2.Do you produce high pressure equipement?

     Yes,we produce the pressure above 1.0MPa,until now ,max pressure 3.6MPa



3. Do you have any quality certifications?

    Yes,we have CE,IAF,TUV,BV ,ISO9001,ECM,and if you need special certifications for your country,then we will apply it for you.



4.How to repair when any problems happen?

   We will arrange the engineers to flight to your local site to slove it .



5.How long will you offer the quality promise?

   We will offer you 18months guarantee after the shipment.



6.How to contact me?

   Shanli dryer
