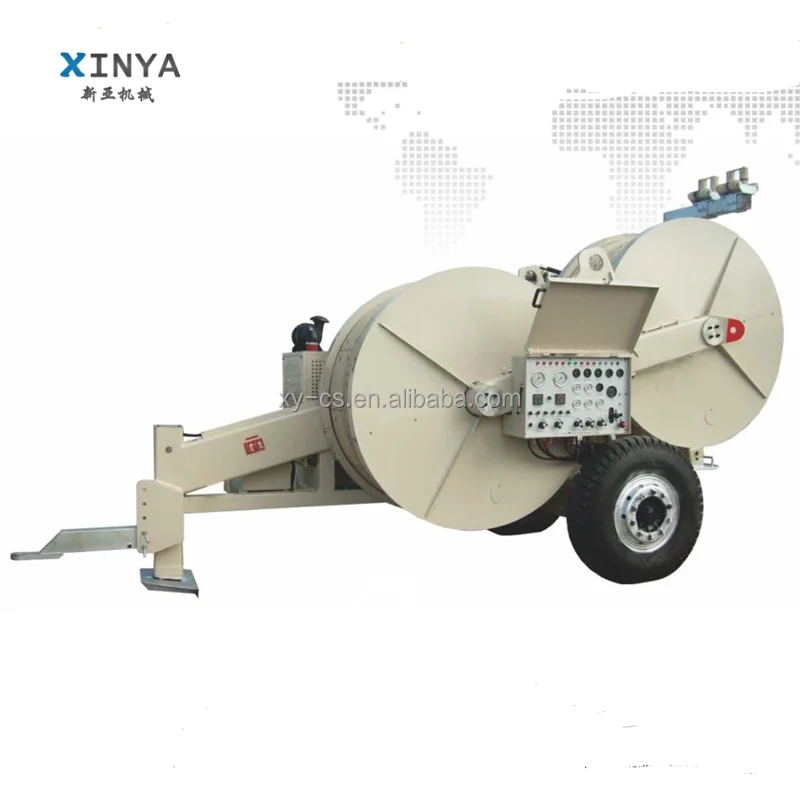

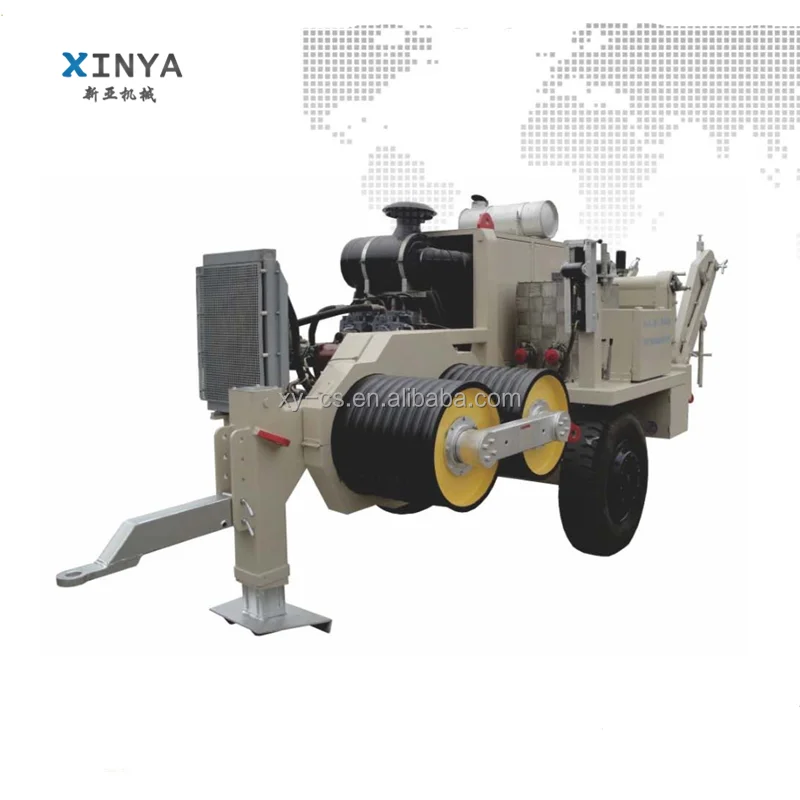

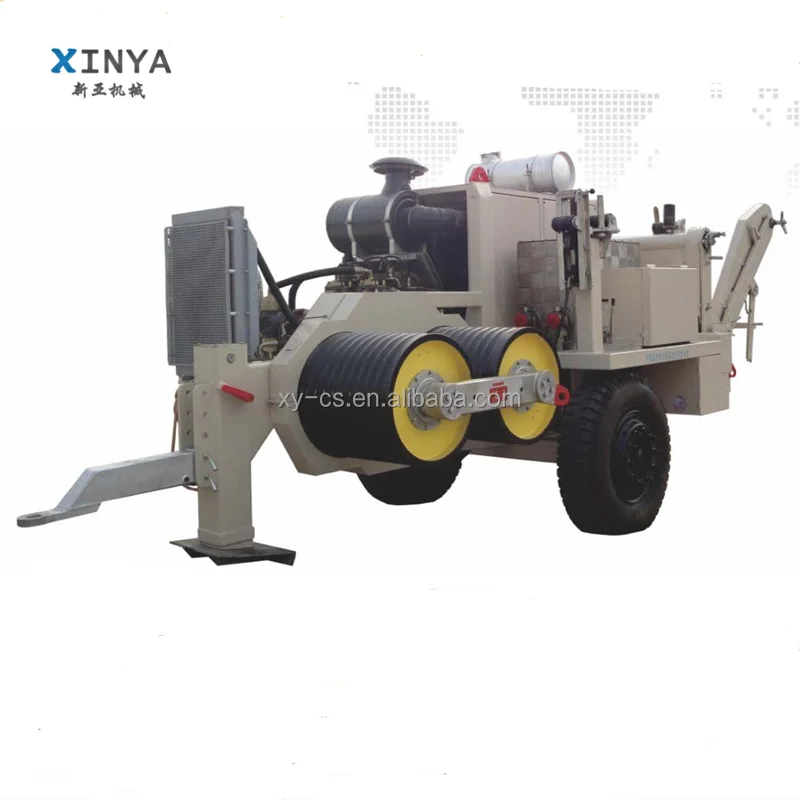

Stringing Equipment 70KN Hydraulic Cable Puller Tensioner

Product Overview

Description



Stringing  Equipment 70KN Hydraulic Cable Puller Tensioner



Application

70KN Hydraulic Cable Stringing Puller Tensioner   is used to string various conducts and earthwire.



Feature :

     1. Bullwheel with wearproof MC nylon lining segments.

     2.  Infinitely variable tension control and constant tension conductor stringing .

     3.  Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .

     4.  attached two sets of hydraulic power input interface to connect the hydraulic conductor reel stand .



Main component

     1.Engine :Chinese famous brand water–cooled engine .

     2.main pump and main motor : Rexroth (BOSCH )

     3.Reducer : RR(Italian) or Rexroth

     4.hydraulic valve : Rexroth (BOSCH )

     5.radiator :AKG

     6.hydraulic instrument :WIKA

     7.it can choose :Deutz air–cooled engine .



Technical Data for 70KN Hydraulic Cable Stringing Puller Tensioner

Model Type	YQZ2×35
Overall Size(MM)	4450*2250*2700
Weight(KG)	6500
Max Tension(KN)	2*35/1*70
Max Continual Tension(KN)	1*30 / 1*70
Max Velocity(km/h)	5
Diameter of Tension wheel(mm)	1200
Solt No. of Tension wheel	2*5
Rated Pulling Force (KN)	2*30/1*60
Max Pulling Speed(km/h)	2*1.2 km/h
Max dia of wire	Φ32mm
Engine Power	49KW/ 2500 r/min
Voltage	12V
