Product Overview
Description

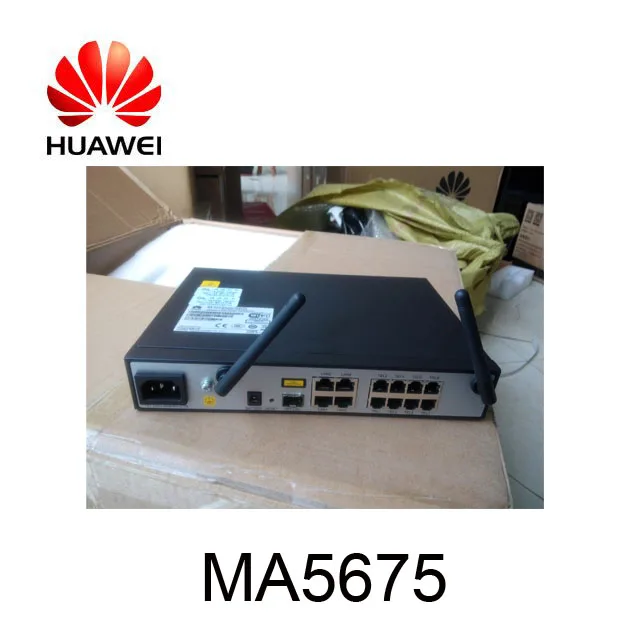

Huawei SmartAX MA5675M
The MA5670 series applies to fiber to the office (FTTO) scenarios.Located at the PON access layer, the MA5670 series connects small office and home office (SOHO) and small- and medium-sized enterprise (SME) users to the Internet through optical fibers.The following figures show the positioning of the MA5670 series in the overall network solution.
Characterstics
- The MA5675M products provide users with access to multipleservices, such as GE-to-desk, POTS voice, fax, wireless office, and video surveillance
- The MA5675M products support the configuration for anti-DoS attack, filtering based on MAC addresses, IP addresses, or uniform resource locator (URL) addresses, and firewall and ONU access control rules, ensuring secure and reliable application
- The MA5675M products support TR-069/ONU Management and Control Interface (OMCI)/OAM management modes. In this manner, terminal services can be managed without deployment of additional IP networks.
- The MA5675M products support ONU service issuance in batches and network adjustment. After being powered on, an MA5675M device is automatically upgraded.
- The MA5675M products support remote fault location through the NMS by reporting alarms and remote loopback diagnosis results. Therefore, O&M personnel can locate faults
- without visiting sites, which reduces O&M costs.
Features
| Classification | Description | MA5675M |
|---|---|---|
| GPON | Class B and Class B+ optical modules Authentication by serial number (SN), password, SN+password, or LOID Type B protection | Yes |
| Routing | Network Address Translation (NAT) Automatic binding of Internet, Internet Protocol television (IPTV), and VoIP services to a port on the MA5670 series Virtual server and port trigger Demilitarized zone (DMZ) and dynamic domain name server (DDNS) | Yes |
| Broadband | Any port any service IPv6 Protocol Support 4 priority queues per user port | Yes |
| Voice | Session Initiation Protocol (SIP) and H.248 Separation of media and signaling streams 10 ms packet function RFC2198 Adjustable port impedance | Yes |
| Multicast | Internet Group Management Protocol version 2 (IGMPv2) and IGMPv3 snooping Dynamic controllable multicast IGMP proxy | Yes |
| Security | Filtering of source MAC address, IP address, and uniform resource locator (URL) Denial of service (DoS) anti-attack Access control rule configuration for the MA5670 series | Yes |
| Maintenance | Local management through the web page Remote management of GPON terminals through optical network terminal management and control interface (OMCI) Optical power monitoring Loop line and call emulation tests performed through POTS ports GPON ring network detection | Yes |
| Ethernet | VLAN filtering and transparent transmission VLAN tag adding for packets VLAN translation and priority switching | Yes |
| WLAN | Power-saving mode for the stations (STAs) connected to the MA5670 series Adjustable transmit power | Yes |
| IPv6 | Coexistence of IPv4 and IPv6 IPv6 routing DHCPv6 DNSv6 | Yes |
| E1 access | Native time division multiplexing (TDM) | No |
Specification
| Specifications | MA5675M |
|---|---|
| Network-Side Port | 1*GPON 1*EPON 1*GE |
| User-Side Port | 4GE+8POTS+WIFI |
| Dimensions (W x D x H) | 250 mm x 180 mm x 43.6 mm |
| Weight | 1.25 kg |
| Operating environment | 0°C to +40°C |
| Power | Power adapter input: 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Power consumption | Static power consumption: 8 W Typical power consumption: 17.45 W Maximum power consumption: 20 W |
Other product information
Trade Information
1) Trade terms: FOB,CIF,CFR,etc
2) Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
3) Payment Terms: T/T in advance
4) Port: Shanghai
5) Lead time: Within 3 working days after receipt payment.
6) Shipment: Express, Air, Sea
7) Sample availability: Yes( not free)
