famous Hysoon HY280 small skid steer bucket loader
- Category: >>>
- Supplier: Taian Hysoon Machinery Co. Ltd.
Share on (60175602504):
Product Overview
Description
American famous engine small skid steer bucket loader
Product Description
1. HY280 Bucket Loader:
Hysoon HY280 is a versatile small bucket loader, 360° skid steer type, Compact body, 800mm width, easy to small narrow space working, they can link with different attachments for a variety of job need, widely used in garden, manufacturing, recycling, roads, buildings, construction, agriculture, farm and so on. .
2. HY280 Small Bucket Loader Main Specification:
| |
1)Size | |
Dimension(L*W*H) | 2210mm* 800mm* 1309mm |
Length | 2210mm |
Width | 800mm |
Height | 1309mm |
Bucket Width(K) | 820mm |
Max Working Height | 2065mm |
Max Dumping Height | 1386mm |
Max Dumping Distance | 471mm |
Total Length without Bucket | 1778mm |
Turn Radius forward Turning | 1236mm |
2)Engine | |
Rated Power (KW) | 17.15KW(23HP) |
Rotating Speed | 3600rpm |
Noise(Dd) | ≤95 |
3)Hydraulic System | |
Pressure | 17Mpa |
Operating Load | 165kg |
Bucket Capacity | 0.12m³ |
Max Lifting Force | 375kg |
Travel Speed | 0-5.5km/h |
Weight | 855kg |
4)Configuration | |
Engine | 23hp American Briggs& Stratton gasoline engine, 3 year International warranty service. |
Parts | Imported Italy hydrocontrol valves; |
Tires | Track or Solid tires |
Optional Configuration | Italy joystick system, triple pump & valves for optional; |
Operating | With a back pedal plate. Standing operating |
4. 800mm width,work in very small narrow environment | |
| |

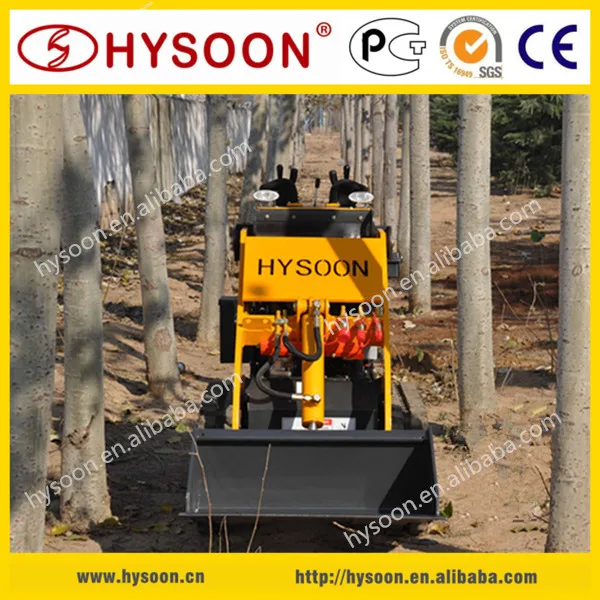

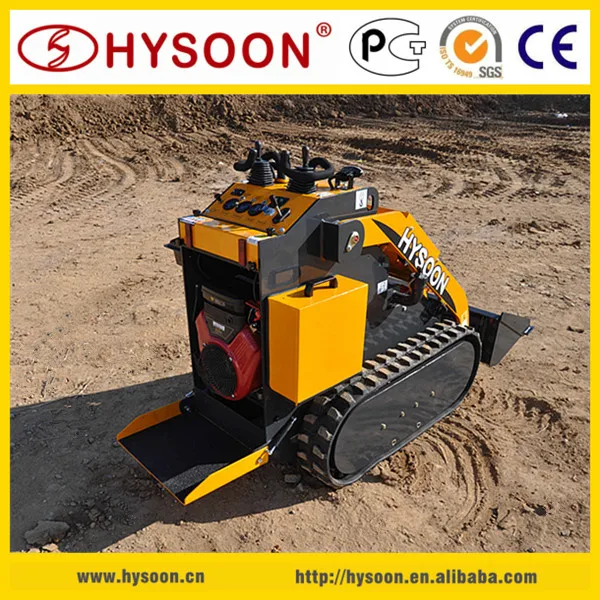

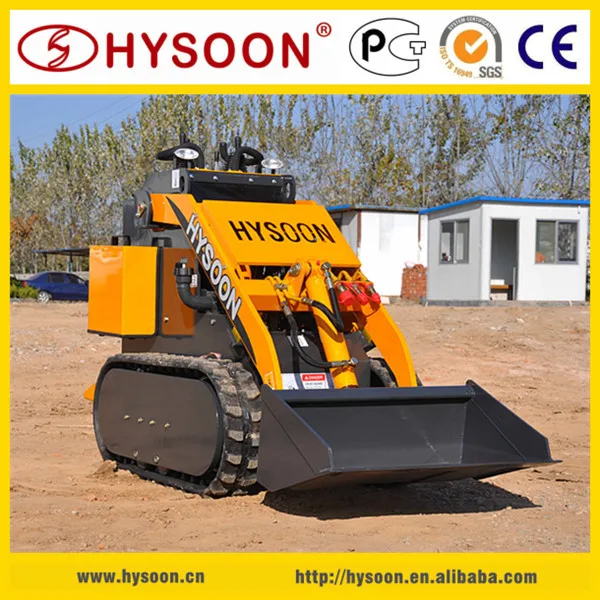

5. HY280 Bucket Loader pictures: | |
| |

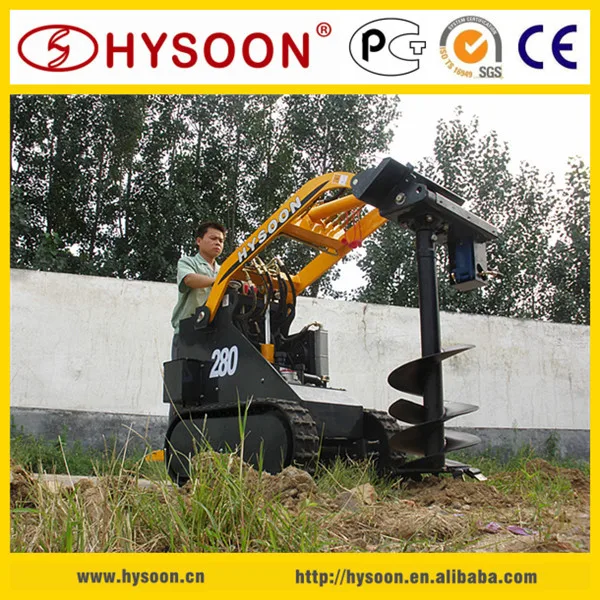

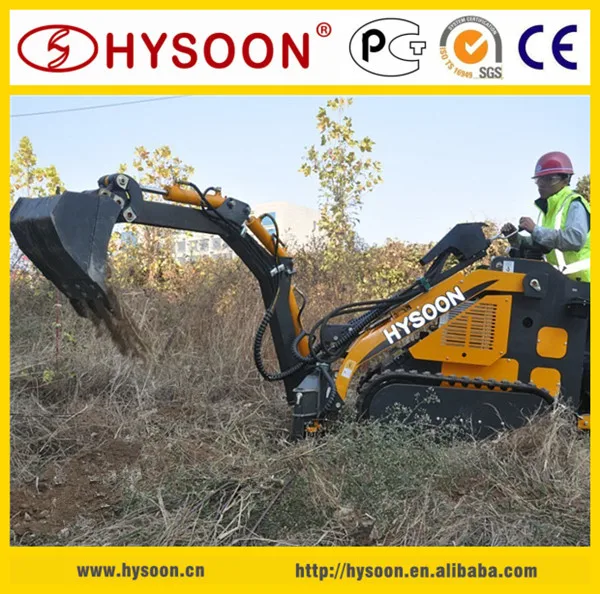

6. HY280 Small Bucket Loader Optional Attachments | |
| |
Packaging & Shipping
LCL: Iron Shelf & Plywood Packing
FCL: 1* 20' Container: 8 sets of HY280 Small bucket loaders.
1* 40'' Container: 16 sets of HY280 Small bucket loaders.
Our Services
1. Best Cost Performance.
According to the client's feedback in gobal and our research, our quality is leading. Technical development, improvement for these years, get customer consistent high praise.
2. Best service
From Sale to the lifelong maintenance of products. Reply you at the 1st time.
Company Information
Certifications: CE, GOST,ISO9001,SGS, Design Patent,Utility Model Patent.
BAUMA Exhibitions and clients:
FAQ
1.The Reasons you choose us?
1). We are the 1st Manufacturer of Small skid bucket loaders in China- Hysoon.
1). We are the 1st Manufacturer of Small skid bucket loaders in China- Hysoon.
2). Independent of The Design Team, Professional Production Team, 15 Technical Patents. .
3). High Quanlity & Reasonable Price.Maybe We Are Not The Lowest Price, We Offer Products are Highest Quality.
4). Responsible, in Good Faith. To Guarantee Delivery. Do Security by Alibaba Escrow.
2. Our Warranty?
1). Warranty: 1 Year. Offer You Accessories for Free in 1 Year Period.
2). Engine Warranty: 3 Years. International Warranty.
3). Provide Technical Support for Life.
3.Can We Support OEM?
Yes, we can.
