Diamond Borehole Drilling Machine for Hard Rock

Product Overview

Description

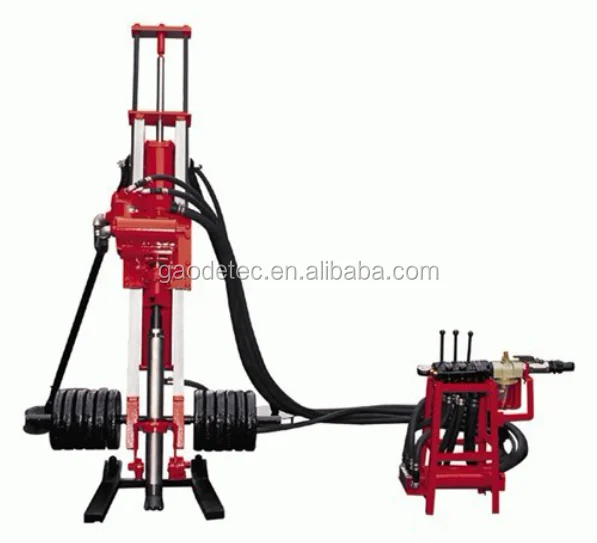

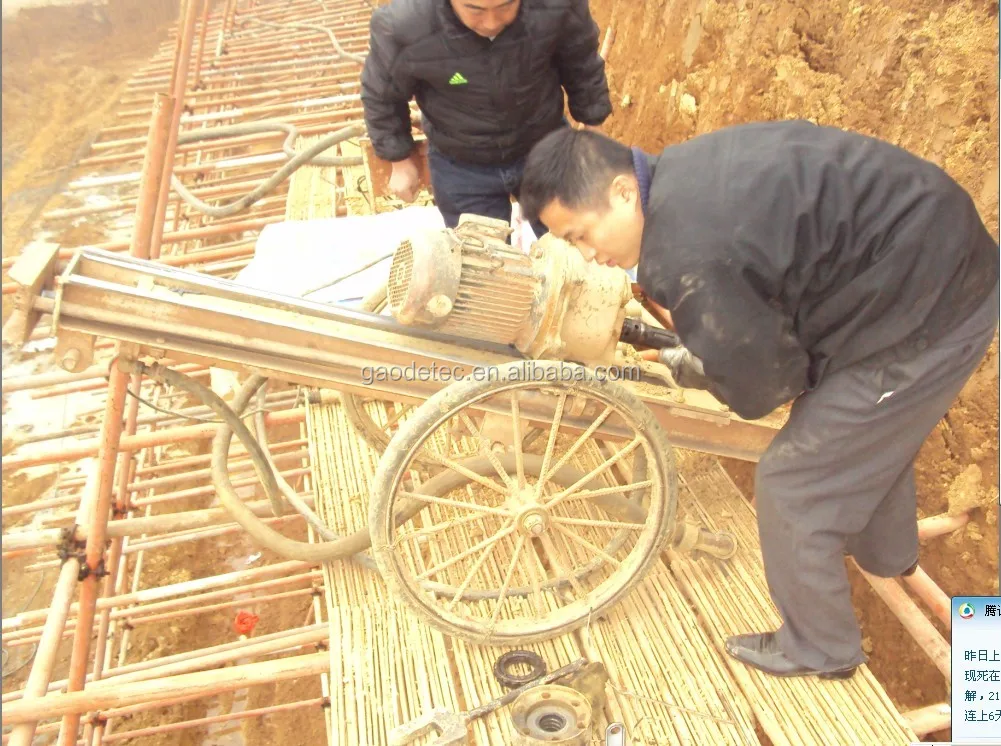

Diamond borehole Drilling Machine for Hard Rock



GD100A pneumatic borehole drilling rig is an high efficiency and energy saving pneumatic down-the-hole(DTH) drill, it has simple structure, easy operation and low price.



DTH drill can also drill vertical and horizontal blast hole, especially it has low center of gravity and detachability is good, so movement and transportation are convenient.



Technical Parameters:

Model	GD100A
Hole diameter (mm)	80-130

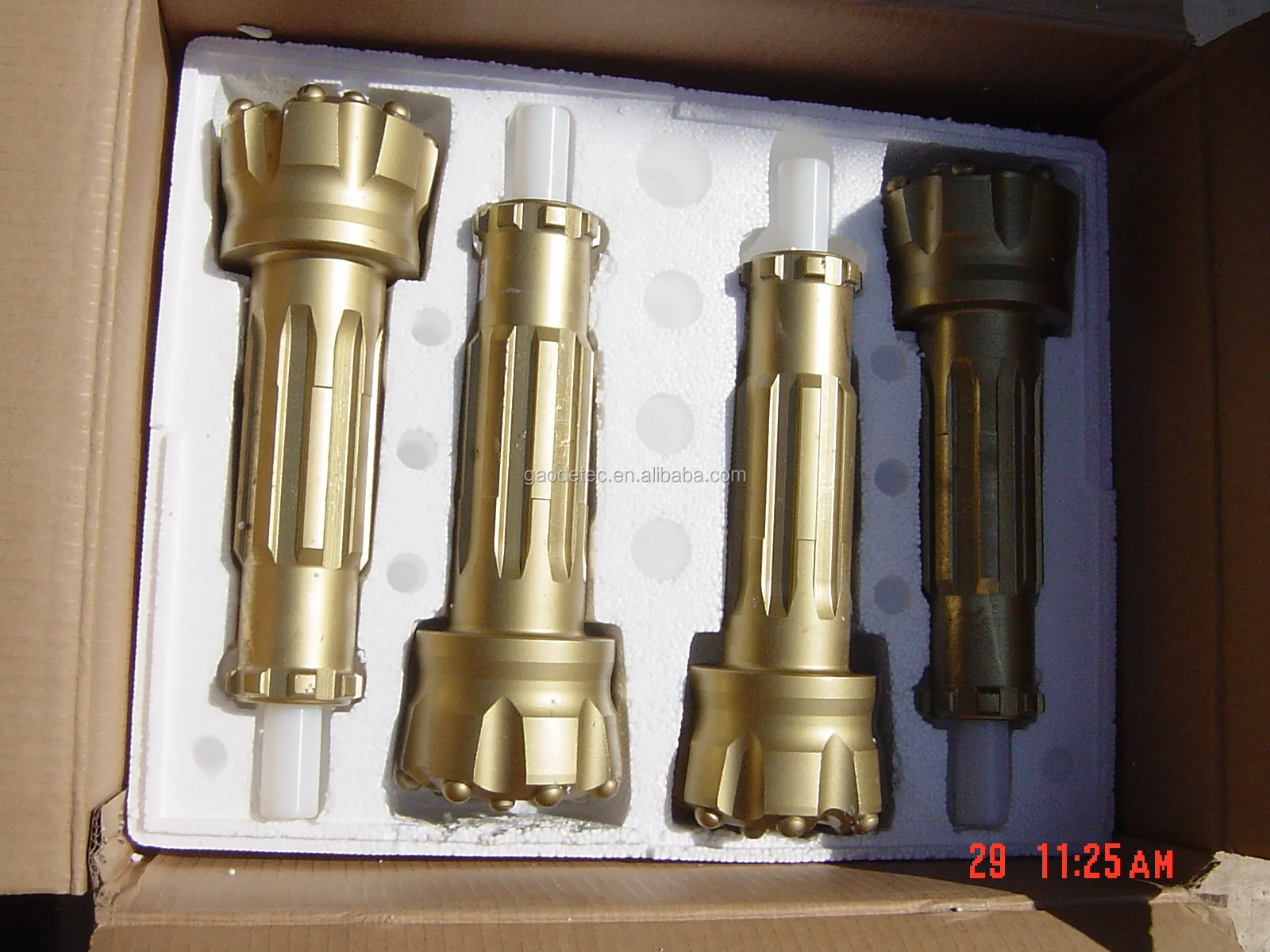

Bit	90(76-100)

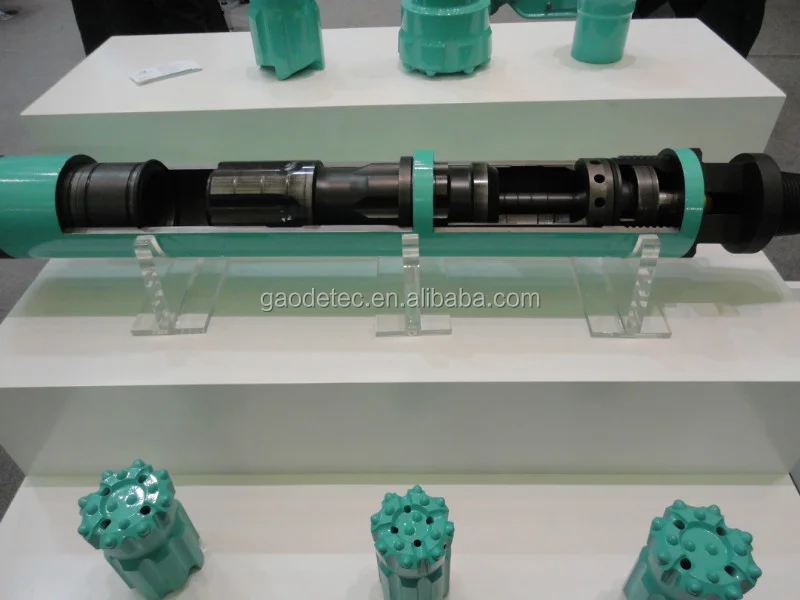

Hammer	QCZ90
Hole depth (m)	≥20
Rock hardness	f=6-20
Pressure (mpa)	0.5-0.7
Air consumption (m³/min)	≥12
Rotating speed (r/min)	0-93
Drilling rod(mm)	60*1000
Max. lifting force (N)	9600

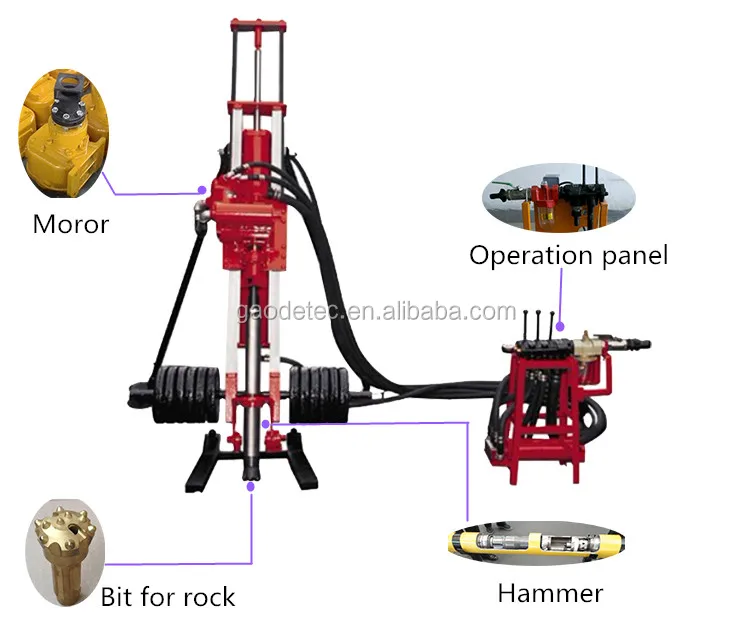

Details:

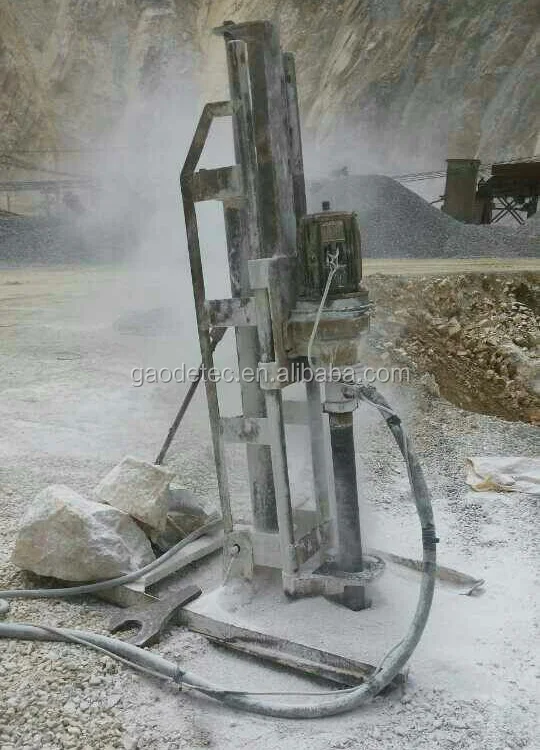

For soil:

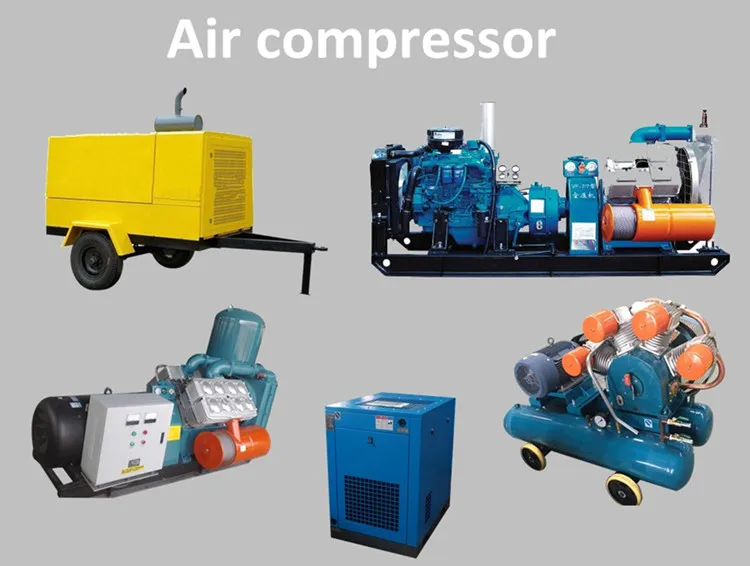

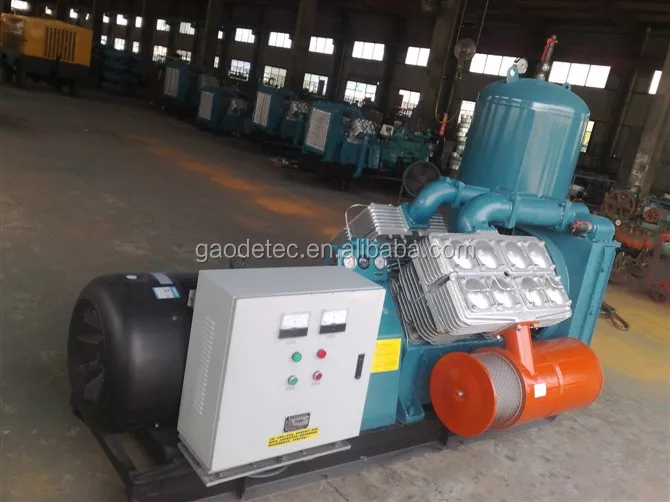

Air compressor:

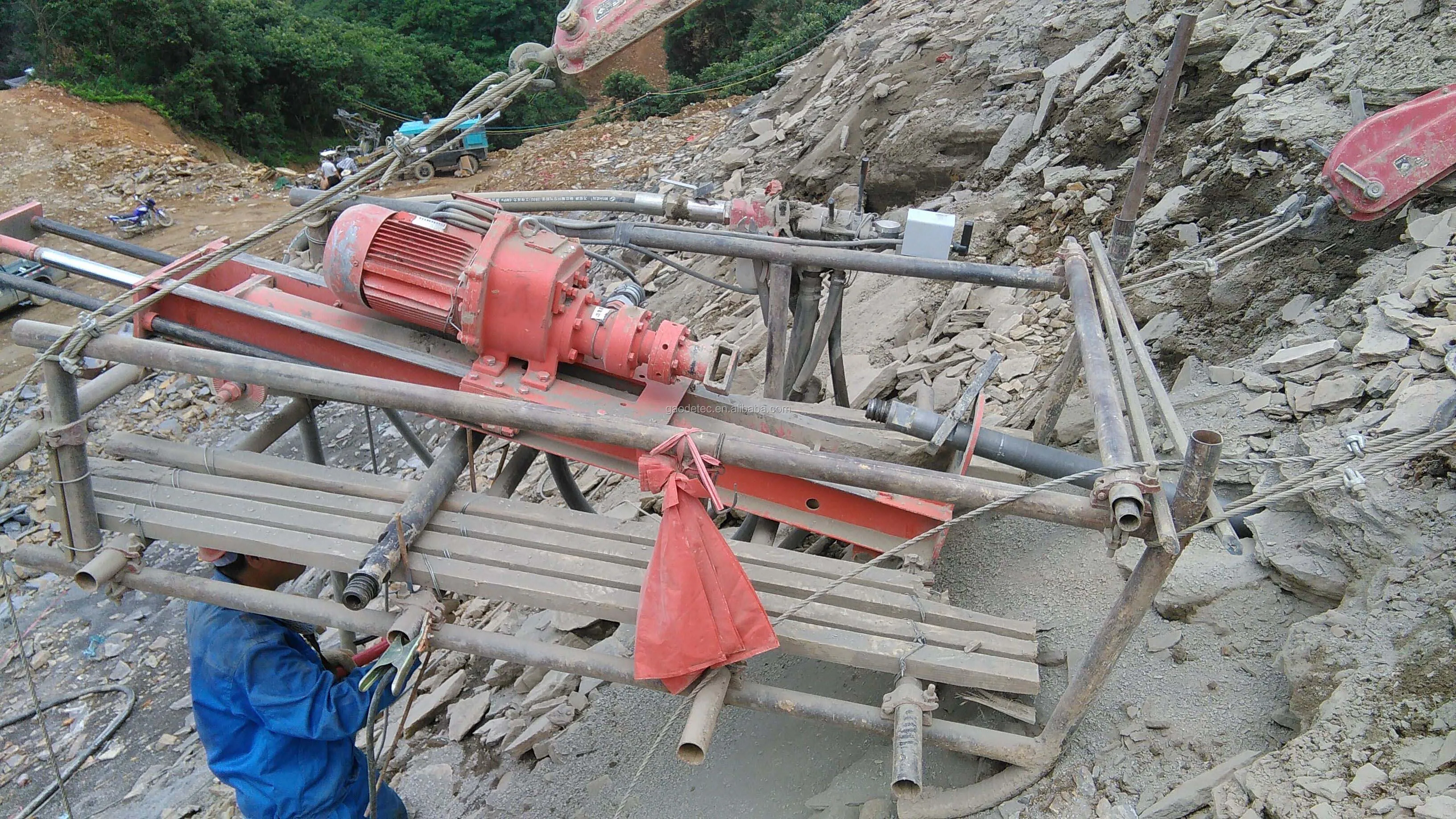

Application:

The borehole drilling machine is widely used in medium small mines, road construction, national defense, water conservancy and the deep hole drilling operation, also is the essential drilling open-pit mining equipment, especially suitable for a rugged terrain.

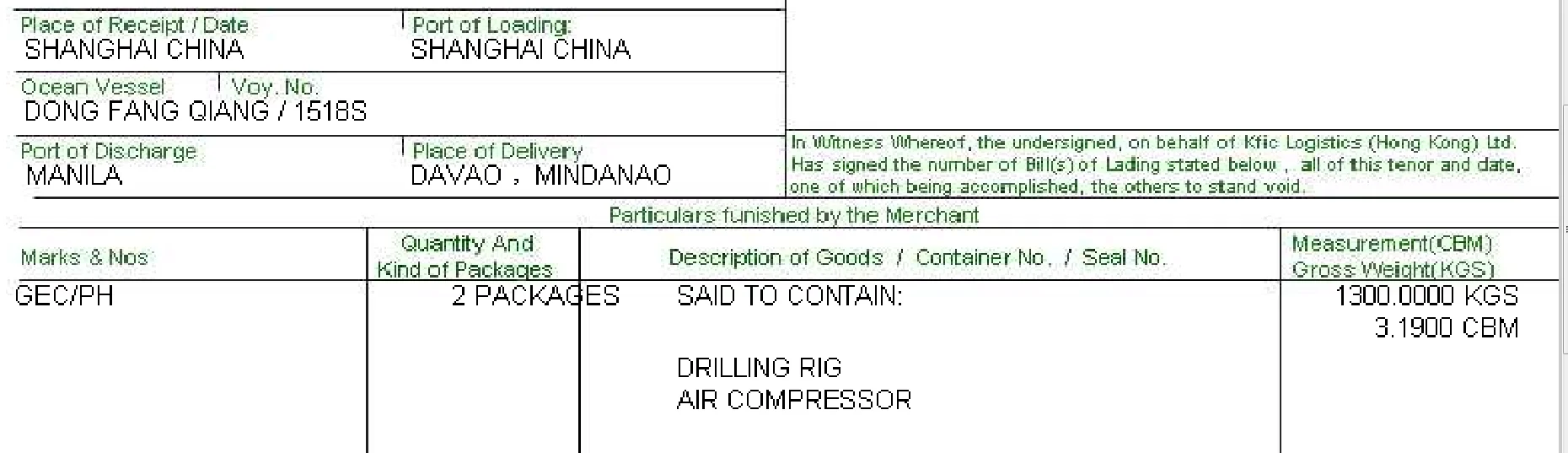

Bill of lading:

Packaging:

Related products:

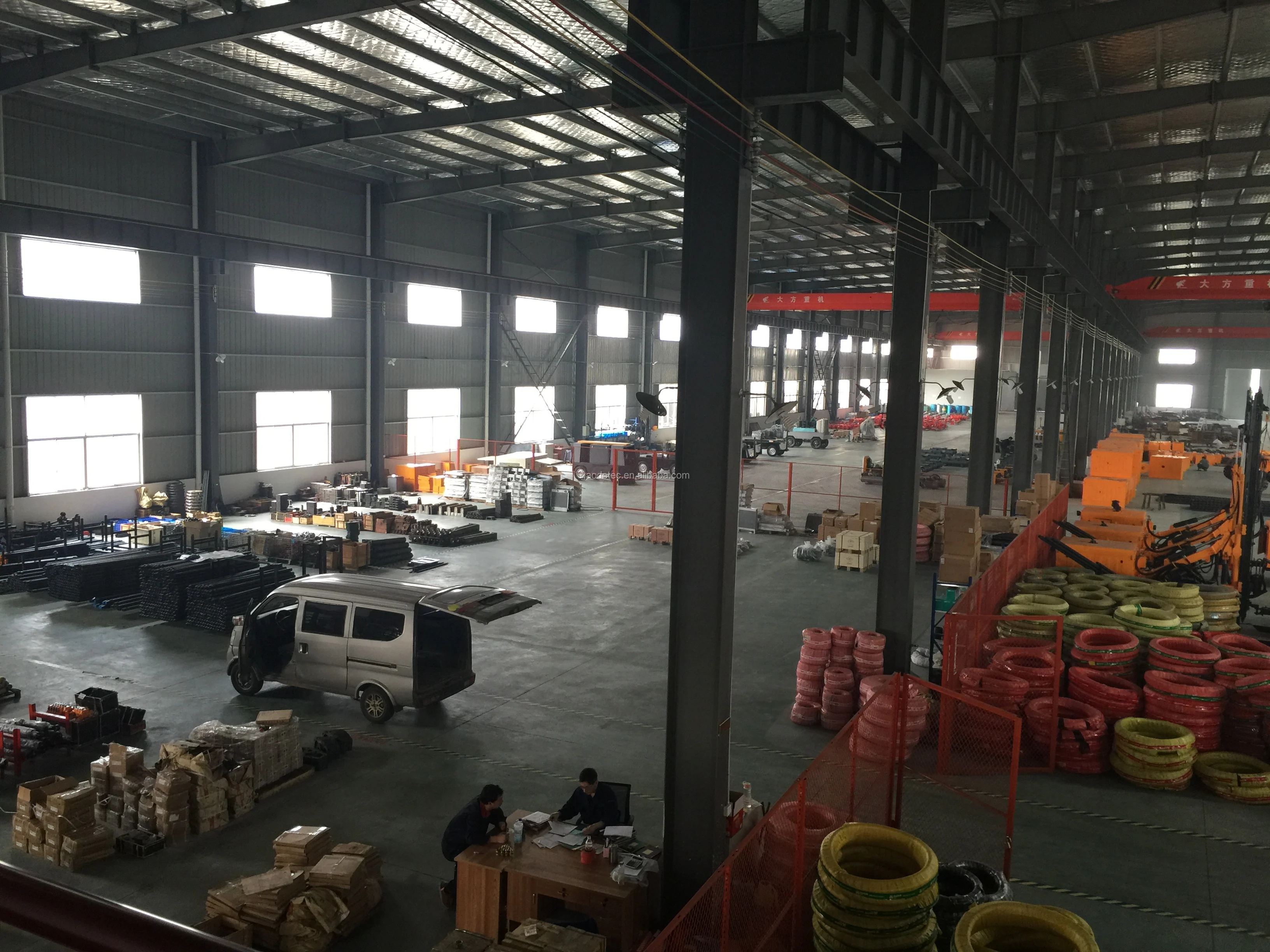

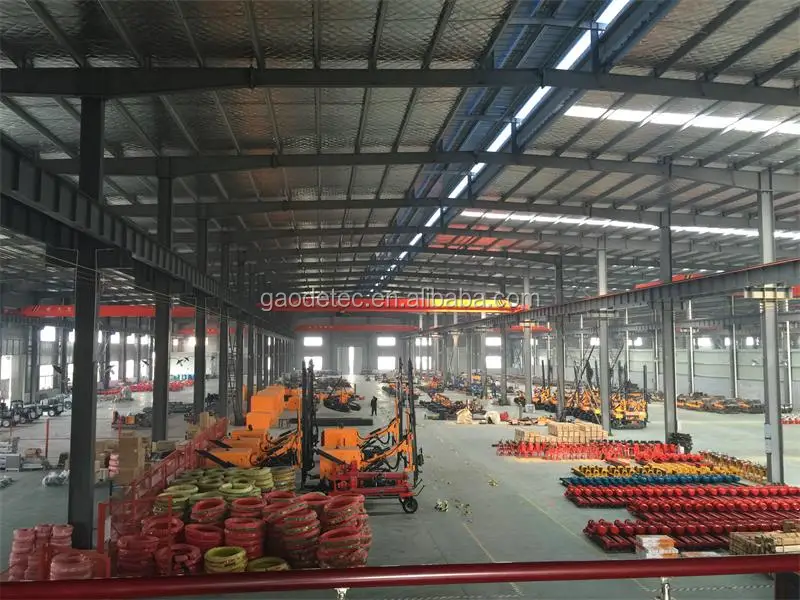

Factory:

Our company have specialized in drill rig machine for more than 10 years. We can provide nice quality drill rig machine with competitive price. If you are interested in drill rig machine, please feel free to contact us.
