Depending on the size of the pump, Pumping Unit generally produces 5 to 40 litres of liquid at each stroke. Often this is an emulsion of crude oil and water. Pump size is also determined by the depth and weight of the oil to remove, with deeper extraction requiring more power to move the increased weight of the discharge column (discharge head).
A pumpjack converts the rotary mechanism of the motor to a vertical reciprocating motion to drive the pump shaft, and is exhibited in the characteristic nodding motion. The engineering term for this type of mechanism is a walking beam.
The API B series pumping unit is one kind of light conventional beam type pumping unit, which is the beam balance.
The API C series pumping unit is one kind of conventional beam pumping unit, which selects the crank balanced method.
They are the most common surface power equipments in field oil production and widely applied in rod-having pump system.
Besides conventional beam pumping unit, Henan ZYZJ Pump Equipment Company also developed several energy-saving pumping units, including phased / heterotypic beam-balanced pumping unit, dual horse head pumping unit, adjustable radius pumping unit, etc.
Technical performances
---API B Series
1.The structure is simple, the operation maintenance is convenient and the service life is ling.
2.It is equipped with involute or double arc herringbone gear transmission reducer, with steady & reliable running.
3.The complete machine mass is small, the installment and the transportation is convenient
4.It is suitable for small stroke, light load and shallow well.
---API C Series
1.Designed by modular and virtual manufacturing technology; optimized product structure; standardization, seriation, generalization
2.Do finite element analysis to key structural component; high stability and reliability
3.The reducer adopts balanced shunting evolvent or double circular arc to drive; well sealed, low noise, smooth operation, reliable and durable.
4.Simple operation, convenient maintenance and long service life
Main Parameters
---API B Series
No.
Type
Polished Rod Capacity (Ib)
Stroke Length
(in)
Rated Torque
(in.Ibs)
1
B-80D-119-82
11,900
82,66
80,000
2
B-80D-119-64
11,900
64,54
80,000
3
B-80D-133-54
13,300
54,41
80,000
4
B-80D-76-64
7,600
64,54
80,000
5
B-80D-76-54
7,600
54,41
80,000
6
B-80D-109-48
10,900
48,35
57,000
7
B-57D-109-54
10,900
54,41
57,000
8
B-57D-89-54
8,900
54,41
57,000
9
B-80D-76-54
7,600
54,41
57,000
10
B-57D-109-48
10,900
48,35
40,000
11
B-40D-89-59
8,900
59,43
40,000
12
B-40D-89-48
8,900
48,35
40,000
13
B-40D-76-42
7,600
42,29
40,000
14
B-40D-67-30
6,700
30,23
---API C Series
No.
Type
Polished Rod Capacity (Ib)
Stroke Length (in)
Rated Torque (in.Ibs)
1
C-228D-173-100
17,300
100,86,72
228,000
2
C-228D-173-74
17,300
74,64,54
228,000
3
C-160D-173-86
17,300
86,74,62
160,000
4
C-160D-173-74
17,300
74,64,54
160,000
5
C-160D-143-74
14,300
74,64,54
160,000
6
C-160D-173-764
17,300
64,54,44
160,000
7
C-114D-119-86
11,900
86,72,59
114,000
8
C-114D-143-74
14,300
74,62,51
114,000
9
C-114D-173-64
17,300
64,54,44
114,000
10
C-114D-143-64
14,300
64,52,40
114,000
11
C-114D-133-54
13,300
54,45,36
114,000
12
C-80D-119-64
11,900
64,53,42
80,000
13
C-80D-133-54
13,300
54,45,36
80,000
14
C-80D-119-54
11,900
54,45,36
80,000
15
C-80D-133-48
13,300
48,40,32
80,000
16
C-80D-109-48
10,900
48,37,25
80,000
17
C-57D-76-54
7,600
54,41,28
57,000
18
C-57D-109-48
10,900
48,37,25
57,000
19
C-57D-95-48
9,500
48,37,25
57,000
20
C-57D-89-42
8,900
42,33,23
57,000
21
C-57D-76-42
7,600
42,33,23
57,000
22
C-40D-76-48
7,600
48,37,27
40,000
23
C-40D-89-42
8,900
42,33,23
40,000
24
C-40D-76-42
7,600
42,33,23
40,000
25
C-40D-89-36
8,900
36,28,20
40,000
Packaging & Shipping

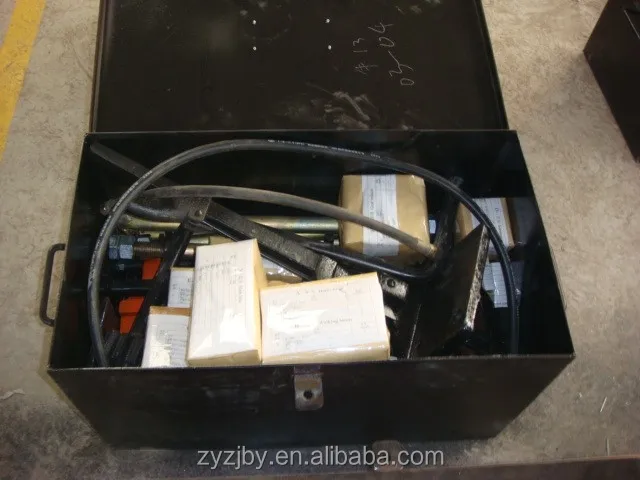

1.The spare parts in iron box,

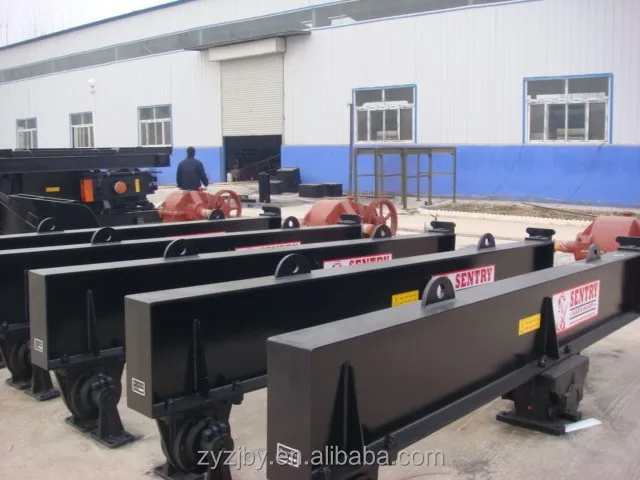

2.The main part will be naked packing in the container
3.Flexible according to the order
Our Services
1. Both design and manufacturing are made in strict accordance with the relevant standards;
2. The whole design and manufacturing process are conducted by stringently adhering to ISO9001 quality system standard;
3. The major parameters of product performance are in compliance with the usage requirements as well as the product design specification and technical standards;
4. The raw materials and purchased parts required for manufacturing are the products designated by client or the national well-known brand products;
5. All the inspection records of the products during the production process are intact and error-free and the demander can check it out anytime;
6. Client can send relevant personnel to supervise us if required;
7. We make sure to provide the client with brand new products with stable performance and reliable quality to satisfy the client’s actual usage requirements.
Company Information
Henan ZYZJ Pump Equipment Co.,Ltd is a professional enterprise of petroleum machinery manufacturing industry, specially in API series pumping unit, subsurface sucker rod pump, wellhead device, down hole tools, fittings and spare parts like polished rod and clamp, tubing pup joint &pony rod, crossover, centralizer, stuffing box and sinker bar ,etc of all common types in the industry.
Our company had been once a key workshop of state-owned backbone enterprise of petroleum manufacturing industry founded in 1978 and with a rapid tech and market development and strict-quality control, it officially grew up to Henan ZYZJ Pump Equipment Co.,Ltd. in 2006.
Our company has passed ISO9001 quality management system and gained the membership of API. Our leading products are authorized with API 11AX, API 11E, API 5CT&5B, API 11B.And quite more patented products are developed.
