Fully Automatic Glazed Donut Making Machine for Large Industry

Product Overview

Description

  Fully Automatic Glazed Donut Making Machine for Large Industry



Our DPL series Fully Automatic Donut Making Machine is used to produce glazed donuts with minimal manual input and maximum output. Donuts are automatically cut directly by extruder onto the proofing trays. The trays are then automatically carried through the electronically controlled proofer. Then the proofed donuts are sent to the fryer. The proofer are at a speed synchronized to the fryer, glazer and cooling conveyor, ensuring high quality of each bread donut.



Specification:



Power	38kW
Voltage and Frequency	3PH, 380V, 50Hz / 3PH,220V,60HZ
Diameter of Donut	85mm(external), 35mm(internal)
Donut Extruder	Pressure cutting
Capacity	1200-9600Pcs/hour
Length of Fryer	1400-2200mm
Dimension(L*W*H)	7800*1200*2200mm



Advantage:



1. Stainless steel cover and foodgrade material ss304 for touch donut parts,
2. High efficiency,
3. With proofer,fryer,glazer,cooling conveyer,
4. Fit to produce bread donut and cake donut type.







Make-up and forming • cutting • Proofing • Injection • Glazing • Decorating

Fryer • Gas or electric models • microcomputer temperature    and frying time controller • Variable speed conveyor drive •  Minimal maintenance • PLC control • Energy efficient

Cooling & freezing •Integrated or additional • Ambient or refrigerated cooling

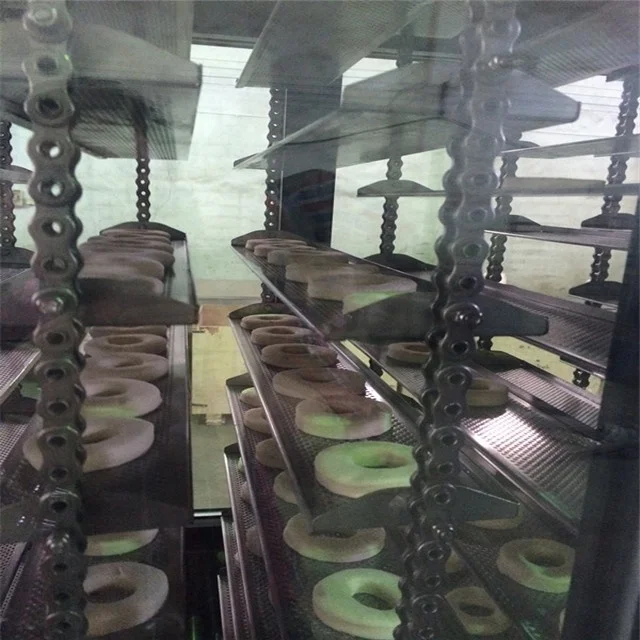

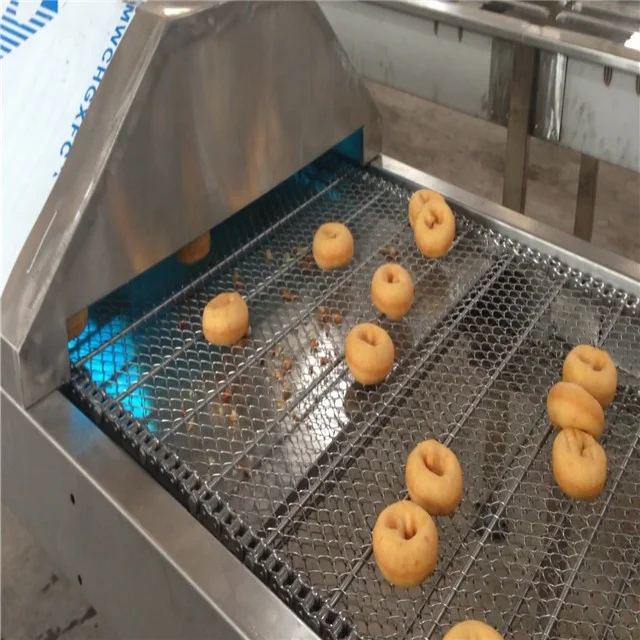

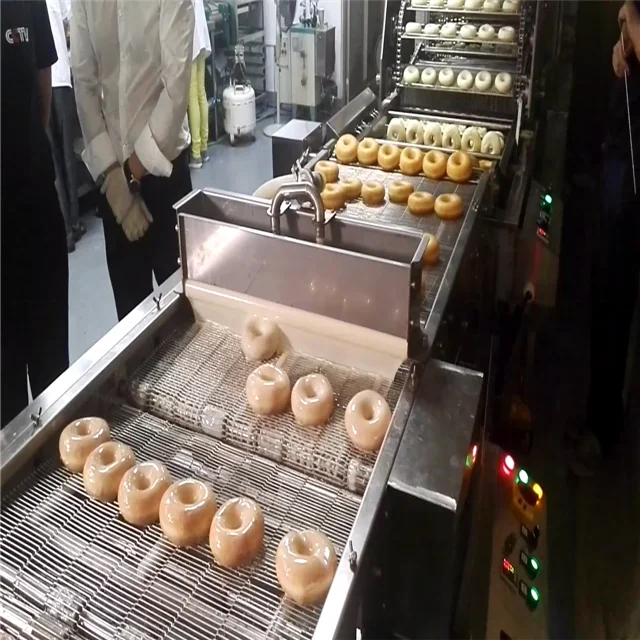

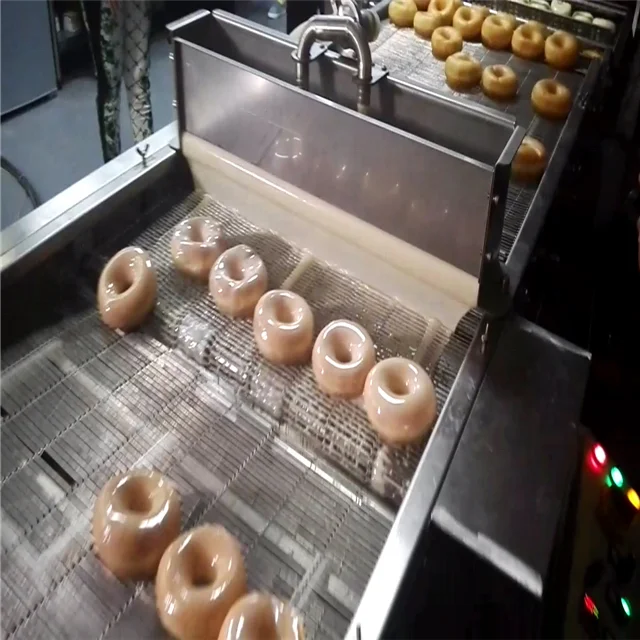

Glazed Donut Making Machine Pictures:























Business benefits:



1. Exhibition-style / Industrial production.

2. Exact quality control.

3. Variable speed meets your output needs.
4. Meet your space requirements: choose from straight-line U shaped, 45°, 90°, 180° configurations.





Outside Packaging is Standard Export Plywood, Inner Packaging is Stretch Film.











Shantou Yufeng Machinery Co., Ltd. is a leading manufacturer specializing in the research, design, production and distribution of all kinds of bakery equipments in China. We serve the world by providing high-quality, durable and cost effective food service equipments. Our products have good sales and reputation in domestic market, as well as Asia, the Middle East, Africa, Oceania and South America.
